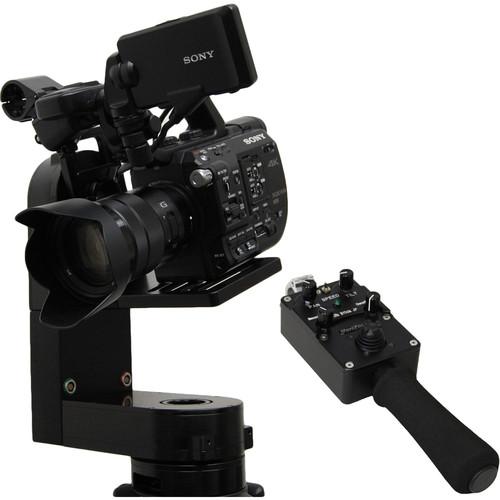

User Manual for VariZoom CP Micro Remote Head with Jibstick Jr Controller Click to enlarge the picture
Contents of the user manual for the VariZoom CP Micro Remote Head with
- Product category: Motorized Pan/Tilt Heads VariZoom
- Brand: VariZoom
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for VariZoom Motorized Pan/Tilt Heads
|
User manual for the VariZoom CP Micro Remote Head with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any VariZoom product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official VariZoom user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a VariZoom product will considerably shorten its lifespan!
|
Product description - New VariZoom Cinema Pro Micro head upgrade kit for Porta jib, Jimmy Jib, EZFX
The CP Micro Remote Head with Jibstick Jr Controller from VariZoom is compatible with the Canon C100/C300, Sony FS5, Sony a7R II, RED RAVEN, DSLRs, and other compact cameras under 12 lb. It has a 100mm ball mount, and works with CinemaPro control devices including pan bars, hand wheels, advanced console, River multi-head 28-axis console, Jibstick Pro, and the included Jibstick Jr. This remote head features a thumb joystick and cable pass-through ports on both pan and tilt rotators. It also features an easily adjustable single-lock camera platform, and LEMO connectors for power and control. - Dynamic speed control (up to 130°/second)
- Maintenance-free, high-power drivetrain holds camera position
- Cable pass-through ports on pan and tilt rotators
- Native frame-accurate motion control capability
- Programmable soft limits to restrict the range of head motion and mark start/stop positions
- Independent speed and direction controls
- Features smoothing adjustment
- Easily adjustable single-lock camera platform
- Flexible mounting base allows you to change the mount without special tools
- LEMO connectors for power and control
UPC: 877038007352 In the Box VariZoom CP Micro Remote Head with Jibstick Jr Controller (100mm Mount) Jibstick Jr Controller AC Power Supply with 25' Cable 25' Control Cable 100mm Ball Mount Hard Carrying Case Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the VariZoom CP Micro Remote Head with Jibstick Jr Controller in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVariZoom CP Micro Specs | Pan/Tilt Speed | 130°/sec | | Clearance | Camera Clearance:
Vertical: 7" (17.8 cm) from center of camera plate to base
Horizontal: 8.3 to 10.5" (21 to 26.7 cm)
With 3" Head Extension:
Vertical: 10" (25.4 cm)
Horizontal: 11.3 to 13.5" (28.7 to 34.3 cm) | | Mount Type | 100 mm ball | | Maximum Camera Weight | 12 lb (5.4 kg) | | Cable Extension Length | 300' (91.4 m) | | Power Requirements | 24 VDC regulated, 4 A maximum
20 to 30 VDC, absolute min/max | | Dimensions | 13 x 4 x 6" (33.0 x 10.2 x 15.2 cm) | | Weight | 7 lb (3.2 kg) |
