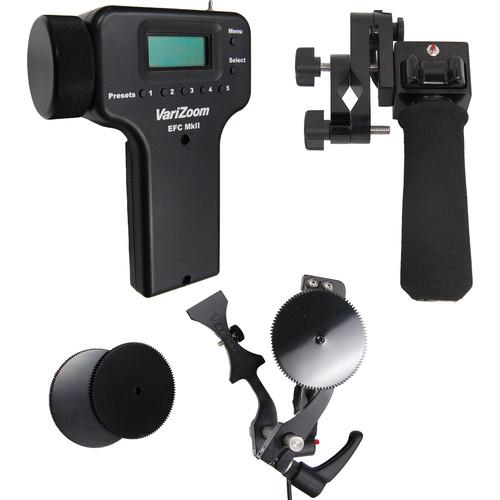

User Manual for VariZoom Deluxe Zoom Controller and Electronic Focus Controller Bundle for Canon ENG-Style Lenses Click to enlarge the picture
Contents of the user manual for the VariZoom Deluxe Zoom Controller and Electronic
- Product category: Zoom & Focus Controls VariZoom
- Brand: VariZoom
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for VariZoom Zoom & Focus Controls
|
User manual for the VariZoom Deluxe Zoom Controller and Electronic contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any VariZoom product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official VariZoom user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a VariZoom product will considerably shorten its lifespan!
|
Product description This Deluxe Zoom Controller and Electronic Focus Controller Bundle for Canon Lenses from Varizoom is comprised of a deluxe zoom controller and a wired focus controller. The zoom controller mounts onto your pan handle and features an 8-pin connector for connecting to and controlling Canon ENG-style zoom lenses with an 8-pin connector. The grip features a pressure sensitive zoom rocker, manual speed control dial, and REC/Pause button. For those still shooting to tape the RET button functions as expected and will allow you to review the last five seconds of your last shot and cue your tape to avoid timecode breaks.
The focus controller is a wired focus controller with a motor that mounts directly to Canon ENG-style zoom lenses. It comes with three interchangeable drive gears, and the unit features a manual knob for pulling focus/iris. The hand unit also allows you to pre-program five focus positions that you can move to without using the focus knob. - Wired Electronic Focus Control for Canon and Fujinon ENG Lenses VariZoom's Wired Electronic Focus Control for Canon and Fujinon allows you to remotely pull focus with virtually any Canon or Fujinon ENG-style lens. Suitable for use with cameras on various moving camera platforms including remote heads, jib arms, and dollies. It features a focus knob and an LCD info screen for setup and control. It is a powered focus control unit, which can be used for focus, iris, or zoom by directly driving a geared lens ring.
The included interchangeable motor drive gears are compatible with Canon and Fujinon focus gears, and a third gear can be used when you want to pull the iris. The unit requires manual calibration, and this allows you to set five programmable focus points to rapidly change focus between five points bypassing the focus knob. The motor comes with an adjustable bracket that mounts directly to your lens, so you don't need to use a support rod set up. - This wired controller features a built-in focus wheel and LCD readout screen.
- Designed to work with Canon and Fujinon ENG-style lenses, the motor bracket attaches to your lens, obviating the need for a rod support system. The lens attachment bracket incorporates a reversible component allowing you to attach the bracket to small or large lenses.
- An optional AC to DC power supply is available from VariZoom. Do not power the unit from a battery and power supply simultaneously as this may result in damage to your unit.
UPC: 877038007697 - VZPGC Deluxe Zoom Controller The Varizoom VZ-PG-C is a pistol-grip style zoom controller built specifically for Canon's line of professional lenses. The unit is compatible with most models and fits easily onto almost any tripod handle, jib or support bar. Machined from high-grade aluminum, the PG-C is designed to be both lightweight and extremely durable. Features include a pressure sensitive zoom rocker and speed dial limiter.
- Video Return Function
- The video return function lets users to play back the last 5 seconds of recorded material, allowing the tape to cue to the last recorded frame. This ensures no timecode errors, making sure footage is never lost or recorded over.
UPC: 877038000544 In the Box Bundle Items Wired Electronic Focus Control for Canon and Fujinon ENG Lenses dwrsuxefur - Canon BP-915 Battery and Charger
- 0.5 MOD Drive Gear (Canon)
- 0.6 MOD Drive Gear (Fujinon)
VZPGC Deluxe Zoom Controller dwrsuxefur - 2-Year Parts and Labor Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the VariZoom Deluxe Zoom Controller and Electronic Focus Controller Bundle for Canon ENG-Style Lenses in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Wired Electronic Focus Control for Canon and Fujinon ENG Lenses
| Cable Connection | 3.5mm stereo mini-jack | | Maximum Cable Length | 50.0' / 15.2 m | | Mounting | Hand Unit Up to 1.1" / 2.8 cm diameter rod | | Power | Voltage Range: 6 to 10 VDC (pin positive) Battery: BP-915-type (compatible with BP-930/BP-945-type) | | Focus Wheel Diameter | Focus Wheel Diameter: 2.0" / 5.1 cm Hand Unit: 6.3 x 4.0 x 2.0" / 15.9 x 10.2 x 5.1 cm | | Weight | Without Battery: 14.0 oz / 396.9 g | | | | Box Dimensions (LxWxH) | 10.4 x 6.5 x 6.2" | - VZPGC Deluxe Zoom Controller
| Material | Aluminum | | Dimensions (LxW) | 6.5 x 2.4" (16.5 x 6.1 cm) | | Weight | 1 lb (0.5 kg) | | | | Box Dimensions (LxWxH) | 9.15 x 6.95 x 4.85" |
