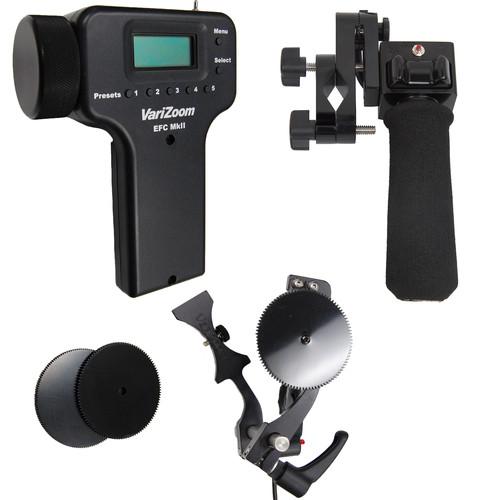

User Manual for VariZoom Deluxe Zoom Controller and Electronic Focus Controller Bundle for Fujinon ENG-Style Lenses

• Product category: Zoom & Focus Controls VariZoom
• Brand: VariZoom
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for VariZoom Zoom & Focus Controls

Product description

• Wired Electronic Focus Control for Canon and Fujinon ENG Lenses VariZoom's Wired Electronic Focus Control for Canon and Fujinon allows you to remotely pull focus with virtually any Canon or Fujinon ENG-style lens. Suitable for use with cameras on various moving camera platforms including remote heads, jib arms, and dollies. It features a focus knob and an LCD info screen for setup and control. It is a powered focus control unit, which can be used for focus, iris, or zoom by directly driving a geared lens ring.

  The included interchangeable motor drive gears are compatible with Canon and Fujinon focus gears, and a third gear can be used when you want to pull the iris. The unit requires manual calibration, and this allows you to set five programmable focus points to rapidly change focus between five points bypassing the focus knob. The motor comes with an adjustable bracket that mounts directly to your lens, so you don't need to use a support rod set up.
  • This wired controller features a built-in focus wheel and LCD readout screen.
  • Designed to work with Canon and Fujinon ENG-style lenses, the motor bracket attaches to your lens, obviating the need for a rod support system. The lens attachment bracket incorporates a reversible component allowing you to attach the bracket to small or large lenses.
  • An optional AC to DC power supply is available from VariZoom. Do not power the unit from a battery and power supply simultaneously as this may result in damage to your unit.
  UPC: 877038007697
• VZPGF Deluxe Zoom Controller The Varizoom VZ-PG-F is a pistol-grip style zoom controller built specifically for Fujinon's line of 8-pin professional lenses. The unit is compatible with most models and fits easily onto almost any tripod handle, jib or support bar. Machined from high-grade aluminum, the VZ-PG-F is designed to be both lightweight and extremely durable. Features include a pressure sensitive zoom rocker and speed dial limiter.
  Video Return Function
  • The video return function lets users to play back the last 5 seconds of recorded material, allowing the tape to cue to the last recorded frame. This ensures no timecode errors, making sure footage is never lost or recorded over.
  UPC: 877038000551

• Motor Bracket

• Canon BP-915 Battery and Charger

• 20' Extension Cable

• 0.5 MOD Drive Gear (Canon)

• 0.6 MOD Drive Gear (Fujinon)

• Iris Drive Gear (64DP)

• Carry Pouch

• Limited 2-Year Warranty

• 2-Year Parts and Labor Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Wired Electronic Focus Control for Canon and Fujinon ENG Lenses

  Cable Connection	3.5mm stereo mini-jack
  Maximum Cable Length	50.0' / 15.2 m
  Mounting	Hand Unit Up to 1.1" / 2.8 cm diameter rod
  Power	Voltage Range: 6 to 10 VDC (pin positive) Battery: BP-915-type (compatible with BP-930/BP-945-type)
  Focus Wheel Diameter	Focus Wheel Diameter: 2.0" / 5.1 cm Hand Unit: 6.3 x 4.0 x 2.0" / 15.9 x 10.2 x 5.1 cm
  Weight	Without Battery: 14.0 oz / 396.9 g

  Box Dimensions (LxWxH)	10.4 x 6.5 x 6.2"

• VZPGF Deluxe Zoom Controller

  Material	Aluminum
  Dimensions (LxW)	6.5 x 2.4" (16.5 x 6.1 cm)
  Weight	1 lb (0.5 kg)

  Box Dimensions (LxWxH)	9.1 x 7.15 x 4.9"
