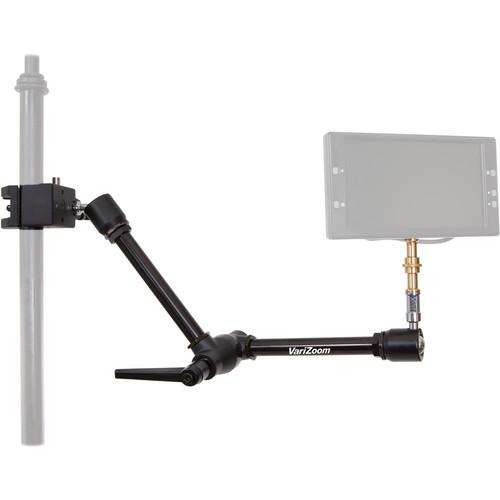

User Manual for VariZoom Heavy-Duty Articulated Arm Click to enlarge the picture
Contents of the user manual for the VariZoom Heavy-Duty Articulated Arm
- Product category: Articulating Arms VariZoom
- Brand: VariZoom
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for VariZoom Articulating Arms
 |
User manual for the VariZoom Heavy-Duty Articulated Arm contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any VariZoom product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official VariZoom user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a VariZoom product will considerably shorten its lifespan!
|

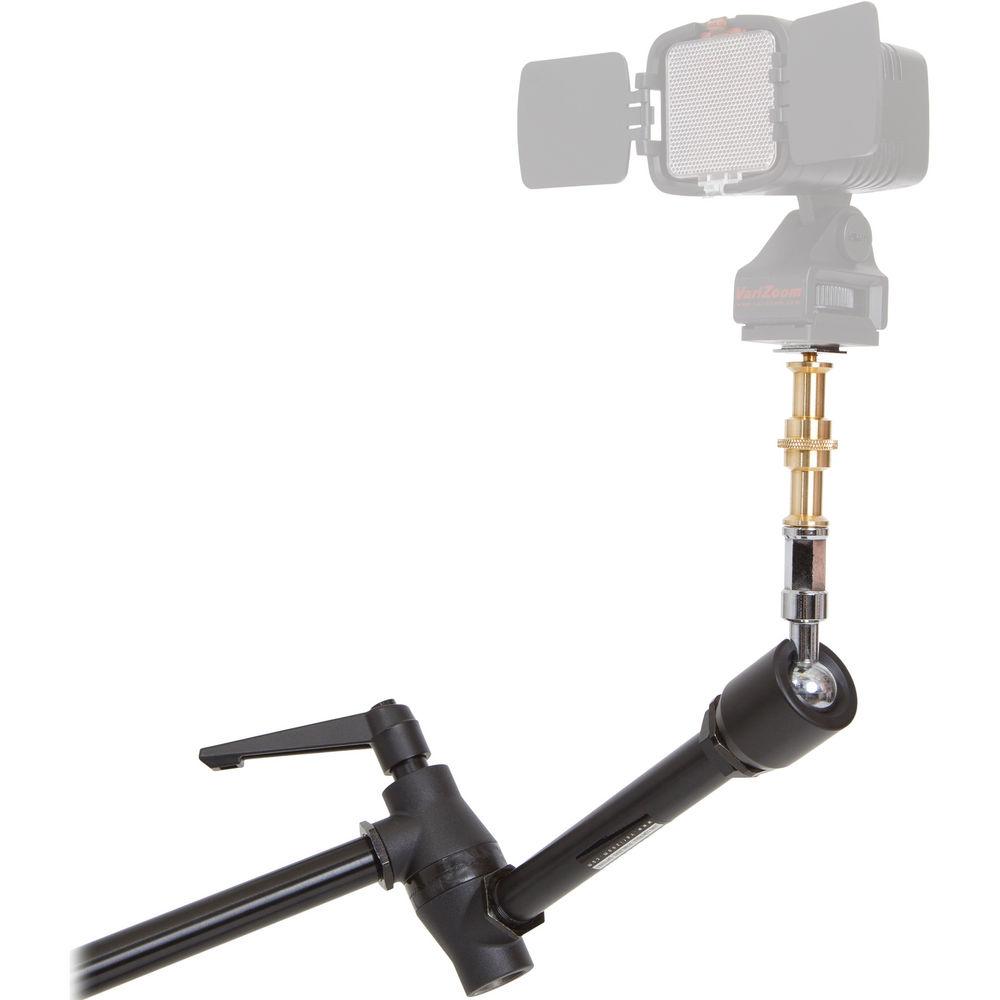

Product description The VariZoom Heavy-Duty Articulated Arm is designed to mount camera accessories such as monitors, small lights, and microphones to flat or rounded surfaces. When folded it measures 9.5" long and has an 8 lb capacity, and when fully extended it measures 26" with a 5 lb weight capacity. - Holds monitors, lights, microphones, and other accessories weighing up to 5 lb
- Adjustable to virtually any angle
- Single locking mechanism that loosens all three joints with a single lever
- Features a reversible 1/4"-20 to 3/8"-16 brass mounting stud
- Universal clamp for mounting to bars or flat surfaces

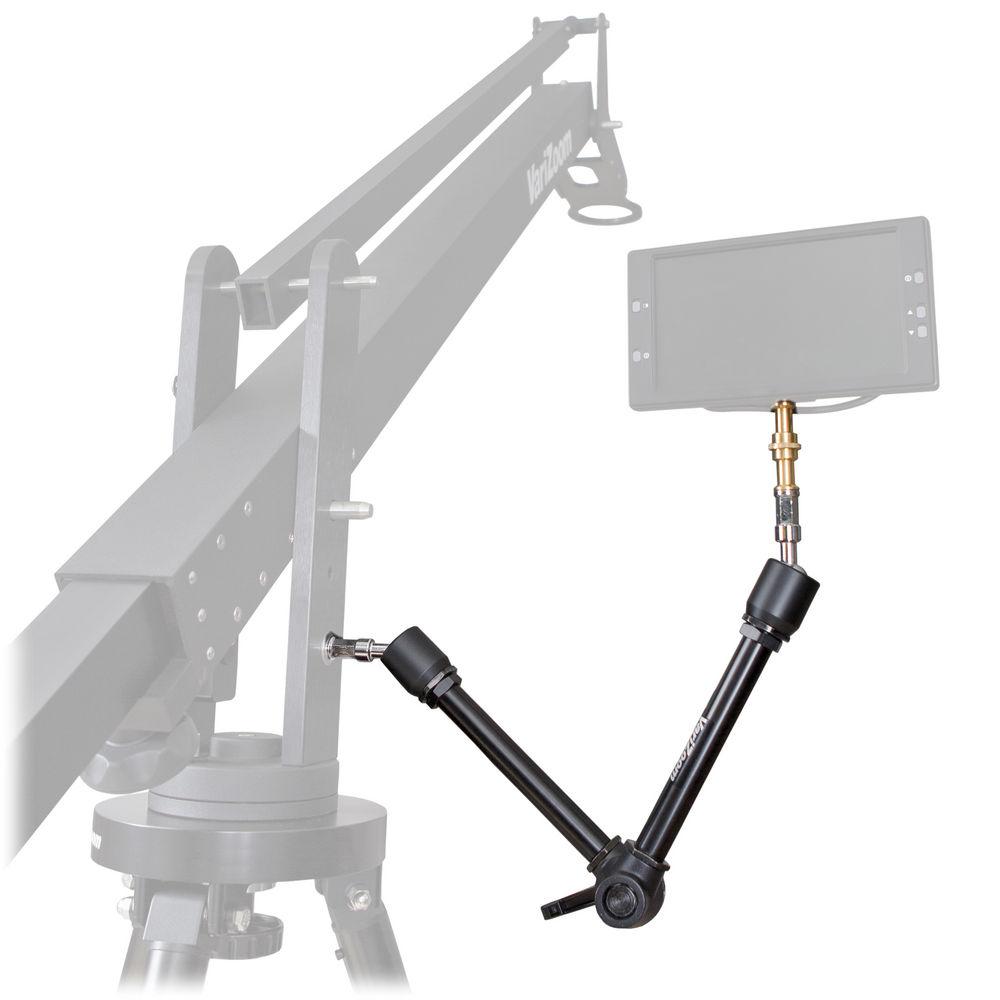

- Internally threaded end sockets for directly mounting the arm to SnapCrane and QuickJib at the pivot base or any other drilled surface
- Suitable for photo, video, and film applications
UPC: 877038004504 In the Box VariZoom Heavy-Duty Articulated Arm 1/4"-20 & 3/8"-16 Reversible Brass Stud 1/4"-20 Stud with Large OD Washer 3/8"-16 Stud with Large OD Washer Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the VariZoom Heavy-Duty Articulated Arm in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVariZoom VZ-HD-ARM Specs | Threaded Holes | Arm End: 1/4"-20 and 3/8"-16
Universal Clamp End: 10-32 & 1/4"-20 | | Clamping Range | Round Surfaces: 0.50 to 2.17" (12.7 to 55.11 mm)
Flat Surfaces: 0.20 to 1.25" (5.08 to 31.75 mm) | | Arm Extended Dimensions | 26.0 x 6.0 x 3.0" (66.0 x 15.2 x 7.6 cm) | | Arm Folded Dimensions | 9.5 x 6.0 x 3.0" (24.1 x 15.2 x 7.6 cm) | | Weight Capacity | Extended: 5.0 lb (2.3 kg)
Folded Over Center: 8.0 lb (3.6 kg) | | Construction | Aluminum, steel, and brass | | Weight | 3.5 lb (1.6 kg) | | | | Package Weight | 4.1 lb | | Box Dimensions (LxWxH) | 10.2 x 6.6 x 6.3" |
