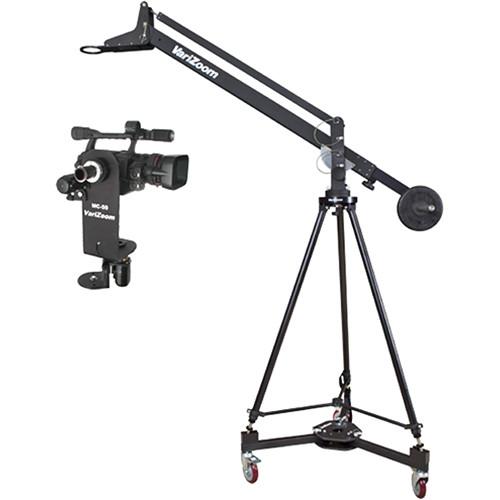

User Manual for VariZoom QuickJib Kit with TCR100 Tripod, DCR100 Dolly & MC50 Motorized Head Click to enlarge the picture
Contents of the user manual for the VariZoom QuickJib Kit with TCR100 Tripod,
- Product category: Cranes & Jibs VariZoom
- Brand: VariZoom
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for VariZoom Cranes & Jibs
 |
User manual for the VariZoom QuickJib Kit with TCR100 Tripod, contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any VariZoom product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official VariZoom user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a VariZoom product will considerably shorten its lifespan!
|

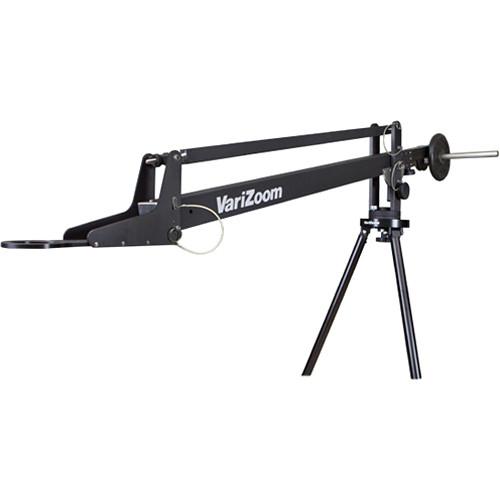

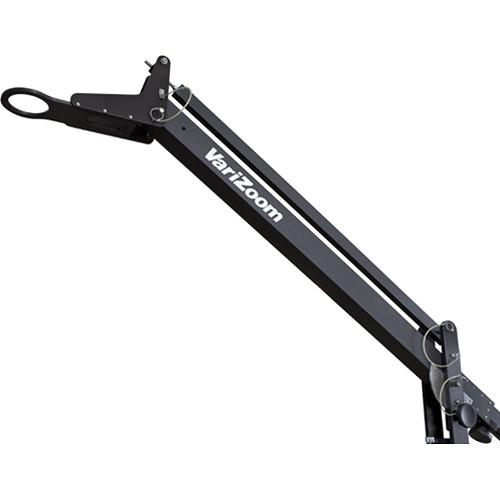

Product description Varicam's QuickJib Kit with TCR100 Tripod, DCR100 Dolly & MC50 Motorized Head is an affordable, high-performance jib kit for cameras weighing up to 50 lbs (22.7kg). This professional, no-tools jib arm system assembles safely and quickly, extending to over 10 feet (or nearly 14 feet with an optional extension). Portable and compact, the QuickJib attaches to the custom TCR100 crane tripod, which fits perfectly into the heavy-duty DC100 adjustable dolly. You're ready to roam! And with the MC50 motorized pan/tilt head, you can direct camera movement with the most minute remote control touch. The perfect combo of quality and economy, this QuickJib system will provide years of reliable operation, whether indoors, outside, or in the studio. - Jib Arm
- The QuickJib selectively uses industrial powder coating and anodizing for optimal component performance, with stainless steel fasteners throughout (as opposed to lesser, cheaper zinc-plated fasteners). The slim QuickJib outperforms the competition by having 50% less air resistance in breezy conditions than jibs utilizing a four-arm support system.
- Brake System
- Brake system utilizes a heavy-duty plate that is securely mounted to the pivot section. Brake compression system is built into a stator and designed to compress firmly and securely, while remaining forgiving enough to slide under extreme force that might otherwise topple a locking-brake jib system.

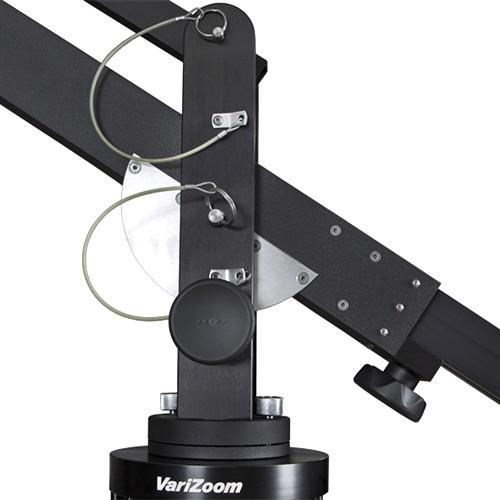

- Locking Pins
- Locking stainless aircraft pins of the highest quality and strength are used at the pivot points, and they are attached by lanyard to prevent them from ever being lost.

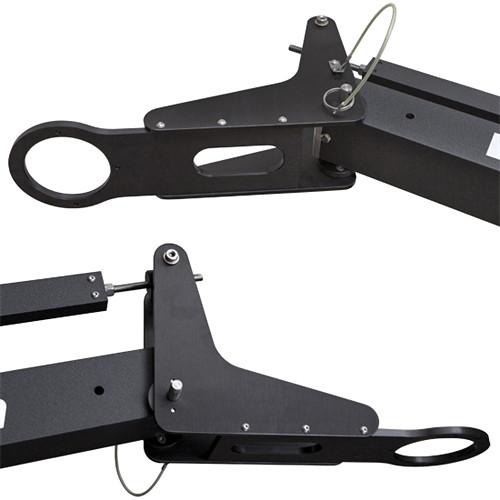

- Tilting Mechanisms
- Camera platform and tilt base join to the jib arm with stainless aircraft pins that insert through sealed radial ball bearings at the tilt base and high-performance sleeve bearings at the camera platform, resulting in silent, smooth motion. The camera platform also has a built-in spirit level for quick reference and adjustment. Paired with an optional Zero Gravity head, you have a professional manual overhead jib.
- Telescoping Counterweight Section
- Telescoping weight arm adjusts up to 3 feet for tremendous flexibility. Extend the arm to reduce the amount of weight needed, shorten it to work in tighter spaces, or simply adjust it to fine-tune the counterbalance.

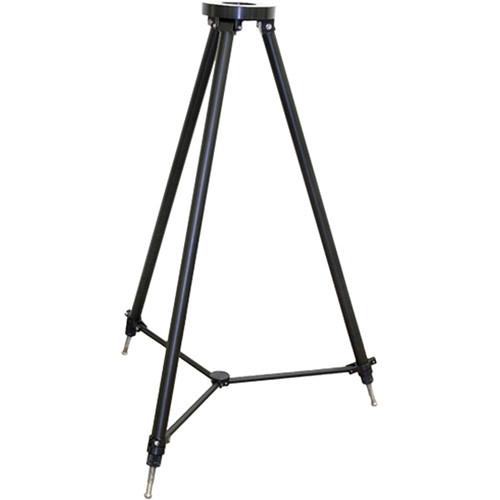

- TCR100 Crane Tripod
- This custom-built crane tripod is the only tripod Varizoom recommends for use with any crane, no matter the brand. We recommend you never use a telescoping or collapsible tripod under a crane, no matter how small. When supporting an expensive camera on a jib elevated above other valuable equipment or people, it's simply common sense to eliminate all risk and use a single-section tripod instead of a telescoping one.The TCR100 was designed with safety and strength in mind, combining a solid machined base-plate (not molded), specialty heavy-gauge tubing, and oversize leveling feet for an ultra-stable design that will never falter or fail. With anodized aluminum, stainless steel fasteners and solid brass bushings, the TCR100 will last a lifetime.

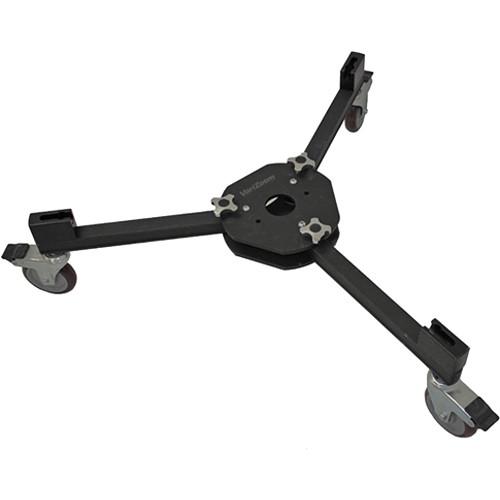

- DCR100 Dolly
- Varizoom's heavy-duty dolly has an ample spread and a positive leg-locking system that securely captures the TCR100 crane tripod.
- MC50 Motorized Head
- Total remote camera operation becomes possible with the MC50 system. Designed for mini DV/HD and other small cameras under 12 lbs, the MC50 utilizes the same rugged and field-tested electronics and controls that have made the MC100 so popular for years. Whether it is mounted on a jib or crane, placed on a tripod as a 'robotic cameraman', or in a fixed location in an auditorium or church, you will have full capability to pan and tilt from the slowest sustained crawl to the rapid moves needed to follow the action. No jib is complete without a motorized pan/tilt head, and the MC50's lightweight, universal mounting base and intuitive, compact control box make it a breeze to set up and operate.

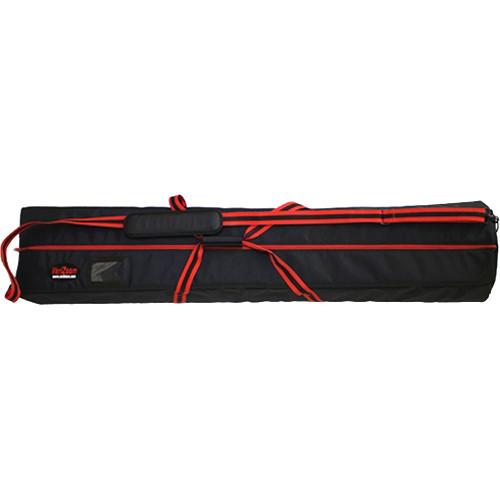

UPC: 877038008250 In the Box VariZoom QuickJib Kit with TCR100 Tripod, DCR100 Dolly & MC50 Motorized Head VZ-TCR100 Aluminum Crane Tripod for SnapCrane zyxeyeeveuswcdvxasayuxza VZ-D100 Heavy Duty Dolly for Jibs VZ-MC50 Pan and Tilt Head System Crane Case 2 Year Parts & Labor Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the VariZoom QuickJib Kit with TCR100 Tripod, DCR100 Dolly & MC50 Motorized Head in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVariZoom QuickJibKit-50 Specs | Construction | Anodized Aluminum | | Payload Capacity | 50 lbs (22.7kg) | | Counterbalance System | Standard barbell weights (not included) | | Height Range | 5' - 10'2" (1.52 - 3.1m) | | Tilt Lock | Yes | | Tilt Drag | No | | Pan Lock | Yes | | Spring Loaded Counter Balance | No | | Pan Range | 360° | | Tripod Attachment | Not specified by manufacturer | | Head Attachment | Not specified by manufacturer | | Head Arm Leveling | Not specified by manufacturer | | Leveling Indicators | Built-in Spirit Level | | Fold Down | 56" (142cm) | | Weight | 26.7 lbs (12.1kg) | | | | Package Weight | 103.0 lb | | Box Dimensions (LxWxH) | 0.01 x 0.01 x 0.01" |
