Product description

  • Product Demo

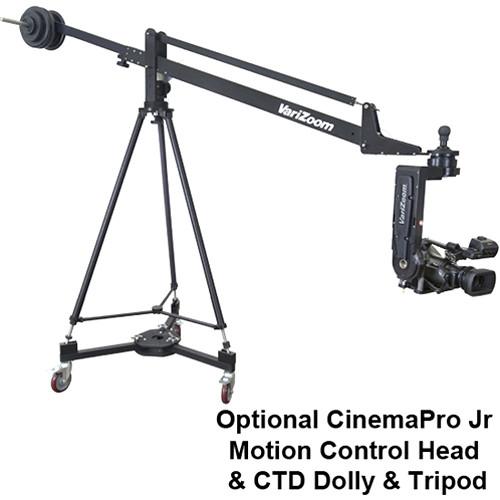

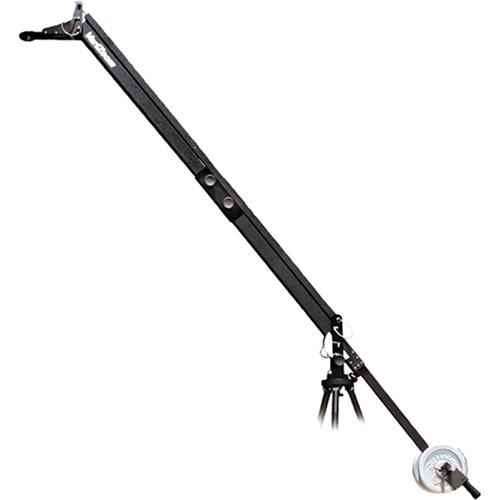

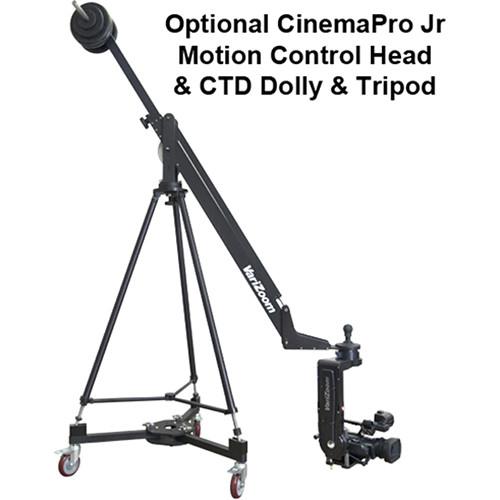

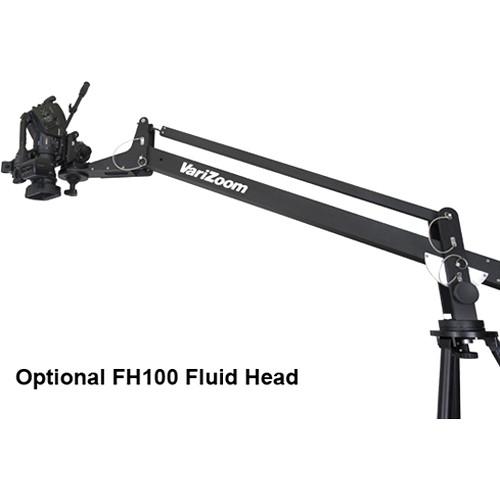

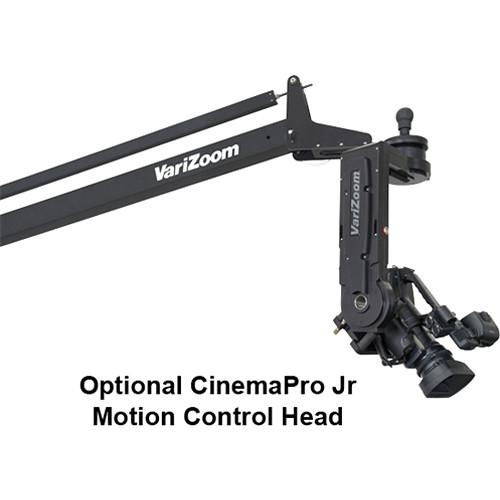

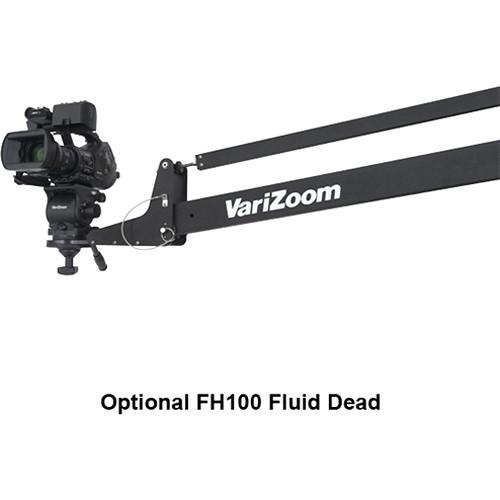

The VariZoom QuickJib with Extension gives you extra reach over the standard QuickJib setup, extending up to nearly 14 feet. The extension kit attaches easily using a no-tools Captive Clamp Joint system that assures a rock-solid fit--delivering an affordable, high-performance jib for cameras weighing up to 30 lbs (13.6kg). The QuickJib can be fully secured on a 100mm bowl tripod. Sturdy, high-capacity tripods are recommended with the legs contracted. A 100mm bowl adapter plate is included for attaching a tripod head or other 100mm ball device on the camera platform. It is strictly limited to 100mm ball devices and will not support 75mm ball devices (they'll fall right through).
    Jib Arm
  • The QuickJib selectively uses industrial powder coating and anodizing for optimal component performance, with stainless steel fasteners throughout (as opposed to lesser, cheaper zinc-plated fasteners). The slim QuickJib outperforms the competition by having 50% less air resistance in breezy conditions than jibs utilizing a four-arm support system.
    Quick Extension
  • Additionally, our quick extension kit attaches in minutes with absolutely no tools, as opposed to more cumbersome systems that require multiple tools and bolts to attach their extensions. The extension kit mates to the standard QuickJib with our Captive Clamp Joint system, which uses two ergonomic, high-torque hand knobs to compress the captive clamps, assuring the joint is rock solid.

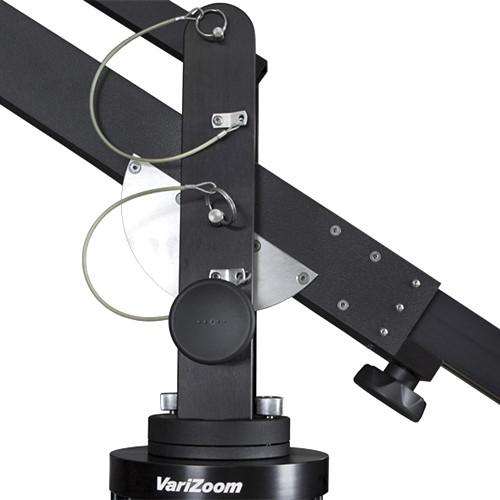

    Brake System
  • Brake system utilizes a heavy-duty plate that is securely mounted to the pivot section. Brake compression system is built into a stator and designed to compress firmly and securely, while remaining forgiving enough to slide under extreme force that might otherwise topple a locking-brake jib system.
    Locking Pins
  • Locking stainless aircraft pins of the highest quality and strength are used at the pivot points, and they are attached by lanyard to prevent them from ever being lost.

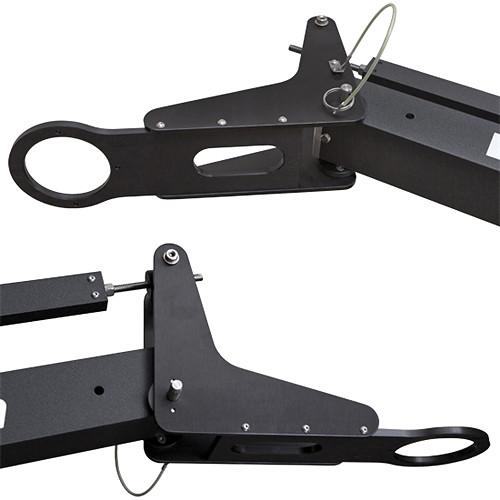

    Tilting Mechanisms

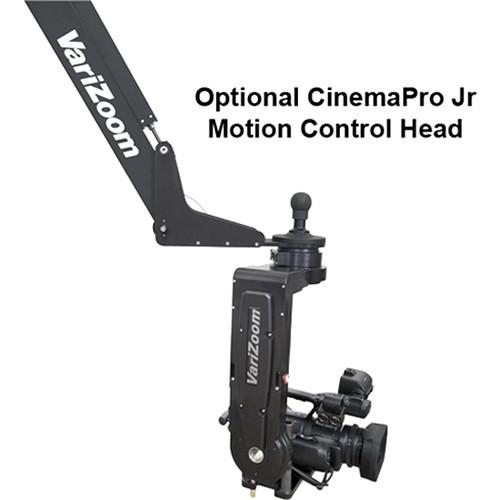

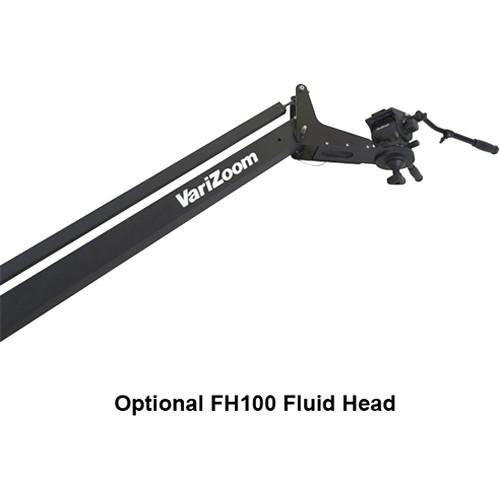

  • Camera platform and tilt base join to the jib arm with stainless aircraft pins that insert through sealed radial ball bearings at the tilt base and high-performance sleeve bearings at the camera platform, resulting in silent, smooth motion. The camera platform also has a built-in spirit level for quick reference and adjustment. Paired with an optional Zero Gravity head, you have a professional manual overhead jib.
    Telescoping Counterweight Section
  • Telescoping weight arm adjusts up to 3 feet for tremendous flexibility. Extend the arm to reduce the amount of weight needed, shorten it to work in tighter spaces, or simply adjust it to fine-tune the counterbalance.
UPC: 877038008267 In the Box VariZoom QuickJib with Extension
  • 100mm Bowl Adapter Plate
  • Crane Case
  • 2 Year Parts & Labor Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the VariZoom QuickJib with Extension in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    VariZoom VZQUICKJIB2 Specs

    Construction Anodized Aluminum
    Payload Capacity 30 lbs (13.6kg)
    Counterbalance System Standard barbell weights (not included)
    Height Range 9'6" - 13'9" (2.9 - 4.2m)
    Tilt Lock Yes
    Tilt Drag No
    Pan Lock Yes
    Spring Loaded Counter Balance No
    Pan Range 360°
    Tripod Attachment Compatible with 100 mm bowl tripods
    Head Attachment 100 mm bowl adapter plate included
    Leveling Indicators Built-in Spirit Level
    Fold Down 56" (142cm)
    Weight 47 lbs (21.3kg)
    Package Weight 73.0 lb
    Box Dimensions (LxWxH) 58.0 x 15.5 x 11.0"
