User Manual for VariZoom QuickJib2 Kit with TCR100 Tripod, D100 Dolly, MC100 Motorized Head

• Product category: Cranes & Jibs VariZoom
• Brand: VariZoom
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for VariZoom Cranes & Jibs

Product description

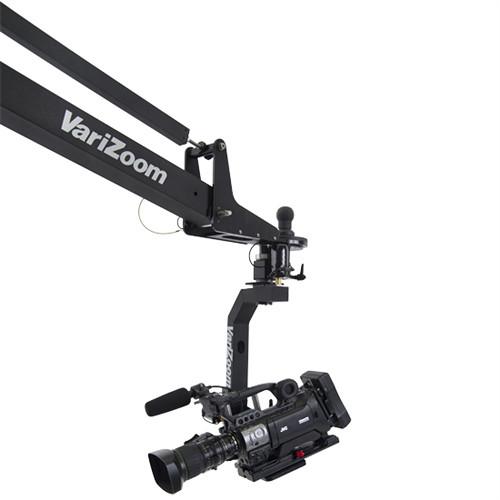

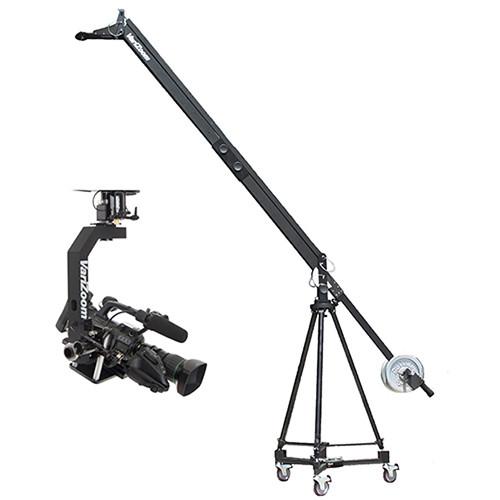

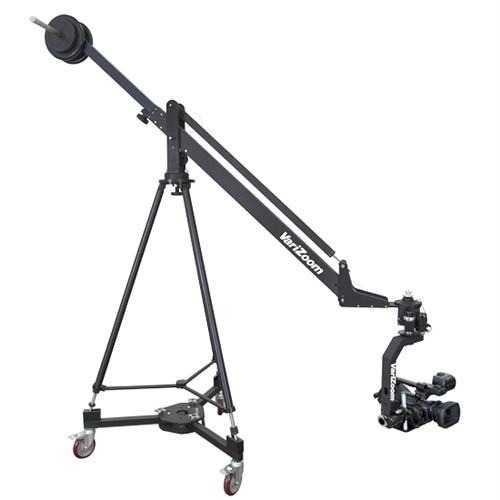

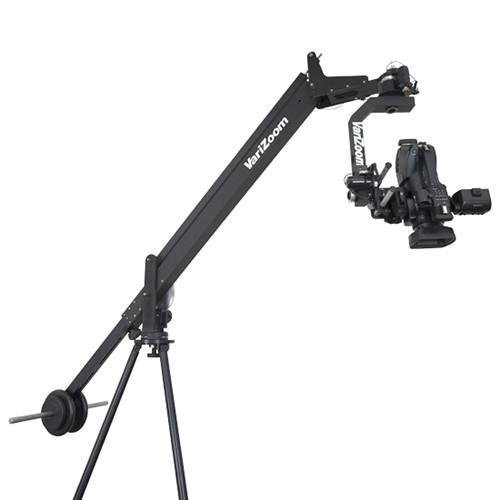

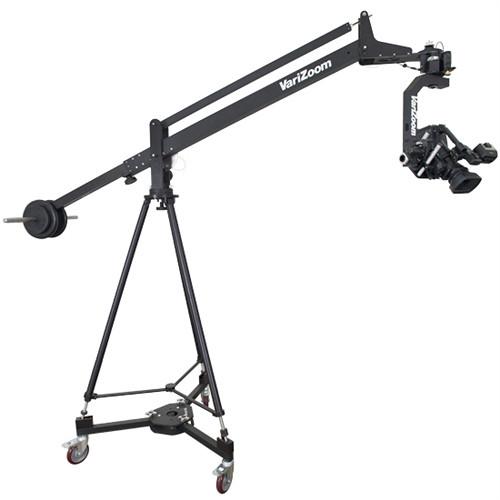

• QuickJib with Extension The VariZoom QuickJib with Extension gives you extra reach over the standard QuickJib setup, extending up to nearly 14 feet. The extension kit attaches easily using a no-tools Captive Clamp Joint system that assures a rock-solid fit--delivering an affordable, high-performance jib for cameras weighing up to 30 lbs (13.6kg). The QuickJib can be fully secured on a 100mm bowl tripod. Sturdy, high-capacity tripods are recommended with the legs contracted. A 100mm bowl adapter plate is included for attaching a tripod head or other 100mm ball device on the camera platform. It is strictly limited to 100mm ball devices and will not support 75mm ball devices (they'll fall right through).
  Jib Arm
  • The QuickJib selectively uses industrial powder coating and anodizing for optimal component performance, with stainless steel fasteners throughout (as opposed to lesser, cheaper zinc-plated fasteners). The slim QuickJib outperforms the competition by having 50% less air resistance in breezy conditions than jibs utilizing a four-arm support system.
  Quick Extension
  • Additionally, our quick extension kit attaches in minutes with absolutely no tools, as opposed to more cumbersome systems that require multiple tools and bolts to attach their extensions. The extension kit mates to the standard QuickJib with our Captive Clamp Joint system, which uses two ergonomic, high-torque hand knobs to compress the captive clamps, assuring the joint is rock solid.
  Brake System
  • Brake system utilizes a heavy-duty plate that is securely mounted to the pivot section. Brake compression system is built into a stator and designed to compress firmly and securely, while remaining forgiving enough to slide under extreme force that might otherwise topple a locking-brake jib system.
  Locking Pins
  • Locking stainless aircraft pins of the highest quality and strength are used at the pivot points, and they are attached by lanyard to prevent them from ever being lost.
  Tilting Mechanisms
  • Camera platform and tilt base join to the jib arm with stainless aircraft pins that insert through sealed radial ball bearings at the tilt base and high-performance sleeve bearings at the camera platform, resulting in silent, smooth motion. The camera platform also has a built-in spirit level for quick reference and adjustment. Paired with an optional Zero Gravity head, you have a professional manual overhead jib.
  Telescoping Counterweight Section
  • Telescoping weight arm adjusts up to 3 feet for tremendous flexibility. Extend the arm to reduce the amount of weight needed, shorten it to work in tighter spaces, or simply adjust it to fine-tune the counterbalance.
  UPC: 877038008267

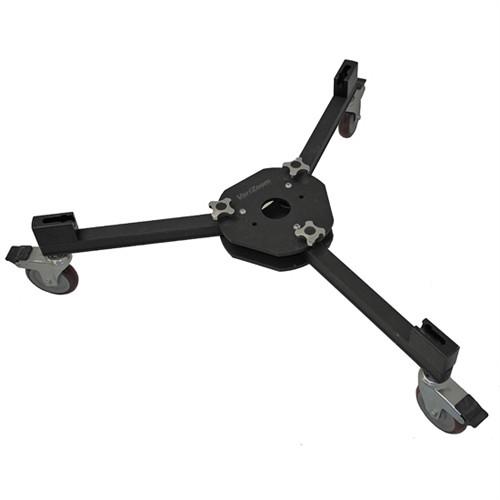

• VZ-D100 Heavy Duty Dolly for Jibs The Varizoom VZ-D100 is a heavy duty dolly for tripods using mid-level spreaders operating on flat surfaces. It features locking wheels, compact folding size and an ability to dolly tripods with cranes, jibs and other large accesories. An included carry bag is for packing your VZ-D100 into for storage or transport.
  Adjustable Leg Clamps
  • These adjustable clamps allow this dolly to match with many tripods with mid-level spreaders.
  Wheels
  • Locking rubber wheels allow for a secure smooth dolly.
  Folding
  • This device folds to a compact size for easy transport.
  UPC: 877038002647

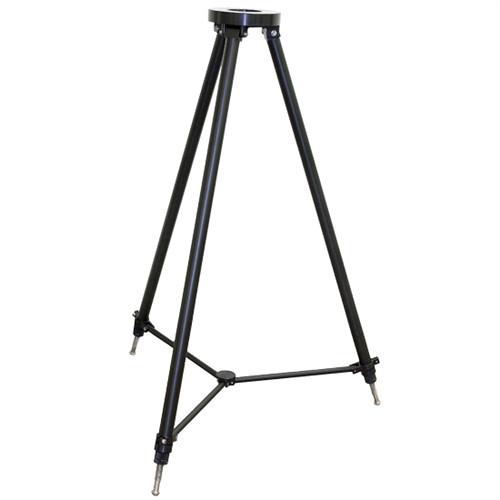

• VZ-TCR100 Aluminum Crane Tripod for SnapCrane VariZoom TCR-100 Aluminum Crane Tripod for the SnapCrane uses special heavy-gauge tubing for the single-section legs and a solid baseplate machined from a block over 2.5" thick. The VariZoom TCR-100 is built to extreme standards of rigidity and durability. The stainless steel leveling feet offer up to 3" of adjustment, while the padded carrying case makes transport comfortable and safe.

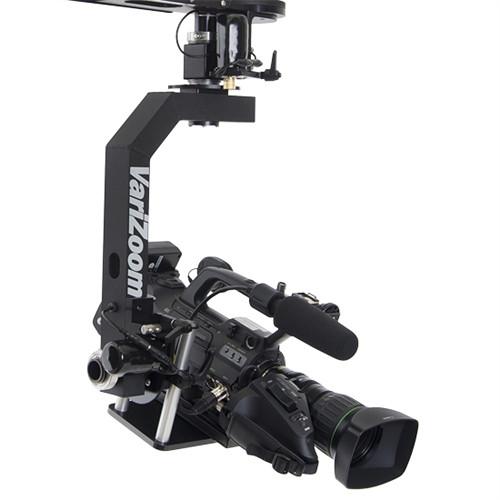

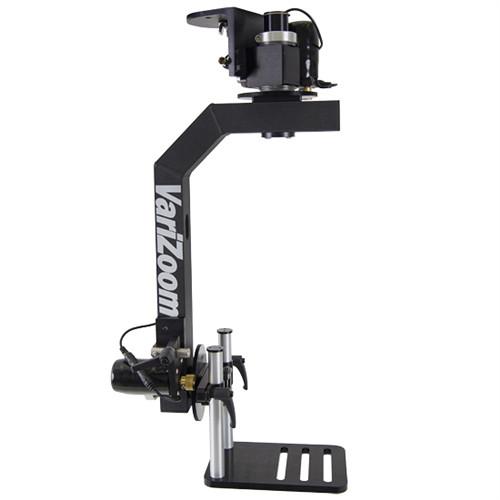

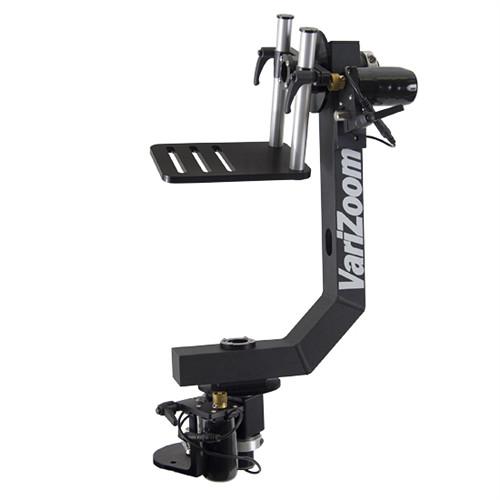

• VZ-MC100 Pan and Tilt Control System The VZ-MC100 Pan and Tilt control system for all camcorders up to 25 lb. VariZoom has created a brand new lightweight and extremely portable remote head, weighing only 8 lb. The VZ-MC series pan and tilt heads allow for remarkably fast set-ups. VariZoom has compacted all of the electronics necessary to drive the precision pan and tilt head into one small control housing, allowing for portability and versatility. Just mount the VZ-MC remote head on a tripod or jib plug into the supplied cord leading to the control handle power up your control handle by battery or with the supplied ac power supply and you're ready to go. Note: We recommend mounting the MC100 on a 100mm bowl-type tripod since it will fit snugly and enable you to thread the supplied bolt through the MC100 mounting plate and down through the bowl of the tripod. Using the supplied oversize washer and nut, you can securely bolt the MC100 onto the tripod bowl. VARIZOOM DOES NOT RECOMMEND MOUNTING THE MC100 ON ANY TRIPOD OTHER THAN A 100 mm BOWL TRIPOD.
  • When used with a VariZoom remote focus and zoom controller you will possess the most powerful acquisition tool. Imagine a complete camera control with smooth pan, tilt, zoom, and focus. It will increase your production values.
  • Beautifully, machined parts with the highest standards of industrial grade, electronic components, VariZoom's machining electronics and quality control are second to none.
  UPC: 877038000506

• 100mm Bowl Adapter Plate

• Crane Case

• 2 Year Parts & Labor Warranty

• Carry Bag

• Limited 1-Year Warranty

• Padded Carrying Case

• 1-Year Manufacturers Parts & Labor Warranty

• Pan & Tilt Head

• Pan & Tilt Control Grip/Box

• 20 feet of Pan & Tilt Motor Cord

• 4-pin XLR Power Supply

• Waterproof, Heavy Duty Hard Carrying Case

• 1-Year Parts and Labor Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• QuickJib with Extension

  Construction	Anodized Aluminum
  Payload Capacity	30 lbs (13.6kg)
  Counterbalance System	Standard barbell weights (not included)
  Height Range	9'6" - 13'9" (2.9 - 4.2m)
  Tilt Lock	Yes
  Tilt Drag	No
  Pan Lock	Yes
  Spring Loaded Counter Balance	No
  Pan Range	360°
  Tripod Attachment	Compatible with 100 mm bowl tripods
  Head Attachment	100 mm bowl adapter plate included
  Leveling Indicators	Built-in Spirit Level
  Fold Down	56" (142cm)
  Weight	47 lbs (21.3kg)

  Box Dimensions (LxWxH)	58.0 x 15.5 x 11.0"

• VZ-D100 Heavy Duty Dolly for Jibs

  Construction	Metal with Rubber Wheels
  Doorway Width	Not Specified by Manufacturer
  Folded Length	Not Specified by Manufacturer
  Wheel Diameter	Not Specified by Manufacturer
  Wheel Lock	Yes
  Cable Guards	Not Specified by Manufacturer
  Weight	10 lbs (4.5kg)

  Box Dimensions (LxWxH)	29.8 x 14.0 x 11.5"

• VZ-TCR100 Aluminum Crane Tripod for SnapCrane

  Length	Folded: 49" (1.24mm)
  Height	Max: 49" (1.24mm) Min: 46" (1.17mm)
  Maximum Load	500 lb (226.79 kg)
  Material	Heavy-duty aluminum w/ stainless steel and brass components
  Weight	16.8 lb (7.62 kg)

• VZ-MC100 Pan and Tilt Control System

  Box Dimensions (LxWxH)	31.5 x 17.5 x 12.4"
