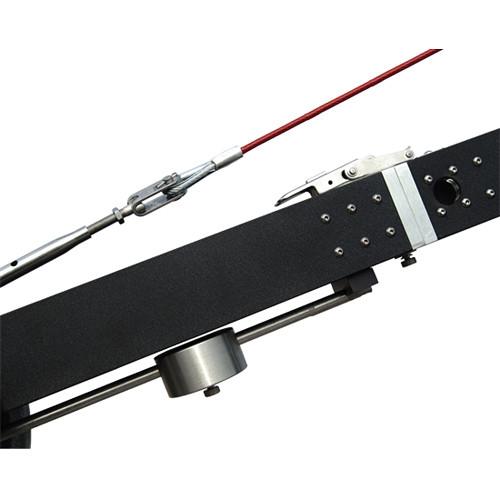

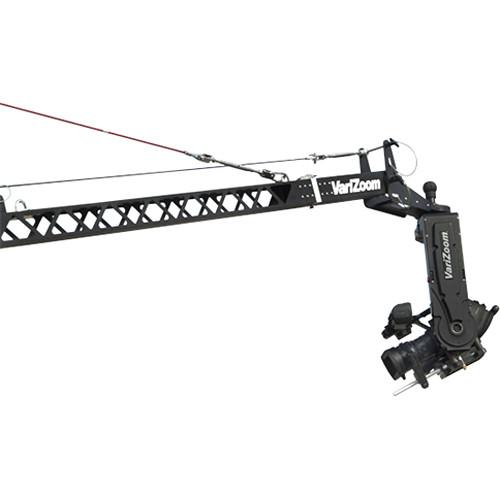

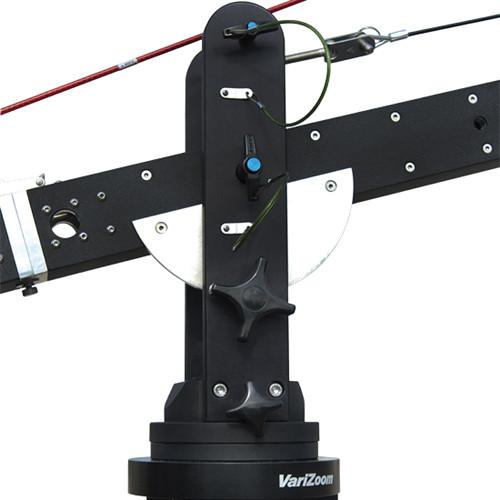

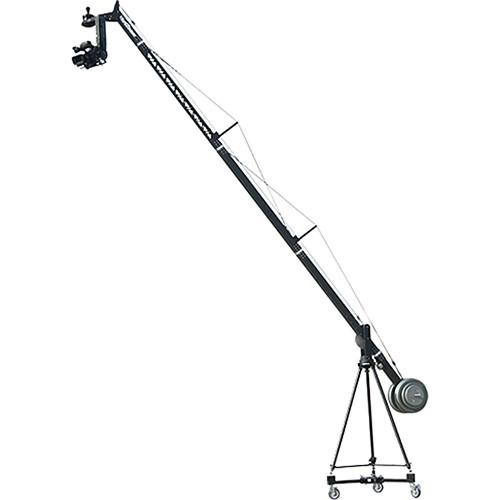

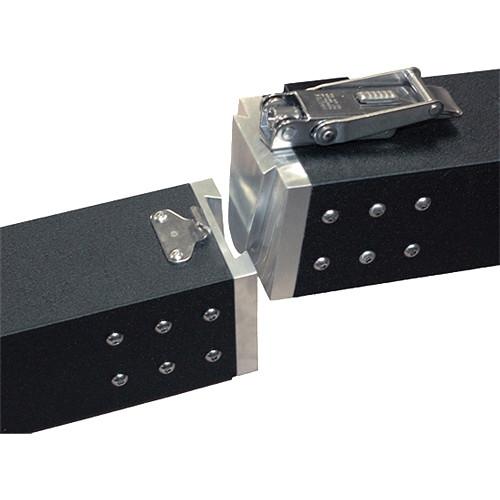

Product description The SnapCrane 16 and CPJR-K5 Remote Head Kit from VariZoom is a crane & remote head kit that combines the SnapCrane 16 and the CPJR-K5 remote head. The SnapCrane-16 is a reinforced, cable-tension, compact modular design allowing four different lengths without requiring the use of tools. The crane comes with a dolly, a tripod, and a carrying case. The CPJR-K5 remote head features a compact video-game type thumb joystick for pan/tilt control, as well as speed, smoothing, deadband, and direction controls. - VZ-SNAPCRANE16 Snapcrane The VariZoom SnapCrane VZ-SNAPCRANE16 is the extended configuration in the SnapCrane camera crane series. It offers 16'6" vertical extension and comes with a tripod, dolly and case.
- Crane
- The SnapCrane is a compact, modular crane design. It offers various configurations for specific applications.
- All Four Set-Ups
- This configuration allows the user to set-up in all four configurations.
- Tripod

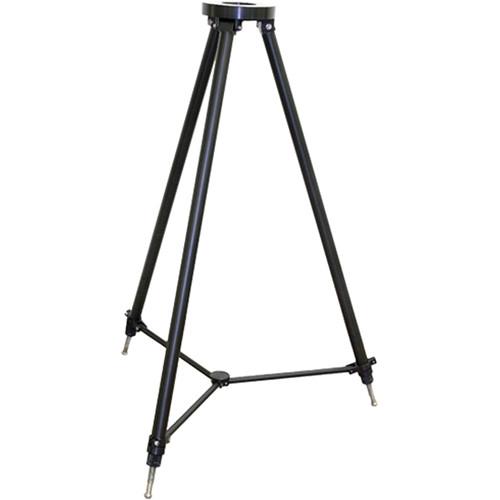

- Utilizing specialty heavy-gauge tubing for the single-section legs and a solid baseplate machined from a block over 2.5" thick, the TC-100 is built to extreme standards of rigidity and durability. The stainless-steel leveling feet offer up to 3" of adjustment, while the padded carrying case makes transport comfortable and safe.
- Dolly
- Accommodating heavy or light tripods with mid level spreaders, this platform is ideal for moving large setups over flat ground. Locking wheels keep your tripod immobile during the shoot. When you are finished filming, this dolly folds down into a compact size for easy transportation to your next location.

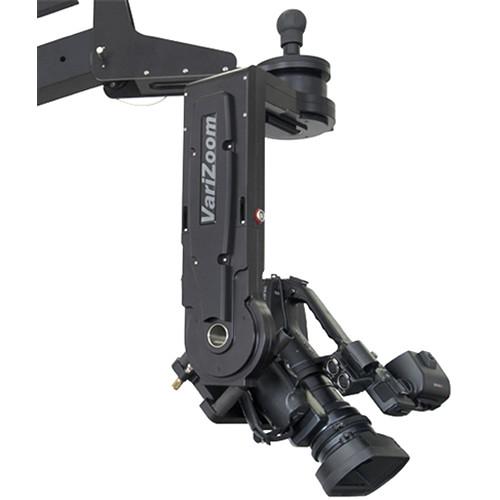

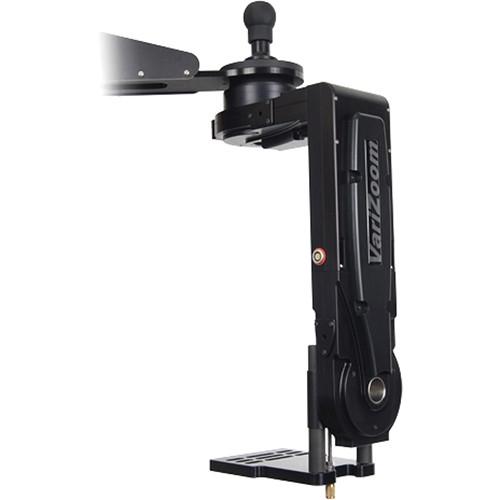

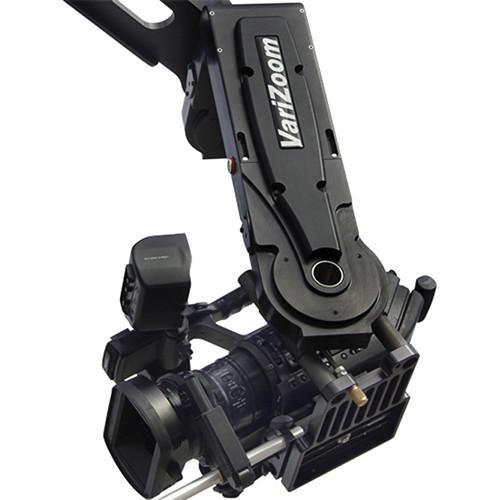

- VZCINEMAPRO-JR-K5 Cinema Pro Jr Remote Head with Jibstick Jr Control Unit The VariZoom VZCINEMAPRO-JR-K5 is a high-performance compact jibstick control kit with a thumb control design. It consists of the Cinema Pro Jr Remote Head and the Jibstick Jr Control Unit, 50' Control Cable, 30' XLR Power Extension, Power Supply, and Case. At only 13 lb, the Cinema Pro Jr Remote Head is suitable for jib and crane applications. It can be set up quickly, and is capable of precise, repeatable movements at any speed. It can also be used as a high speed fixed-mount head or a mobile remote head for small to mid-scale productions. Except for full motion control capability, the Jibstick Jr manual kit has all of the electromechanical performance of other kits. It employs a precision thumb control joystick on a compact handgrip control box, and The Jibstick Jr works beautifully where intuitive manual control is needed, and it can be upgraded later with an advanced console and pan bars or hand wheels. The new Jibstick Jr allows you to reverse direction on pan & tilt independently, adjust speed limits for pan & tilt independently, adjust joystick deadband, and set smoothing control for softer starts and stops. The Cinema Pro Jr is precision-made yet rugged, and incorporates high-end features as precision enclosed drivetrain, and pan slip ring. Cost effective not only for big budget motion pictures, but for worship facilities, sports, concerts, newsrooms, military, government, and other film, video, and HD applications. Made in the USA, the Cinema Pro Jr is constructed from body sections that are CNC-machined from solid billet to exacting standards, with high rigidity and structural integrity. The custom slip rings and robust motor drives are designed and tested intensively to perform flawlessly under demanding conditions, and the electronics and software have years of field testing behind them. Add to all this the assembly and QC done in VariZoom’s state-of-the-art facility, and you've got a high-caliber motion control head.
In the Box Bundle Items VZ-SNAPCRANE16 Snapcrane VZCINEMAPRO-JR-K5 Cinema Pro Jr Remote Head with Jibstick Jr Control Unit xsbuvybsuceytzwutuyr Table of Contents
|
Upload User Manual
Have you got an user manual for the VariZoom SnapCrane 16 and CPJR-K5 Remote Head Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - VZ-SNAPCRANE16 Snapcrane
| Construction | Steel and Aluminum | | Payload Capacity | 30 lbs
13.6kg
On Low Angle | | Counterbalance System | Round Weights
Purchased Separately | | Height Range | Overall length: 18' 4"
Distance from tripod to camera: 15' 6"/14' 8" (rear/front pivoting hole)
Vertical movement & maximum height: 16' 6"/15' 10" & 18' 3"/17' 7" | | Tilt Lock | No | | Tilt Drag | One Setting | | Pan Lock | No | | Spring Loaded Counter Balance | One Setting | | Pan Range | 360° | | Tripod Attachment | Varizoom Specific | | Head Attachment | Varizoom Specific | | Head Arm Leveling | Manual | | Leveling Indicators | None | | Fold Down | 55"
139.7cm | | Weight | 74.35 lbs
33.7kg | | | | Box Dimensions (LxWxH) | 62.0 x 13.0 x 12.0" | - VZCINEMAPRO-JR-K5 Cinema Pro Jr Remote Head with Jibstick Jr Control Unit
| Load Capacity | 35.00 lb (15.87 kg) | | Clearance | For Camera
Minimum: 15.0" (381.0 mm)

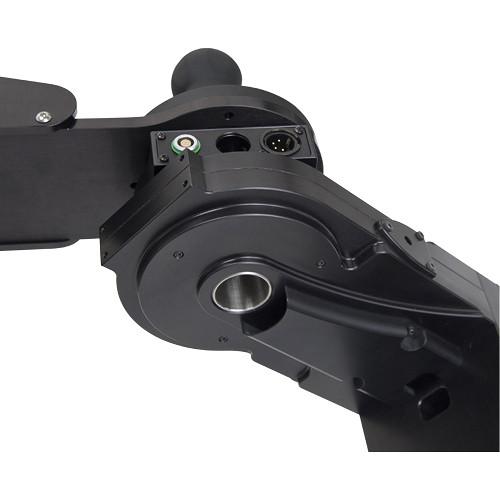

Maximum: 18.5" (469.9 mm) | | Pan/Tilt Speed | 130°/sec (limited for optimal performance) | | Mechanical | Mechanical Travel: Unlimited Pan, tilt may be limited by cable twist past 720° | | Connector | Head Base Connectors
Controller: 7pin LEMO (green)
XLR 4-pin Head/Camera Power
Passageway for external cables (video, lens control, etc.) Head Top connectors
Lens Control Out to camera/lens/lens drive: 16-pin LEMO (orange)
Camera Power Out: 2-pin LEMO (red) Controller Connectors
Control: 7-Pin LEMO - Head control cable (green)
Serial: 8-pin LEMO - TOC or Preston Lens Drive Hand Units (gray)
Analog: 5-pin LEMO - Pan Bars zoom & focus controls (white) | | Power Requirements | 24 VDC (regulated), 5 A | | Dimensions (H x W x D) | 20.50 x 11.30 x 6.00" (520.70 x 287.02 x 152.40 mm) | | Weight | 13.00 lb (5.89 kg) |
