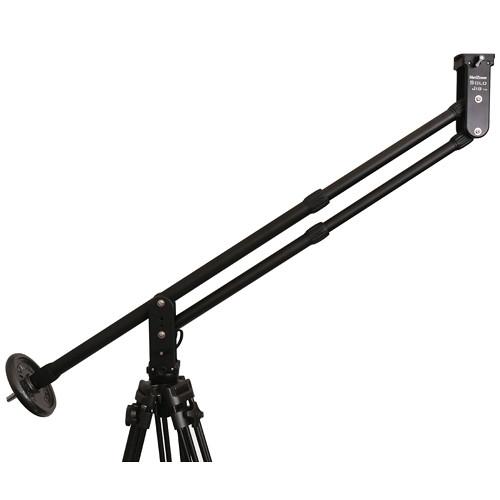

User Manual for VariZoom Solo Jib Click to enlarge the picture
Contents of the user manual for the VariZoom Solo Jib
- Product category: Cranes & Jibs VariZoom
- Brand: VariZoom
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for VariZoom Cranes & Jibs
 |
User manual for the VariZoom Solo Jib contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any VariZoom product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official VariZoom user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a VariZoom product will considerably shorten its lifespan!
|
Product description - VariZoom Solo Jib System: NAB 2014

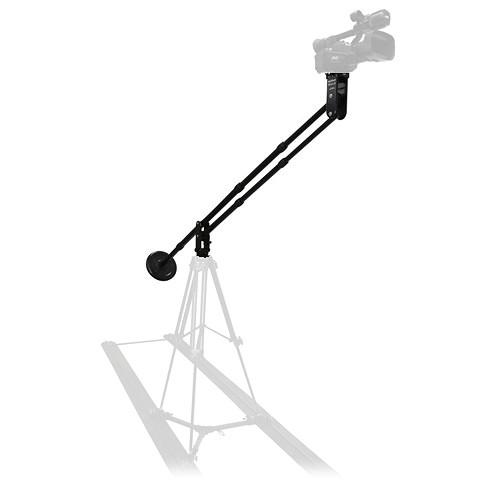

- VariZoom Solo Jib, Solo Slider, & Dolly camera crane

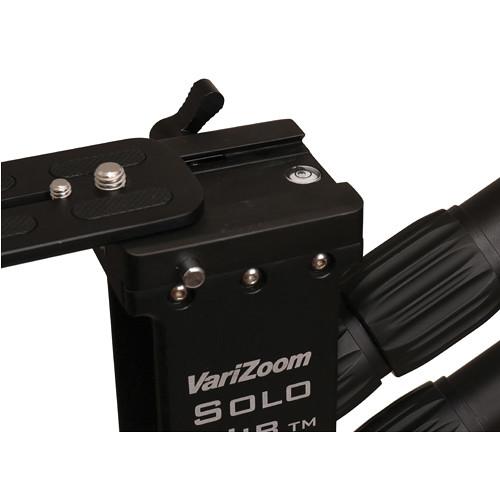

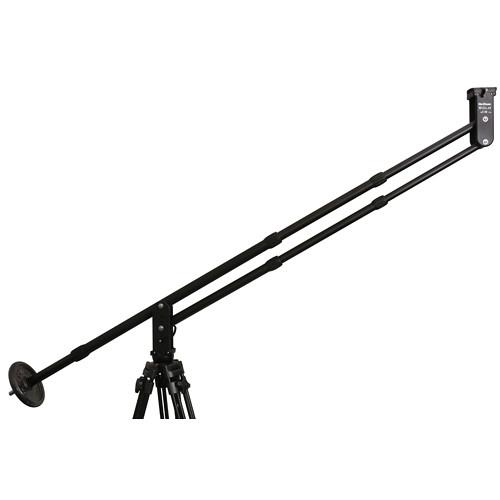

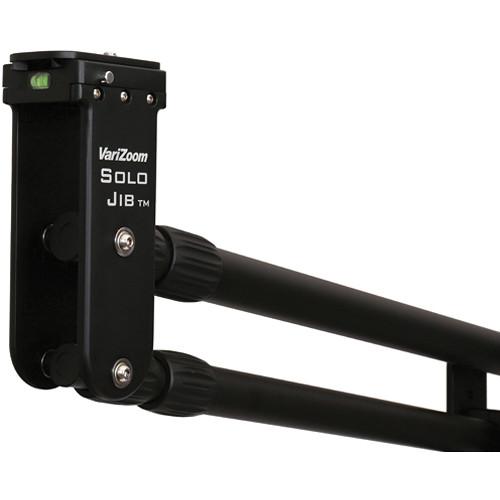

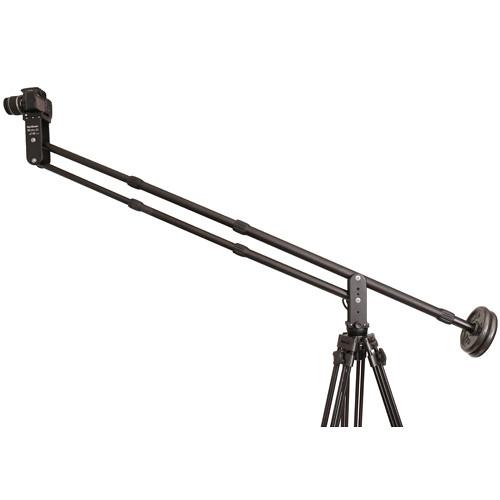

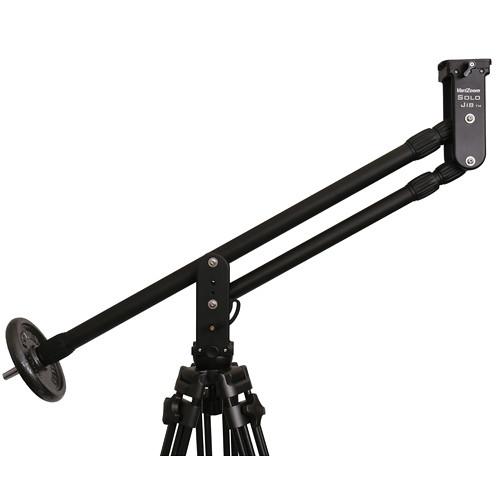

The VariZoom Solo Jib is a portable, lightweight aluminum jib with a 2-stage telescoping arm that provides up to 4.2' of reach yet fits into a compact case only 38" long. The Solo Jib works with 65mm bowls, 75mm bowls, or flat bases with 3/8" stud, making it compatible with most tripods. It features soft-stop pan and tilt brakes for fixing the position of the jib without it tipping over, as well as a telescoping tail for counterweight adjustment. The Solo Jib can be set up quickly and easily without the need for any additional tools. Included with the jib is a mounting stud and hand knob for 65mm and 75mm bowl tripods, a 5.5 pound counterweight, a bar fitting and nut/spacers for mounting the counterweight, and a carrying bag. -
- Constructed from aluminum
- 7 lb (3.2 kg) load capacity
- 9.2' maximum height (with 5' tripod)
- 4.2' maximum reach
- Works with 75mm and 65mm bowls or flat base tripod heads with 3/8" stud
- Stored length: 38"
- Weighs only 7.9 lb
- Also available as a kit with VariZoom VZTK75A Aluminum Tripod and Solo Slider Dolly

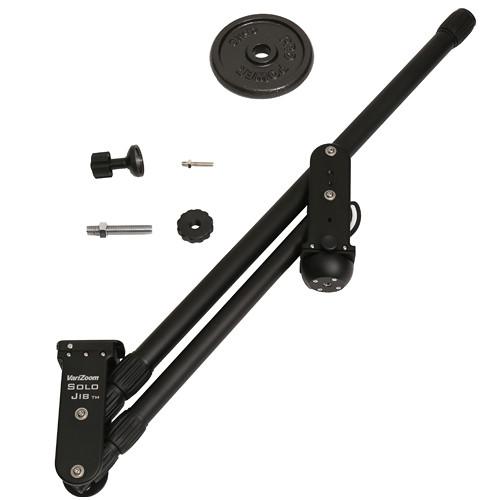

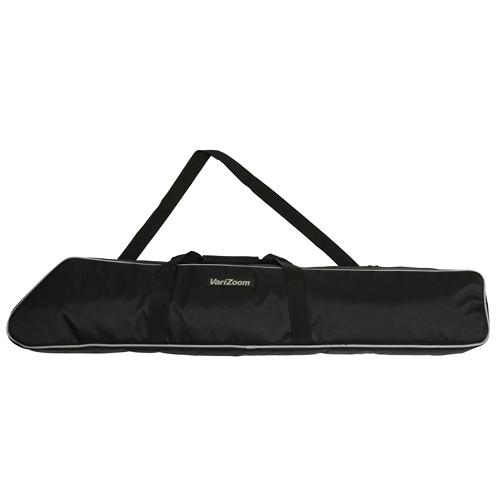

UPC: 877038006829 In the Box VariZoom Solo Jib (Aluminum) Mounting Stud and Hand Knob for Bowl-Mount Tripods 5.5 lb Counterweight Bar Fitting and Nut/Spacers for Mounting Counterweight Carrying Bag Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the VariZoom Solo Jib in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVariZoom SOLOJIB-AL Specs | Construction | Aluminum | | Payload Capacity | 7.0 lb (3.2 kg); additional weights required for max length/capacity | | Height Range | 7.3 to 9.2' (2.2 to 2.8 m) when on a 5' tripod | | Reach | Tripod to lens: 1.8 to 4.2' (0.5 to 1.3 m) | | Tail Telescoping Range | 11.0" (27.9 cm) | | Counterweight | 1 x 5.5 lb (2.5 kg) | | Tripod Mount Types | 65mm bowl, 75mm bowl, or flat base with 3/8" stud | | Case Dimensions | 38.0 x 8.0 x 4.0" (96.5 x 20.3 x 10.2 cm) | | Weight | 7.9 lb (3.6 kg) | | | | Package Weight | 17.3 lb | | Box Dimensions (LxWxH) | 38.5 x 8.5 x 5.0" |
