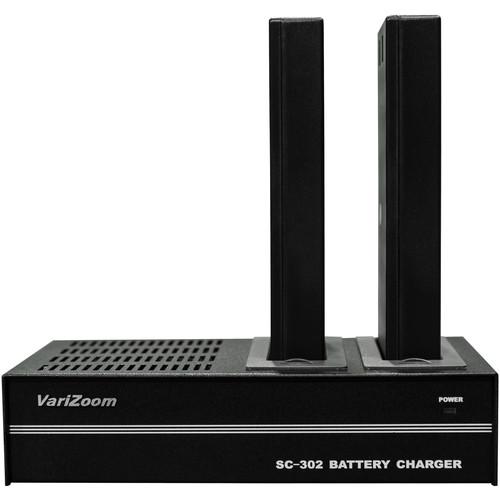

Product description This Two NP1 Lithium-Ion Battery & Two-Bay Charger bundle from VariZoom includes an SC302 two-bay tabletop sequential charger, and two S8073N batteries. The charger accepts worldwide power, making it useful on location shoots no matter where they take place. It will charge two batteries sequentially, meaning that when the first battery is charged, the charger will automatically start charging the second one.
Each NP1-style battery has a capacity of 73Wh and outputs 14.4 VDC. It is equipped with dual D-Tap ports for running accessories, a four-LED indicator showing remaining power, and an integrated control circuit for temperature, current, and voltage protection. - S8073N NP1 Lithium-Ion Camera Battery (73Wh Capacity) The S8073N NP1 Lithium-Ion Camera Battery from VariZoom features dual D-Tap outputs and control circuit for temperature, current, and voltage protection with a 4-level LED power indicator. It operates at 14.4V and comes with 73Wh capacity. UPC: 877038007413
- SC-302 Sequential Battery Charger The Varizoom SC-302 is a 2-bay battery charger for NP-1 mounting batteries with connectivity utilized by many manufacturers. The SC-302 is compatible with the Sony NP Ni-Cd, the IDX NP Ni-Cd and Ni-MH, Sony's V-mount Ni-MH and LI-ion batteries with an NP-S adapter and Anton Bauer's Gold-MT Ni-Cd and Gold-MT Ni-MH batteries with an NP-A adapter. Note: Charger is not compatible with IDX Li-Ion batteries, such as the NP-L7S.
- Compatibility
- This charger supports Ni-Cd, Ni-MH and Li-Ion chemistries and charges digital and non-digital batteries.
- Sequential Charging
- Two channel sequential charging charges two batteries sequentially.
UPC: 877038001695 In the Box Bundle Items 2 x S8073N NP1 Lithium-Ion Camera Battery (73Wh Capacity) trxcwxqyfzdrbcsewbstwyrr SC-302 Sequential Battery Charger Table of Contents
|
Upload User Manual
Have you got an user manual for the VariZoom Two NP1 Lithium-Ion Battery & Two-Bay Charger Bundle in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - S8073N NP1 Lithium-Ion Camera Battery (73Wh Capacity)
| Mount / Series Type | NP-1 Mount | | Chemistry | Lithium-Ion | | Capacity (Wh) | 73 Wh | | Output Voltage | 14.4 VDC | | Accessory Port | 2 x D-Tap | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Dimensions (W x H x D) | 7.3 x 2.8 x 1.0" / 185.0 x 72.0 x 25.0 mm | | Weight | 0.9 lb / 0.4 kg | | | | Box Dimensions (LxWxH) | 7.6 x 3.05 x 1.2" | - SC-302 Sequential Battery Charger
| Power Supply | None | | Battery Bays | 2 | | Type of Charging | Sequential Charging | | Diagnostics | None | | Connections/Interface | NP-1 Mount Type x 2 | | Power Requirements | 100-240 VAC @ 50/60 Hz | | Dimensions (WxHxD) | 8.8 x 9 x 2.6" (22.3 x 23 x 6.6cm) | | Weight | 1.9 lbs (0.862kg) | | | | Box Dimensions (LxWxH) | 9.7 x 7.35 x 2.45" |
