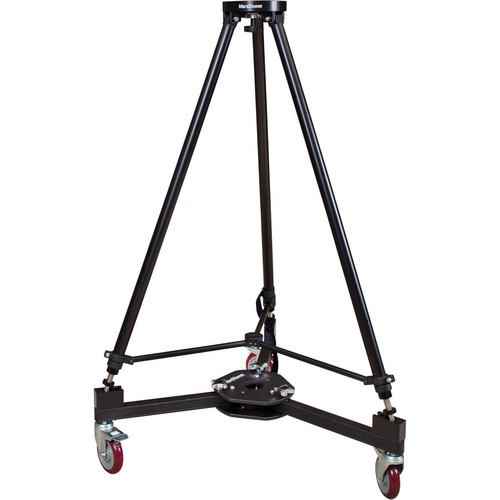

User Manual for VariZoom VZ-CTD Heavy-Duty Dolly & VZ-TCR100 Crane Tripod Bundle Click to enlarge the picture
Contents of the user manual for the VariZoom VZ-CTD Heavy-Duty Dolly & VZ-TCR100
- Product category: Crane & Jib Accessories VariZoom
- Brand: VariZoom
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for VariZoom Crane & Jib Accessories
|
User manual for the VariZoom VZ-CTD Heavy-Duty Dolly & VZ-TCR100 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any VariZoom product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official VariZoom user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a VariZoom product will considerably shorten its lifespan!
|
Product description The Varizoom VZ-CTD Heavy-Duty Dolly & VZ-TCR100 Crane Tripod Bundle was created by Varizoom specifically to create a sturdy movable base for use with most jibs and supports up to one hundred and forty pounds of tripod, crane, and camera. It consists of a modified Varizoom VZ-D100 dolly, purpose-built set for tripod legs. This bundle provides a sturdy single section tripod that securely fits into a sturdy tripod dolly, allowing you to safely roll an available crane from one camera position to another.
To this end, Varizoom machines the tripod legs, incorporating screw threaded stainless steel feet with ball ends, designed to be used specifically with the modified VZ-D100 dolly. The Dolly features individually-locking wheels and is modified to accept the tripod's extended feet. The parts are machined from 6061 aircraft aluminum, to be lightweight, durable and malleable, which makes the rolling base resistant to shattering, increasing safety when properly operated. - The dolly is modified with machined aluminum blocks that capture the extended ball feet of the tripod legs. The weight of an available crane on the legs forces the feet deep into the aluminum blocks, making it virtually impossible to have a foot kick out from the block.
- The tripod legs are a single section, and not telescoping, made from heavy gauge tubing and a machined mounting fitting.
- Locking rubber wheels allow for a secure smooth dolly.
- Varizoom recommends using this bundle when working all their available cranes, as well as available cranes from other manufacturers as long as the weight of the crane system does not exceed 140 pounds.
UPC: 877038007659 In the Box VariZoom VZ-CTD Heavy-Duty Dolly & VZ-TCR100 Crane Tripod Bundle Limited 2- Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the VariZoom VZ-CTD Heavy-Duty Dolly & VZ-TCR100 Crane Tripod Bundle in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVariZoom VZ-CTD Specs | | | Load Capacity | 140 lb (63.5 kg) | | Construction | Metal with Rubber Wheels | | Wheel Lock | Individual | | Weight | 10 lbs (4.5kg) | | | | Section | Single | | Spreader | Mid-Level | | Feet | Stainless steel extendable balls | | | | Package Weight | 52.75 lb | | Box Dimensions (LxWxH) | 49.0 x 22.0 x 13.0" |
