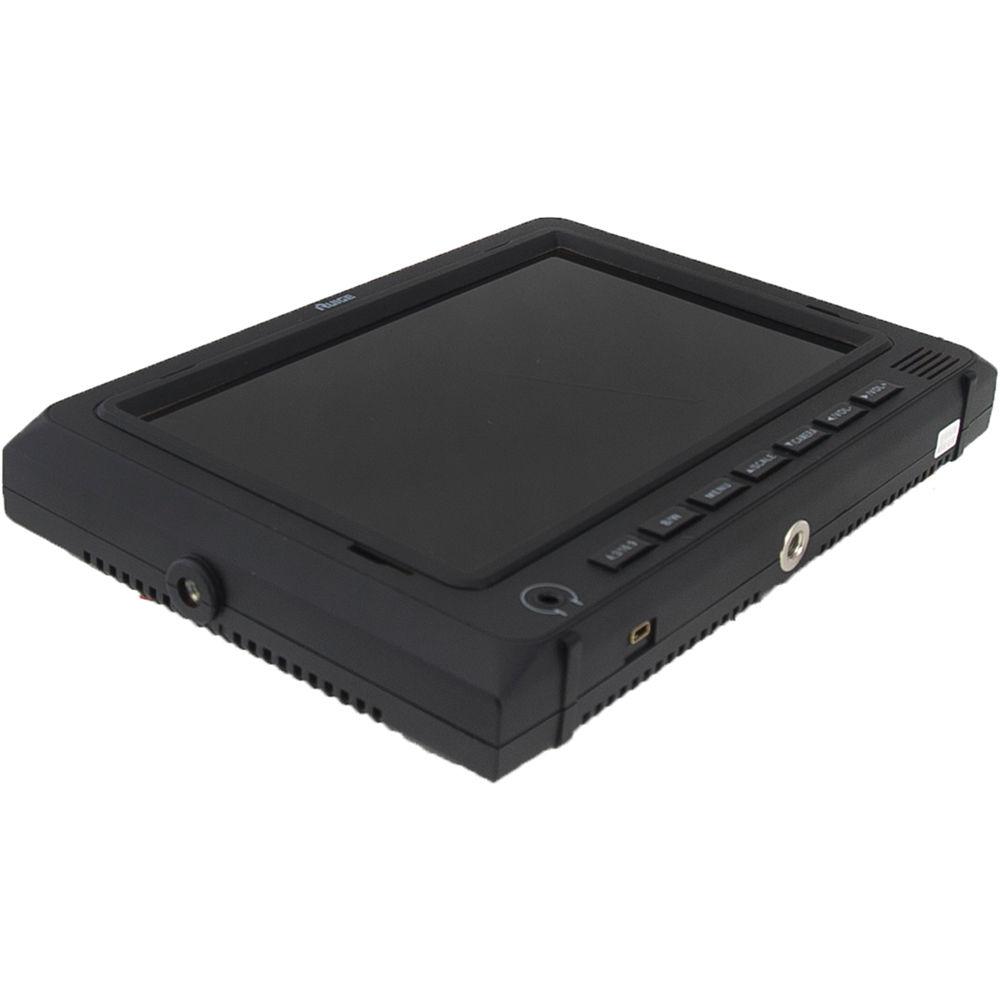

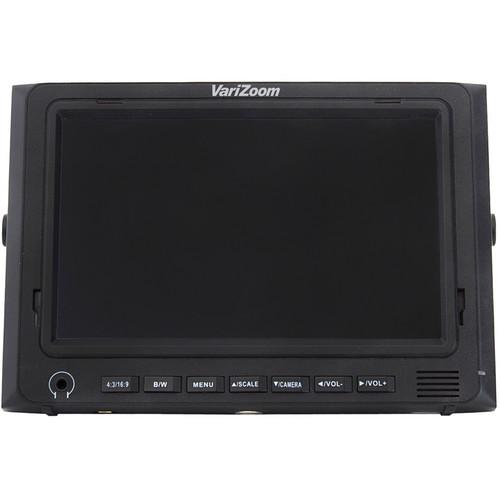

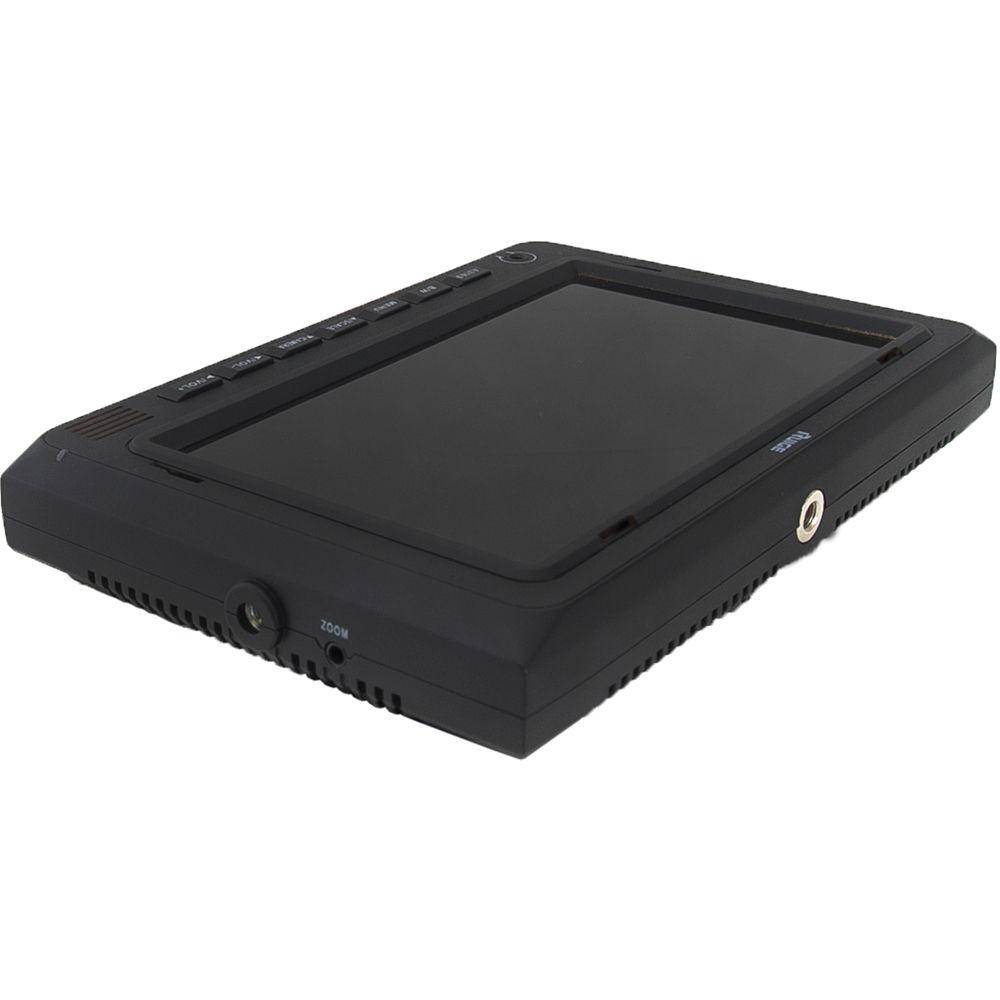

User Manual for VariZoom VZ-M7 7" HDMI LCD Monitor Click to enlarge the picture
Contents of the user manual for the VariZoom VZ-M7 7" HDMI LCD Monitor
- Product category: On Camera Monitors VariZoom
- Brand: VariZoom
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for VariZoom On Camera Monitors
 |
User manual for the VariZoom VZ-M7 7" HDMI LCD Monitor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any VariZoom product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official VariZoom user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a VariZoom product will considerably shorten its lifespan!
|
Product description The VZ-M7 7" HDMI LCD Monitor from VariZoom provides sharp, accurate images for improved framing and focus assist on any camera equipped with an HDMI output. Utilizing high-quality Grade A+ LCD panels and image processing, this monitor offers picture quality and enhanced features. It comes with 2 HDMI cables (standard-standard and standard-mini) and an AC power adapter. - Accepts all HD signals up to 1080p
- HDMI input / output (loop through)
- DSLR scaling to allow full-screen viewing of image from cameras such as Canon 5D
- Auto aspect ratio detection
- Image flip for inverted mounting (1/4"-20 mounts on top and bottom of monitor)
- Safety area markers (5 levels), centerline marker, 4:3 area markers
- Underscan and overscan modes
- Color temperature presets (D65 and D93 standards), or user-defined through RGB settings
- Brightness, contrast, saturation, sharpness adjustments
- Customizable menu options for menu duration, position, text color, and language
- Headphone jack for audio monitoring
- Pixel-to-pixel zoom and peaking for focus assist with VZMZB remote (sold separately)

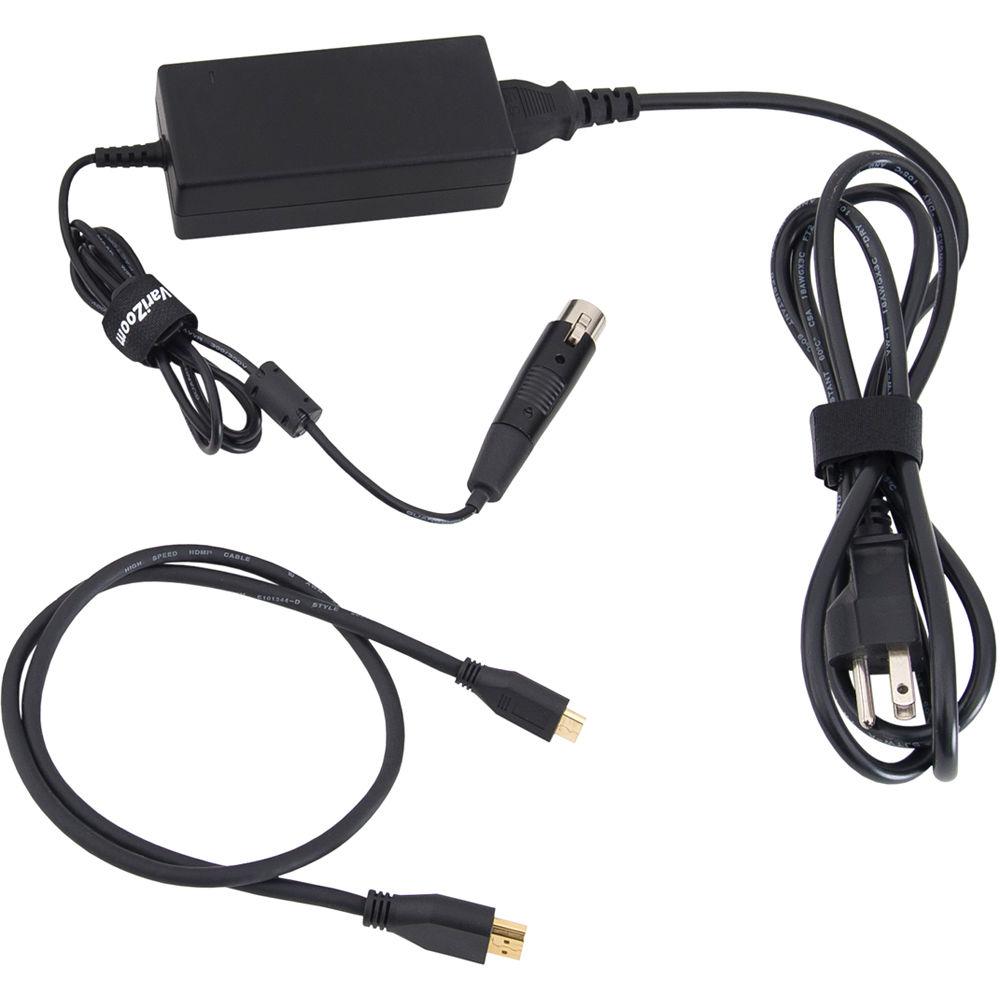

UPC: 877038005297 In the Box VariZoom VZ-M7 7" HDMI LCD Monitor Power Supply 2 x HDMI Cable (Standard to Standard & Standard to Mini) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the VariZoom VZ-M7 7" HDMI LCD Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVariZoom VZ-M7 Specs | Screen Size | 7" (18 cm) diagonal | | Native Resolution | 1024 x 600 | | Brightness | 250 cd/m2 | | Contrast | 700:1 | | Video Formats | 1080: 24p/24psf/25p/30p/50i/60i/50p/60p

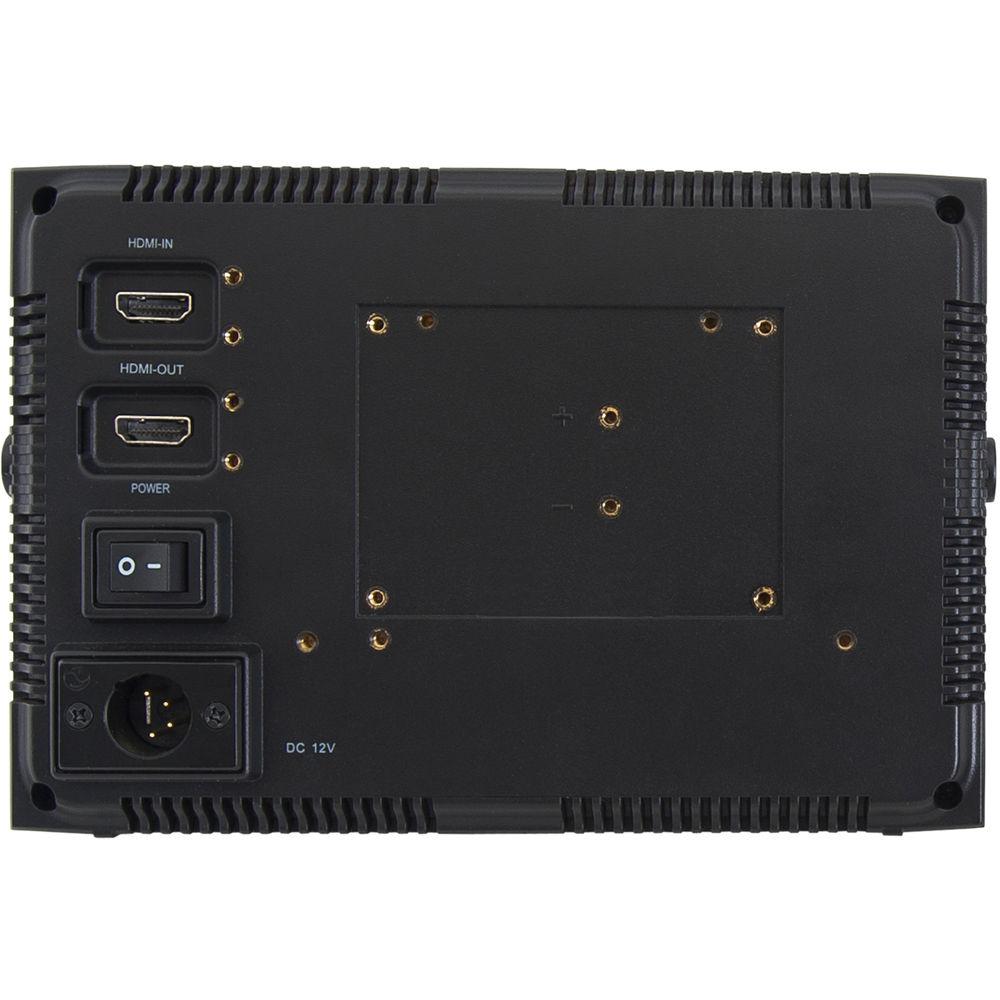

720: 50p/60p; 480i; 480p; 576i; 576p | | Response Time | 10 ms | | Viewing Angle | L75° / R75° / U70° / D75° | | Input Voltage | 12 VDC nominal (6.5 to 36 VDC maximum range) | | Mount Type | 1/4"-20 female (4x - top, bottom, left, right) | | Inputs/Outputs | HDMI (in), HDMI (out), Headphone 3.5mm (out), Zoom (in) 3.5 mm, XLR power (4+, 1-) | | Power Consumption | ≤8 W | | Dimensions | 8.0 x 5.4 x 1.5" (20.3 x 13.7 x 3.81 cm) | | Weight | 1.25 lb (0.56 kg) | | | | Package Weight | 3.29 lb | | Box Dimensions (LxWxH) | 11.65 x 8.4 x 3.55" |
