User Manual for VariZoom VZ-TK75A Video Tripod System & VZ-STEALTH-PZFI Lens Controller Kit Click to enlarge the picture
Contents of the user manual for the VariZoom VZ-TK75A Video Tripod System &
- Product category: Tripod Systems VariZoom
- Brand: VariZoom
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for VariZoom Tripod Systems
 |
User manual for the VariZoom VZ-TK75A Video Tripod System & contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any VariZoom product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official VariZoom user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a VariZoom product will considerably shorten its lifespan!
|

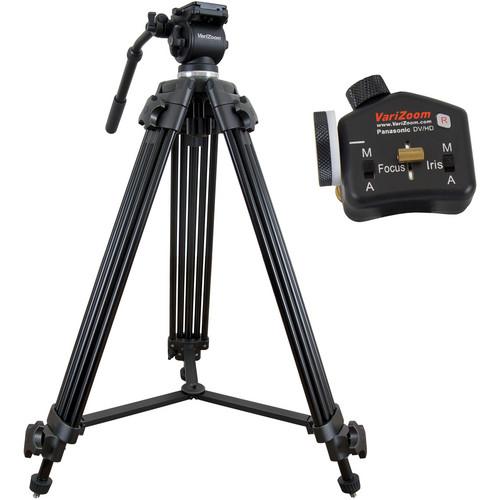

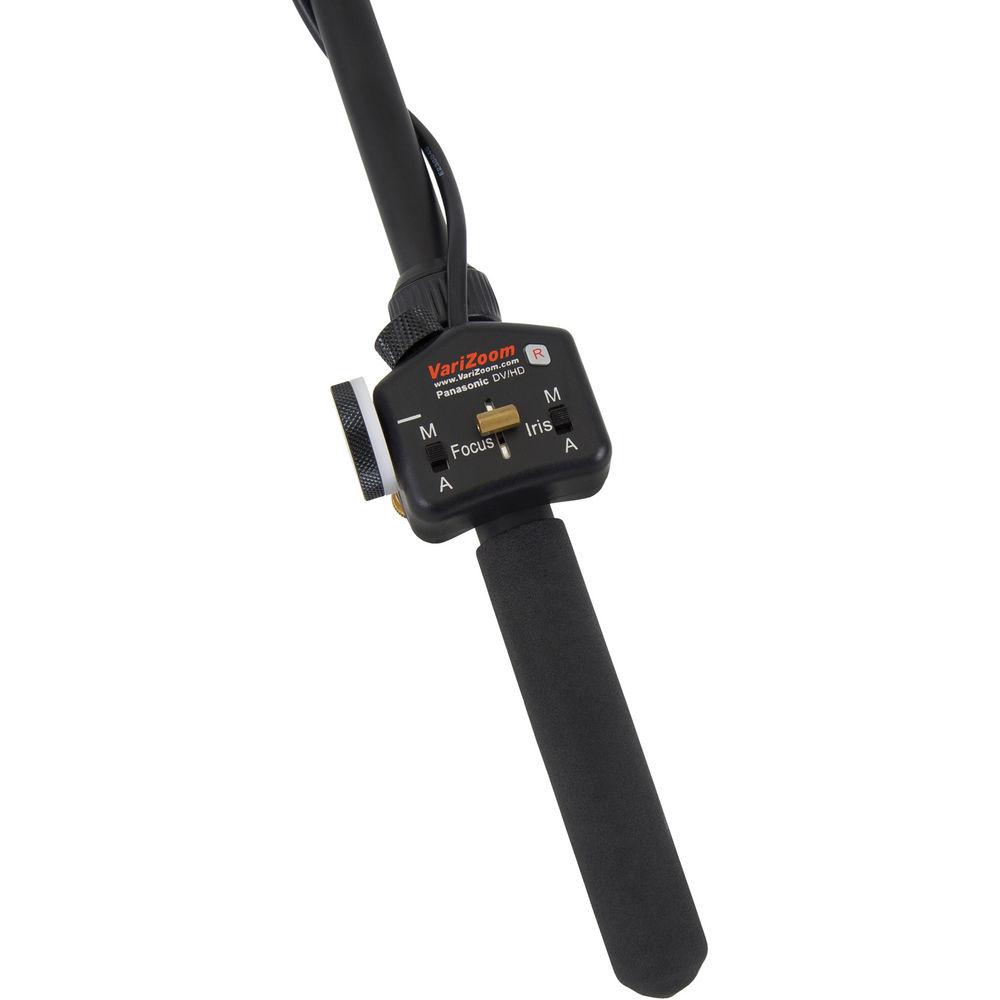

Product description The VZ-TK75A Video Tripod System & VZ-STEALTH-PZFI Lens Controller Kit is for select Panasonic cameras weighing between 4 and 10 pounds. The lens controller combines zoom, focus, and iris control with a slider that provides variable control to the zoom speed. The Stealth-PZFI works with Panasonic's HVX200, HPX170, DVX100B, HMC40, and HMC150. Record start/stop control is built into the unit, and individual switches allow you to select manual or auto control of both focus and iris. The unit features an adjustable clamp that allows you to attach it your video head's panhandle. It requires no additional power and connects the camera's remote port. The Stealth-PZFI is designed to work with Panasonic's remote protocol and is not compatible with LANC control. Connecting the unit to a camera that uses LANC can damage the controller and camera.

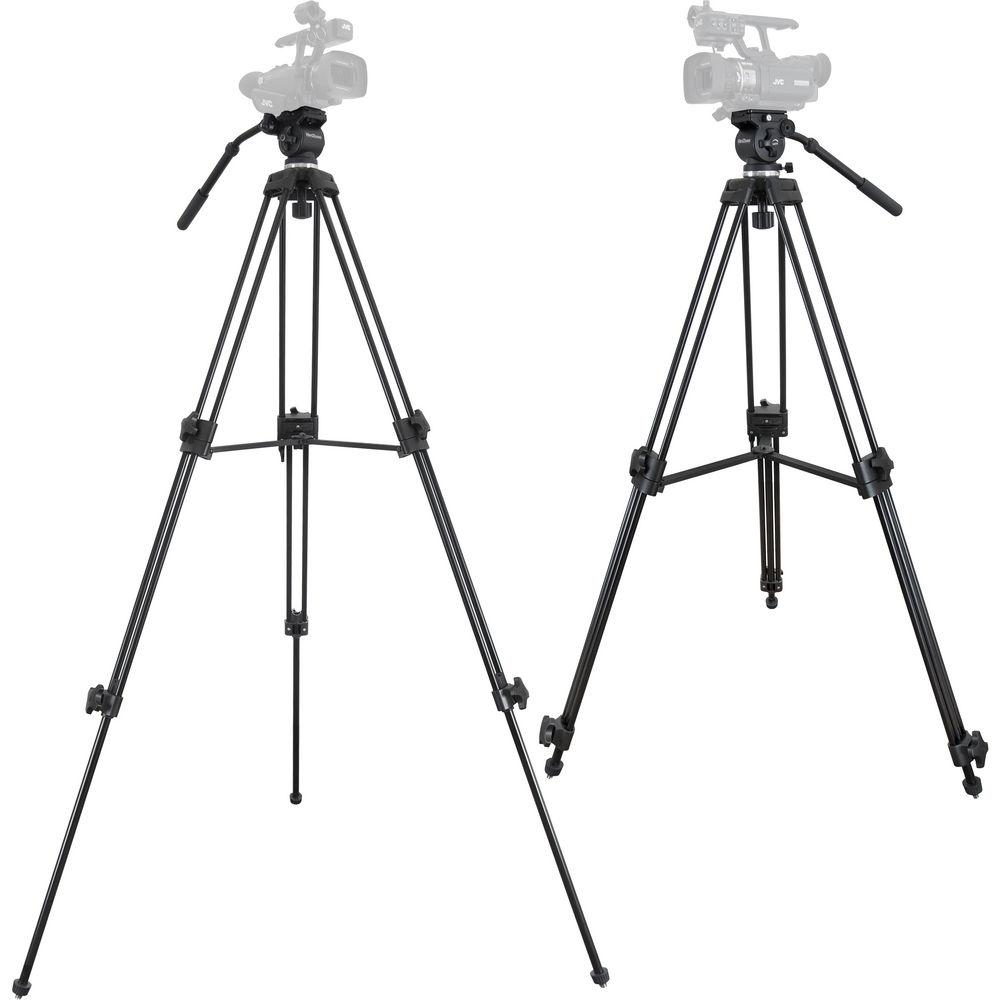

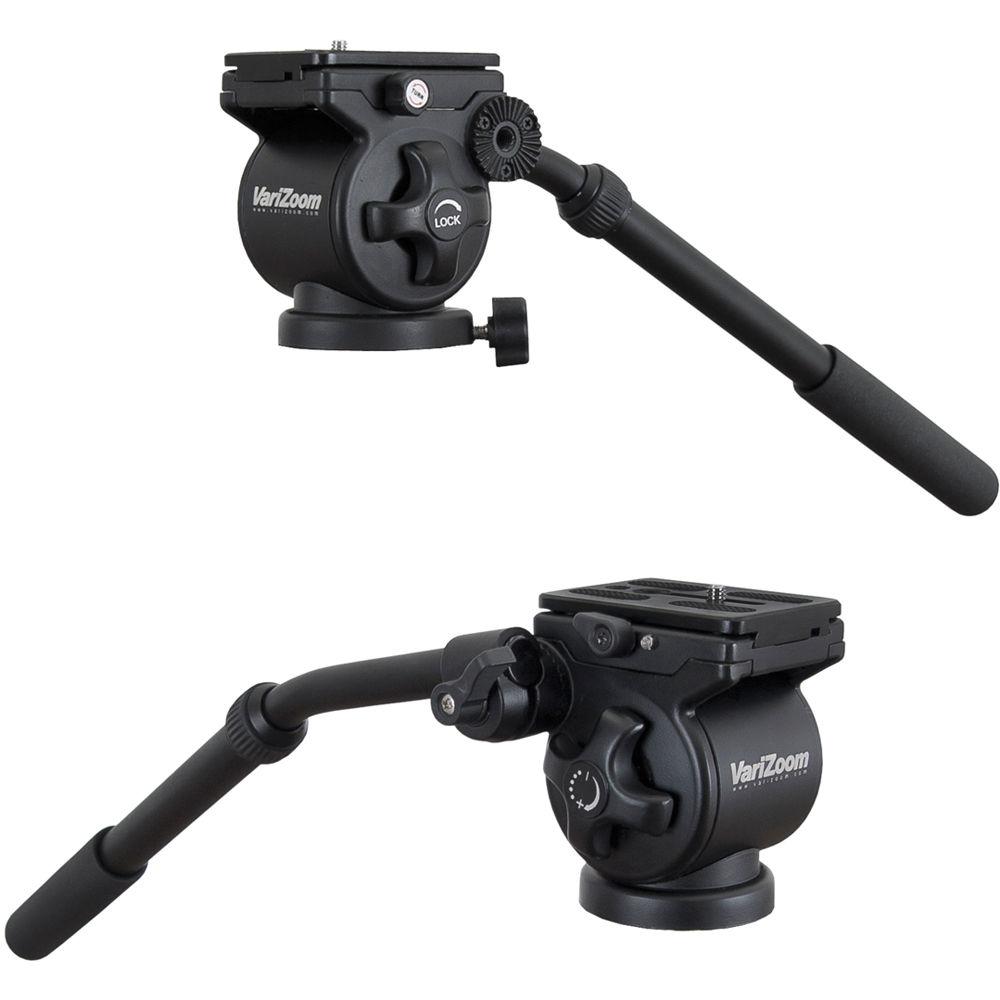

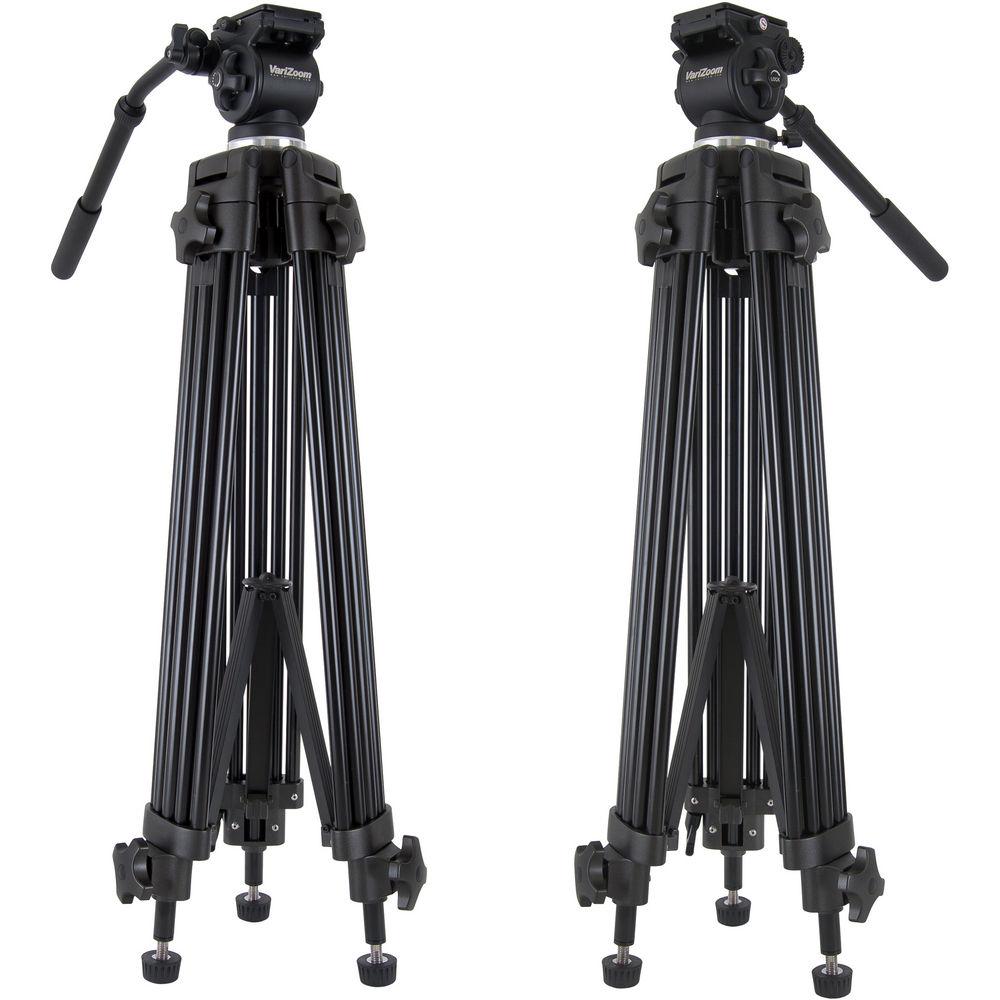

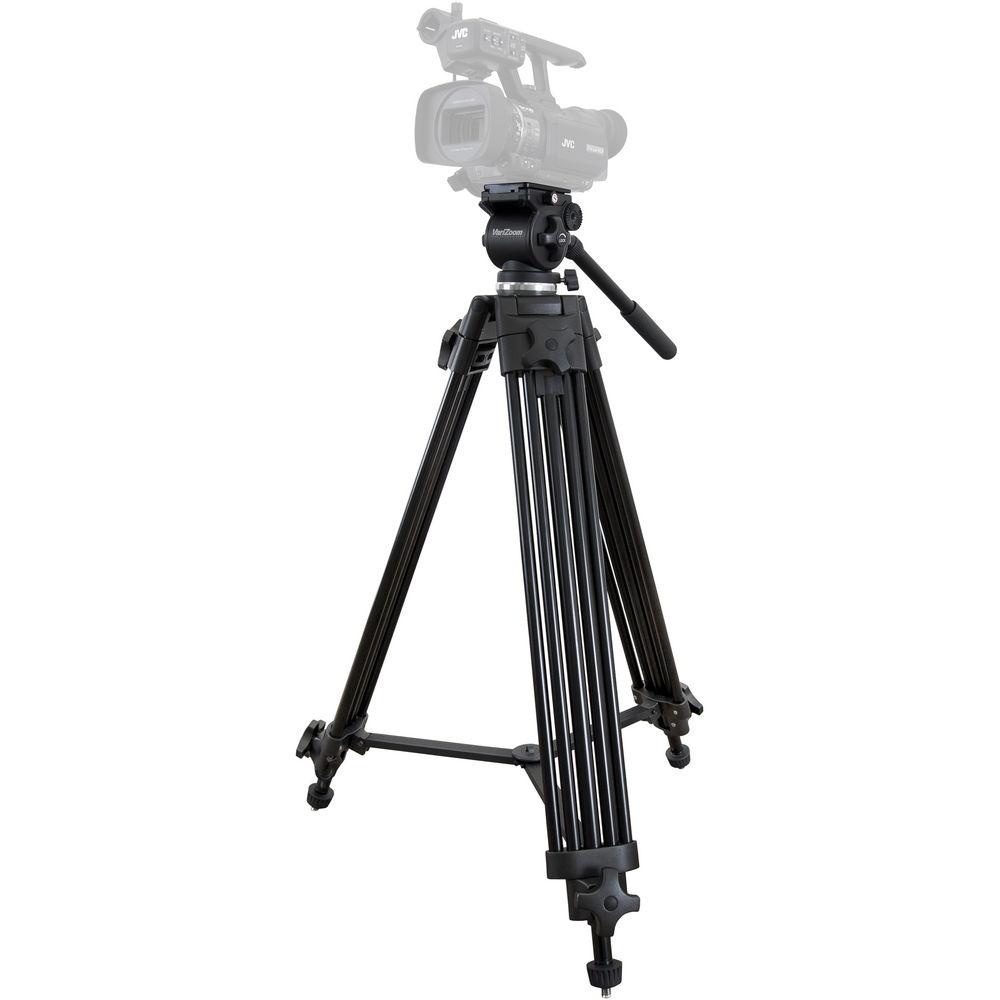

The VZ-TK75A tripod system includes a fluid head with adjustable tilt drag and a quick release plate system. It features a 65mm ball base for quick leveling without adjusting the tripod legs and a built-in bubble level. The tripod legs feature aluminum construction for strength and a 2-stage design that provides you a working height of 30 to 64 inches. The 75mm bowl accepts the 65mm ball of the fluid head, and the legs feature a non-removable mid-level spreader and switchable rubber/spike feet to accommodate different working surfaces. - VZ-TK75A Aluminum Tripod System The VariZoom VZ-TK75A is a tripod system with a carry case. The system features a tripod and head with a bowl compatible with 65 and 75mm heads. It also offers a mid-level spreader and rubber feet. The lightweight VZ-TK75A was designed to work with midsize camcorders up to 10 lb.
- Two Stages
- This two-stage tripod offers a good spread of minimum and maximum height adjustment and features a locking rubber buckle.
- Durable Feet
- Rubber feet offer durability for indoor or outdoor usage.
- Spreader
- This device features a built-in mid-level spreader for great stability.

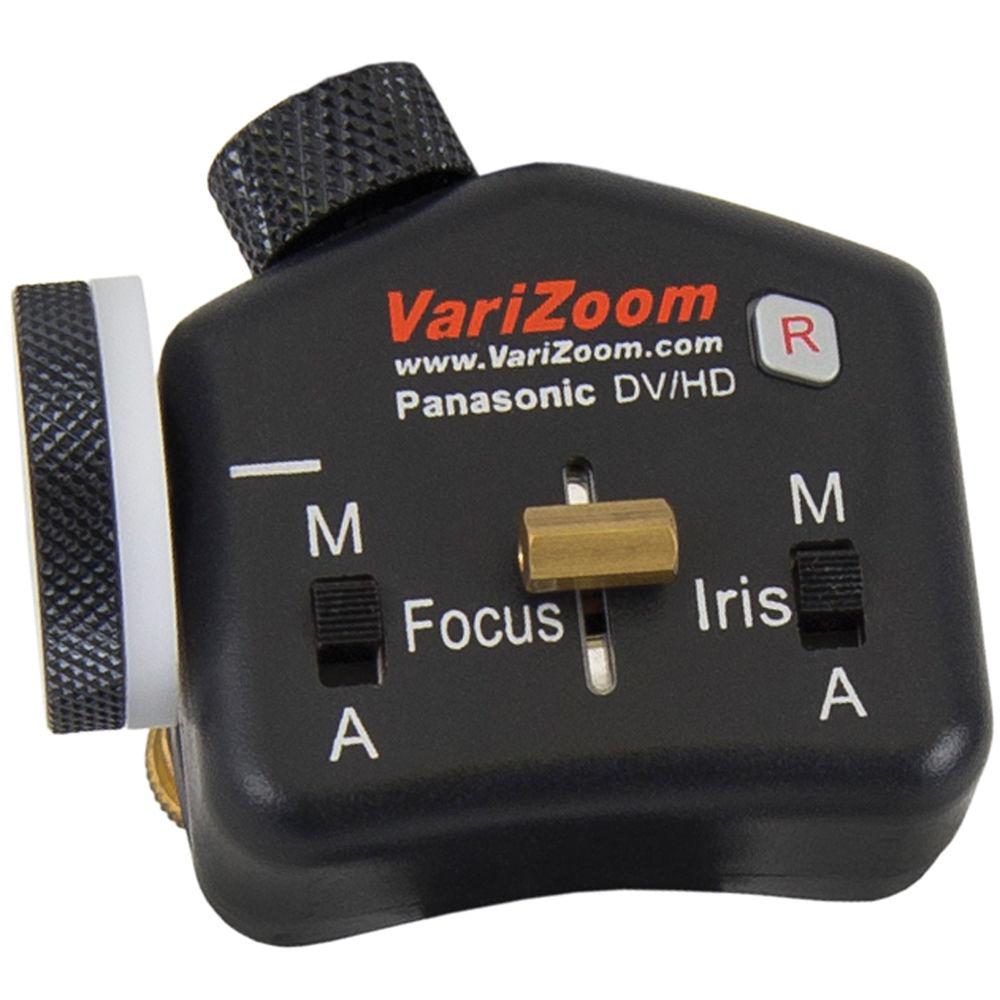

UPC: 877038002982 - VZStealthPZFI Throttle Controller The Varizoom VZ-Stealth-PZFI is a zoom/focus/iris controller designed specifically for the Panasonic AG-HVX200 and AG-DVX100B camcorders. The throttle is pressure-sensitive for fine-tuned zoom adjustments, while the focus and iris knobs, located on the sides, provide clean and easy operation. Most notably is the ability to operate each function simultaneously. Multiple users can control individual aspects of the rocker, which can be very useful during crane or moving shots.
- Pressure Sensitive Throttle
- The VZ-Stealth-PZFI comes equipped with a pressure sensitive throttle. This allows users to vary zoom speeds for smooth, sustainable adjustments.
UPC: 877038002241 In the Box Bundle Items VZ-TK75A Aluminum Tripod System aysxxrbdcbyarfzrtbwtcaaeaeudawdava VZStealthPZFI Throttle Controller - 2-Year Parts and Labor Warranty
User Manual PDF 71.8kb Table of Contents
|
Upload User Manual
Have you got an user manual for the VariZoom VZ-TK75A Video Tripod System & VZ-STEALTH-PZFI Lens Controller Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - VZ-TK75A Aluminum Tripod System
| Payload | 10 lb / 4.5 kg | | Folded Height | 31" / 79 cm | | Maximum Operating Height | 64" / 162 cm | | Minimum Operating Height | 30" / 76 cm | | Bowl | Works with 65 and 75 mm Heads (Zero Gravity Not Compatible) | | Material | Aluminum | | Weight | 9.5 lb / 4.3 kg | | | | Box Dimensions (LxWxH) | 33.0 x 8.0 x 7.0" | - VZStealthPZFI Throttle Controller
| Compatibility | Panasonic AG-DVX100 and AG-DVX100B | | Dimensions (LxW) | 2.8 x 2" (7.1 x 5.1 cm) | | Weight | 0.3 lb (136 g) | | | | Box Dimensions (LxWxH) | 6.05 x 3.9 x 3.6" |
