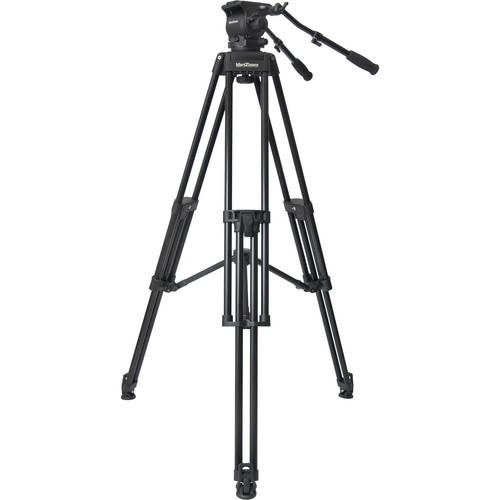

VariZoom VZ-TKC100A Video Tripod System

User Manual for VariZoom VZ-TKC100A Video Tripod System

• Product category: Tripod Systems VariZoom
• Brand: VariZoom
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for VariZoom Tripod Systems

Product description

• VZ-TC100A Aluminum Video Tripod Legs (100mm Bowl, Black) The Varizoom VZ-TC100A is aluminum tripod legs for users working with a 100mm ball fluid head. This one-stage aluminum tripod works with up to a mid-sized camera crane or jib. The legs are made out of aluminum with a black finish.
  Application
  • Medium size camcorders up to full size camcorders with a mid-sized jib or a Cinetrac dolly system set up.
  Rubber Feet
  • The rubber feet work great on flat surfaces but, the tripod has spiked feet to work on soft outdoors surfaces as well.
  Height Adjustment
  • Height adjustment is achieved by a one-stage system with locking levers for secure productivity.
  UPC: 877038002692
• VZFH100 Fluid Head (100mm) VariZoom's VZFH100 Fluid Head (100mm) is a lightweight (5.9 lb), compact professional fluid head that's compatible with any standard 100mm bowl-mount tripod. It has knobs designed in different shapes so you can immediately tell without looking if you're adjusting the tilt drag or the counterbalance, just by the shape of the knob. It features variable drag settings for both pan and tilt, and an adjustable counterbalance setting. The load capacity is 22 lb (9.97 kg). A single telescoping pan handle is standard and a second optional handle is available separately to allow a studio-style dual-handle set-up.
  • Lightweight (5.9 lb/2.67 kg), compact professional fluid head.
  • Quick leveling and universal compatibility with any standard 100mm bowl-mount tripod.
  • Tilt drag adjusts with a large, round, soft-touch knob on the side of the head. The tilt drag knob has index marks and a smooth, detent-feedback feel that lets you know the adjustment is accurate and consistent.
  • Counterbalance is easily adjusted for different loads using a soft-touch knob at the back of the head. The counterbalance knob has a rounded-square shape to distinguish it from the drag knobs, but a similarly smooth, detent-feedback feel for accurate adjustment.
  • A backlit leveling bubble enables quick leveling even in darkness.
  • Single telescoping pan handle.
  UPC: 877038004238

• Tripod

• Mid-Level Spreader

• Carry Case

• Limited 2-Year Warranty

• Quick-Release Plate

• Pan Handle

• Limited 1-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• VZ-TC100A Aluminum Video Tripod Legs (100mm Bowl, Black)

  Head Mount Type	100 mm Bowl
  Load Capacity	100 lb / 45.3 kg
  Maximum Working Height	58.5" / 148.5 cm
  Minimum Working Height	30" / 76.2 cm
  Folded Length	36.5" / 92.7 cm
  Materials	Aluminum
  Bubble Level	No
  Weight	20.5 lb / 9.3 kg

  Leg Lock Type	Flip Lock
  Independent Leg Spread	Yes
  Leg Sections	2
  Feet Features	Rubber, Spiked

  Center Column Features	Center Brace

  Box Dimensions (LxWxH)	42.5 x 10.5 x 10.0"

• VZFH100 Fluid Head (100mm)

  Load Capacity	22 lb / 9.97 kg
  Counter Balance	Continuous

  Box Dimensions (LxWxH)	17.2 x 10.0 x 7.7"
