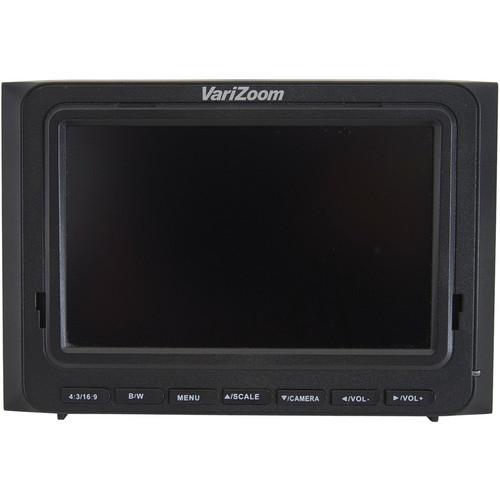

Product description Varizoom's VZM5 5" LCD On-Camera HDMI Loop-Through Monitor is an easy-to-use monitor with front-panel buttons. The 5" monitor sports a native resolution of 800 x 480 but will support and display signals with resolution up to 1920 x 1080. It features an 800:1 contrast ratio and 500 cd/m2 brightness, making it suitable for use in exteriors and interiors, but you may wish to consider an optional sunhood for exterior use.
The monitor incorporates a built-in 1/4"-20 threaded hole on both the top and bottom, which provides you with flexibility in mounting. The vertical image flip feature is useful for those occasions when you have to flip the camera or the monitor, and the monochrome mode provides you with a rough idea of how your image will look in black and white. The monitor allows you to select and display safety area and center marker guides, and there is even a 4:3 frame guide. Auto aspect ratio detection enables the monitor to automatically display your footage in the correct aspect ratio, and the front-panel aspect ratio button will allow you to manually select the aspect ratio. DSLR scaling will adjust your picture size to best fit your monitor's display. An optional remote accessory allows you to enable focus peaking, and also to zoom in on the center of your image. - Accepts all HD signals up to 1080p

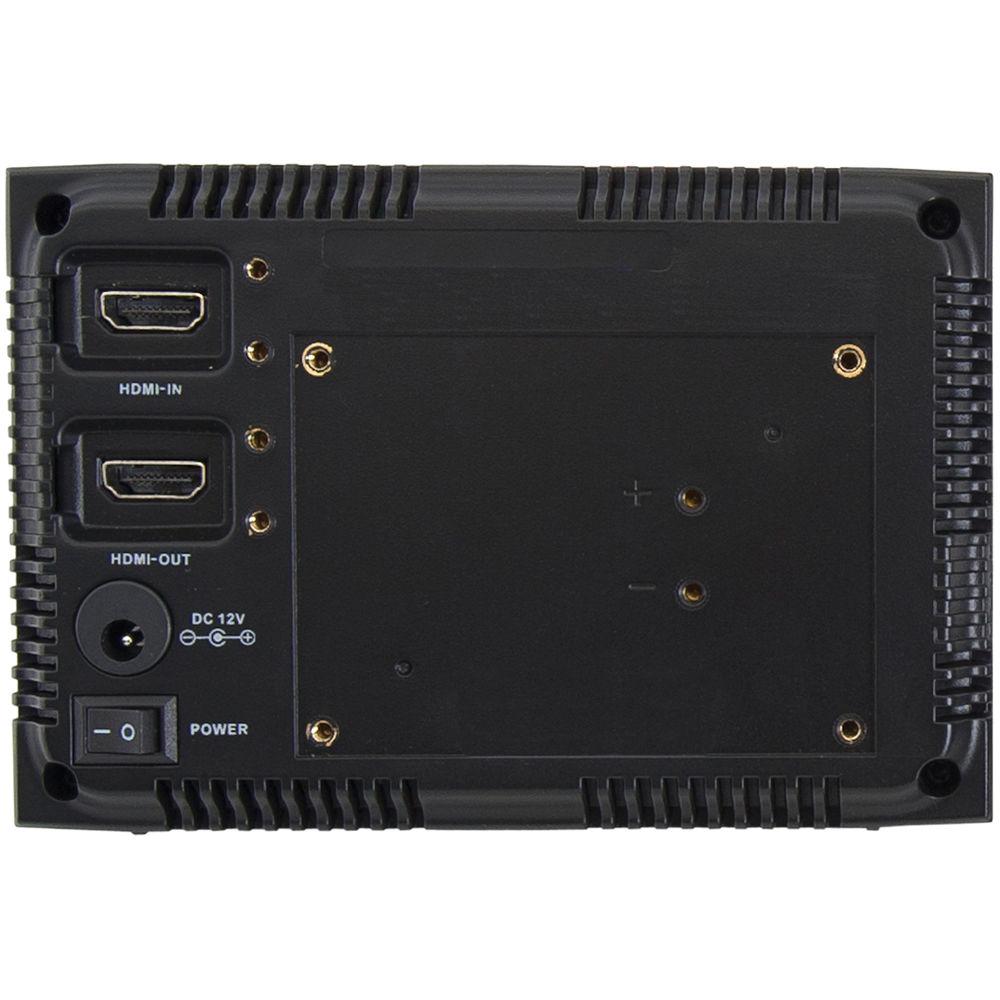

- HDMI input / output (loop through)
- DSLR scaling to allow full-screen viewing of image from cameras such as Canon 5D
- Auto aspect ratio detection
- Monochrome (black and white) mode
- Image flip for inverted mounting (1/4"-20 mounts on top and bottom of monitor)
- Safety area markers (5 levels), centerline marker, 4:3 area markers
- Underscan and overscan modes
- Color temperature presets (D65 and D93 standards) or user-defined through RGB settings
- Brightness, contrast, saturation, sharpness adjustments
- Customizable menu options for menu duration, position, text color, and language

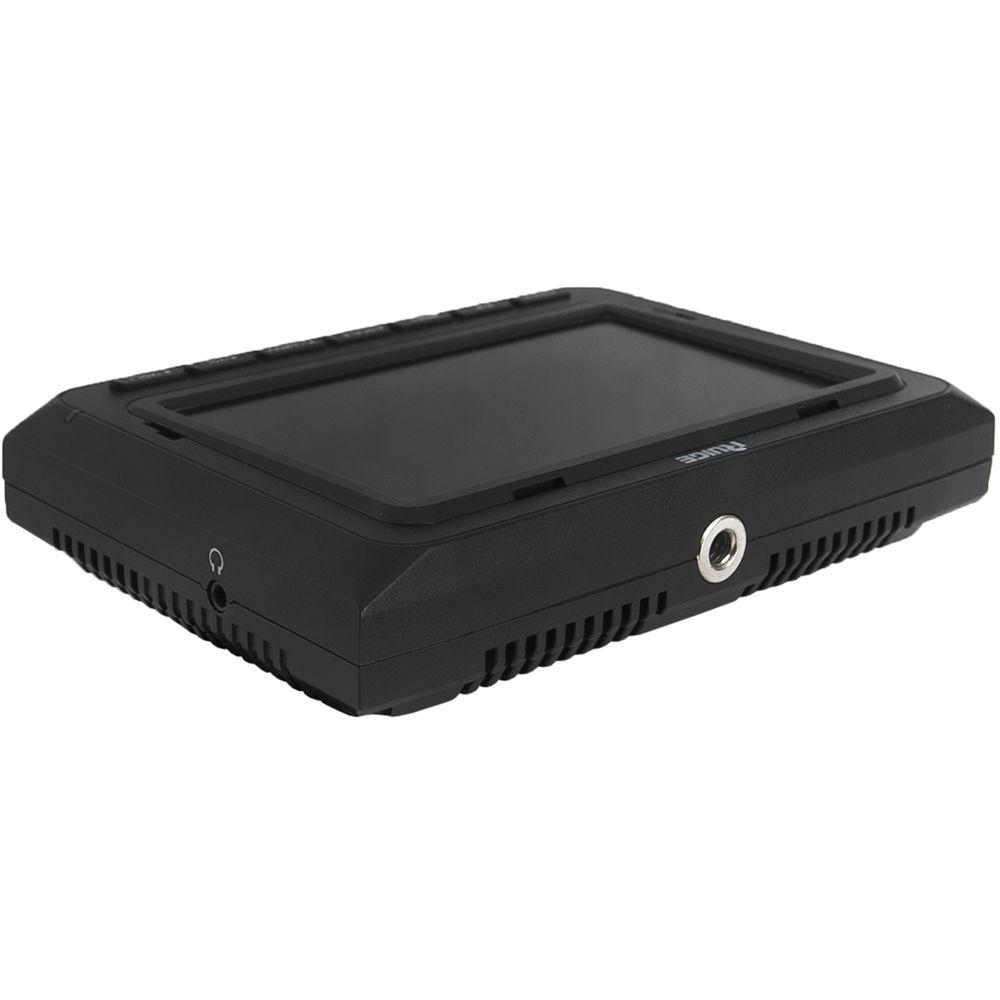

- Headphone jack for audio monitoring

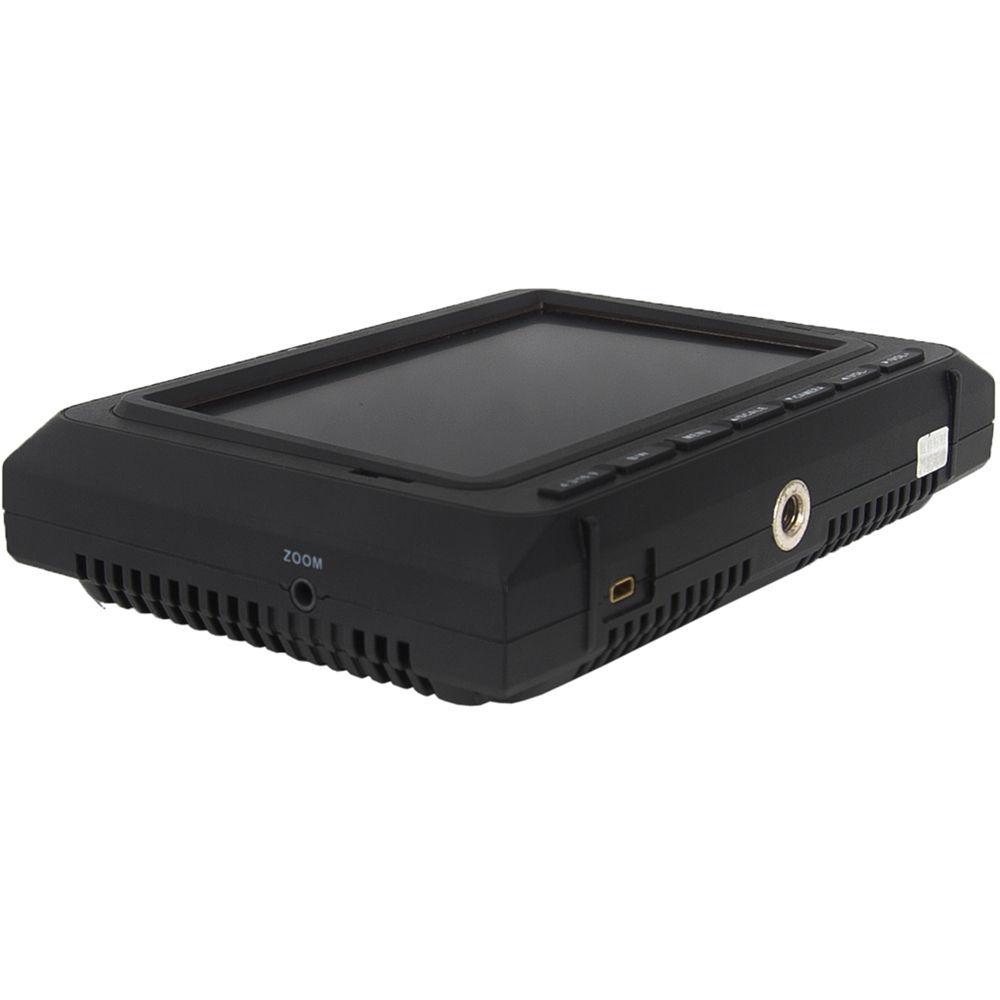

- Pixel-to-pixel zoom and peaking for focus assist with optional Varizoom VZMZB remote

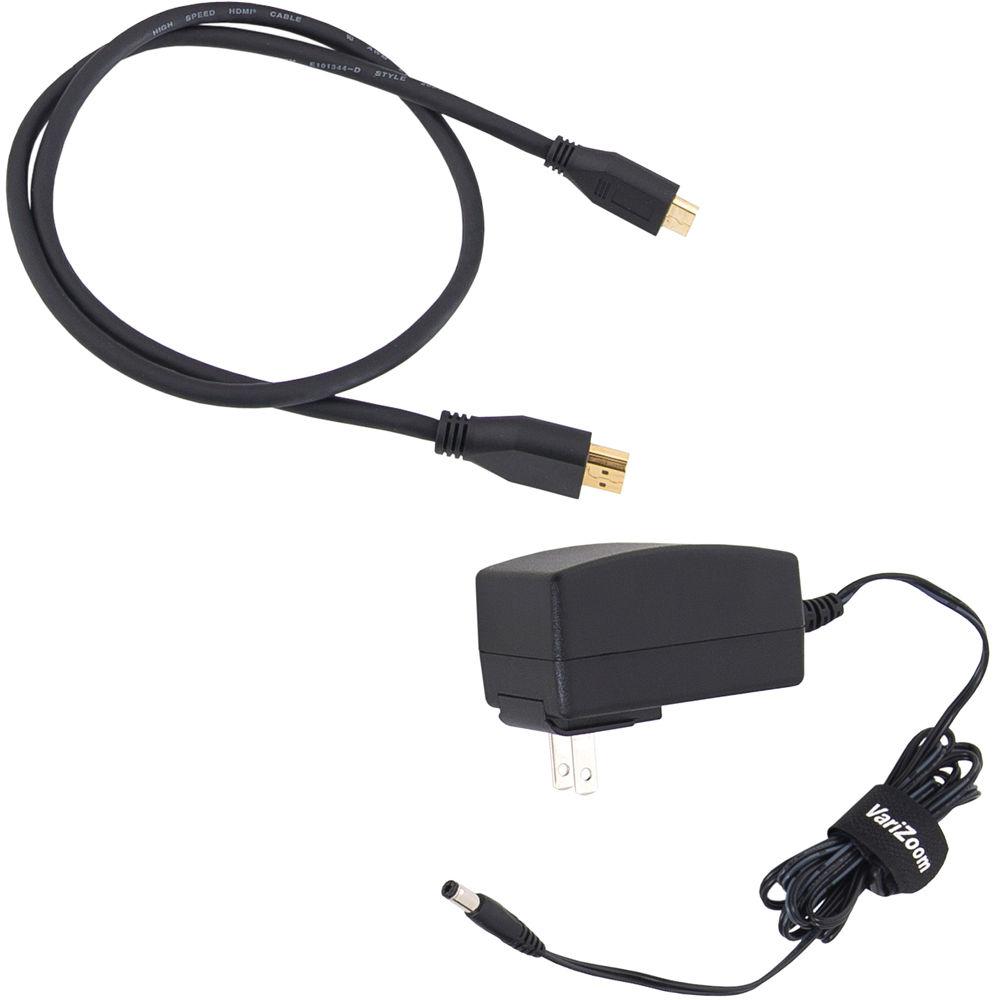

UPC: 877038005280 In the Box VariZoom VZM5 5" LCD On-Camera HDMI Loop-Through Monitor Power Supply 2 x HDMI Cable (Standard to Standard & Standard to Mini) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the VariZoom VZM5 5" LCD On-Camera HDMI Loop-Through Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVariZoom VZ-M5 Specs | | | Display Size | 4.9" / 12.4 cm | | Screen Resolution | 800 x 480 | | Viewing Angle | Horizontal: 160°
Vertical: 160° | | Maximum Brightness | 500 cd/m2 | | Contrast Ratio | 800:1 | | Response Time | 10 ms | | Image Controls | Focus Peaking, Image Flip, Pixel-to-Pixel Zoom, Screen Markers | | | | Video | 1 x HDMI Type A Input
1 x HDMI Type A Output | | Audio | 1 x 3.5 mm Headphone Output | | Built-In Speaker | None | | Other I/O | 1 x 3.5 mm | | Card Slot | None | | | | Video Format | HDMI
1080p: 24/25/30/50/60
1080PsF: 24
1080i: 50/60
720p: 50/60
NTSC
480p
PAL
576p | | | | DC Input Power | 6.5 to 36 VDC | | Battery Type | None | | Power Consumption | 7.5 W (Maximum) | | | | Mounting | 2 x 1/4"-20 Female | | | | Dimensions (W x H x D) | 5.8 x 3.96 x 1.22" / 14.73 x 10.05 x 3.09 cm | | Weight | 11.8 oz / 335.7 g | | | | Package Weight | 2.11 lb | | Box Dimensions (LxWxH) | 9.85 x 6.8 x 3.45" |
