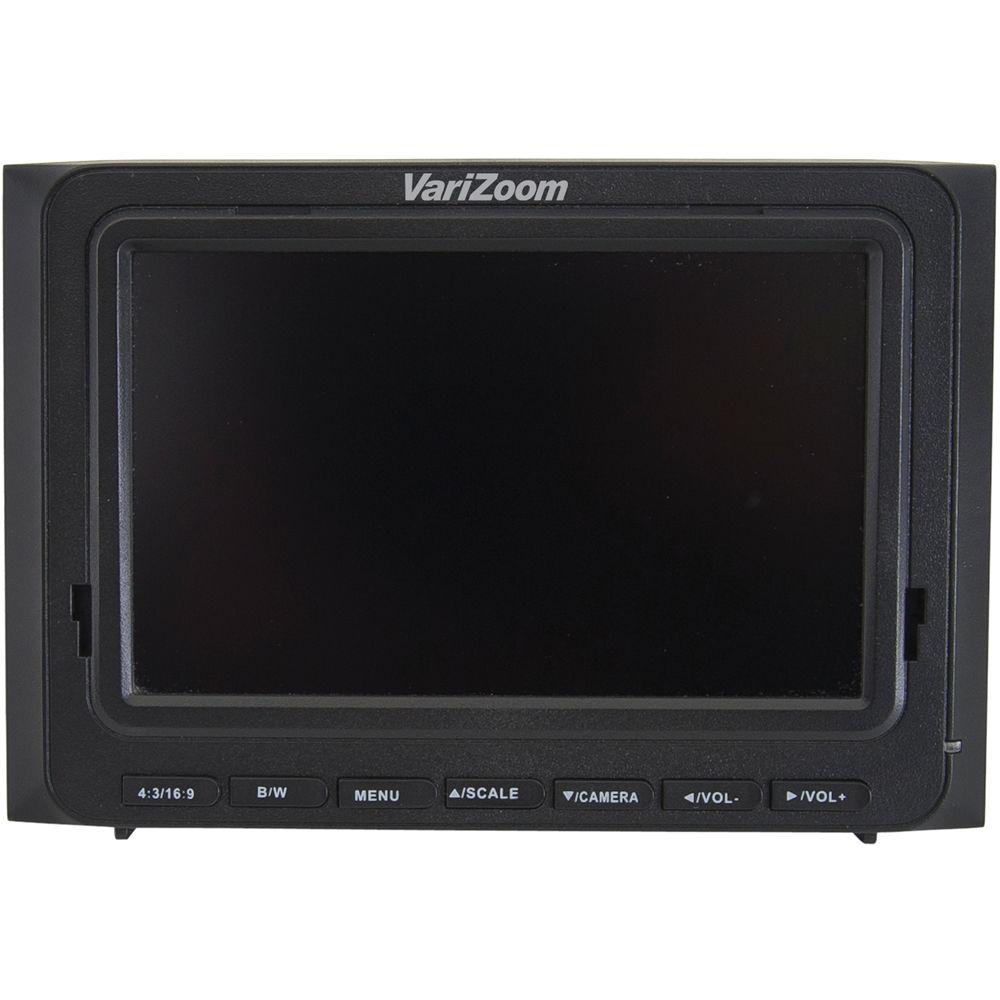

Product description The VZM5 Monitor Deluxe Kit from VariZoom features the VZM5 5" HDMI on-camera monitor and a variety of power and operation accessories.
The kit includes an L-Series battery plate and 6600mAh high-capacity L-Series battery, as well as a portable charger and an AC adapter for continuous in-studio power. Two HDMI cables are supplied along with two HDMI safety locks for securing the cables from accidental pullouts. A zoom button remote is also included that allows you to access Pixel-to-Pixel and Peaking modes remotely for more accurate focusing. You also get a sunhood for outdoor shots, swivel shoe camera mount, and a soft carrying case that will fit the monitor and many of the accessories.
The VZM5 is an easy-to-use monitor with an HDMI input and output. The monitor has a native resolution of 800 x 480 and supports input signals of up to Full HD 1080p, which get downscaled to 800 x 480. It has a sharp 800:1 contrast ratio and 500 cd/m² brightness. The brightness is high enough for confident monitoring in most outdoor scenarios when the sunhood is attached.

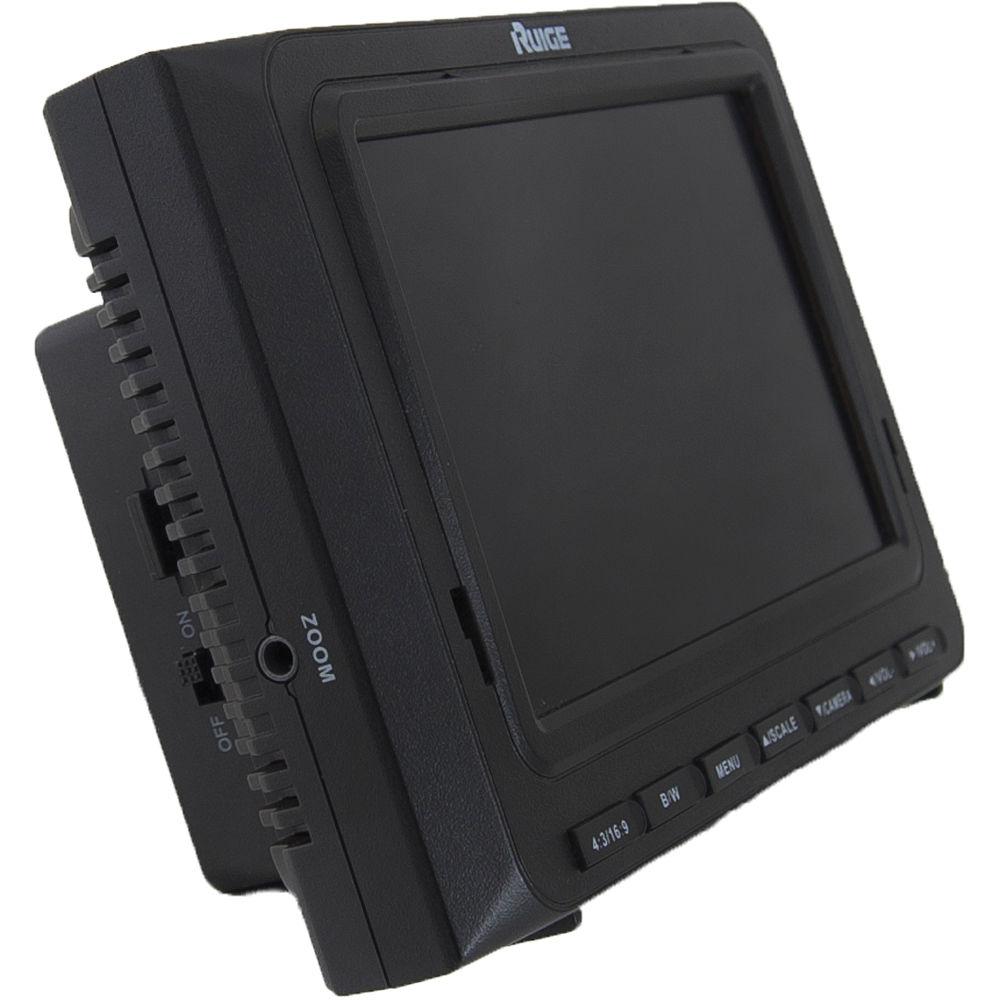

On the side of the monitor is a 3.5mm input jack built in to support the included zoom button remote control. This remote control can be attached on your tripod pan handle and pretty much anywhere else. One press of the "zoom" button on the remote control activates Pixel-to-Pixel mode on the monitor. This feature magnifies an area of the image and allows you to move to other areas so you can see the image in more detail for more accurate focusing. A second press of the zoom button takes you to Peaking mode where white outlines around objects in your image provide for additional focusing accuracy.

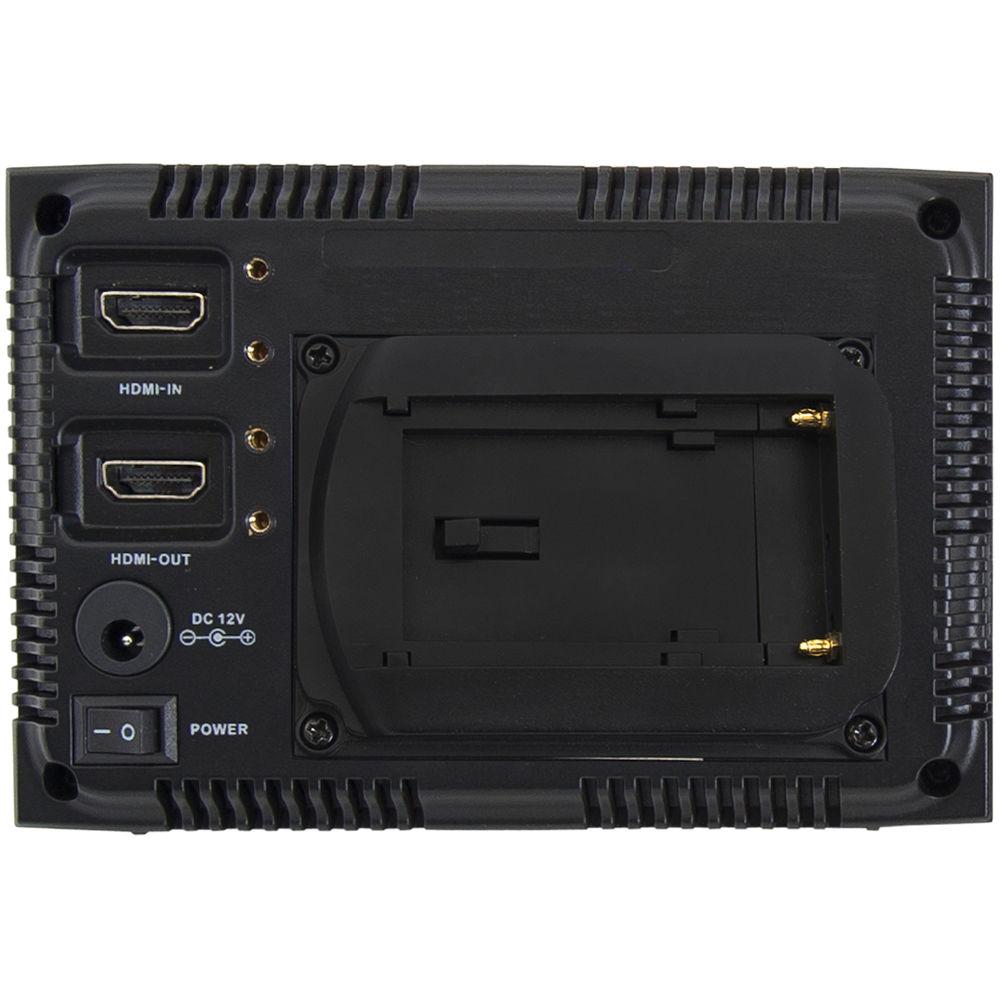

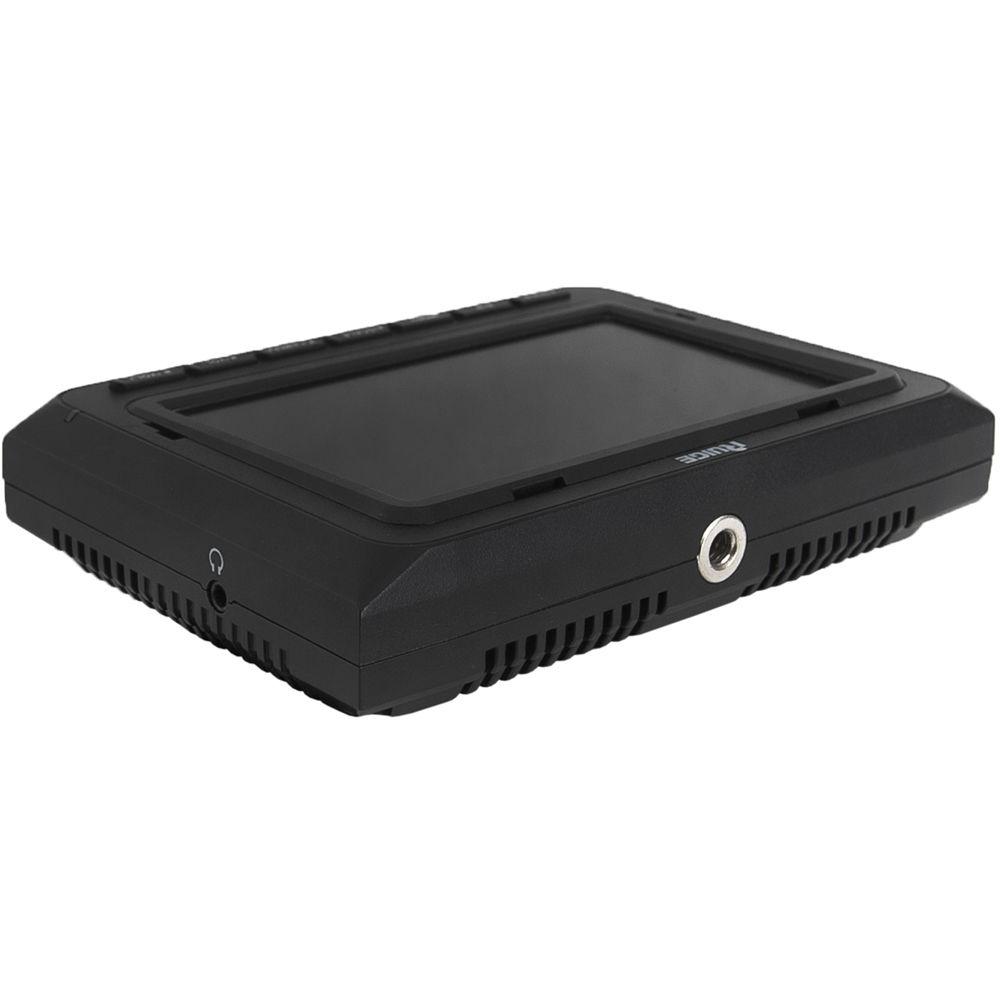

The VZM5 offers a headphone jack for audio monitoring, and has 1/4"-20 threaded mounting holes on the top and bottom. - Kit Contents
-
- VZM5 5" LCD monitor

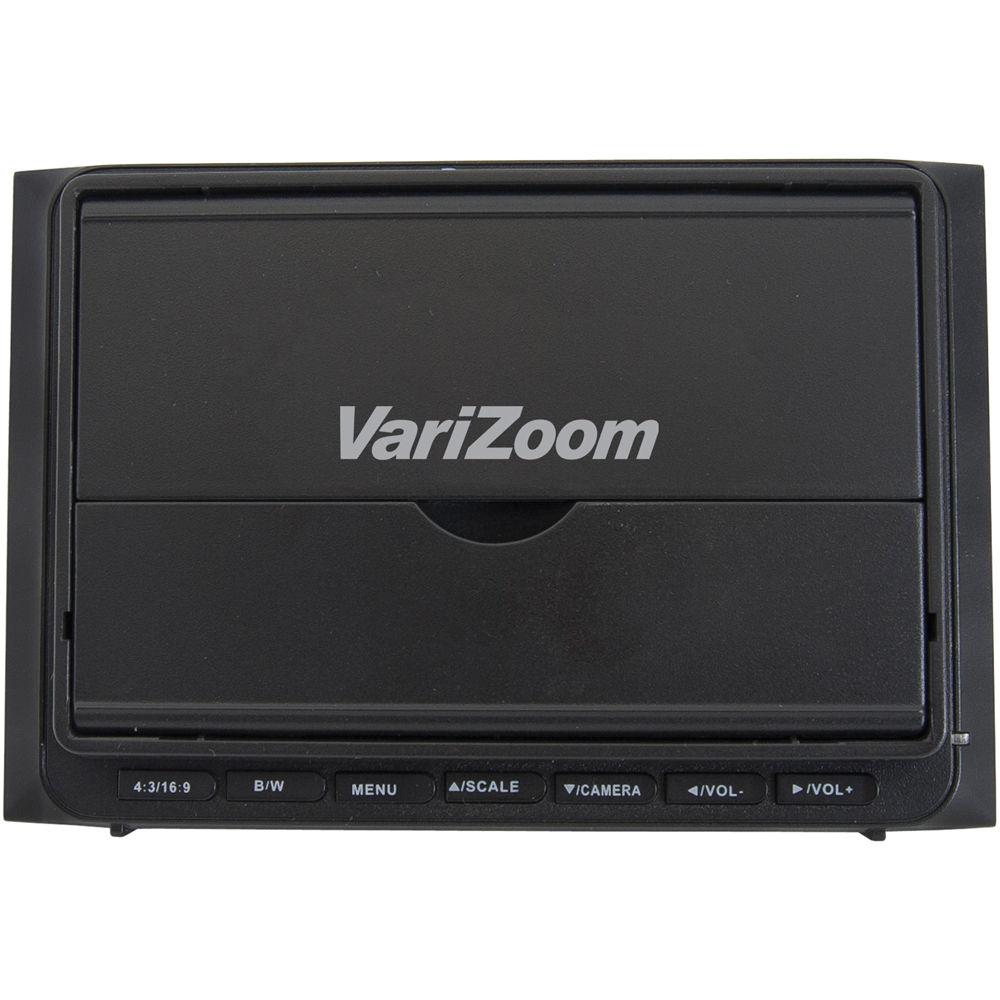

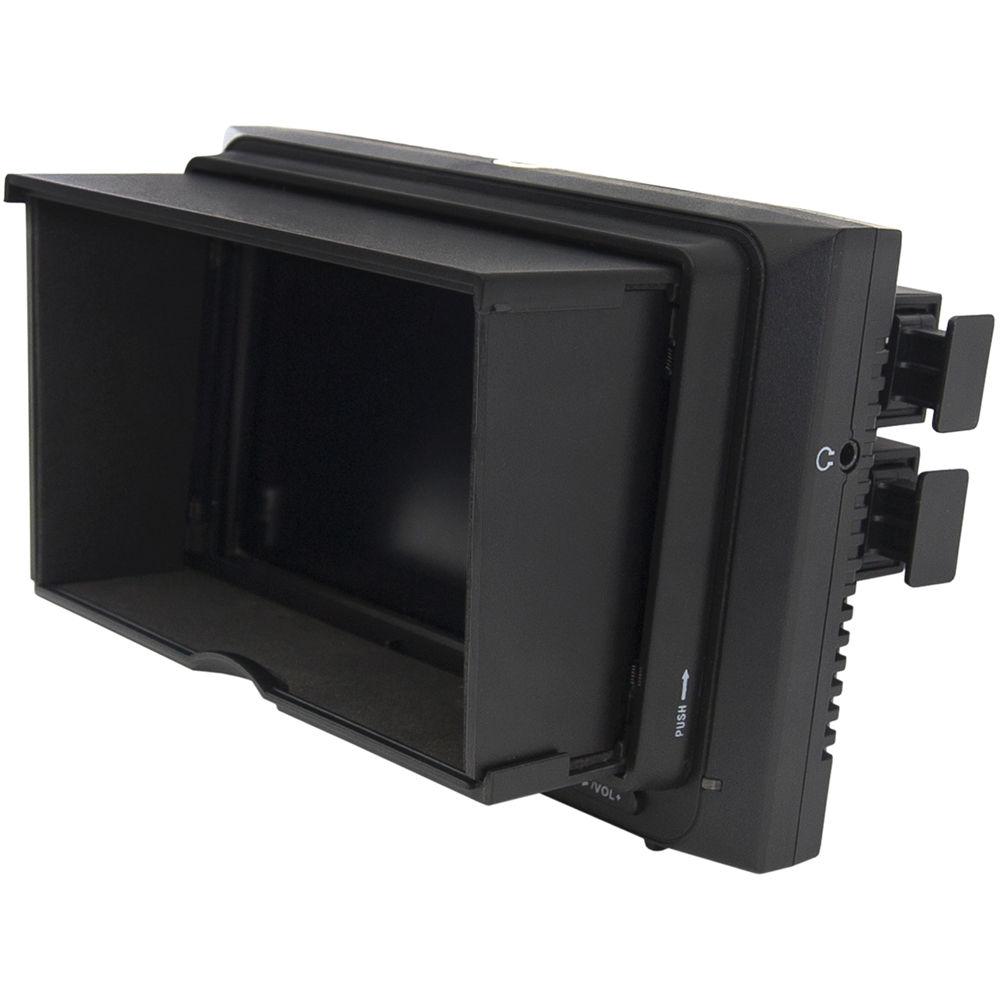

- Sunhood

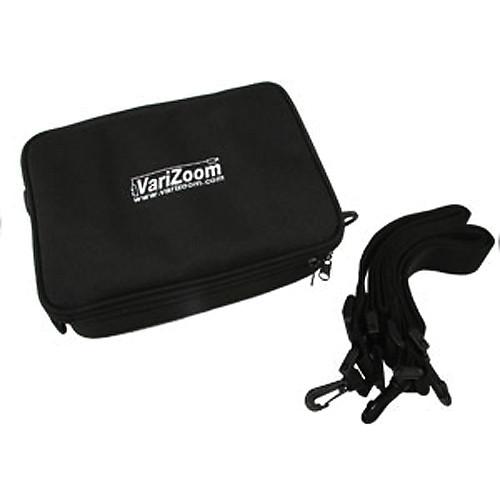

- Soft case with carrying straps
- Swivel shoe mount

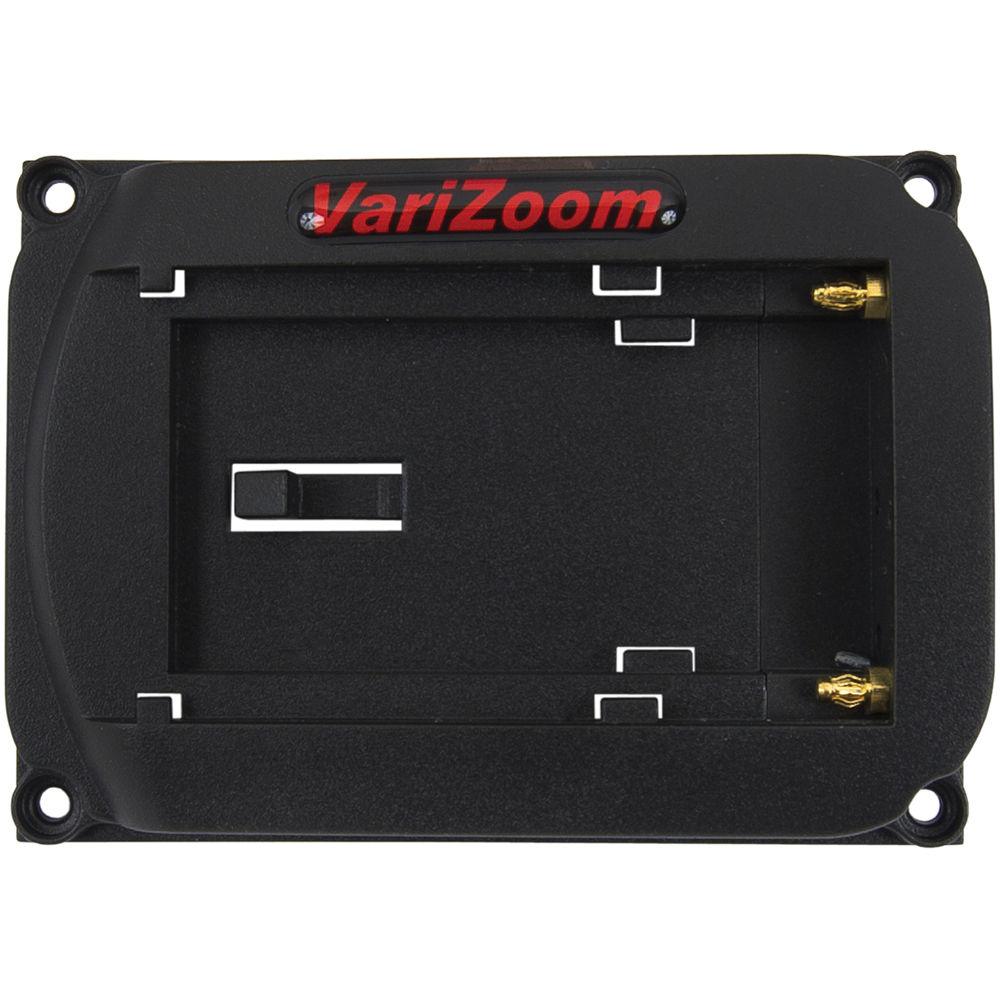

- L-Series battery plate

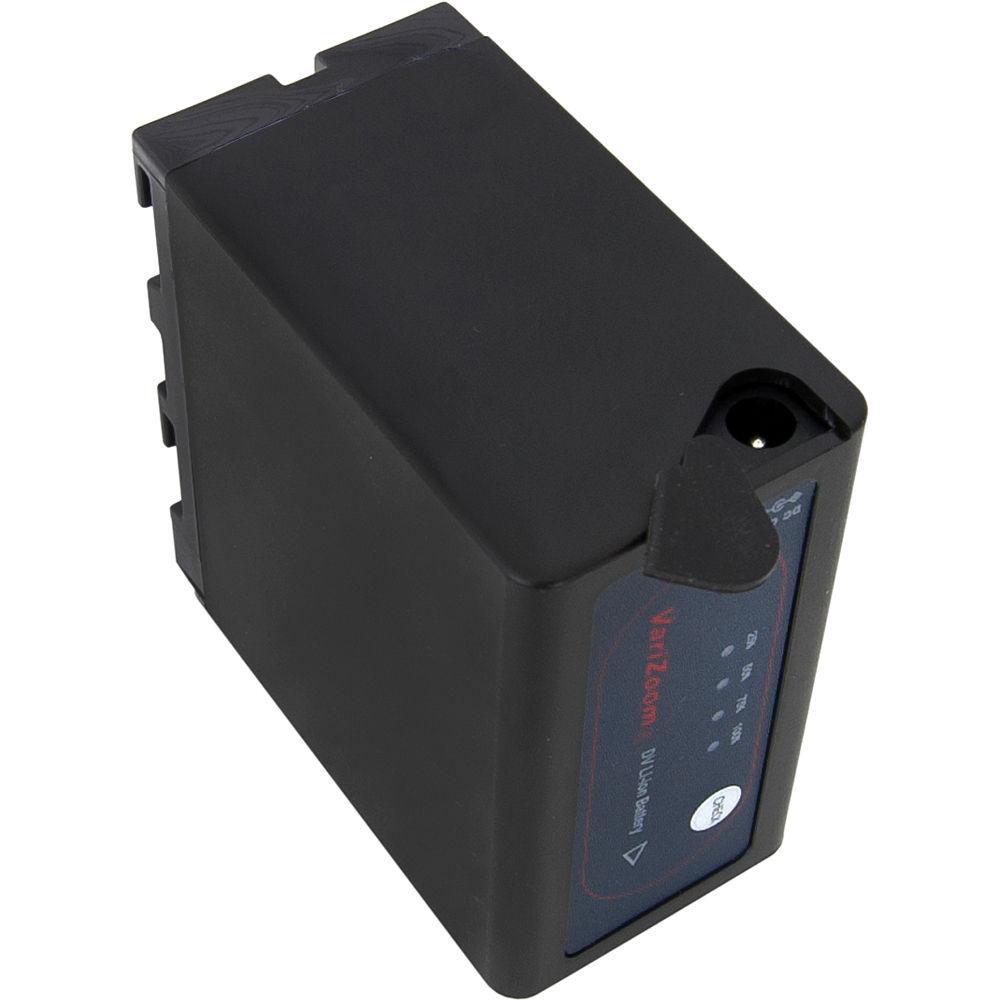

- L-Series 6600 mAh high-capacity battery
- Compact travel charger
- Zoom button remote
- Two HDMI cables (Full to Full & Full to Mini)
- HDMI safety locks
- AC Adapter
- Key Features
-
- HDMI input and output
- Native resolution of 800 x 480
- Supports input signals of up to Full HD 1080p
- 800:1 contrast ratio
- 500 cd/m² brightness
- Remote access Pixel-to-Pixel and Peaking
- DSLR Scaling
- Auto Aspect Ratio Detection
- Monochrome mode
- Image Flip
- Safety Area markers (5 levels)
- Centerline Marker
- 4:3 area markers
- Underscan and Overscan modes
- Color Temperature Presets
- Headphone jack for audio monitoring

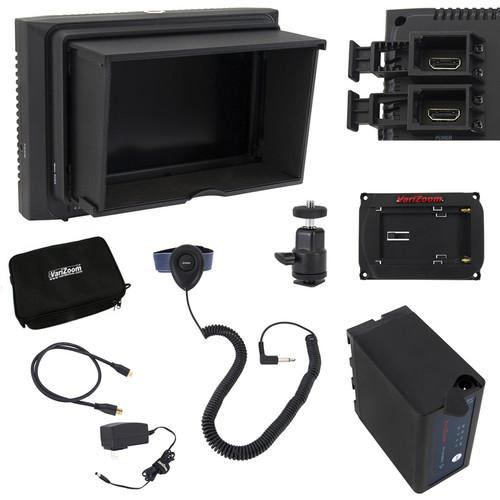

UPC: 877038005303 In the Box VariZoom VZM5 Monitor Deluxe Kit VZM5 5" LCD On-Camera HDMI Loop-Through Monitor accqdwxcwsstabuxerzxfxf Sunhood/Screen Protector for VZM5 Monitor VZ-CC Carry Case with Straps VZSHOE Swivel Shoe Mount Sony L Series Battery Plate for VZM5 and VZM7 Monitors Travel Charger for Sony L-Series Batteries VZ-M-ZB Zoom Button Remote for VZM5 & VZM7 Monitor 2 x VZ-M-LOCK HDMI Lock for VZM5 & VZM7 LCD Monitors 6600mAh High Capacity DV Battery AC Adapter HDMI Cable (Full to Full) HDMI Cable (Full to Mini) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the VariZoom VZM5 Monitor Deluxe Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVariZoom VZ-M5 Specs | | | Display | LED backlit 4.9" (12.5 cm) LCD (diagonal) | | Native Resolution | 800 x 480 | | Brightness | 500 cd/m² | | Contrast | 800:1 | | Supported Formats | 1920 x 1080 at 24p/24psf/25p/30p/50i/60i/50p/60p
1280 x 720 at 50p/60p
480i
480p
576i
576p | | Response Time | 10 ms | | Viewing Angle | L80° / R80° / U80° / D80° | | Input Voltage | 12 VDC nominal (6.5 - 36 VDC maximum range) | | Mount Type | 2 x 1/4"-20 female (top and bottom) | | Inputs/Outputs | 1 x HDMI input
1 x HDMI output
1 x 3.5 mm headphone jack output
1 x 3.5 mm zoom remote control input | | Power Input | 1 x DC barrel | | Power Consumption | +/-7.5 W | | Battery Capacity | 47 Wh
6600 mAh
Approximately 6 hour runtime | | HDCP Compliant | Yes | | Dimensions | 5.8 x 4 x 1.2" (14.7 x 10 x 3 cm) | | Weight | 0.74 lb (0.33 kg) | | | | Package Weight | 4.55 lb | | Box Dimensions (LxWxH) | 11.1 x 8.5 x 8.2" |
