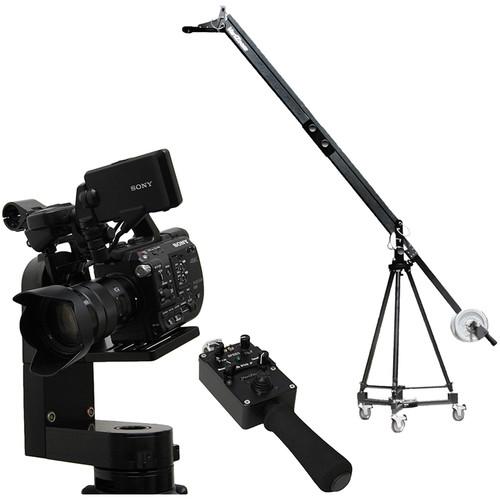

VariZoom VZQJ-CPM5 QuickJib Camera Crane &

User Manual for VariZoom VZQJ-CPM5 QuickJib Camera Crane & CinemaPro Micro K5 Remote Head System

• Product category: Cranes & Jibs VariZoom
• Brand: VariZoom
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for VariZoom Cranes & Jibs

Product description

• QuickJib Extension Kit with TCR100 Tripod & DCR100 Dolly VariZoom's QuickJib Extension Kit with TCR100 Tripod & DCR100 Dolly is an affordable, high-performance jib kit for cameras weighing up to 30 lbs (13.6kg). This professional, no-tools jib arm system assembles safely and quickly, extending to nearly 14 feet (4.26m). Portable and compact, the QuickJib attaches to the custom TCR100 crane tripod, which fits perfectly into the heavy-duty DC100 adjustable dolly. You're ready to roam! The perfect combo of quality and economy, this QuickJib system will provide years of reliable operation, whether indoors, outside, or in the studio.
  Jib Arm
  • The QuickJib selectively uses industrial powder coating and anodizing for optimal component performance, with stainless steel fasteners throughout (as opposed to lesser, cheaper zinc-plated fasteners). The slim QuickJib outperforms the competition by having 50% less air resistance in breezy conditions than jibs utilizing a four-arm support system.
  Brake System
  • Brake system utilizes a heavy-duty plate that is securely mounted to the pivot section. Brake compression system is built into a stator and designed to compress firmly and securely, while remaining forgiving enough to slide under extreme force that might otherwise topple a locking-brake jib system.
  Locking Pins
  • Locking stainless aircraft pins of the highest quality and strength are used at the pivot points, and they are attached by lanyard to prevent them from ever being lost.
  Tilting Mechanisms
  • Camera platform and tilt base join to the jib arm with stainless aircraft pins that insert through sealed radial ball bearings at the tilt base and high-performance sleeve bearings at the camera platform, resulting in silent, smooth motion. The camera platform also has a built-in spirit level for quick reference and adjustment. Paired with an optional Zero Gravity head, you have a professional manual overhead jib.
  Telescoping Counterweight Section
  • Telescoping weight arm adjusts up to 3 feet for tremendous flexibility. Extend the arm to reduce the amount of weight needed, shorten it to work in tighter spaces, or simply adjust it to fine-tune the counterbalance.
  TCR100 Crane Tripod
  • This custom-built crane tripod is the only tripod VariZoom recommends for use with any crane, no matter the brand. We recommend you never use a telescoping or collapsible tripod under a crane, no matter how small. When supporting an expensive camera on a jib elevated above other valuable equipment or people, it's simply common sense to eliminate all risk and use a single-section tripod instead of a telescoping one. The TCR100 was designed with safety and strength in mind, combining a solid machined base-plate (not molded), specialty heavy-gauge tubing, and oversize leveling feet for an ultra-stable design that will never falter or fail. With anodized aluminum, stainless steel fasteners and solid brass bushings, the TCR100 will last a lifetime.
  DCR100 Dolly
  • VariZoom's heavy-duty dolly has an ample spread and a positive leg-locking system that securely captures the TCR100 crane tripod.
  UPC: 877038004962
• CP Micro Remote Head with Jibstick Jr Controller (100mm Mount) The CP Micro Remote Head with Jibstick Jr Controller from VariZoom is compatible with the Canon C100/C300, Sony FS5, Sony a7R II, RED RAVEN, DSLRs, and other compact cameras under 12 lb. It has a 100mm ball mount, and works with CinemaPro control devices including pan bars, hand wheels, advanced console, River multi-head 28-axis console, Jibstick Pro, and the included Jibstick Jr. This remote head features a thumb joystick and cable pass-through ports on both pan and tilt rotators. It also features an easily adjustable single-lock camera platform, and LEMO connectors for power and control.
  • Dynamic speed control (up to 130°/second)
  • Maintenance-free, high-power drivetrain holds camera position
  • Cable pass-through ports on pan and tilt rotators
  • Native frame-accurate motion control capability
  • Programmable soft limits to restrict the range of head motion and mark start/stop positions
  • Independent speed and direction controls
  • Features smoothing adjustment
  • Thumb joystick
  • Easily adjustable single-lock camera platform
  • Flexible mounting base allows you to change the mount without special tools
  • LEMO connectors for power and control
  UPC: 877038007352

• VZ-TCR100 Aluminum Crane Tripod for SnapCrane

• VZ-D100 Heavy Duty Dolly for Jibs

• Extended Jib Arm

• Crane Case

• 2 Year Parts & Labor Warranty

• Jibstick Jr Controller

• AC Power Supply with 25' Cable

• 25' Control Cable

• 100mm Ball Mount

• Hard Carrying Case

• Limited 2-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• QuickJib Extension Kit with TCR100 Tripod & DCR100 Dolly

  Construction	Anodized Aluminum
  Payload Capacity	30 lbs (13.6kg)
  Counterbalance System	Standard barbell weights (not included)
  Height Range	9'6" - 13'9" (2.9 - 4.2m)
  Tilt Lock	Yes
  Tilt Drag	No
  Pan Lock	Yes
  Spring Loaded Counter Balance	No
  Pan Range	360°
  Tripod Attachment	Not specified by manufacturer
  Head Attachment	Not specified by manufacturer
  Head Arm Leveling	Not specified by manufacturer
  Leveling Indicators	Built-in Spirit Level
  Fold Down	56" (142cm)
  Weight	47 lbs (21.3kg)

  Box Dimensions (LxWxH)	0.01 x 0.01 x 0.01"

• CP Micro Remote Head with Jibstick Jr Controller (100mm Mount)

  Pan/Tilt Speed	130°/sec
  Clearance	Camera Clearance: Vertical: 7" (17.8 cm) from center of camera plate to base Horizontal: 8.3 to 10.5" (21 to 26.7 cm) With 3" Head Extension: Vertical: 10" (25.4 cm) Horizontal: 11.3 to 13.5" (28.7 to 34.3 cm)
  Mount Type	100 mm ball
  Maximum Camera Weight	12 lb (5.4 kg)
  Cable Extension Length	300' (91.4 m)
  Power Requirements	24 VDC regulated, 4 A maximum 20 to 30 VDC, absolute min/max
  Dimensions	13 x 4 x 6" (33.0 x 10.2 x 15.2 cm)
  Weight	7 lb (3.2 kg)
