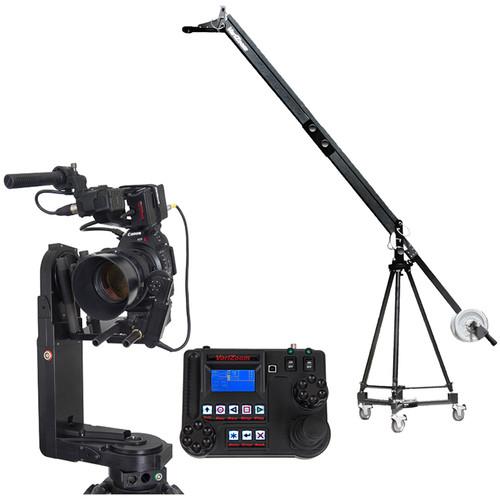

Product description The VZQJ2K-CPJ3 QuickJib Camera Crane & CinemaPro Jr K3 System from VariZoom includes the QuickJib camera crane kit and CinemaPro Jr K3 remote head for cameras weighing up to 35 lb. With its menu-driven advanced control console and high-performance head design, the CinemaPro Jr K3 can execute dynamic or subtle moves with total precision and playback capability. The controller features a built-in zoom/focus control, as well as full parametric motion control settings.
Portable and compact, the QuickJib camera crane attaches to the custom TCR100 crane tripod, which fits perfectly into the heavy-duty DC100 adjustable dolly. This professional, no-tools jib arm system assembles safely and quickly, extending up to 5' without extension and up to 9.5' with extension (included). It features a secure captive clamp system for extending the jib, along with lanyard-attached stainless-steel aircraft pins for quick assembly. - QuickJib Extension Kit with TCR100 Tripod & DCR100 Dolly VariZoom's QuickJib Extension Kit with TCR100 Tripod & DCR100 Dolly is an affordable, high-performance jib kit for cameras weighing up to 30 lbs (13.6kg). This professional, no-tools jib arm system assembles safely and quickly, extending to nearly 14 feet (4.26m). Portable and compact, the QuickJib attaches to the custom TCR100 crane tripod, which fits perfectly into the heavy-duty DC100 adjustable dolly. You're ready to roam! The perfect combo of quality and economy, this QuickJib system will provide years of reliable operation, whether indoors, outside, or in the studio.
- Jib Arm
- The QuickJib selectively uses industrial powder coating and anodizing for optimal component performance, with stainless steel fasteners throughout (as opposed to lesser, cheaper zinc-plated fasteners). The slim QuickJib outperforms the competition by having 50% less air resistance in breezy conditions than jibs utilizing a four-arm support system.
- Brake System
- Brake system utilizes a heavy-duty plate that is securely mounted to the pivot section. Brake compression system is built into a stator and designed to compress firmly and securely, while remaining forgiving enough to slide under extreme force that might otherwise topple a locking-brake jib system.
- Locking Pins
- Locking stainless aircraft pins of the highest quality and strength are used at the pivot points, and they are attached by lanyard to prevent them from ever being lost.
- Tilting Mechanisms
- Camera platform and tilt base join to the jib arm with stainless aircraft pins that insert through sealed radial ball bearings at the tilt base and high-performance sleeve bearings at the camera platform, resulting in silent, smooth motion. The camera platform also has a built-in spirit level for quick reference and adjustment. Paired with an optional Zero Gravity head, you have a professional manual overhead jib.
- Telescoping Counterweight Section
- Telescoping weight arm adjusts up to 3 feet for tremendous flexibility. Extend the arm to reduce the amount of weight needed, shorten it to work in tighter spaces, or simply adjust it to fine-tune the counterbalance.
- TCR100 Crane Tripod
- This custom-built crane tripod is the only tripod VariZoom recommends for use with any crane, no matter the brand. We recommend you never use a telescoping or collapsible tripod under a crane, no matter how small. When supporting an expensive camera on a jib elevated above other valuable equipment or people, it's simply common sense to eliminate all risk and use a single-section tripod instead of a telescoping one. The TCR100 was designed with safety and strength in mind, combining a solid machined base-plate (not molded), specialty heavy-gauge tubing, and oversize leveling feet for an ultra-stable design that will never falter or fail. With anodized aluminum, stainless steel fasteners and solid brass bushings, the TCR100 will last a lifetime.
- DCR100 Dolly
- VariZoom's heavy-duty dolly has an ample spread and a positive leg-locking system that securely captures the TCR100 crane tripod.
UPC: 877038004962 - Cinema Pro Jr (Advanced Controller, Power Supply, Hard Travel Case) The VariZoom Cinema Pro Jr (Advanced Controller, Power Supply, Hard Travel Case) is a digital motion control system that includes the advanced controller, power supply unit, and a hard travel case. You are offered a scaled down version of the Cinema Pro digital motion control system with 30% reduced programming, speed, and load capability. You can use the motion control system for cameras weighing up to 35 lb and achieve maximum pan/tilt speeds of 110-120°/sec. The system also integrates a precision enclosed drivetrain for enhanced performance. The Cinema Pro Jr also includes an advanced controller that provides comprehensive parametric motion control and recording capabilities. Integrated into the controller (full function remote) are an LCD readout display, connector panel, joystick based pan, tilt and zoom controls, and a focus control knob. You can use the advanced controller as a stand-alone module for desktop or tripod operations, or couple it with other optional control input units. The Cinema Pro Jr supports multiple control input options. You can move and record to marked positions, achieve full motion control during record and playback, and programmable maximum speeds and smoothing for each motor. Operator commands are precisely conveyed from the controller across a distance of up to 2500’ to the head. You can also program the motion limits and achieve servo tuning of the motors via the remote console. Serial and Analog lens control coupled with zoom compensation for high-quality and smooth shots at telephoto is available for Fujinon, Canon, and Preston lenses. You can leverage the high rigidity of the digital motion control system to achieve accurate and smooth motion of long lenses. It is ideal for portable crane or jib-based operations, and weighs 13 lb and measures 21 x 6 x 11.4”.
- Digital motion control system - includes the advanced controller, power supply unit, and a hard travel case
- Scaled down version of the Cinema Pro digital motion control system with 30% reduced programming, speed, and load capability
- Supports cameras weighing up to 35 lb and achieve maximum pan/tilt speeds of 110-120°/sec
- Integrates a precision enclosed drivetrain for enhanced performance
- Includes an advanced controller that provides comprehensive parametric motion control and recording capabilities
- Advanced Controller - includes LCD readout display, connector panel, joystick based pan, tilt and zoom controls, and a focus control knob
- Functions as a stand-alone module for desktop or tripod operations, or can be coupled with other optional control input units
- Supports multiple control input options
- Allows you to move and record to marked positions, achieve full motion control during record and playback, and programmable maximum speeds and smoothing for each motor
- Provides precise transmission of operator commands from the controller across a distance of up to 2500' to the head
- Offers programming of motion limits and servo tuning of the motors via the remote console
- Provides serial and analog lens control coupled with zoom compensation for high-quality and smooth shots at telephoto while using Fujinon, Canon, and Preston lenses
- Integrates high rigidity to achieve accurate and smooth motion of long lenses
- Weighs 13 lb and measures 21 x 6 x 11.4"
- Ideal for portable crane or jib-based operations
UPC: 877038004924 In the Box Bundle Items QuickJib Extension Kit with TCR100 Tripod & DCR100 Dolly aaxrqsbfawubbstbvaysdcqaatydudb - VZ-TCR100 Aluminum Crane Tripod for SnapCrane
- VZ-D100 Heavy Duty Dolly for Jibs
- 2 Year Parts & Labor Warranty
Cinema Pro Jr (Advanced Controller, Power Supply, Hard Travel Case) Table of Contents
|
Upload User Manual
Have you got an user manual for the VariZoom VZQJ2K-CPJ3 QuickJib Camera Crane & CinemaPro Jr K3 Remote Head System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - QuickJib Extension Kit with TCR100 Tripod & DCR100 Dolly
| Construction | Anodized Aluminum | | Payload Capacity | 30 lbs (13.6kg) | | Counterbalance System | Standard barbell weights (not included) | | Height Range | 9'6" - 13'9" (2.9 - 4.2m) | | Tilt Lock | Yes | | Tilt Drag | No | | Pan Lock | Yes | | Spring Loaded Counter Balance | No | | Pan Range | 360° | | Tripod Attachment | Not specified by manufacturer | | Head Attachment | Not specified by manufacturer | | Head Arm Leveling | Not specified by manufacturer | | Leveling Indicators | Built-in Spirit Level | | Fold Down | 56" (142cm) | | Weight | 47 lbs (21.3kg) | | | | Box Dimensions (LxWxH) | 0.01 x 0.01 x 0.01" | - Cinema Pro Jr (Advanced Controller, Power Supply, Hard Travel Case)
| Height | 20.5" (52cm) | | Width | 11.3" (28.7cm) | | Depth | 6" (15.2cm) | | Weight | 13 lb (5.8kg) | | Maximum Camera Weight | 35 lb (15.8kg) | | Pan/Tilt Speed | 1.0 sec for 210° | | Warranty | 2 Years |
