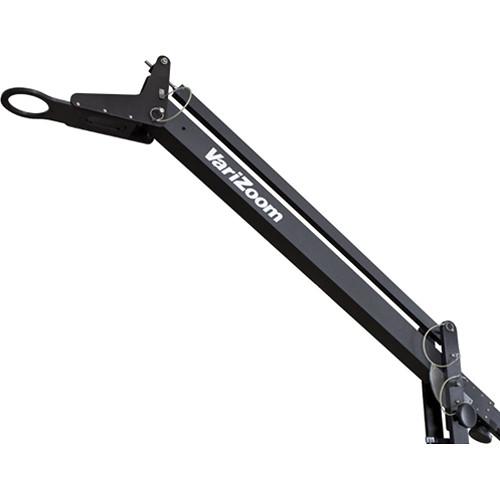

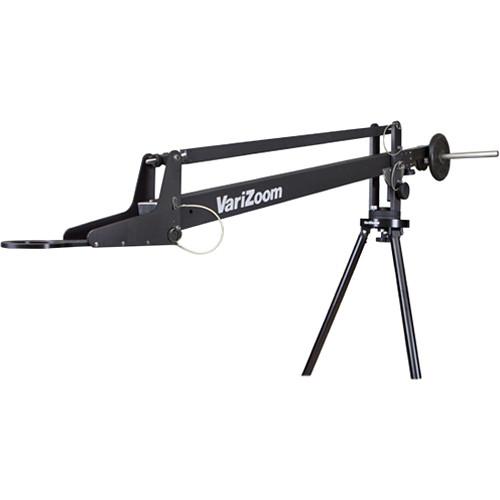

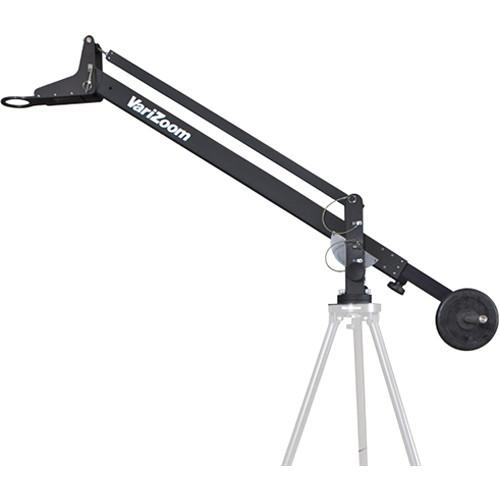

Product description Varicam's QuickJib is an affordable, high-performance jib for cameras weighing up to 50 lbs (22.7kg). This professional, no-tools jib arm assembles safely and quickly, delivering a stable and secure base from which your camera can float and roam. Portable and compact, the QuickJib attaches to a level, secured tripod and can extend to over 10 feet (or nearly 14 feet with an optional extension). The perfect combo of quality and economy, the QuickJib will provide years of reliable operation, whether indoors, outside, or in the studio. - Jib Arm
- The QuickJib selectively uses industrial powder coating and anodizing for optimal component performance, with stainless steel fasteners throughout (as opposed to lesser, cheaper zinc-plated fasteners). The slim QuickJib outperforms the competition by having 50% less air resistance in breezy conditions than jibs utilizing a four-arm support system.

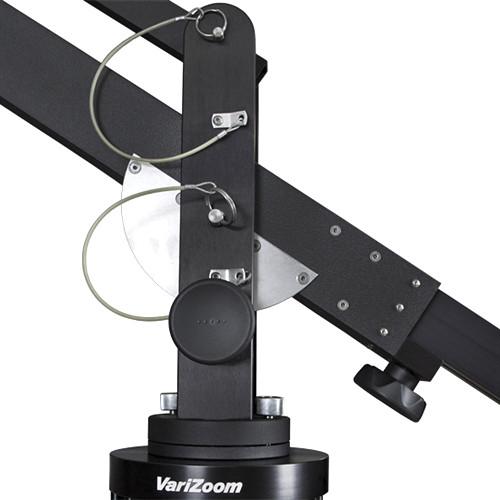

- Brake System
- Brake system utilizes a heavy-duty plate that is securely mounted to the pivot section. Brake compression system is built into a stator and designed to compress firmly and securely, while remaining forgiving enough to slide under extreme force that might otherwise topple a locking-brake jib system.
- Locking Pins
- Locking stainless aircraft pins of the highest quality and strength are used at the pivot points, and they are attached by lanyard to prevent them from ever being lost.

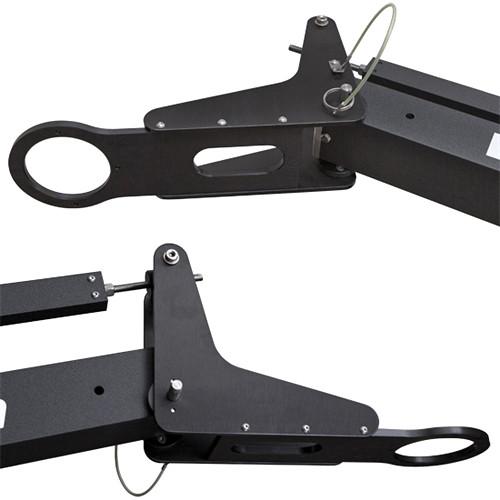

- Tilting Mechanisms

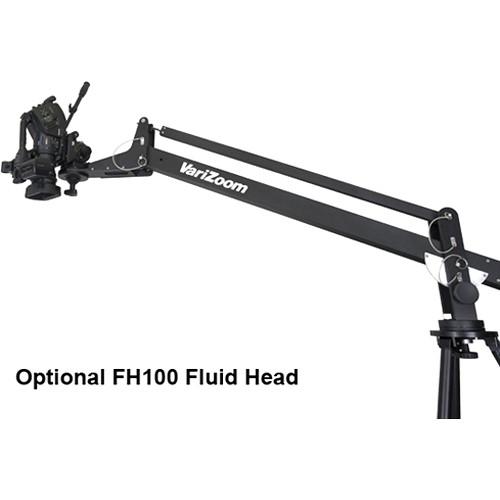

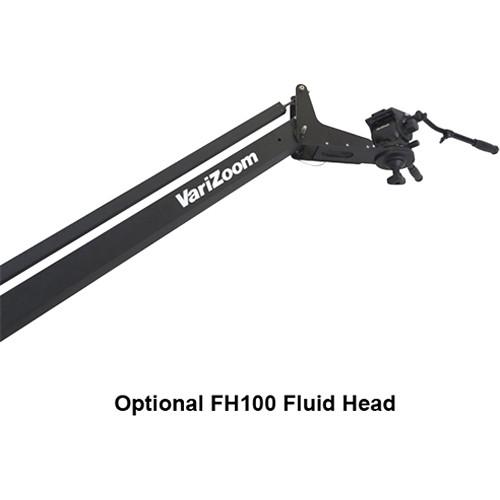

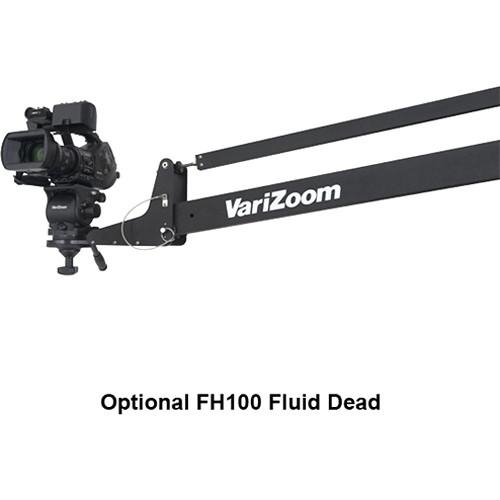

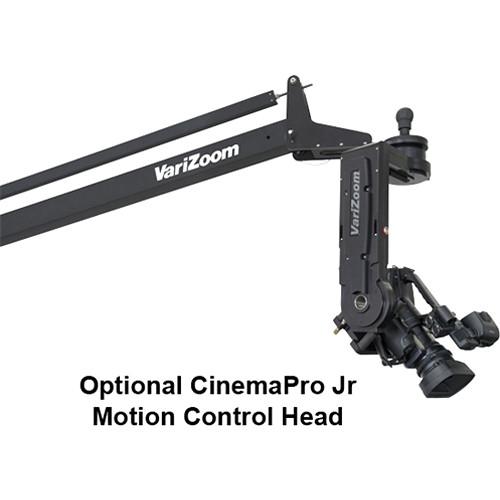

- Camera platform and tilt base join to the jib arm with stainless aircraft pins that insert through sealed radial ball bearings at the tilt base and high-performance sleeve bearings at the camera platform, resulting in silent, smooth motion. The camera platform also has a built-in spirit level for quick reference and adjustment. Paired with an optional Zero Gravity head, you have a professional manual overhead jib.
- Telescoping Counterweight Section
- Telescoping weight arm adjusts up to 3 feet for tremendous flexibility. Extend the arm to reduce the amount of weight needed, shorten it to work in tighter spaces, or simply adjust it to fine-tune the counterbalance.

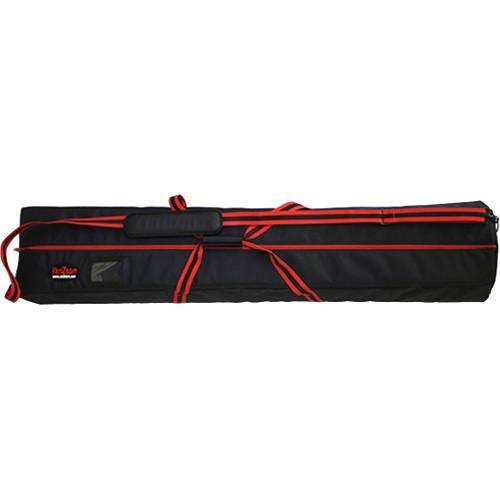

UPC: 877038006973 In the Box VariZoom VZQUICKJIB QuickJib Crane Case 2 Year Parts & Labor Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the VariZoom VZQUICKJIB QuickJib in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVariZoom VZQUICKJIB Specs | Construction | Anodized Aluminum | | Payload Capacity | 50 lbs (22.7kg) | | Counterbalance System | Standard barbell weights (not included) | | Height Range | 5' - 10'2" (1.52 - 3.1m) | | Tilt Lock | Yes | | Tilt Drag | No | | Pan Lock | Yes | | Spring Loaded Counter Balance | No | | Pan Range | 360° | | Tripod Attachment | Not specified by manufacturer | | Head Attachment | Not specified by manufacturer | | Head Arm Leveling | Not specified by manufacturer | | Leveling Indicators | Built-in Spirit Level | | Fold Down | 56" (142cm) | | Weight | 26.7 lbs (12.1kg) | | | | Package Weight | 57.5 lb | | Box Dimensions (LxWxH) | 58.0 x 15.0 x 13.0" |
