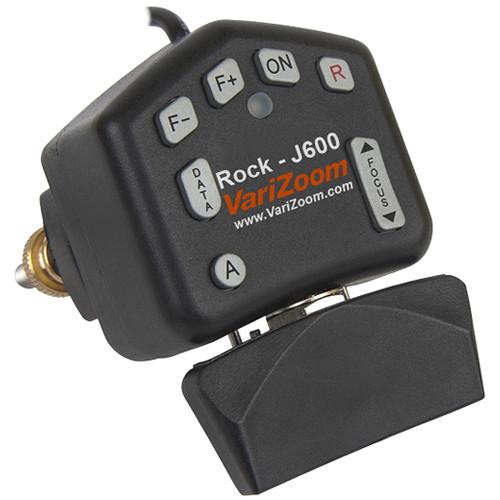

User Manual for VariZoom VZROCK-J600 JVC Zoom Focus Iris Control Click to enlarge the picture
Contents of the user manual for the VariZoom VZROCK-J600 JVC Zoom Focus Iris
- Product category: Zoom & Focus Controls VariZoom
- Brand: VariZoom
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for VariZoom Zoom & Focus Controls
|
User manual for the VariZoom VZROCK-J600 JVC Zoom Focus Iris contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any VariZoom product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official VariZoom user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a VariZoom product will considerably shorten its lifespan!
|
Product description The VariZoom VZROCK-J600 JVC Zoom/Focus/Iris Control is specifically designed for the JVC GY-HM600 and GY-HM650 cameras. The zoom rocker has a wide range of motion for a fine degree of speed control. The VZROCK-J600 features a dedicated rocker-style focus button, a low-profile record/pause button, iris control buttons, and an LED for indicating recording status. Additional features include buttons for selecting auto or manual focus and iris modes and a button for turning on-screen displays on and off. - Variable Zoom Rocker
- The farther you press the zoom rocker switch to the right the faster it will zoom in (telephoto), and the farther you press it to the left the faster it will zoom out (wide).
- Focus Button
- You can also control the focus of your lens manually using the controller. You must first set the camera to "Manual Focus" mode. Once you are in Manual Focus mode, you can use the switch on the controller marked "FOCUS" to precisely adjust the focal plane. Pressing the up-arrow will move the focal plane farther away while pressing the down-arrow will bring the focal plane closer. The available focal range will be somewhat reduced at telephoto.
- Record Start/Stop Button
- The small button marked with a red "R" is the record start/stop button.
- Iris Control Buttons
- The F- and F+ buttons control the iris setting. The F- button will lower the f-stop (open iris) while the F+ button will raise the f-stop (close iris) between 1.8 and 8.0 (range will differ at telephoto).
- LED Indicator Light
- The LED indicator light will turn on and off to indicate recording status.
- Auto/Manual Buttons for Focus and Iris
- The "On" button toggles between auto and manual iris mode, and the "A" button toggles between auto and manual focus mode.
- Data Button
- The Data button toggles the on-screen display (record time, settings, etc.) on and off.
UPC: 877038005143 In the Box VariZoom VZROCK-J600 JVC Zoom/Focus/Iris Control 2-Years Parts and Labor Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the VariZoom VZROCK-J600 JVC Zoom Focus Iris Control in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVariZoom VZ-ROCK-J600 Specs | Mount Type | Integrated clamp with 1.25" (31.75 mm) max diameter | | Material | ABS | | Cable Length | 40" (1 m) | | Dimensions | 2 x 2.75" (50.8 x 69.85 mm) | | Weight | 4 oz (113.4 g) | | | | Package Weight | 0.3 lb | | Box Dimensions (LxWxH) | 5.8 x 3.3 x 3.3" |
