Product description

• VZ-SNAPCRANE16 Snapcrane The VariZoom SnapCrane VZ-SNAPCRANE16 is the extended configuration in the SnapCrane camera crane series. It offers 16'6" vertical extension and comes with a tripod, dolly and case.
  Crane
  • The SnapCrane is a compact, modular crane design. It offers various configurations for specific applications.
  All Four Set-Ups
  • This configuration allows the user to set-up in all four configurations.
  Tripod
  • Utilizing specialty heavy-gauge tubing for the single-section legs and a solid baseplate machined from a block over 2.5" thick, the TC-100 is built to extreme standards of rigidity and durability. The stainless-steel leveling feet offer up to 3" of adjustment, while the padded carrying case makes transport comfortable and safe.
  Dolly
  • Accommodating heavy or light tripods with mid level spreaders, this platform is ideal for moving large setups over flat ground. Locking wheels keep your tripod immobile during the shoot. When you are finished filming, this dolly folds down into a compact size for easy transportation to your next location.

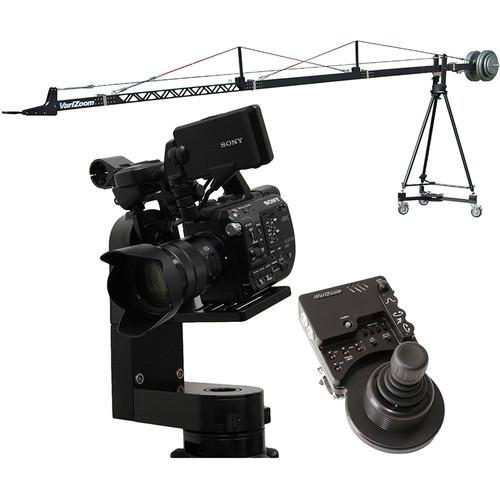

• CP Micro Remote Head with Jibstick Pro Controller (100mm Mount) The CP Micro Remote Head with Jibstick Pro Controller from VariZoom is compatible with the Canon C100/C300, Sony FS5, Sony a7R II, RED RAVEN, DSLRs, and other compact cameras under 12 lb. It has a 100mm ball mount, and works with CinemaPro control devices including pan bars, hand wheels, advanced console, River multi-head 28-axis console, Jibstick Jr, and the included Jibstick Pro. This remote head features a professional long-throw joystick with integrated palm rest. It also features an easily adjustable single-lock camera platform, and LEMO connectors for power and control.
  • Dynamic speed control (up to 130°/second)
  • Maintenance-free, high-power drivetrain holds camera position
  • Cable pass-through ports on pan and tilt rotators
  • Native frame-accurate motion control capability
  • Programmable soft limits to restrict the range of head motion and mark start/stop positions
  • Independent speed and direction controls
  • Features smoothing adjustment
  • Professional long-throw joystick with integrated palm rest
  • Motor-disable from controller
  • Easily adjustable single-lock camera platform
  • Flexible mounting base allows you to change the mount without special tools
  • LEMO connectors for power and control
  UPC: 877038007345

• Crane

• Tripod

• Dolly

• Hardware Kit

• Soft Padded Case

• 2 Year Warranty

• Jibstick Pro Controller

• AC Power Supply with 25' Cable

• 25' Control Cable

• 100mm Ball Mount

• Hard Carrying Case

• Limited 2-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• VZ-SNAPCRANE16 Snapcrane

  Construction	Steel and Aluminum
  Payload Capacity	30 lbs 13.6kg On Low Angle
  Counterbalance System	Round Weights Purchased Separately
  Height Range	Overall length: 18' 4" Distance from tripod to camera: 15' 6"/14' 8" (rear/front pivoting hole) Vertical movement & maximum height: 16' 6"/15' 10" & 18' 3"/17' 7"
  Tilt Lock	No
  Tilt Drag	One Setting
  Pan Lock	No
  Spring Loaded Counter Balance	One Setting
  Pan Range	360°
  Tripod Attachment	Varizoom Specific
  Head Attachment	Varizoom Specific
  Head Arm Leveling	Manual
  Leveling Indicators	None
  Fold Down	55" 139.7cm
  Weight	74.35 lbs 33.7kg

  Box Dimensions (LxWxH)	62.0 x 13.0 x 12.0"

• CP Micro Remote Head with Jibstick Pro Controller (100mm Mount)

  Pan/Tilt Speed	130°/sec
  Clearance	Camera Clearance: Vertical: 7" (17.8 cm) from center of camera plate to base Horizontal: 8.3 to 10.5" (21 to 26.7 cm) With 3" Head Extension: Vertical: 10" (25.4 cm) Horizontal: 11.3 to 13.5" (28.7 to 34.3 cm)
  Mount Type	100 mm ball
  Maximum Camera Weight	12 lb (5.4 kg)
  Cable Extension Length	300' (91.4 m)
  Power Requirements	24 VDC regulated, 4 A maximum 20 to 30 VDC absolute min/max
  Dimensions (H x W x D)	13 x 4 x 6" (33.0 x 10.2 x 15.2 cm)
  Weight	7 lb (3.2 kg)
