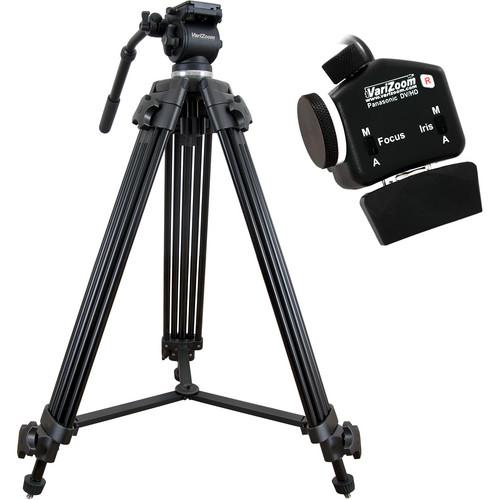

Product description The Varizoom VZTK75A Tripod System with VZROCKPZFI for Select Panasonic Cameras consists of remote controller for zoom, focus iris and camera start stop, a set of 2 stage aluminum tripod legs and a fluid head. The VZROCKPZFI is a lens control system that works with specific Panasonic cameras. The unit features remote wired control of zoom, focus, iris and cameras start/stop (record). The zoom control is a left/right pressure sensitive rocker for fine zoom control. The focus knob features a white marking disk and index mark as an aid to focus pullers and you can switch both focus and iris mode between manual and automatic from the remote unit at any time. Usable features are dependent on the capabilities of the camera the lens control is connected to.

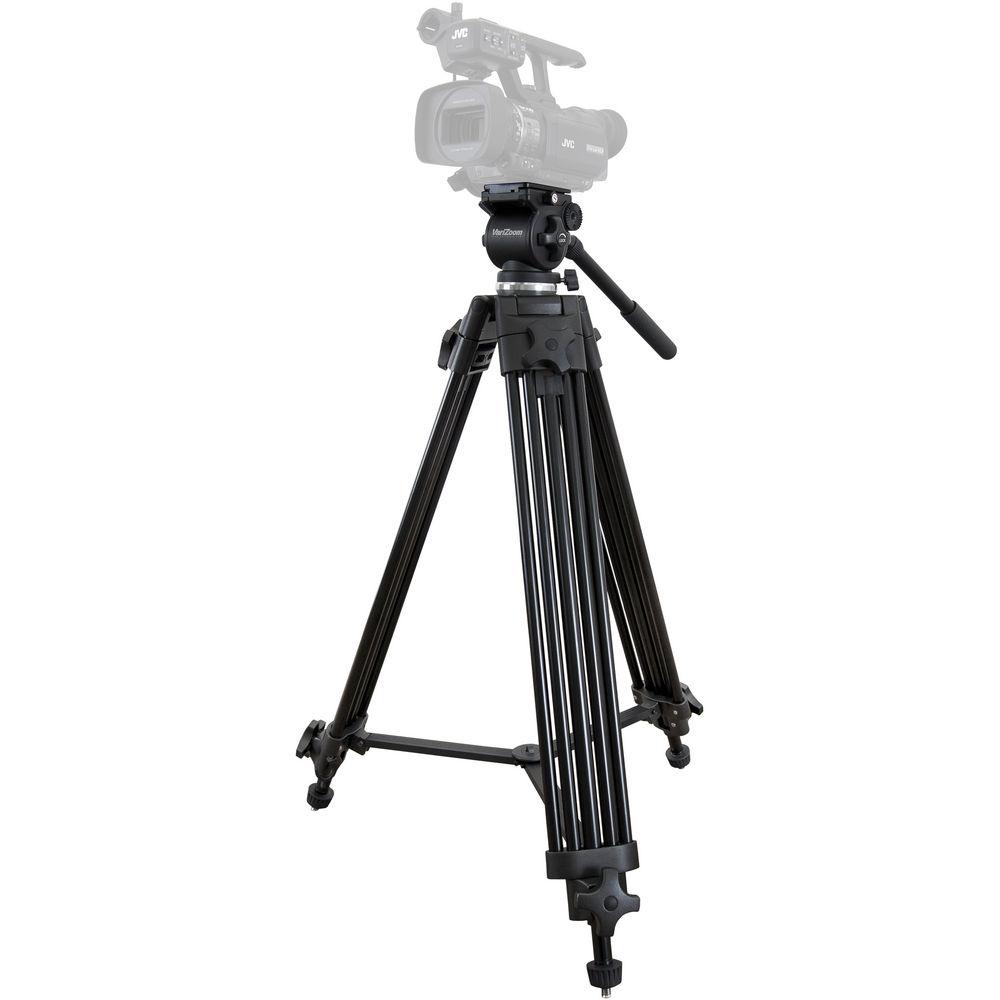

The tripod system is suitable for cameras weighing between 5 and 15 pounds making it suitable for use with HDSLR and compact camcorders. The head features a built-in bubble level and the included Quick Release (QR) plate features approximately 4 inches of balance adjustment. The fluid head features a tilt range of approximately +70 to -70°, and variable tilt drag. Rosettes on both sides of the head allow you to move the pan bar as needed, or to add an additional pan bar if you desire.

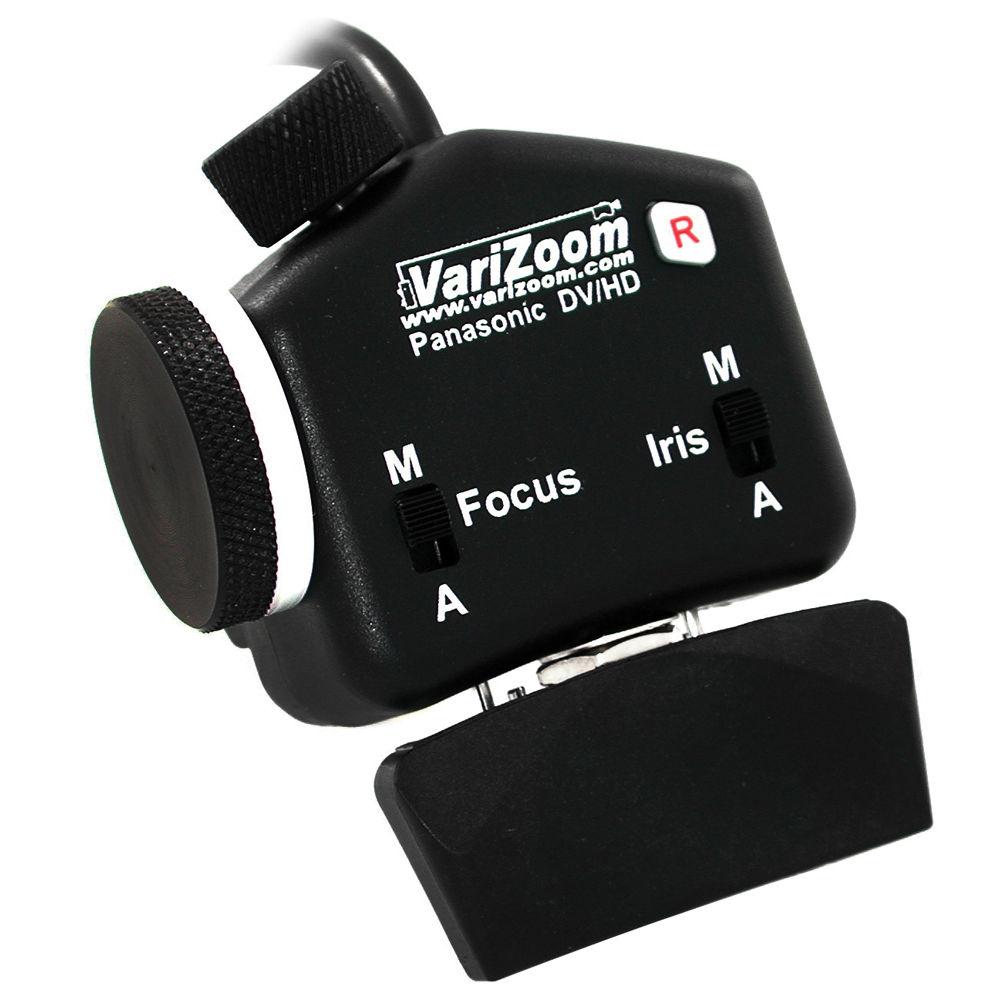

The 2 stage legs and fixed mid level spreader provide a height range of 30 to 64", and it features a 75 mm bowl that can accept both 65 and 75 mm bowl base tripod heads. Built-in foot spikes with extendable rubber feet provide sure grip on varied surfaces. The tripod, head and lens control packs into the included padded carry bag for easy transport. Remote Lens Control System - Designed specifically for use with camera's that use Panasonic's remote control protocol
- Provides wired remote control of focus, zoom, iris and start/stop (depending on the camera's capability)
- Slide switches on the remote allow you to select between automatic and manual control of focus and iris
- Witness mark and marking disk on focus knob
- Included clamp for mounting to tripod pan bar
- Made from Durable ABS plastic

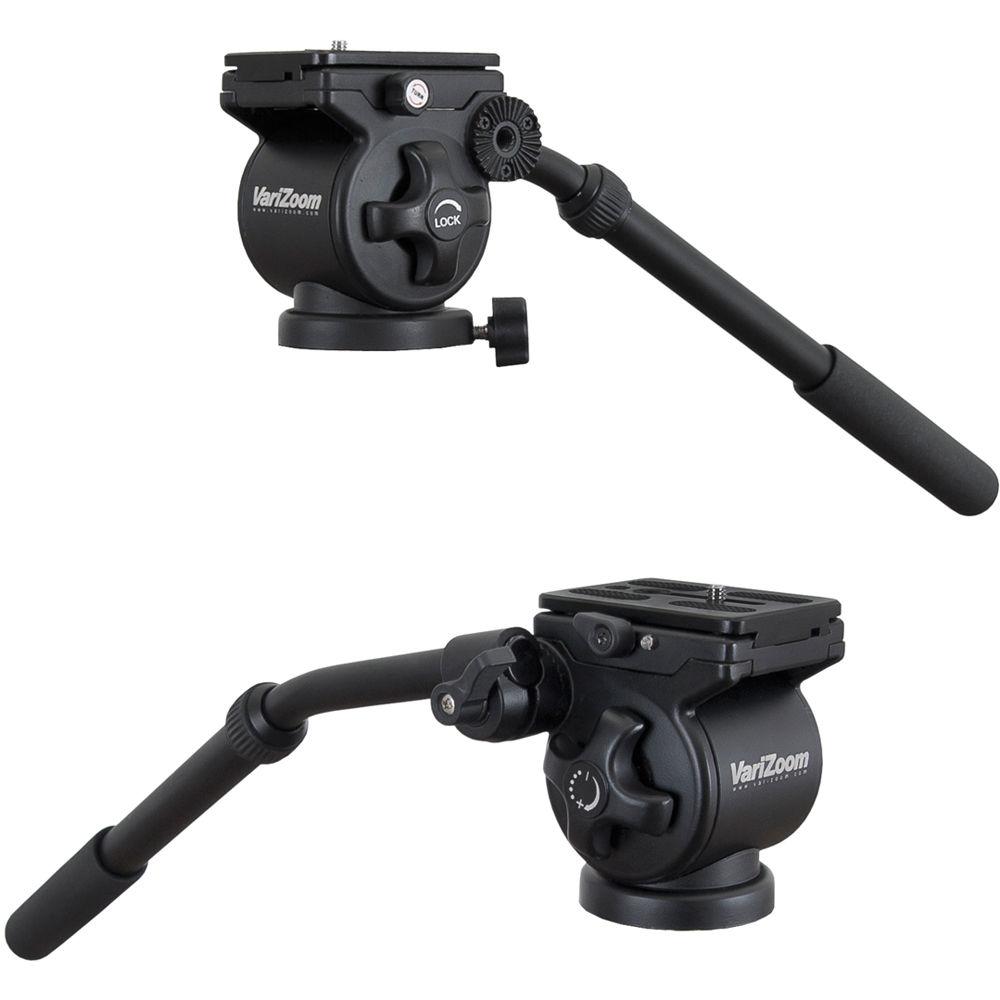

Fluid Head - Supports cameras and accessories weight between 5 and 10 pounds
- Sliding QR/balance plate with approximately 4 inches of travel and built-in safety catch
- The tilt range is from approximately +70 to -70°, with variable tilt drag
- The head features pan bar mounting rosettes on both the right and left side

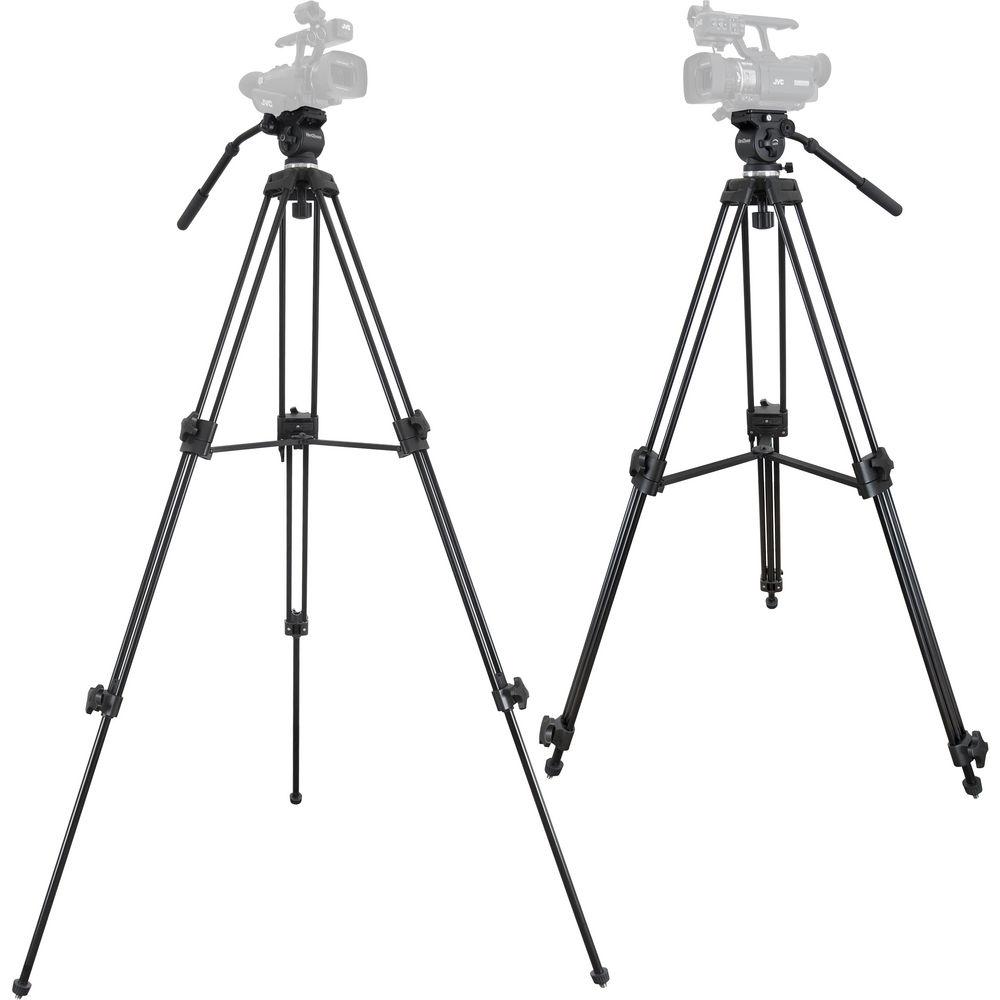

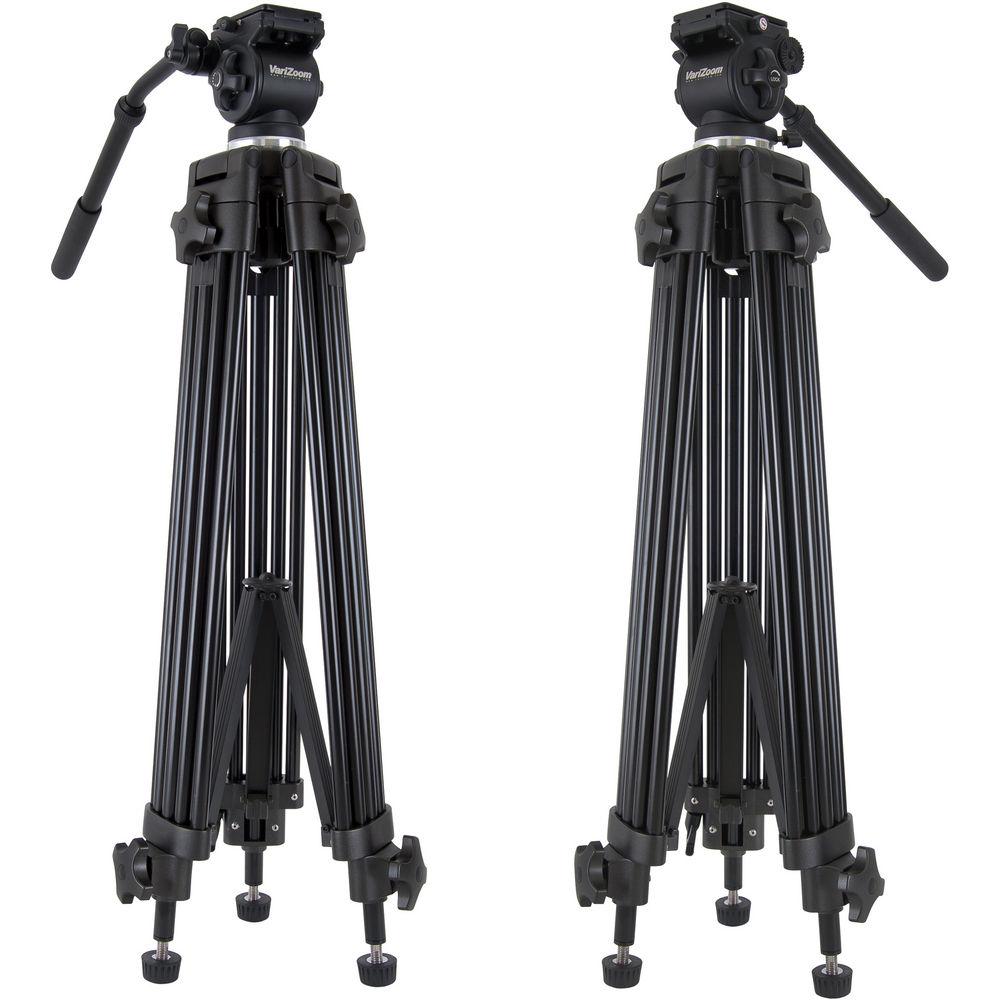

Tripod Legs - 2 stage aluminum legs with a height range (with head) of 30 to 64 inches
- 75 mm bowl, accepts most tripod heads with 65 or 75 mm bowl base
- Rubber feet that thread up or down to cover the foot spikes
- Integrated leg safety clip and cord for securing the legs during transport
Carry Bag - Padded carry bag holds tripod, head and lens control
UPC: 877038005082 In the Box VariZoom VZTK75A Tripod System with VZROCKPZFI for Select Panasonic Cameras Pan Bar Clamp 2 x Brass Nuts for Pan Bar Clamp Tripod Carry Bag Limited 1-Year Warranty on Tripod and Head Limited 2-Year Warranty on Lens Controller Table of Contents
|
Upload User Manual
Have you got an user manual for the VariZoom VZTK75A Tripod System with VZROCKPZFI for Select Panasonic Cameras in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVariZoom VZTK75A-ROCKPZFI Specs | | | Material of Construction | ABS Plastic | | Remote Cable | Length
40" (1 m)
connectors
1 x 2.5 mm Stereo mini jack (Zoom)
1 x 3.5 mm Quad mini jack (Focus/Iris) | | Dimensions (LxW) | 2.75 x 2" (6.99 x 5.1 cm) | | Weight | 0.25 lb (113.4 g) | | | | Quick Release Plate | Type
Sliding | | Quick Release Safety | Yes | | Camera Mounting Screw | 1/4"-20 | | Tilt Drag | Variable | | Tilt Range | Approximately +70 to -70° | | Tilt Lock | Yes | | Pan Drag | Variable by using pan lock | | Pan Range | 360° | | Pan Lock | Yes | | Pan Bar | 1 x Pan Bar
L/R side mount via rosettes | | Bubble Level | Yes
Note: Bubble level is not illuminated | | | | Material | Aluminum | | Head Attachment Fitting | 75 mm ball base
Note: accepts most 65 mm to 75 mm ball base heads, not compatible with Varizoom's Zero Gravity head | | Leg Stages/Sections | 2 stages | | Leg Lock Type | Rotary Clamping | | Independent Leg Spread | No | | Spreader | Fixed mid level | | Spiked/Retractable Feet | Foot Spikes with extendable rubber boots | | | | Load Capacity | 5 to 15 lb (2.3 to 6.8 kg) | | Height Range | Maximum: 64" (162.6 cm)
Minimum: 30" (76.2 cm) | | Folded Length | 23" (58.4 cm) | | Weight | 9.5 lb (4.3 kg) | | | | Package Weight | 13.0 lb | | Box Dimensions (LxWxH) | 34.2 x 10.0 x 10.0" |
