User Manual for VariZoom Wired Electronic Focus Control for Canon and Fujinon ENG Lenses Click to enlarge the picture
Contents of the user manual for the VariZoom Wired Electronic Focus Control for
- Product category: Zoom & Focus Controls VariZoom
- Brand: VariZoom
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for VariZoom Zoom & Focus Controls
 |
User manual for the VariZoom Wired Electronic Focus Control for contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any VariZoom product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official VariZoom user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a VariZoom product will considerably shorten its lifespan!
|
Product description VariZoom's Wired Electronic Focus Control for Canon and Fujinon allows you to remotely pull focus with virtually any Canon or Fujinon ENG-style lens. Suitable for use with cameras on various moving camera platforms including remote heads, jib arms, and dollies. It features a focus knob and an LCD info screen for setup and control. It is a powered focus control unit, which can be used for focus, iris, or zoom by directly driving a geared lens ring.

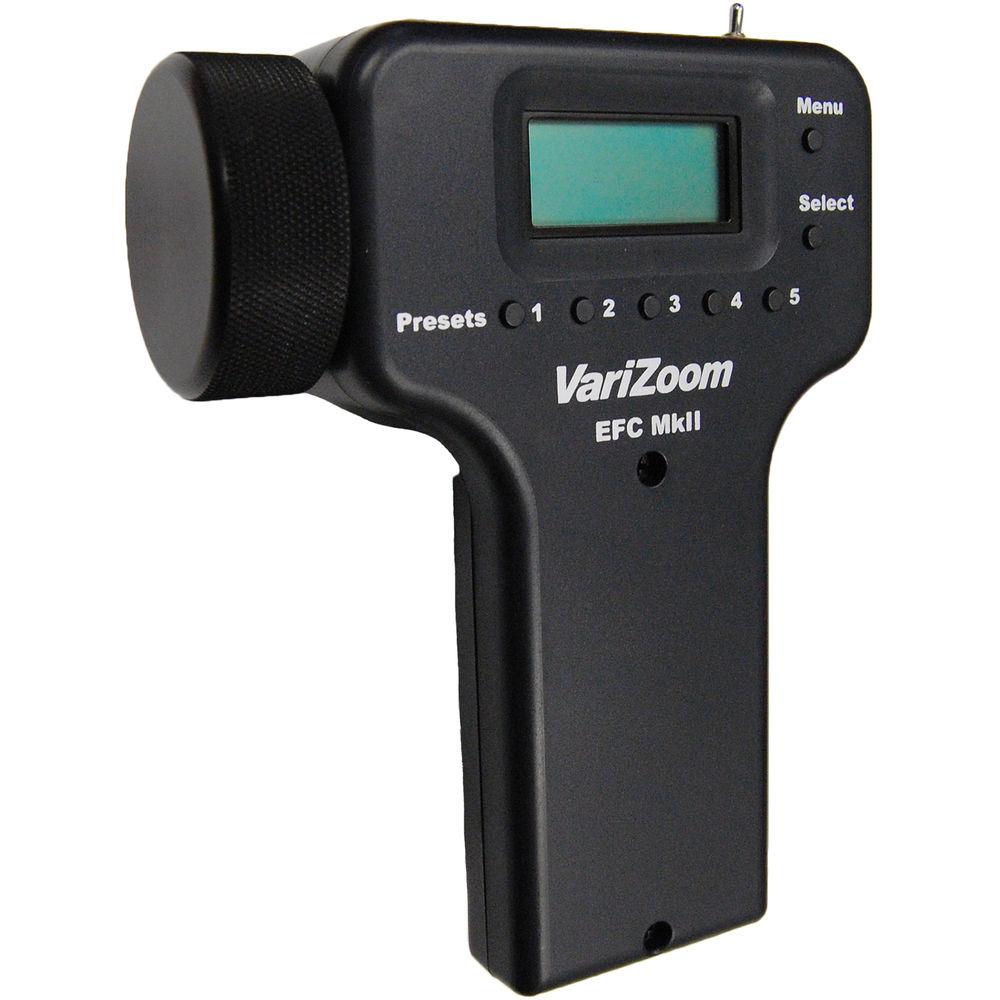

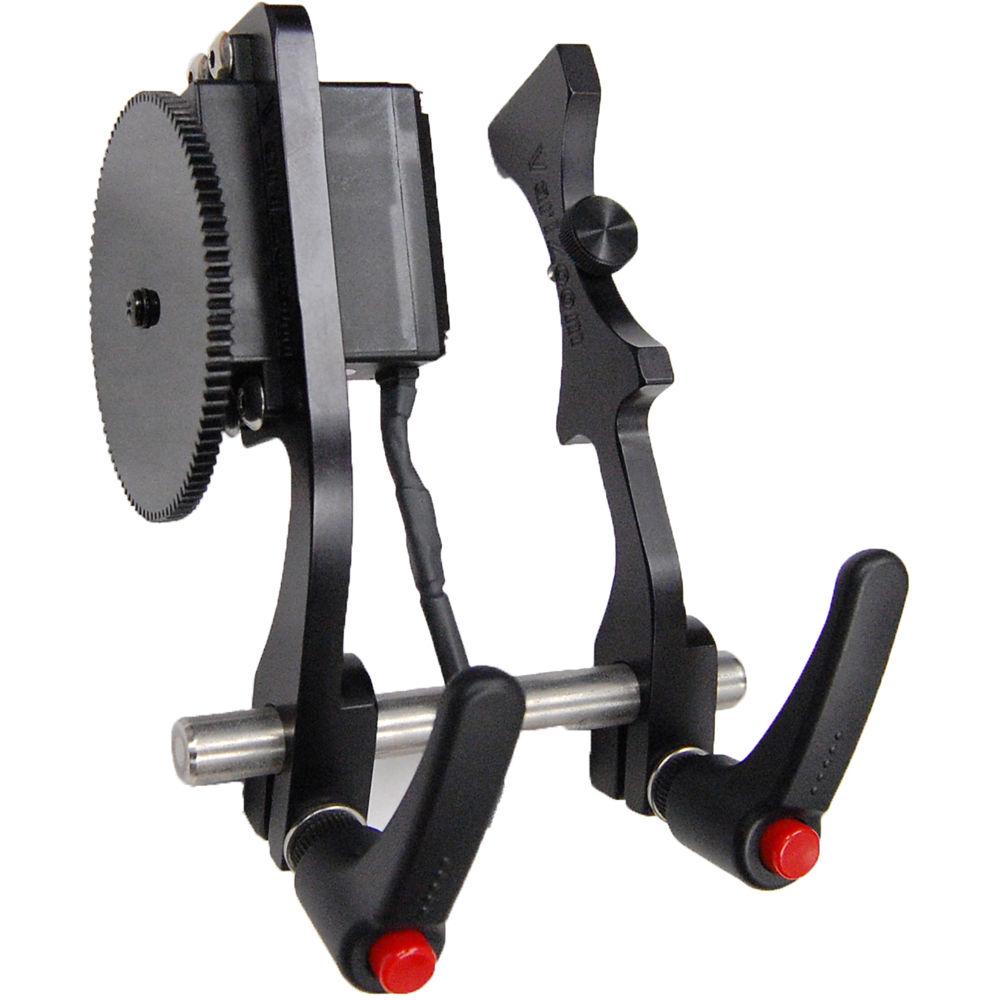

The included interchangeable motor drive gears are compatible with Canon and Fujinon focus gears, and a third gear can be used when you want to pull the iris. The unit requires manual calibration, and this allows you to set five programmable focus points to rapidly change focus between five points bypassing the focus knob. The motor comes with an adjustable bracket that mounts directly to your lens, so you don't need to use a support rod set up. - This wired controller features a built-in focus wheel and LCD readout screen.

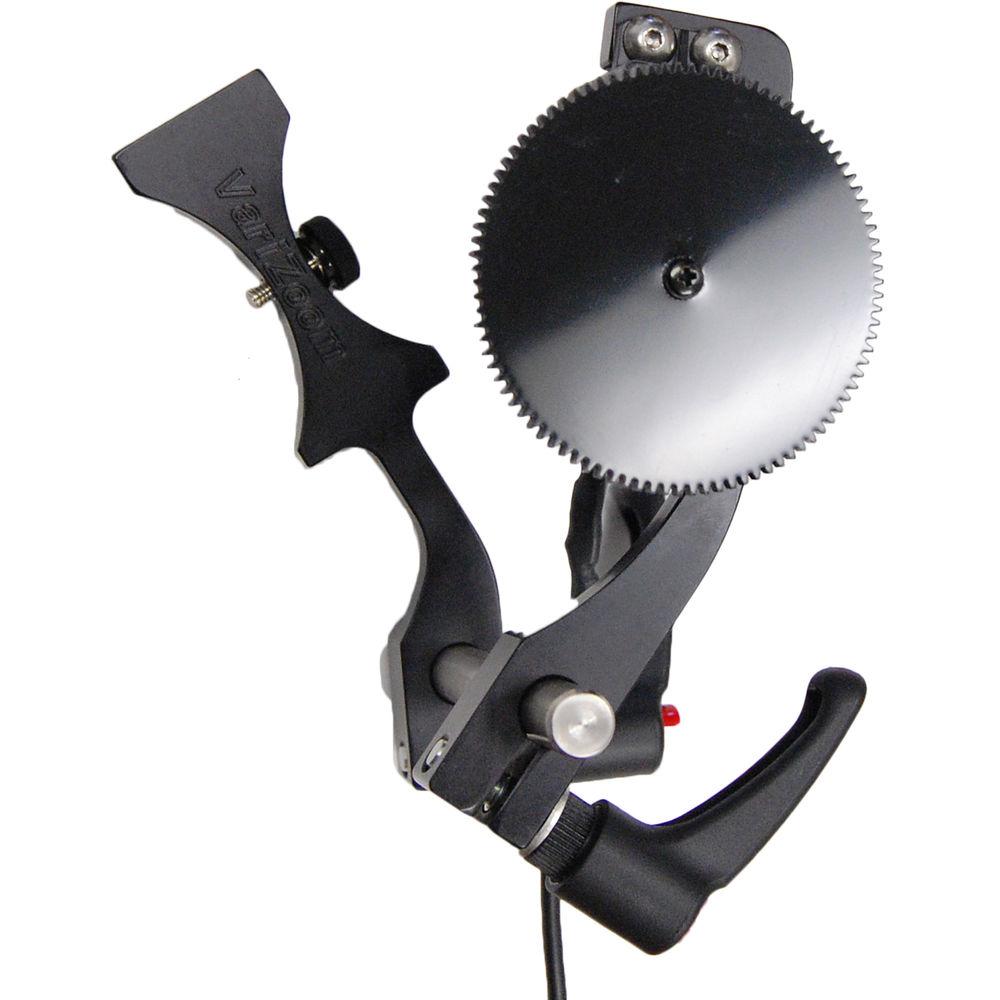

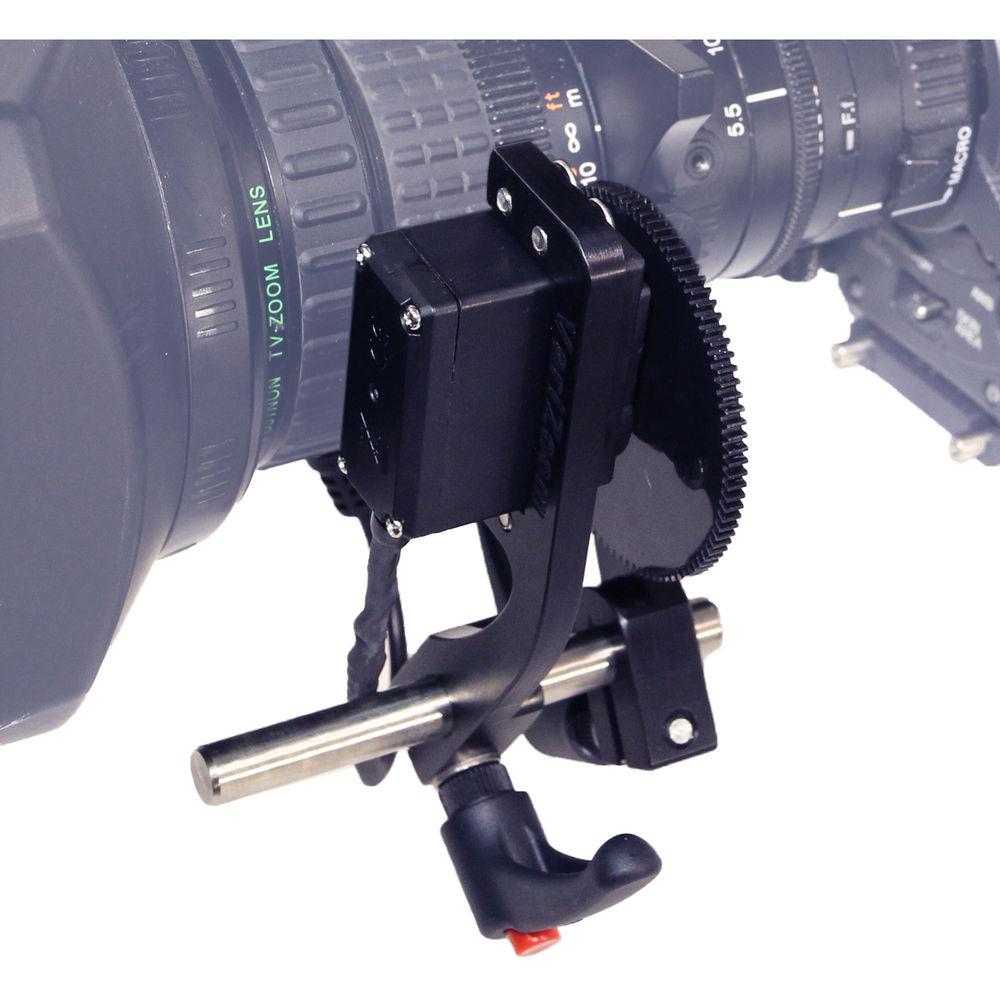

- Designed to work with Canon and Fujinon ENG-style lenses, the motor bracket attaches to your lens, obviating the need for a rod support system. The lens attachment bracket incorporates a reversible component allowing you to attach the bracket to small or large lenses.
- An optional AC to DC power supply is available from VariZoom. Do not power the unit from a battery and power supply simultaneously as this may result in damage to your unit.

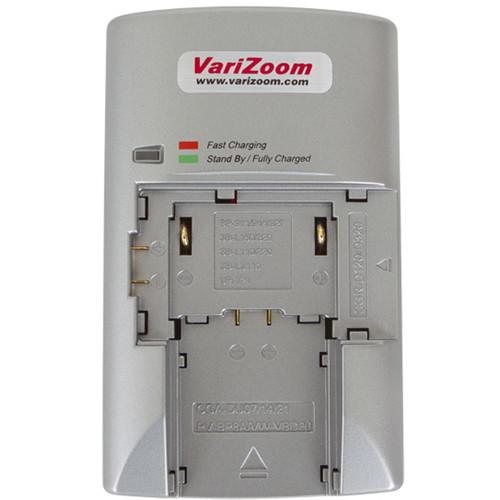

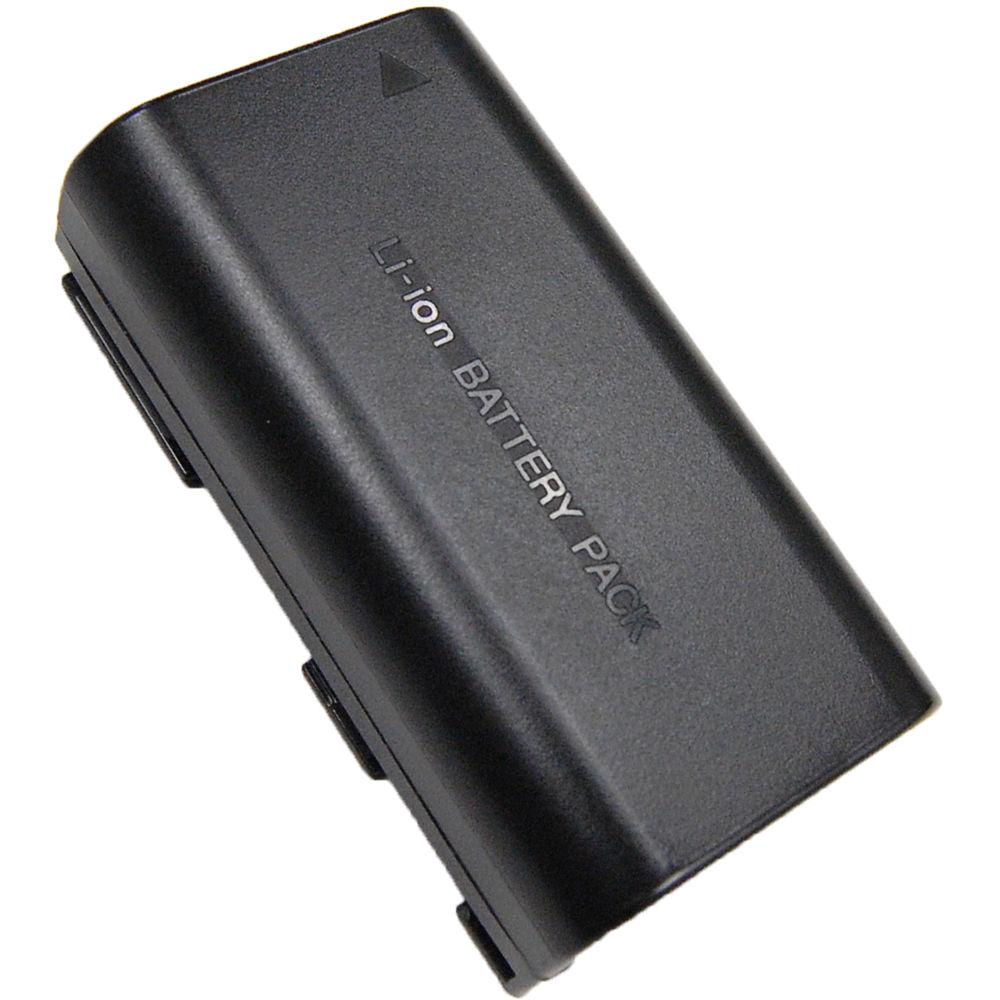

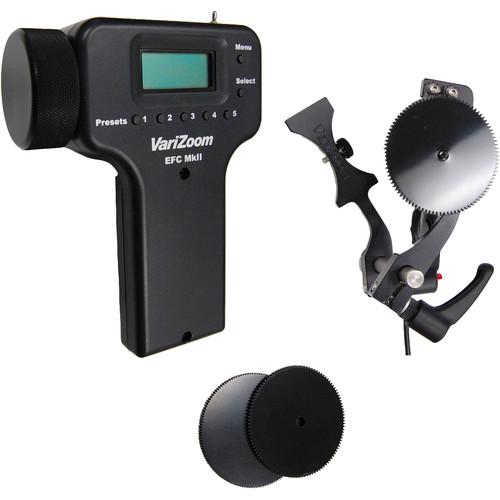

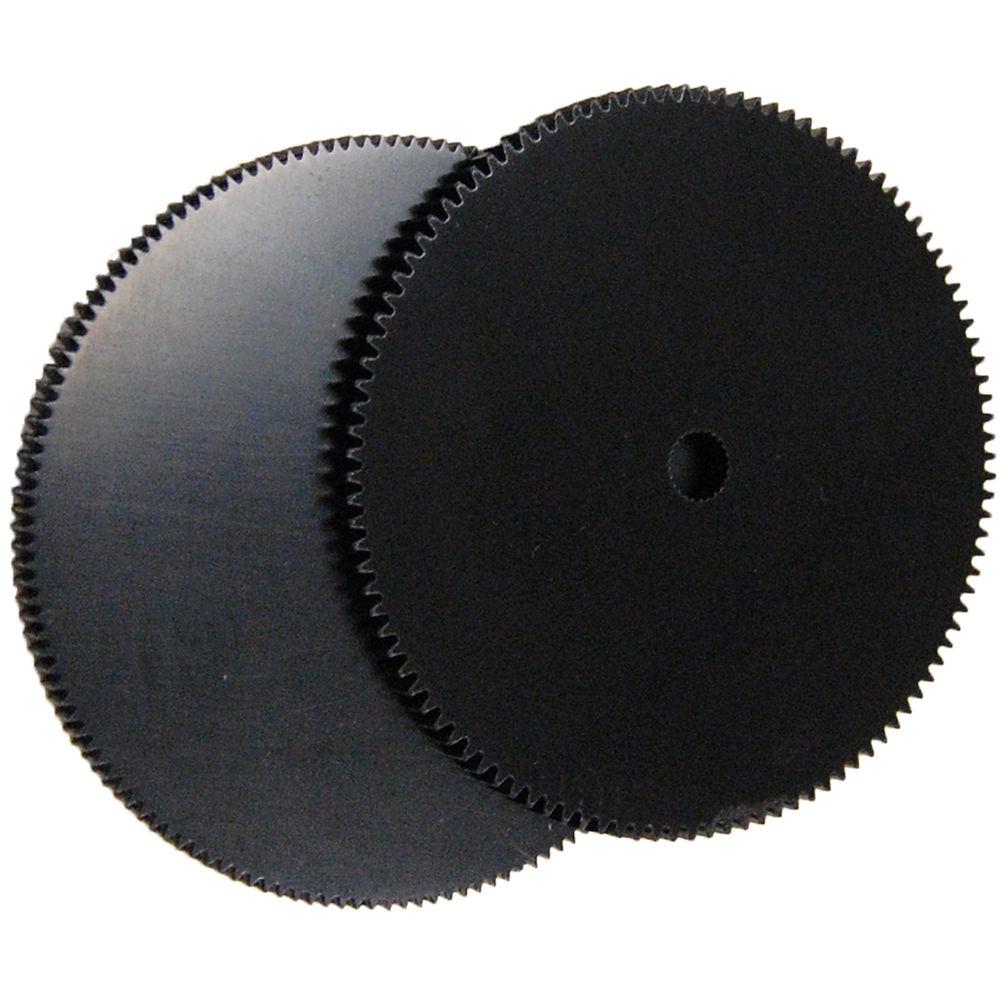

UPC: 877038007697 In the Box VariZoom Wired Electronic Focus Control for Canon and Fujinon ENG Lenses Motor Bracket Canon BP-915 Battery and Charger 20' Extension Cable 0.5 MOD Drive Gear (Canon) 0.6 MOD Drive Gear (Fujinon) Iris Drive Gear (64DP) Carry Pouch Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the VariZoom Wired Electronic Focus Control for Canon and Fujinon ENG Lenses in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVariZoom VZ-EFC2 Specs | Cable Connection | 3.5mm stereo mini-jack | | Maximum Cable Length | 50.0' / 15.2 m | | Mounting | Hand Unit
Up to 1.1" / 2.8 cm diameter rod | | Power | Voltage Range: 6 to 10 VDC (pin positive)

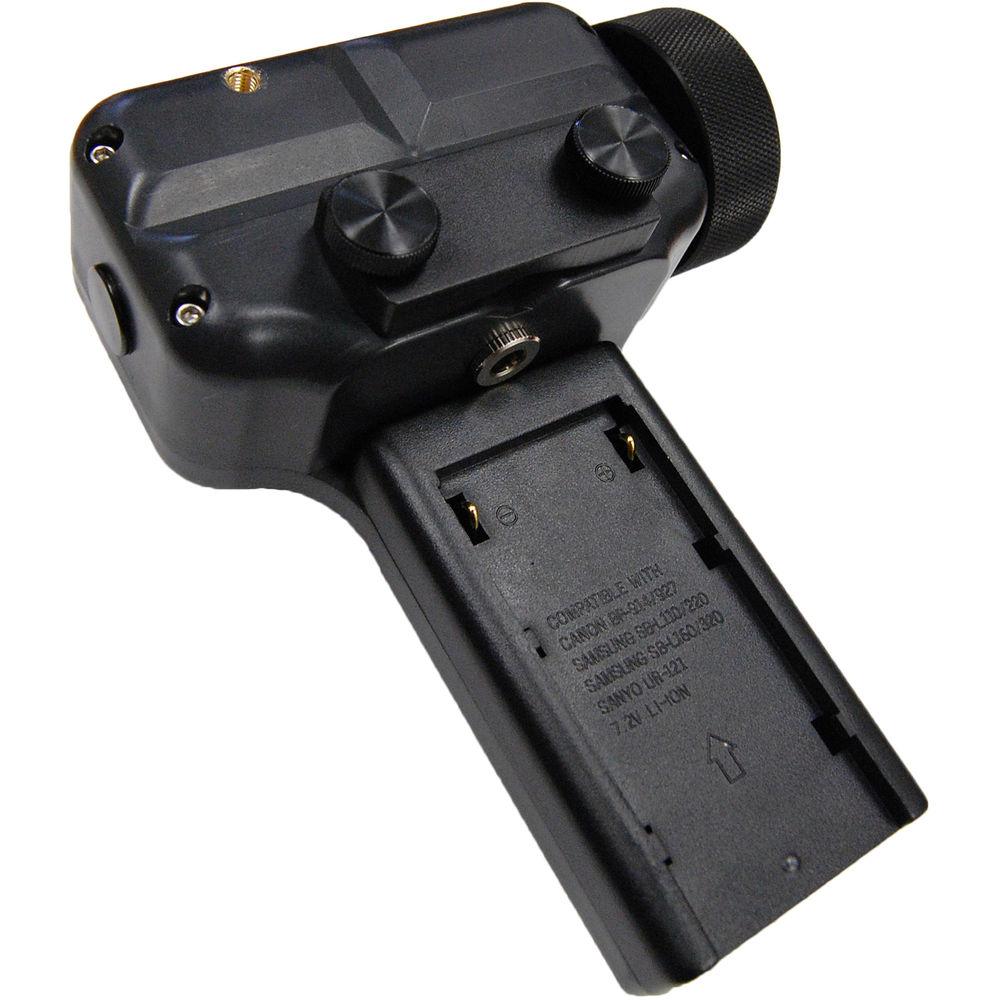

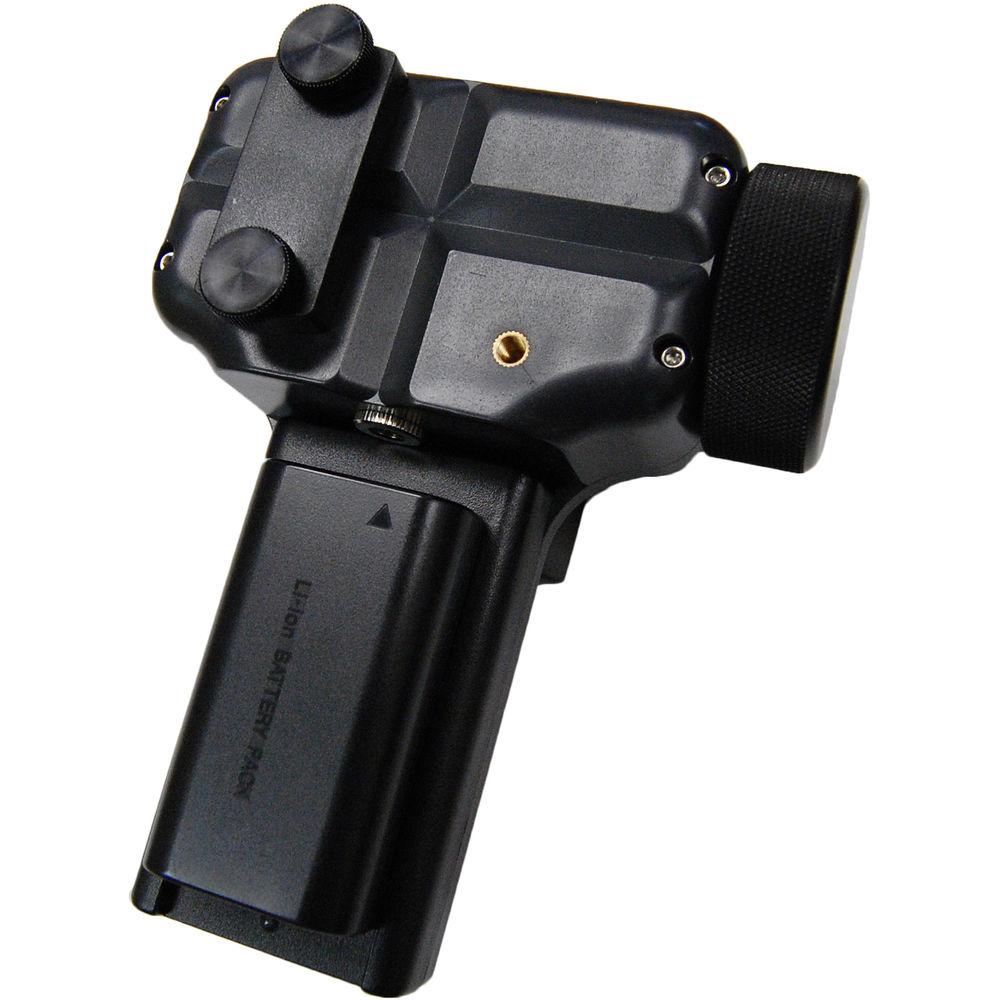

Battery: BP-915-type (compatible with BP-930/BP-945-type) | | Focus Wheel Diameter | Focus Wheel Diameter: 2.0" / 5.1 cm
Hand Unit: 6.3 x 4.0 x 2.0" / 15.9 x 10.2 x 5.1 cm | | Weight | Without Battery: 14.0 oz / 396.9 g | | | | Package Weight | 2.8 lb | | Box Dimensions (LxWxH) | 10.4 x 6.5 x 6.2" |
