User Manual for VariZoom Zoom and Focus Control Kit for Sony PMW-400K, PMW-350K and PMW-320K Click to enlarge the picture
Contents of the user manual for the VariZoom Zoom and Focus Control Kit
- Product category: Zoom & Focus Controls VariZoom
- Brand: VariZoom
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for VariZoom Zoom & Focus Controls
 |
User manual for the VariZoom Zoom and Focus Control Kit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any VariZoom product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official VariZoom user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a VariZoom product will considerably shorten its lifespan!
|

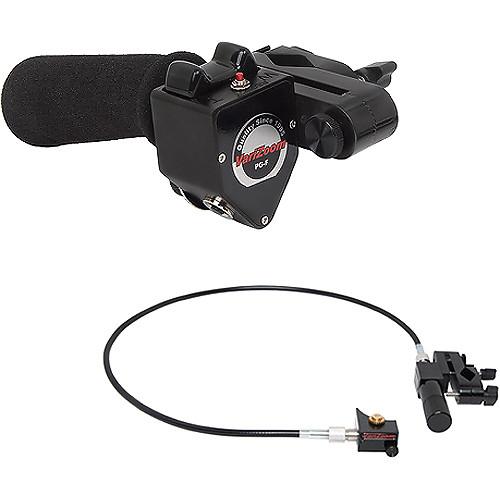

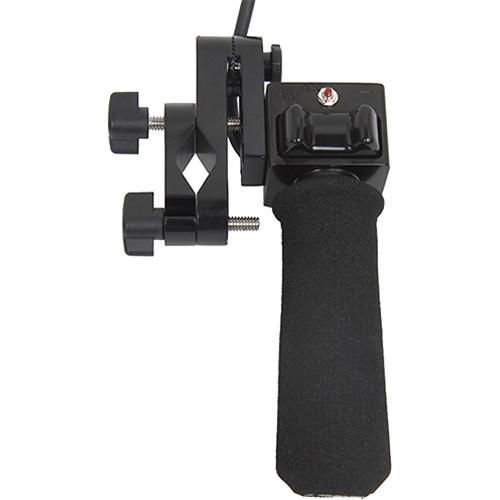

Product description The Zoom and Focus Control Kit for Sony PMW-400K, PMW-350K and PMW-320K from VariZoom features the VZ-PG-F zoom rocker and the VZ-FC350K twist-grip mechanical focus control. The system is designed specifically for use with the Fujinon XA16x8 and XS16x5.8 kit lenses found on Sony PMW-400K, PMW-350K, and PMW-320K professional camcorders. The kit is ideal for two-handled tripod setups or jib shots or other scenarios where the camera controls cannot be reached directly. The zoom and focus controllers will fit most tripod handles, rods, or other tubes up to 1.3" in diameter.

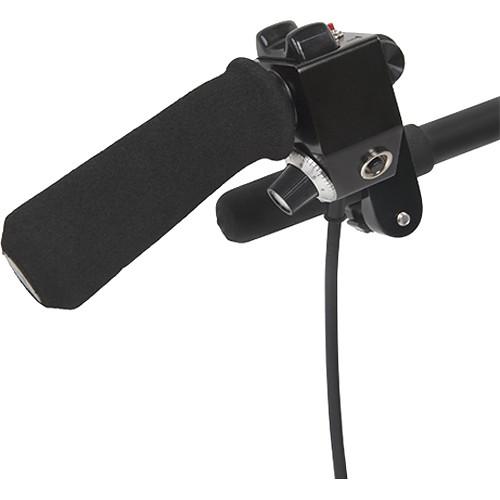

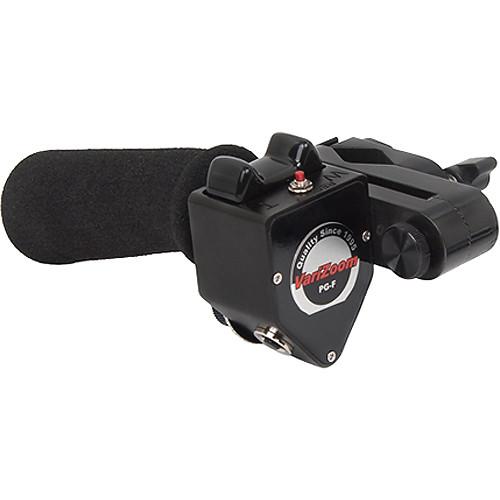

Although this kit comes configured for the Sony camcorders mentioned above, it can be adapted to many other lenses by replacing the gear block for VZ-FC350K the focus control with an alternative gear block available separately. The VZ-PG-F zoom controller uses standard 8-pin Fujinon, and can be used with a wide range of Fujinon lenses out of the box. VZ-PG-F Zoom Control for 8-Pin Fujinon Lenses - The PG-F features a dual-variable system for versatile, precise control of zoom speed. Set the maximum desired speed on the dial (located in a "trigger" position), then use the pressure-sensitive rocker to vary the speed from a crawl all the way up to the preset max. Alternatively, depress the rocker fully and roll the dial with your index finger to ramp the speed up
- Speed dial acts as a limiter for maximum speed or a "ramping" device
- Red record START/STOP button
- Video return button plays back the last five seconds of recorded material and cues the tape up to the last recorded frame to ensure proper timecode sync
- Rubber-foam grip with a "pistol grip" curve promotes operator comfort
- Designed for use with left or right hand

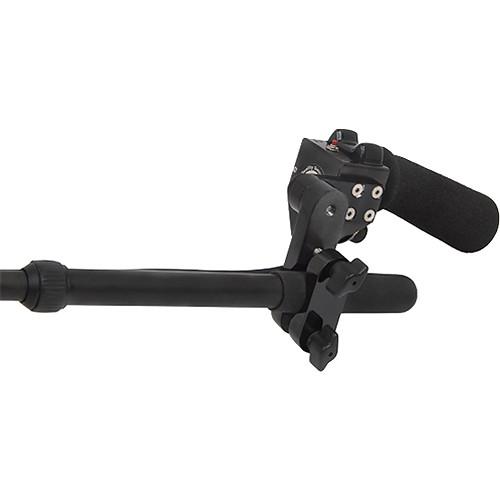

- Heavy-duty, quick-release aluminum swivel clamp for angular adjustment of handle position
- Compact, heavy-duty black aluminum housing

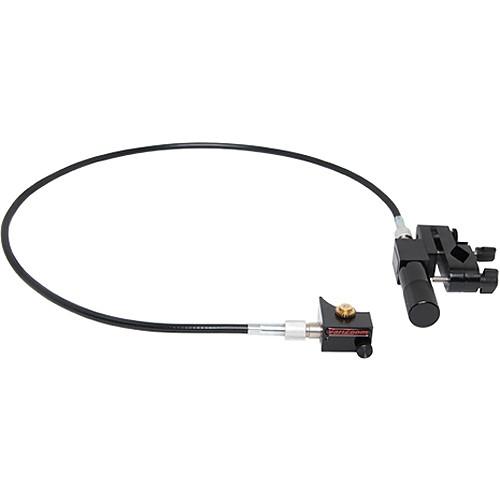

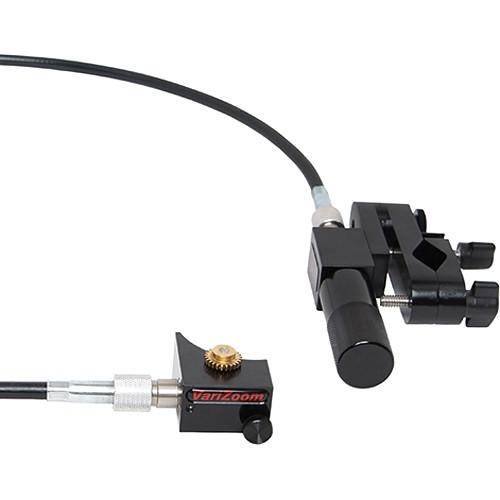

VZ-FC350K Focus Control for Select Fujinon Lens - Heavy-duty focus handle with articulated swivel clamp for angular position adjustment
- Knurled texture on handle provides a good grip for smooth focus pulling

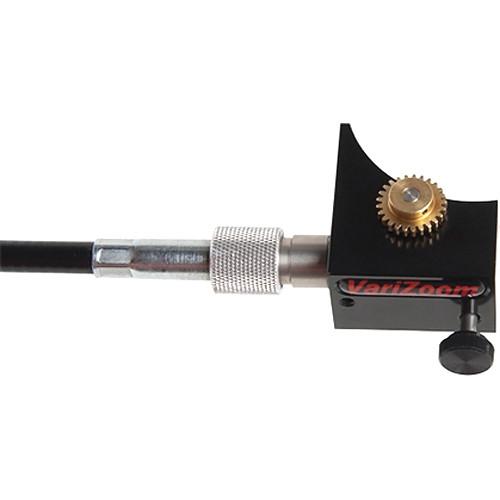

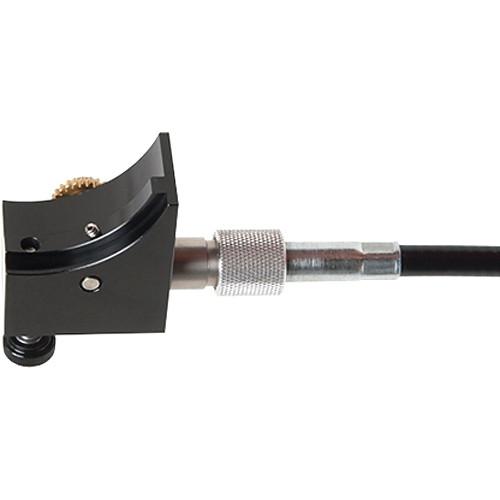

- High-precision gear box fits only the Fujinon XA16x8 and XS16x5.8 lenses found on Sony PMW-400K, PMW-350K and PMW-320K
- 40" industrial drive cable accommodates any tripod configuration and provides smooth manual control
UPC: 877038006102 In the Box VariZoom Zoom and Focus Control Kit for Sony PMW-400K, PMW-350K and PMW-320K VZ-PG-F Zoom Control for 8-pin Fujinon Lenses VZ-FC350K Focus Control for Select Fujinon Lens Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the VariZoom Zoom and Focus Control Kit for Sony PMW-400K, PMW-350K and PMW-320K in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVariZoom VZ-SPG350 Specs | | | Compatibility | 8-pin Fujinon lenses | | Construction | Aluminum | | Dimensions | Width: 2.4" / 6.1 cm
Length: 6.5" / 16.5 cm
Maximum Clamp Diameter: 1.3" / 3.2 cm
Cord Length: 40" / 102 cm | | Weight | 1 lb / 0.5 kg | | | | Compatibility | Compatible only with the XA16x8 and XS16x5.8 kit lenses for Sony PMW-400K/350K and PMW-320K camcorders | | Construction | Aluminum, stainless steel, brass | | Dimensions | Handle Dimensions 3 x 5.5" / 7.6 x 14 cm
Maximum Clamp Diameter: 1.3" / 3.2 cm
Cord Length: 40" / 102 cm | | Weight | 1.8 lb / 0.8 kg | | | | Package Weight | 3.85 lb | | Box Dimensions (LxWxH) | 12.1 x 12.1 x 4.4" |
