Product description The Zoom and Focus Control Kit with 7" Monitor for Sony PMW-400K/350K/320K is a bundle from VariZoom that features the VZM7K 7" on-camera field monitor with HDMI in and out, the VZ-PG-F zoom rocker, and the VZ-FC350K twist-grip mechanical focus control. The system is designed specifically for use with the Fujinon XA16x8 and XS16x5.8 kit lenses found on Sony PMW-400K, PMW-350K, and PMW-320K professional camcorders. The kit is ideal for two-handled tripod setups, jib shots, or other scenarios where the camera controls cannot be reached directly, proving remote control and monitoring. The zoom and focus controllers will fit most tripod handles, rods, or other tubes up to 1.3" in diameter.

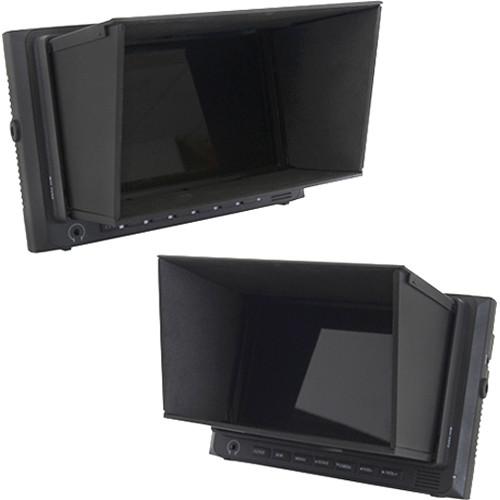

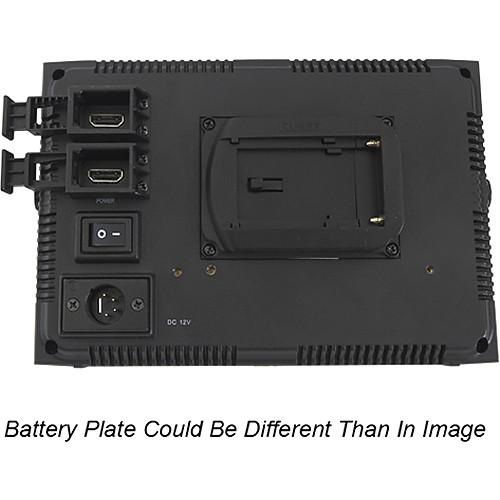

Although this kit comes configured for the Sony camcorders mentioned above, the zoom control can be adapted to many other lenses by replacing the gear block for VZ-FC350K the focus control with an alternative gear block available separately. The VZ-PG-F zoom controller uses standard 8-pin Fujinon and can be used with a wide range of Fujinon lenses out of the box. VZM7 7" Field Monitor Kit - The VZM7 features a 7" diagonal, LED backlit screen with a native resolution of 1024 x 600 and a brightness of 250 nits. The monitor can power from a 6.5 to 36V DC external power source using a 4-pin XLR connector or a Sony L-series type battery. It features an HDMI input with loop-out so the signal can be passed along to a downstream device, and accepts resolutions up to 1080p. There are four 1/4"-20 sockets: one top, one bottom, and on either side, for flexible mounting. The kit includes:

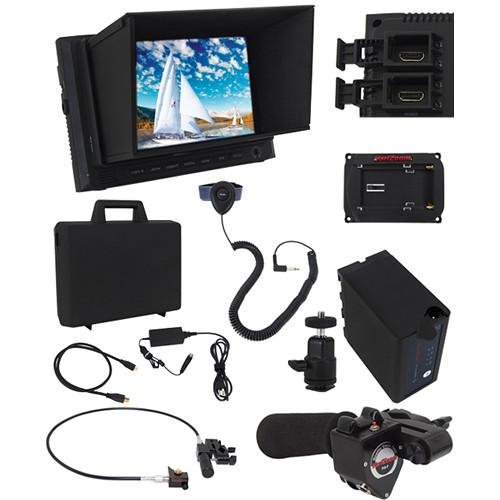

- VZMBPS 47 Wh Sony L-series type battery

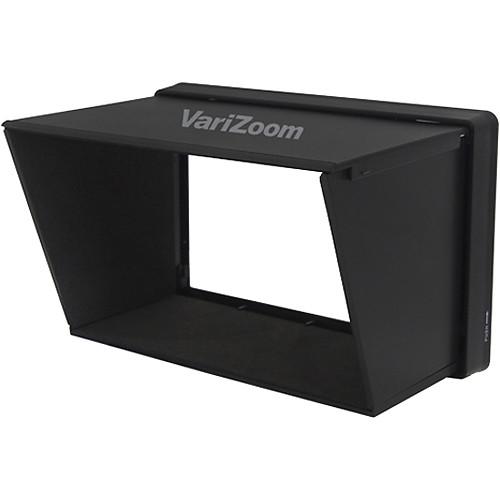

- VZM7HD hard sunhood/screen protector
- VZMCH compact travel charger
- Two HDMI cables
- Two VZMLOCK HDMI locks, for the input and output
- VZSHOE swivel shoe for on-camera mounting
- VZMZB remote zoom button
- VZMCC hard case with foam lining
- DSLR Scaling to allow full-screen viewing of images from cameras such as the Canon 5DII
- Automatic aspect ratio detection
- Monochrome (black and while) mode
- Image flip for inverted mounting
- Underscan and overscan modes
- Color temperature presets (D65 and D93 standards) or user-defined through RGB settings
- Brightness, contrast, saturation, and sharpness adjustments
- Customizable menu options for menu duration, position, text color, and language
- Built-In speaker and headphone jack for audio monitoring
- Pixel-to-pixel magnification and peaking for focus assist

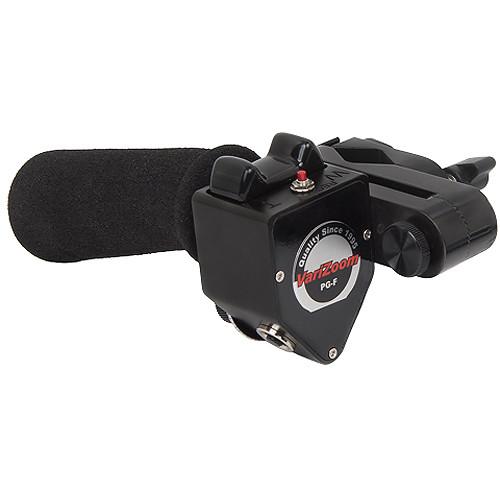

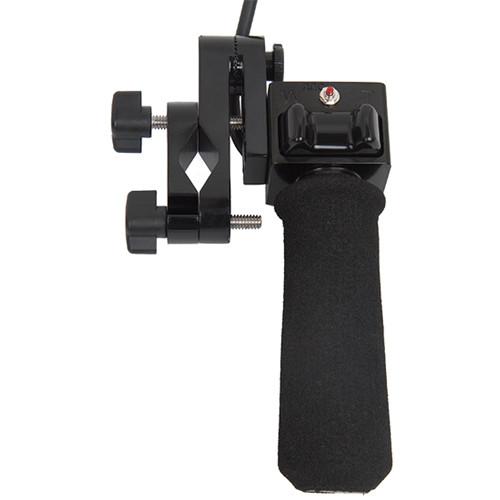

VZ-PG-F Zoom Control for 8-pin Fujinon Lenses - The PG-F features a dual-variable system for versatile, precise control of zoom speed. Set the maximum desired speed on the dial (located in a "trigger" position), then use the pressure-sensitive rocker to vary the speed from a crawl all the way up to the preset max. Alternatively, depress the rocker fully and roll the dial with your index finger to ramp the speed up
- Speed dial acts as a limiter for maximum speed or a "ramping" device
- Red record START/STOP button
- Video return button plays back the last five seconds of recorded material and cues the tape up to the last recorded frame to ensure proper timecode sync
- Rubber-foam grip with a "pistol grip" curve promotes operator comfort
- Designed for use with left or right hand
- Heavy-duty, quick-release aluminum swivel clamp for angular adjustment of handle position
- Compact, heavy-duty black aluminum housing

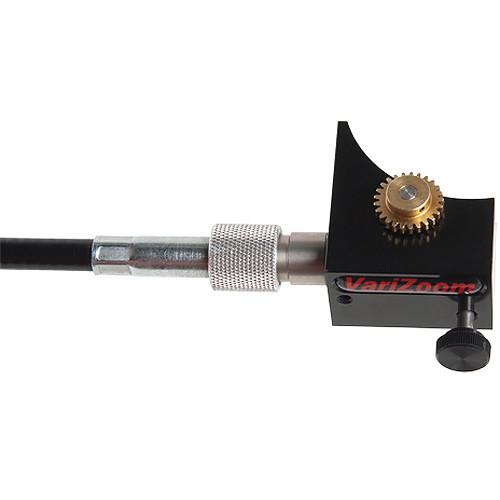

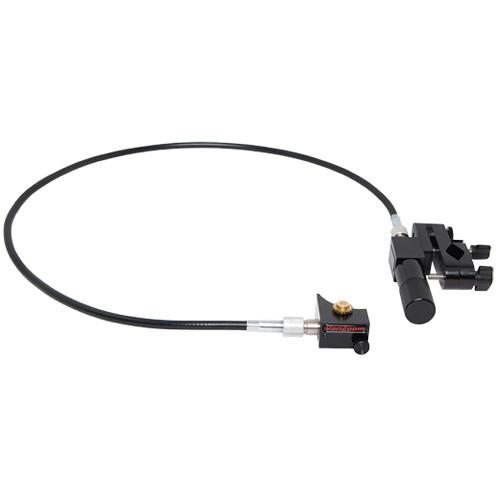

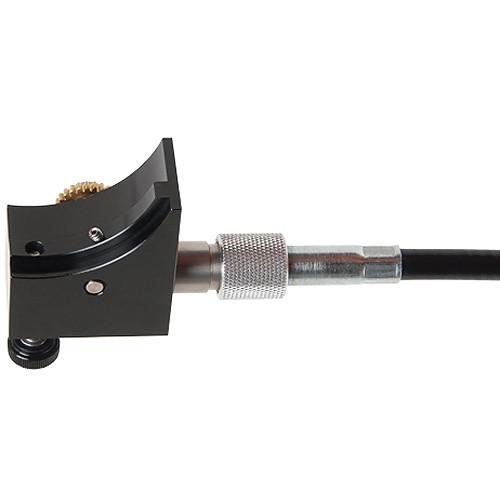

VZ-FC350K Focus Control for Select Fujinon Lens - Heavy-duty focus handle with articulated swivel clamp for angular position adjustment
- Knurled texture on handle provides a good grip for smooth focus pulling
- High-precision gear box fits only the Fujinon XA16x8 and XS16x5.8 lenses found on Sony PMW-400K, PMW-350K and PMW-320K
- 40" industrial drive cable accommodates any tripod configuration and provides smooth manual control
UPC: 877038006126 In the Box VariZoom Zoom and Focus Control Kit with 7" Monitor for Sony PMW-400K/350K/320K VZM7 Monitor Deluxe Kit VZ-PG-F Zoom Control for 8-pin Fujinon Lenses VZFC350K Manual Focus Control for Sony PMW-350K & PMW-320K Stock Lenses Limited 2-Year Warranty on VZ-PG-F and VZ-FC350K Limited 1-Year Warranty on VZM7K Table of Contents
|
Upload User Manual
Have you got an user manual for the VariZoom Zoom and Focus Control Kit with 7" Monitor for Sony PMW-400K 350K 320K in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVariZoom VZ-USPG350 Specs | | | Screen Size | 7" diagonal | | Native Resolution | 1024 x 600 | | Brightness | 250 nits | | Contrast Ratio | 700:1 | | Backlight | LED | | Response Time | 10 ms | | Viewing Angle | Left: 75°
Right: 75°
Up: 70°
Down: 75° | | Video Formats | 080: 24p, 24psf, 25p, 30p, 50i, 60i, 50p, 60p
720p: 50p, 60p
SD: 480i, 480p, 576i, 576p | | Inputs | 1 x HDMI -- HDCP compliant
1 x "Zoom" on 3.5 mm mini jack | | Mount | 4 x 1/4"-20 Female: Top, bottom, left, right | | Power Requirements | External Source:
Connector: 1 x 4-pin XLR Voltage: 6.5 to 36 VDC (12 VDC nominal)
Battery:
Type: Sony L-series-compatible
Capacity: 47 Wh, 6600 mAh (lasts up to 6 hours) | | Power Consumption | 8 W maximum | | Dimensions | 8 x 5.4 x 1.5" / 20.3 x 13.7 x 3.8 cm | | Weight | 1.3 lb / 0.6 kg | | | | Compatibility | 8-pin Fujinon lenses | | Construction | Aluminum | | Dimensions | Width: 2.4" / 6.1 cm
Length: 6.5" / 16.5 cm
Maximum Clamp Diameter: 1.3" / 3.2 cm
Cord Length: 40" / 102 cm | | Weight | 1 lb / 0.5 kg | | | | Compatibility | Compatible only with the XA16x8 and XS16x5.8 kit lenses for Sony PMW-400K/350K and PMW-320K camcorders | | Construction | Aluminum, stainless steel, brass | | Dimensions | Handle Dimensions 3 x 5.5" / 7.6 x 14 cm
Maximum Clamp Diameter: 1.3" / 3.2 cm
Cord Length: 40" / 102 cm | | Weight | 1.8 lb / 0.8 kg | | | | Package Weight | 10.4 lb | | Box Dimensions (LxWxH) | 15.5 x 15.3 x 15.2" |
