Product description

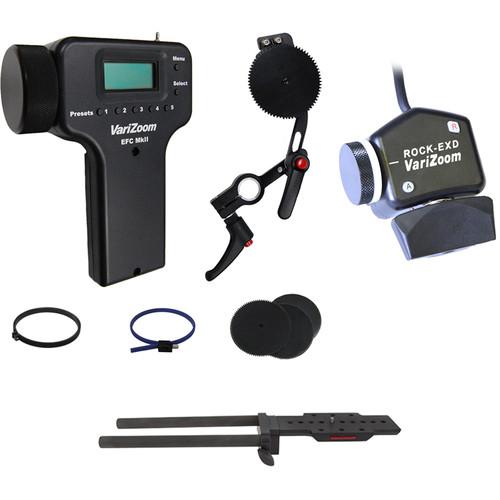

• Wired Electronic Focus Control for Canon, Fujinon, and Cine Lenses VariZoom's Wired Electronic Focus Control for Canon, Fujinon, and Cine Lenses mounts on either 15 or 19mm rods and allows you to remotely pull focus with virtually any lens with Canon, Fujinon, or cine-style lens gears. Suitable for use with cameras on various moving camera platforms including remote heads, jib arms, and dollies. It features a focus knob and an LCD info screen for setup and control. It is a powered focus control unit, which can be used for focus, iris, or zoom by directly driving a geared lens ring.

  The included adjustable cine-style gear lens gear can mount onto a lens without a lens gear to enable focus pulling. Likewise, the included 0.6 MOD lens gear can be used on select Sony camcorders. The included interchangeable motor drive gears are compatible with Canon, Fujinon, and cine-style focus gears. Also included is a 0.8 MOD gear (32 DP) and a fourth gear (64 DP) for pulling the iris. The unit requires manual calibration, and this allows you to set five programmable focus points to rapidly change focus between five points bypassing the focus knob.
  • This wired controller features a built-in focus wheel and LCD readout screen.
  • Designed to work with Canon, Fujinon, and cine-style geared lenses, the motor bracket mounts on 15 or 19mm rods. To mount the motor bracket on a 15mm rod support requires using the included 19 to 15mm adapter bushing. The lens attachment bracket incorporates a reversible component allowing you to attach the bracket to small or large lenses.
  • If your choice of lens does not incorporate a focus gear, you can mount the adjustable 0.8 MOD lens gear for motor driven focus control.
  • If you are shooting with a Sony PXW-200/PMW-300/200/EX1/EX3, the fixed 0.6 focus ring is a match for your camera's integrated lens.
  • An optional AC to DC power supply is available from VariZoom. Do not power the unit from a battery and power supply simultaneously as this may result in damage to your unit.
  UPC: 877038007062
• Rock-EXD Zoom Lens Control for Sony PMW-300/200/160/EX3/EX1 The Rock-EXD Zoom Lens Control from VariZoom provides variable speed zoom control for Sony's PMW-200, PMW-300, PMW-160, PMW-EX3, and PMW-EX1 camcorders. It is an upgraded version of the Rock-EX model and features a large diameter, pressure-sensitive zoom rocker and a speed dial for precise zoom speed control. The speed dial allows the operator to set and mark the maximum desired speed for accurate and repeatable zooms. It also features a record/pause button and a video return button that plays back the last 5 second of recorded material.

  The rubber-lined clamp provides a no-slip attachment to any bar up to 1.25" in diameter, allowing your to attach it to tripod handles, stabilizers, jibs, and shoulder mounts. UPC: 877038006201
• VZ-DVRODS VZ DV Rod System The Varizoom VZ-DVRODS high-quality rods system for DV/HDV cameras enables you to attach matteboxes, focus control systems, wireless adapters, and other accessories. Ideal for use with the VZ-FCU and EFCU focus controls on the Sony EX1 and EX3, the DV Rods system will also work with most other cameras. Modular and expandable, this is a versatile tool for elevating your creative capabilities.
  Adjustment
  • The DV Rods system boasts an impressive range of adjustment that will accommodate most cameras, and the X-Y rods-adjustment plates are even reversible to allow greater upward adjustment.
  Attachments
  • The DV Rods system has additional threaded holes to enable attachment of aft-mount rods that will allow even more accessories to be mounted behind the camera, helping to counterbalance the fore-mounted accessories while keeping the overall configuration's center of gravity low.
  Focus Control Compatibility
  • Designed to work with the VZ-FCU and EFCU focus control systems for the Sony PWM-EX1 and EX3, the DV Rods system not only provides a mount for the focus bracket, it will allow users to add a mattebox or any other accessory that can be mounted to standard 15mm rods.
  UPC: 877038003057

• Motor Bracket

• Canon BP-915-Type Battery and Charger

• 20' Extension Cable

• 0.5 MOD Drive Gear (Canon)

• 0.6 MOD Drive Gear (Fujinon)

• Cine-Style Drive Gear (32 DP)

• Iris Drive Gear (64 DP)

• Adjustable Lens Gear (32 DP)

• Fixed 0.6 MOD Lens Gear

• Carry Pouch

• Limited 2-Year Warranty

• Limited 2-Year Warranty

• Support System

• 1 Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Wired Electronic Focus Control for Canon, Fujinon, and Cine Lenses

  Cable Connection	3.5 mm stereo mini-jack
  Maximum Cable Length	50.0' / 15.2 m
  Mounting	Hand Unit Up to 1.1" / 2.8 cm diameter rod
  Power	Voltage Range: 6 to 10 VDC (pin positive) Battery: BP-915-type (compatible with BP-930/BP-945-type)
  Focus Wheel Diameter	Focus Wheel Diameter: 2.0" / 5.1 cm Hand Unit: 6.3 x 4.0 x 2.0" / 15.9 x 10.2 x 5.1 cm
  Weight	Without Battery: 14.0 oz / 396.9 g

  Box Dimensions (LxWxH)	10.3 x 6.7 x 6.4"

• Rock-EXD Zoom Lens Control for Sony PMW-300/200/160/EX3/EX1

  Compatibility	Sony PMW-300 Sony PMW-200 Sony PMW-160 Sony PMW-EX3 Sony PMW-EX1
  Material	ABS plastic
  Clamp	Max Diameter: 1.25" (3.18 cm)
  Cord Length	40.0" (101.6 cm)
  Dimensions (L x W)	2.75 x 2.00" (6.96 x 5.08 cm)
  Weight	6.4 oz (181.4 g)

  Box Dimensions (LxWxH)	5.8 x 3.5 x 3.2"

• VZ-DVRODS VZ DV Rod System

  Construction	Aluminum with Steel Fasteners
  Rail Material	Aluminum
  Rail Diameter	15mm
  Rail Spacing	Adjustable
  Horizontal Adjustment	1.8" 4.6cm
  Front Bracket Adjustable Height	2.4" 6.1cm
  Back & Forward Adjustable Length	8" Rods
  Mounting Hole	1/4-20
  Dimensions (WxHxD)	2.8 x 4.4 x 14.8" 7.1 x 11.2 x 37.6cm
  Weight	1.3 lbs 590g

  Box Dimensions (LxWxH)	8.7 x 5.3 x 3.3"
