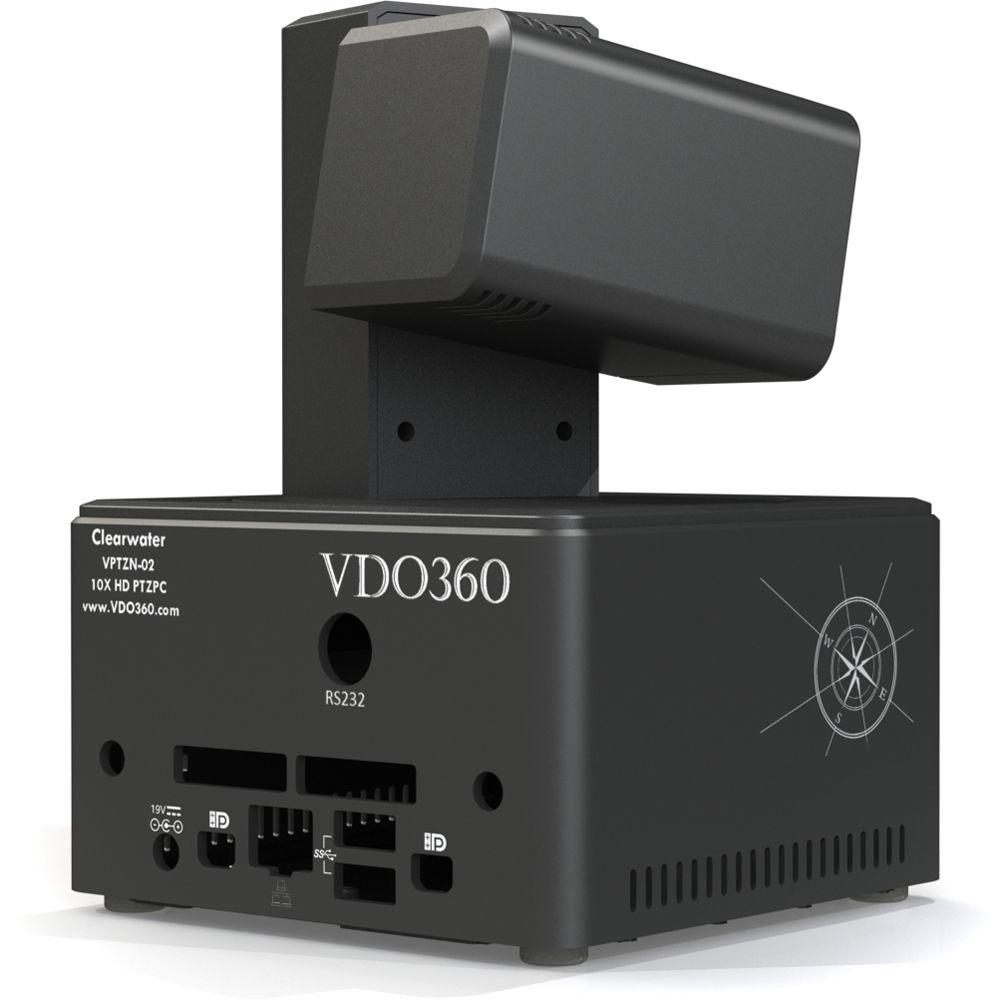

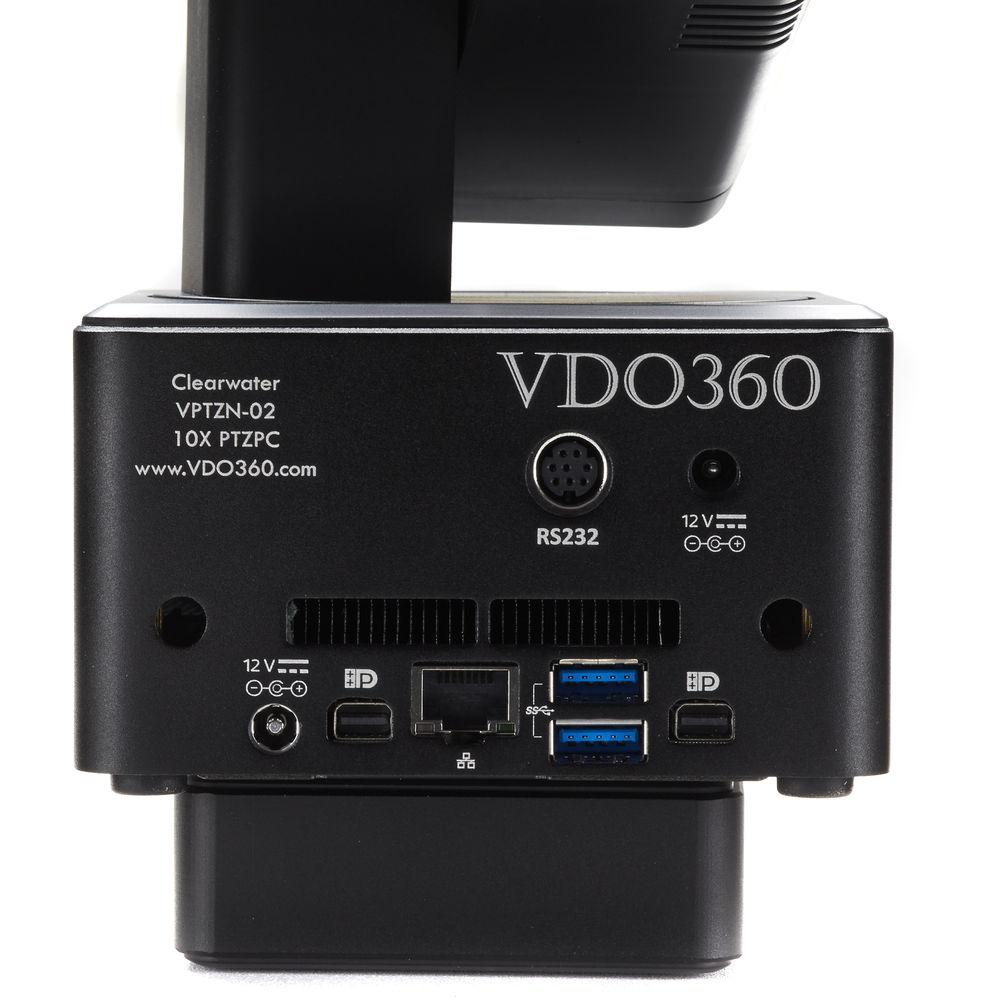

User Manual for VDO360 Clearwater PTZPC Camera and Computer Module with Bluetooth Speaker Click to enlarge the picture
Contents of the user manual for the VDO360 Clearwater PTZPC Camera and Computer
- Product category: PTZ Cameras VDO360
- Brand: VDO360
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for VDO360 PTZ Cameras
 |
User manual for the VDO360 Clearwater PTZPC Camera and Computer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any VDO360 product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official VDO360 user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a VDO360 product will considerably shorten its lifespan!
|

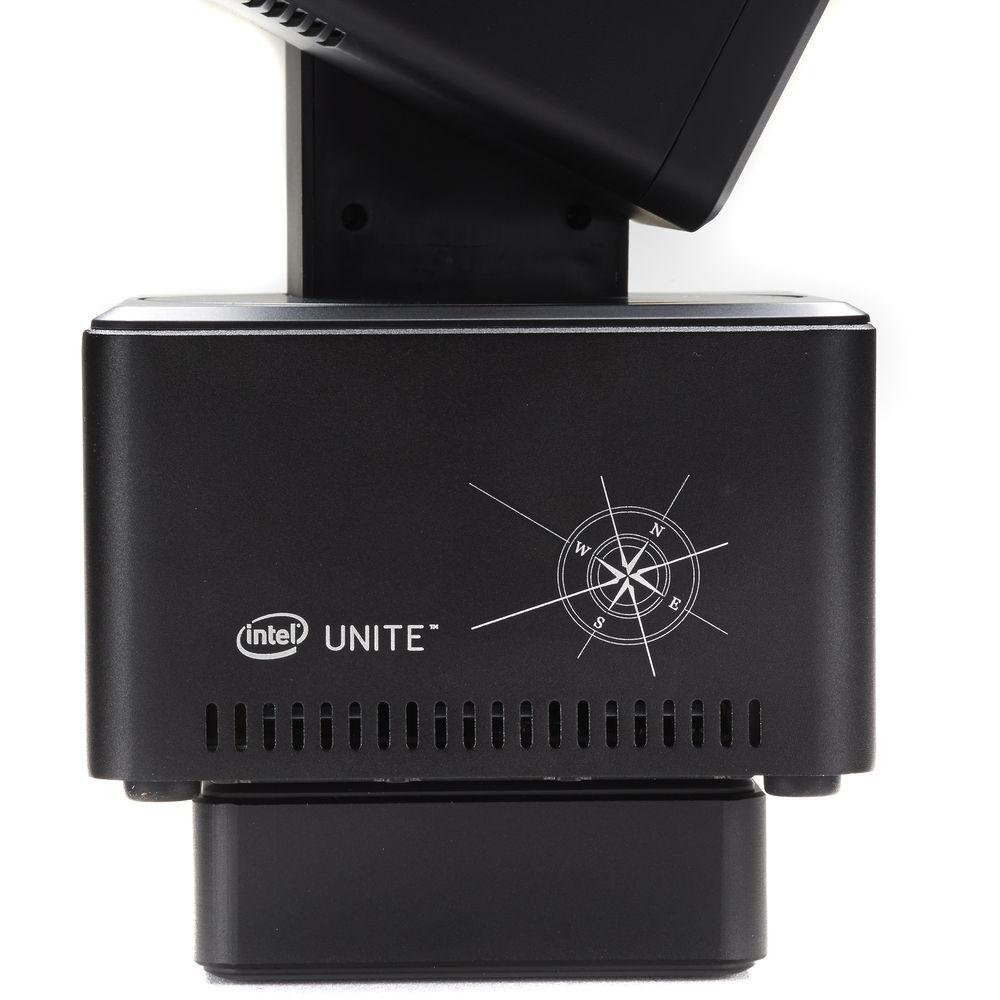

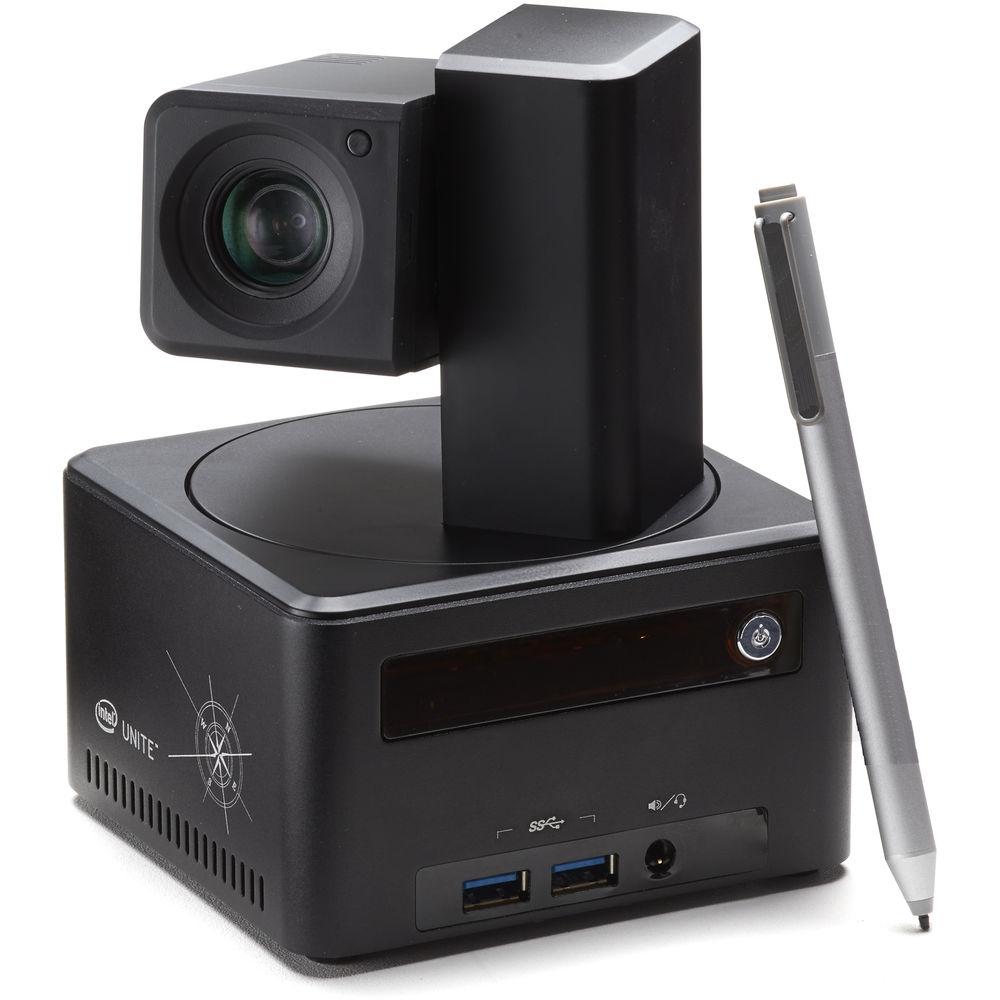

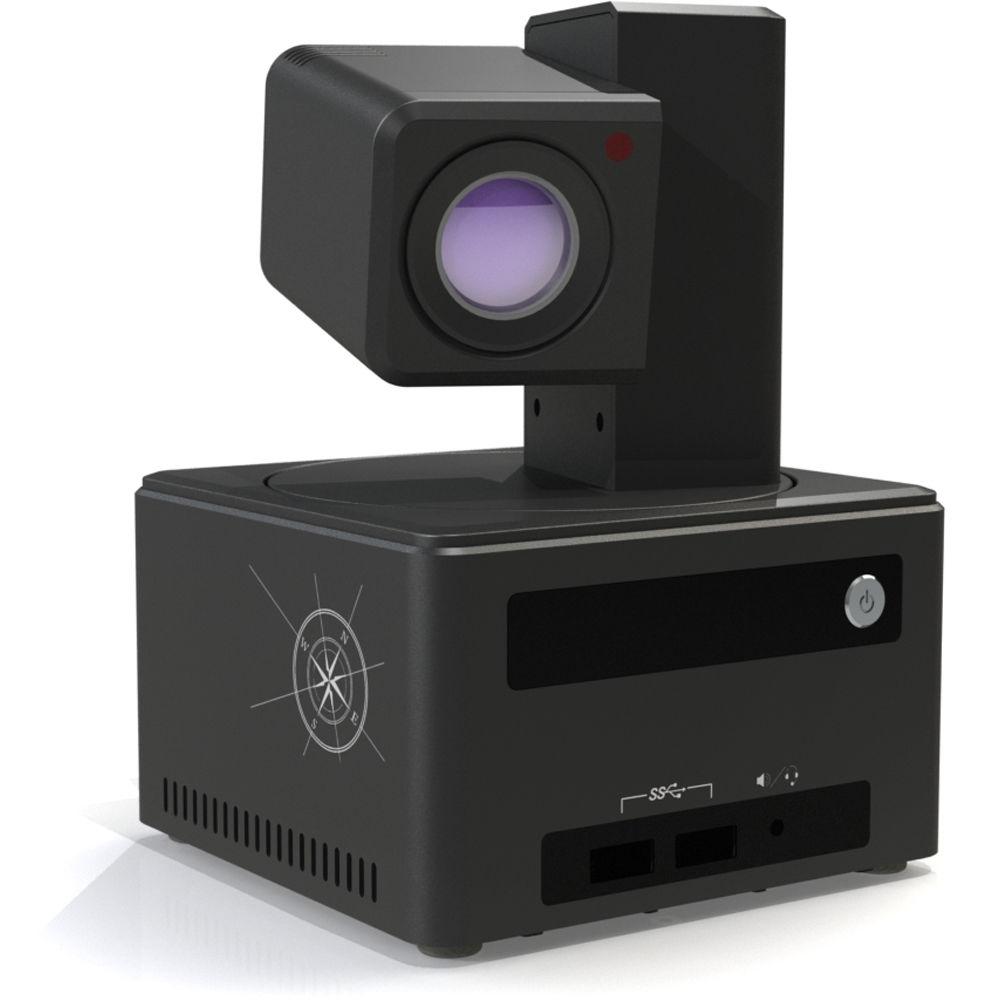

Product description The Clearwater PTZPC Camera and Computer Module from VDO360 is powered by an Intel core i5 vPro processor, a 120GB Intel SSD, 8GB of RAM, and a full version of Microsoft Windows 10 inside of a custom designed compass camera housing. In addition, the whole system includes a wireless media keyboard, a Bluetooth Speakerphone by Harman/Kardon, a Flare button for one button preset camera position recall, and all the cables and accessories to complete your visual communications space. The camera module is based on the Compass HD PTZ USB camera while the computer module is based on Intel Core i5 processor with vPro technology. - PTZPC
-
- Camera module based on Compass HD PTZ USB camera
- Computer module based on Intel Core i5 processor with vPro technology
- Camera preset positioning
- RS-232 control
- UVC over USB control
- Dual IR receivers
- Accu pan and tilt
- Belt drive for smooth pan and tilt
- 5th generation Intel Core i5-5300U vPro processor
- Intel HD Graphics 5500
- Intel HD Audio4 via mini DisplayPort

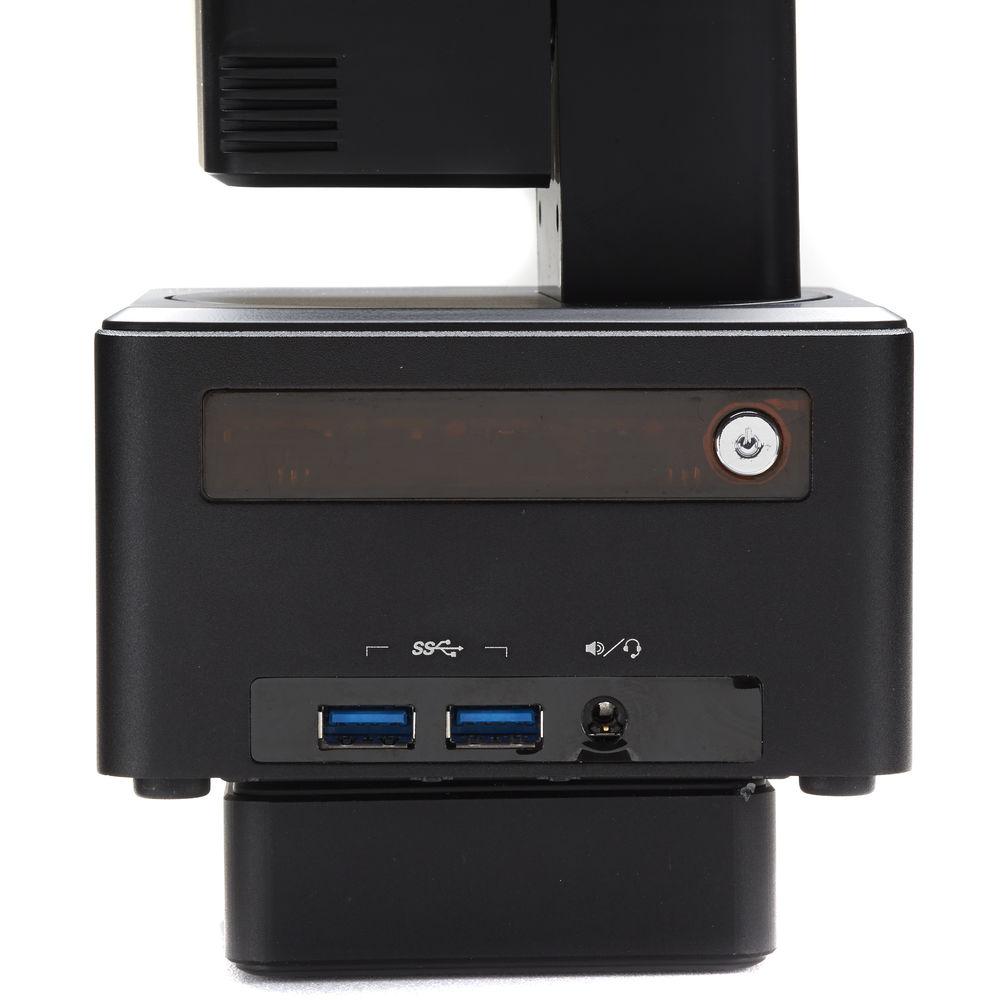

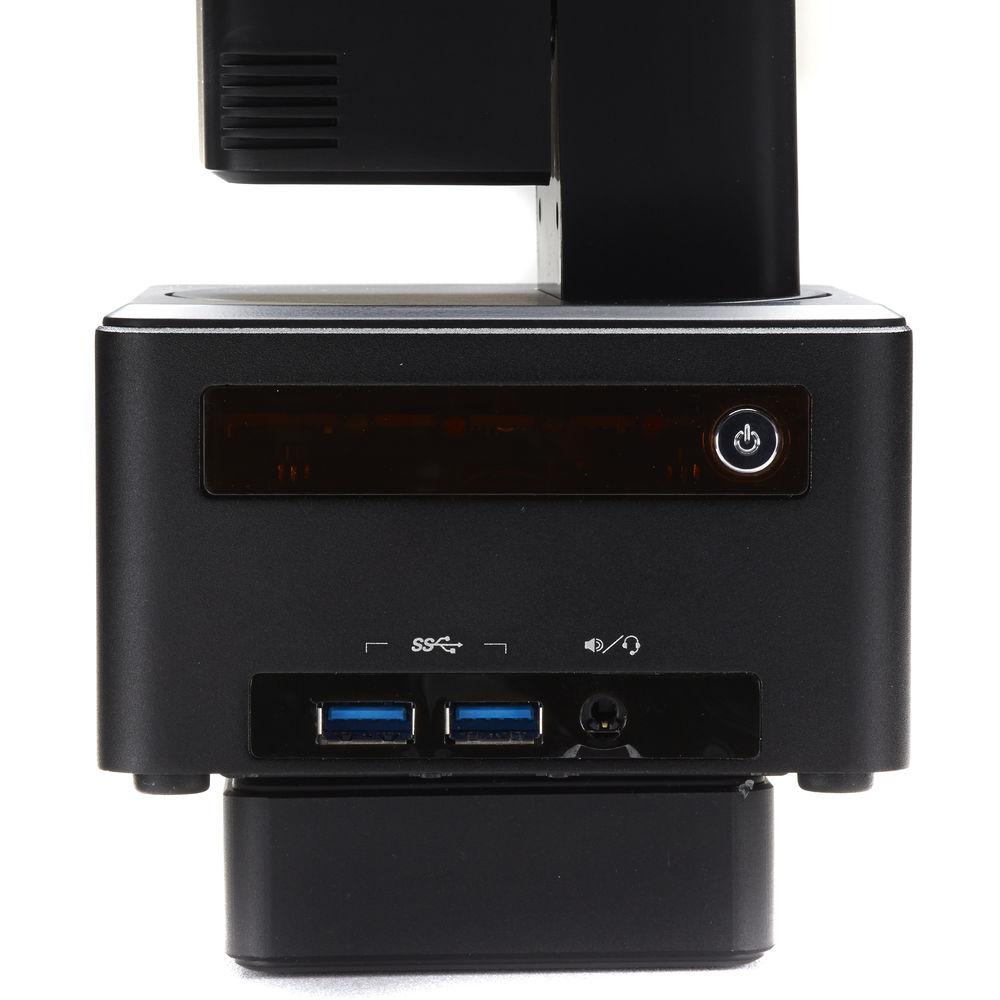

- 2 x USB 3.0 ports on front panel
- 2 x USB 3.0 ports on back panel
- 2 x Mini DisplayPort ports on back panel
- Intel Gigabit LAN
- Intel 7265 802.11ac/BT/WiDi radio
- Custom external antennae for improved reception
- 8GB RAM
- 120GB M.2 x 80 SSD

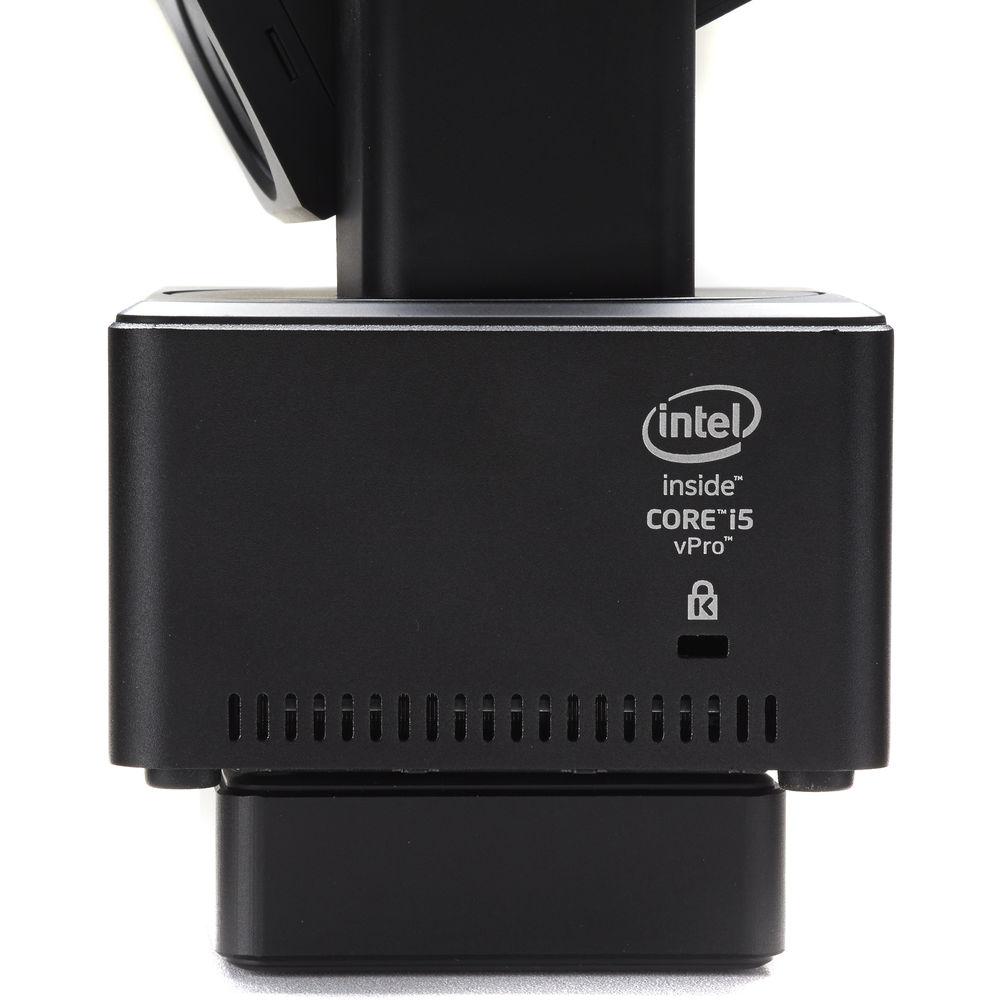

- Kensington lock enabled
- Full version of Windows 10
- Intel Unite hub capable with pre-loaded software
- Intel Remote keyboard with pre-loaded software
- Harmon/Kardon Esquire II Speakerphone
-
- Bluetooth 3.0 connectivity
- 4 separate microphones for full room coverage
- Easy pairing to the Clearwater
- Bluetooth audio Wideband, A2DP
- Up to 15 hours talk time
- USB port for fast charging
- Omni-directional microphone
- Robust speaker
- Easy-to-use controls
- Metal frame construction

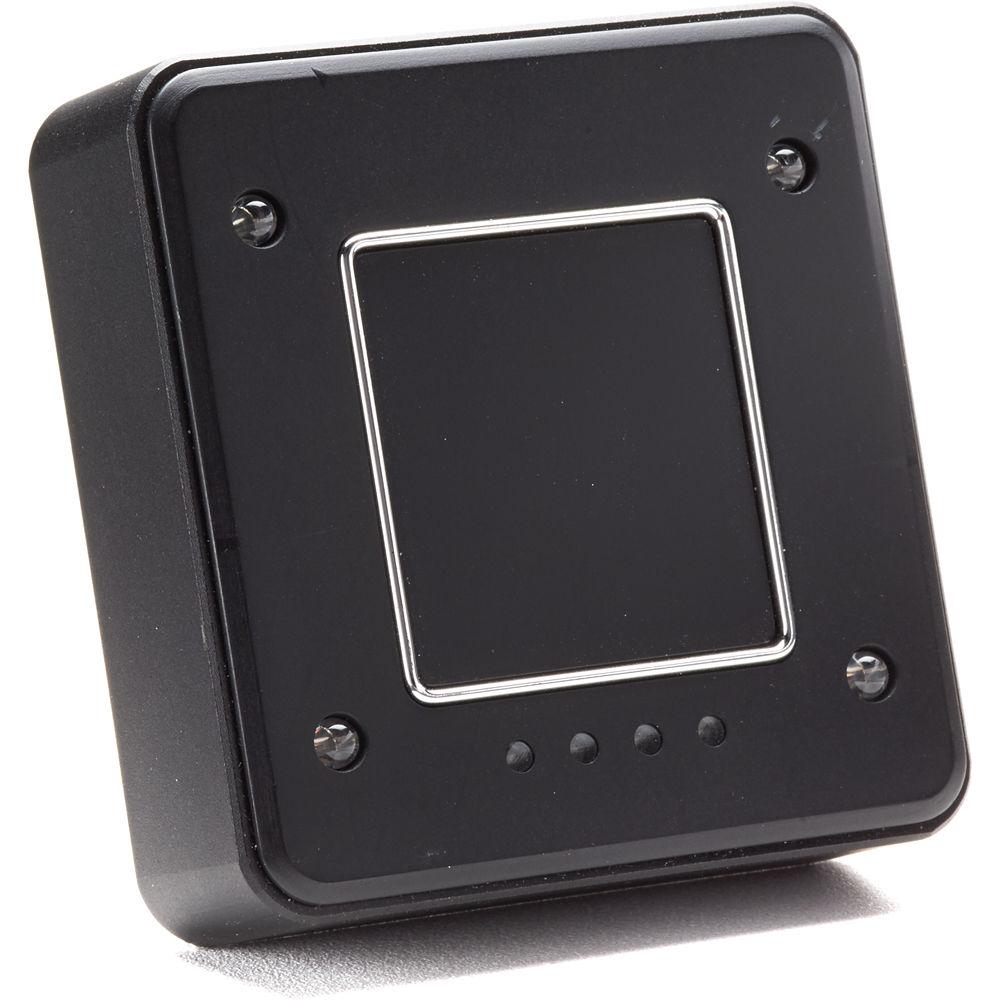

- Flare (IR Preset Recall Button)
-
- Selectable location recall
- Up to four buttons per system
- Wall or table mount
- LED preset number indicator
- Single button for simplicity

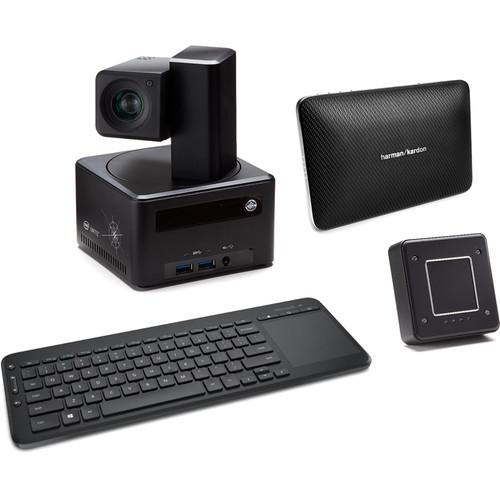

UPC: 857830005169 In the Box VDO360 Clearwater PTZPC Camera and Computer Module with Bluetooth Speaker Wireless Keyboard and Mouse Flare (IR Preset Recall Button) IR Remote and Batteries Mounting Kit Mini DP to HDMI Cable RS-232 Cable AC Adapter Power Supply Limited 1-Year Warranty Brochure PDF 268kbxqeuzsefcedadfbavztstsa Table of Contents
|
Upload User Manual
Have you got an user manual for the VDO360 Clearwater PTZPC Camera and Computer Module with Bluetooth Speaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVDO360 Clearwater Specs | Focal Length | 4.9 to 49mm | | Minimum Focus Distance | 26.6" / 60 cm | | Optical Distortion | 1.2 to 0.8% | | Dynamic Range | 65 dB | | SNR | >50 dB | | Field of View | Diagonal: 66.6 to 7.2°
Horizontal: 53.2 to 5.3°
Vertical: 39.8 to 4.2° | | Sensor Size | 1/2.7" | | Format | MJPEG with resolution at 640 × 480, 1280 × 720, and 1920 × 1080 @ 30 fps | | Ports | 1 x 1 USB 2.0 | | Input | 9 to 12 VDC input at 1 A | | Dimensions (W x D x H) | 4.6 x 4.4 x 5.0" (11.7 x 11.2 x 12.7 cm) | | Weight | 1.0 lb (0.5 kg) | | | | Package Weight | 11.9 lb | | Box Dimensions (LxWxH) | 15.4 x 11.4 x 9.6" |
