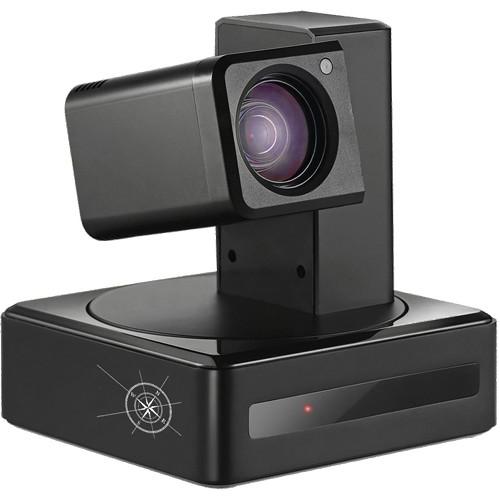

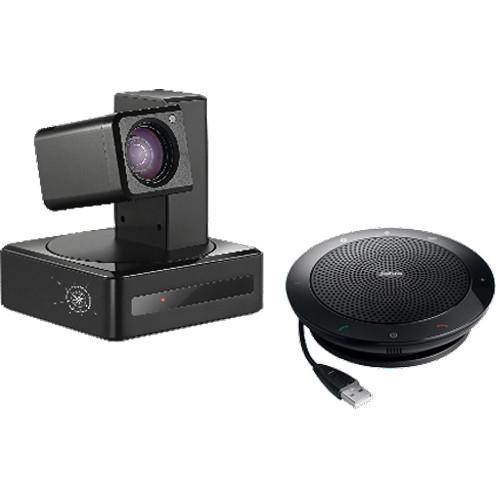

Product description The Compass HD PTZ USB Camera with Jabra Speak 510+ Speakerphone Kit from VDO360 includes the VPTZH-02 Compass high definition PTZ camera for video conferencing and the Jabra Speak 510+ speakerphone (the speakerphone comes with a Jabra Link 360 USB dongle).
The Compass camera interfaces with a computer using USB 2.0, and is designed to be compatible with most video conferencing software. Unlike a basic webcam, this camera offers full 300° pan, 180° tilt, and zoom (PTZ) functionality. It features a native resolution of 1920 x 1080, a 1/2.7" CMOS image sensor, and a 10x optical zoom lens.
The Jabra speakerphone is equipped with an omni-directional microphone and provides wideband audio. The attached USB cable connects the speakerphone to your PC. The Speak 510+ also supports up to 8 trusted devices via Bluetooth. - Compass HD PTZ USB Camera with 10x Optical Zoom The Compass HD PTZ USB Camera with 10x Optical Zoom interfaces with a computer using USB 2.0 and is designed to be compatible with most video conferencing software. It features a 1/2.7" CMOS sensor with 1920x1080 native resolution and, unlike most webcams, provides full pan, tilt, and zoom (PTZ) functionality, offering 300° of pan, 180° of tilt, and a 10x optical zoom range.
Video is encoded using the MJPEG format, with video resolutions of 1080p, 720p, and 640x480 available at 30fps. The camera, along with PTZ functions, can be controlled using the included IR remote, or via the RS-232 serial port. Up to seven position presets can be stored on the IR remote, with more presets available through RS-232 or from the On-Screen Application via USB. A USB 2.0 cable and RS-232 cable comes included.
The camera does not require any dedicated drivers and therefore can be used on most platforms, including Windows, OSX, Linux, iOS, and Android. It includes a monitor mount (a small shelf that attaches to a TV or other flat panel display), and features a 1/4"-20 threaded hole for tripod mounting. -
- USB 2.0 interface
- 1920x1080 native resolutions
- MPJEG video stream at 1080p, 720p, or 640/480 at 30fps
- Fully UVC compliant including control
- Smooth PTZ mechanism
- Zoom: 10x, Pan: 300°, Tilt: 180°
- 66.6°to 7.2° angle of view (diagonal)
- IR remote, RS-232, and desktop program control
- "Accu-PT" motor control for fine adjustments
- Metal frame construction
UPC: 857830005060 - Speak 510+ Bluetooth & USB Speakerphone Take your conference call on the go with the Speak 510+ Bluetooth & USB Speakerphone from Jabra. With enhanced Bluetooth compatibility and a battery life of up to 15 hours, you can sync the Jabra Speak directly to your tablet or smartphone making it possible for everyone to get in on the conference call all at the same time. The attached USB cable allows you to plug the speaker to your computer for chatting and charging the device, while the 3.5mm headset jack enables you to take calls privately from a wired headset. Also included with the "plus" version of the Jabra Speak 510+ is the Jabra Link 360 Bluetooth adapter allowing you to wirelessly connect the Jabra Speak to your computer at a distance of up to 328 ft (100 m).
- Slim and Compact Design
- The Jabra Speak 510+ can be used for audio conferencing on demand with a compact and lightweight design, an integrated USB cable management system for quick set-up and a protective travel case.
- Plug-and-Play Operation
- Plug your USB cable or connect via Bluetooth, and simply connect Jabra Speak to your PC, tablet or smartphone.
- Enhanced Sound Quality
- Use the Jabra Speak 510+ to get clear and natural sounding calls that allow attendees to hear and speak clearly across any location.
- Unlimited Mobility
- Choose Jabra Speak 510+ enhanced with Bluetooth to connect to any mobile device and get the freedom to communicate on your terms.
- Optimal User Experience
- Benefit from full compatibility - including call control, with the leading UC/Softphone solutions and any Bluetooth enabled cell phone, smartphone or tablet.
UPC: 706487014324 In the Box Bundle Items Compass HD PTZ USB Camera with 10x Optical Zoom stsbqztrastvwfsyyq - 2 x AAA Batteries for IR Remote
- Power Supply with 10' (3 m) Cable
- 10' (3 m) RS-232 Control Cable
Speak 510+ Bluetooth & USB Speakerphone - Limited 1-Year Manufacturer Warranty
Brochure PDF 79.8kbstsbqztrastvwfsyyq Table of Contents
|
Upload User Manual
Have you got an user manual for the VDO360 Compass HD PTZ USB Camera with Jabra Speak 510 Speakerphone Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Compass HD PTZ USB Camera with 10x Optical Zoom
| Sensor Type | 1/2.7" CMOS | | Effective Pixels | 1920 x 1080 | | Signal to Noise Ratio | 50 dB above | | Dynamic Range | 65 dB | | Focal Range | 4.9 to 49 mm | | Zoom | 10x | | Pan & Tilt | Pan: 300°
Tilt: 180° | | Focus Distance | 23.6" (60 cm) to infinity | | Angle of View | Horizontal: 53.2° (wide) to 5.3° (tele)
Vertical: 39.8° (wide) to 4.2° (tele)
Diagonal: 66.6° (wide) to 7.2° (tele) | | Optical Distortion | -1.2 to +0.8% | | Video Format | MJPEG: 1080p, 720p, and 640x480 at 30 fps | | Interface | 1 x RS-232 output
1 x USB 2.0, type B output
1 x IR receiver (front)
1 x 9 VDC, 1.0 A power input | | Tripod Mounting Thread | 1/4"-20 | | Power Requirements | 9 to 12 VDC, 1 A | | Dimensions (WxHxD) | 4.62 x 5.00 x 4.38" (11.75 x 12.70 x 11.12 cm) | | Weight | 1.21 lb (0.548 kg) | | | | Box Dimensions (LxWxH) | 11.2 x 9.2 x 6.6" | - Speak 510+ Bluetooth & USB Speakerphone
| | | Unified Communication | Yes
(The device is fit for Unified Communications) | | Usage | • Designed to optimize the experience of using a Unified Communications client
• Connects to a PC and can be used to stream music/sound and for voice calls
• Works with mobile phones | | Music | Yes
(Device can play music from a source, such as a Smartphone, Bluetooth enabled laptop, tablet, or MP3 player) | | | | Frequency Response | Wideband / Hifi
(Frequency Response describes the range of frequencies a speaker can produce, measured in Hertz) | | Digital Signal Processing (DSP) | Yes
(Digital Signal Processing (DSP) is a technology that digitally optimizes your voice and music and suppresses echoes) | | | | Microphone Type | Omni Directional / noise filter
(Enhances call clarity by eliminating background noise from the office) | | Mute Function | N/A | | | | Paired Devices | Up to 8 trusted devices | | Bluetooth Version | 3.0 | | Bluetooth Range | Up to 300 ft / 100 m, Class 1
Up to 30 ft / 10 m, Class 2 | | Supported Bluetooth Profiles | A2DP (v 1.2), hands free profile (v1.6), headset profile | | USB Cable | Plug-and-play connectivity to PC Softphone/UC systems | | Rechargeable Battery Life | Up to 15 hours | | Headset Input | 3.5 mm | | Certifications and Standards | Certified by Cisco
Certified by Avaya
Certified by Unify | | Operating Temperature | 41 to 104°F / 5 to 40°C | | Storage Temperature | 23 to 113°F / -5 to 45°C | | | | Dimensions | 4.72 x 1.30" / 120 x 33 mm | | Weight | 6.88 oz / 195 g | | | | Box Dimensions (LxWxH) | 5.7 x 5.3 x 1.9" |
