User Manual for VDO360 Compass Spider Camera with Phoenix Wired Spider Speakerphone Click to enlarge the picture
Contents of the user manual for the VDO360 Compass Spider Camera with Phoenix
- Product category: PTZ Cameras VDO360
- Brand: VDO360
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for VDO360 PTZ Cameras
|
User manual for the VDO360 Compass Spider Camera with Phoenix contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any VDO360 product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official VDO360 user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a VDO360 product will considerably shorten its lifespan!
|

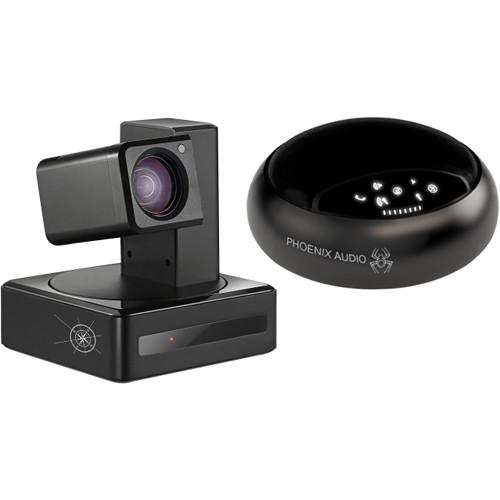

Product description The VPTZA-2PS Compass Spider Camera with Wired Phoenix Spider Speakerphone includes a PTZ camera and speakerphone system. The camera features a 1/2.7" CMOS sensor with 1920 x 1080 native resolution, offering 300° of pan, 180° of tilt, and a 10x optical zoom range. The camera, along with PTZ functions, can be controlled using the included IR remote, or via the RS-232 serial port. Up to seven position presets can be stored on the IR remote, with more presets available through RS-232 or from the on-screen application via USB.
The black MT503 Smart Spider USB Conference Speakerphone features a large pickup and broadcasting range, yet is small in size and discreet in design. The Smart Spider utilizes multiple microphones, a speaker, acoustic echo and noise cancellation. It comes with a 2.5mm to 3.5mm cable adapter that allows you to link to almost any smartphone or tablet device. - Compass HD PTZ USB Camera with 10x Optical Zoom The Compass HD PTZ USB Camera with 10x Optical Zoom interfaces with a computer using USB 2.0 and is designed to be compatible with most video conferencing software. It features a 1/2.7" CMOS sensor with 1920x1080 native resolution and, unlike most webcams, provides full pan, tilt, and zoom (PTZ) functionality, offering 300° of pan, 180° of tilt, and a 10x optical zoom range.
Video is encoded using the MJPEG format, with video resolutions of 1080p, 720p, and 640x480 available at 30fps. The camera, along with PTZ functions, can be controlled using the included IR remote, or via the RS-232 serial port. Up to seven position presets can be stored on the IR remote, with more presets available through RS-232 or from the On-Screen Application via USB. A USB 2.0 cable and RS-232 cable comes included.
The camera does not require any dedicated drivers and therefore can be used on most platforms, including Windows, OSX, Linux, iOS, and Android. It includes a monitor mount (a small shelf that attaches to a TV or other flat panel display), and features a 1/4"-20 threaded hole for tripod mounting. -
- USB 2.0 interface
- 1920x1080 native resolutions
- MPJEG video stream at 1080p, 720p, or 640/480 at 30fps
- Fully UVC compliant including control
- Smooth PTZ mechanism
- Zoom: 10x, Pan: 300°, Tilt: 180°
- 66.6°to 7.2° angle of view (diagonal)
- IR remote, RS-232, and desktop program control
- "Accu-PT" motor control for fine adjustments
- Metal frame construction
UPC: 857830005060 - Smart Spider USB Conference Speakerphone (Black) The black MT503 Smart Spider USB Conference Speakerphone is a high-quality conference speakerphone that is designed to turn any room into a professional conference room. It features a large pickup and broadcasting range, yet is small in size and discreet in design. The Smart Spider utilizes multiple microphones, a speaker, and helpful features such as acoustic echo and noise cancellation.
The MT503 Smart Spider model connects to any computer as well as many analog audio devices. It comes with a 2.5mm to 3.5mm cable adaptor that allows you to link to almost any smartphone or tablet device. The user interface is incorporated through LED lights that are discreetly placed throughout the unit. - Flexible Connectivity
-
- USB to your computer: connection is for any session using your computer, such as Voice Over IP applications (Vidyo, BlueJeans, FuzeBox, Skype, Microsoft Lync, etc.)
- Analog cable to your smart device: connection is done via a 2.5mm connector and a provided 2.5mm (male) to 3.5mm 4pin (male) cable or any standard analog cable you have with a 2.5mm connector
- Features at a Glance:
-
- Four microphone beamforming array
- Full duplex communication
- Echo cancelling
- Noise suppression
- De-reverb
- Automatic gain control
- Daisy chainable
- Single source daisy chain powering
- Bridging between USB and “Smart” device
- Internal battery
- Interchangeable interface modules
- Metal case and metal grill mesh for high RFI immunity and product durability
- LED lit control buttons
UPC: 854969001307 In the Box Bundle Items Compass HD PTZ USB Camera with 10x Optical Zoom fcefszaeyasb - 2 x AAA Batteries for IR Remote
- Power Supply with 10' (3 m) Cable
- 10' (3 m) RS-232 Control Cable
Smart Spider USB Conference Speakerphone (Black) - International Power Supply Adaptor
- Daisy Chain Cable (Ethernet)
- 2.5mm (Male) to 3.5mm 4-pin (Male) Cable
- Interchangeable Wire Slot Cover
Table of Contents
|
Upload User Manual
Have you got an user manual for the VDO360 Compass Spider Camera with Phoenix Wired Spider Speakerphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Compass HD PTZ USB Camera with 10x Optical Zoom
| Sensor Type | 1/2.7" CMOS | | Effective Pixels | 1920 x 1080 | | Signal to Noise Ratio | 50 dB above | | Dynamic Range | 65 dB | | Focal Range | 4.9 to 49 mm | | Zoom | 10x | | Pan & Tilt | Pan: 300°
Tilt: 180° | | Focus Distance | 23.6" (60 cm) to infinity | | Angle of View | Horizontal: 53.2° (wide) to 5.3° (tele)
Vertical: 39.8° (wide) to 4.2° (tele)
Diagonal: 66.6° (wide) to 7.2° (tele) | | Optical Distortion | -1.2 to +0.8% | | Video Format | MJPEG: 1080p, 720p, and 640x480 at 30 fps | | Interface | 1 x RS-232 output
1 x USB 2.0, type B output
1 x IR receiver (front)
1 x 9 VDC, 1.0 A power input | | Tripod Mounting Thread | 1/4"-20 | | Power Requirements | 9 to 12 VDC, 1 A | | Dimensions (WxHxD) | 4.62 x 5.00 x 4.38" (11.75 x 12.70 x 11.12 cm) | | Weight | 1.21 lb (0.548 kg) | | | | Box Dimensions (LxWxH) | 11.2 x 9.2 x 6.6" | - Smart Spider USB Conference Speakerphone (Black)
| Connections | USB interface (mini B connector)
3.5 mm external loudspeaker and microphone jack
Daisy chain expandability of up to 15 units | | Volume Control | Volume Up / Volume Down buttons | | Power Consumption | 5V 500 mA peak through USB and wall mount AC/DC converted | | Audio | 50 Hz - 16 kHz | | Latency | 10 ms | | Broadcast Level | Broadcast level (peak): 92 dB SPL @1 m (5 W RMS) | | Bridging Features | Three-way bridging capability | | Noise Cancellation | Noise cancellation > 10 dB | | Duplex Operation | 100% full duplex - no attenuation (in either direction) during full duplex | | Conformance | ITU-T G.167 | | Echo Cancellation | > 40 dB with conversion speed of 40 dB/sec, residual echo is suppressed to the environment noise level, preventing artificial ducking of signal | | Microphones | 4x directional microphones | | Algorithm | Direction-finding algorithm (determines the presence and direction of a speaker)
Beamforming algorithm (forms and directs audio beams towards a defined direction) | | Output Level Adjustment | Automatic voice-level adjustment (AGC) | | Software | Plug-and-play - No installation or drivers
Audio setup utility is available for Windows
The setup utility helps monitor the audio input and output level but is not required
Recording utility is available for Windows
Recording utility allows you to record conversations to your computer via the device
Operating systems: Windows 98 and up / Linux / Mac OS | | Color | Black | | Dimensions | 7" (17.8 cm) diameter, 1.9" (4.83 cm) height | | Weight | 1.75 lb (0.8 kg) | | | | Box Dimensions (LxWxH) | 15.5 x 12.6 x 2.7" |
