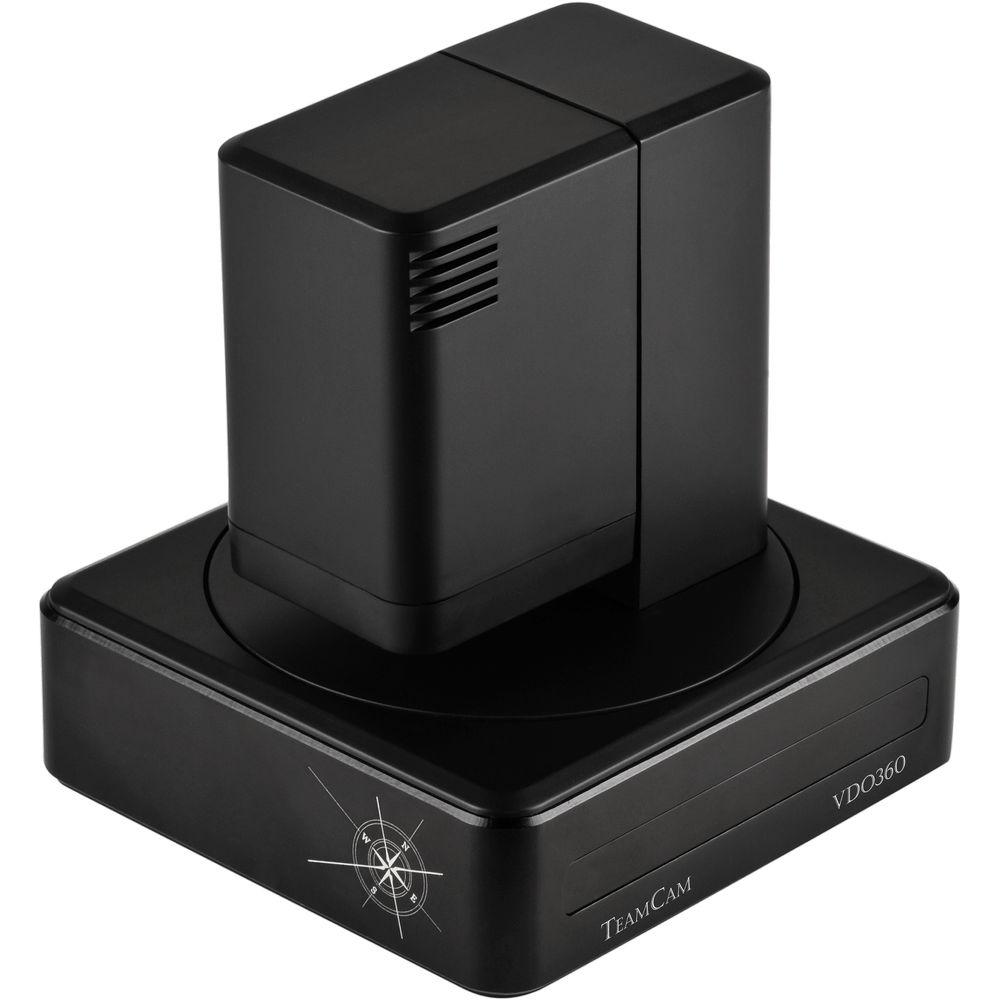

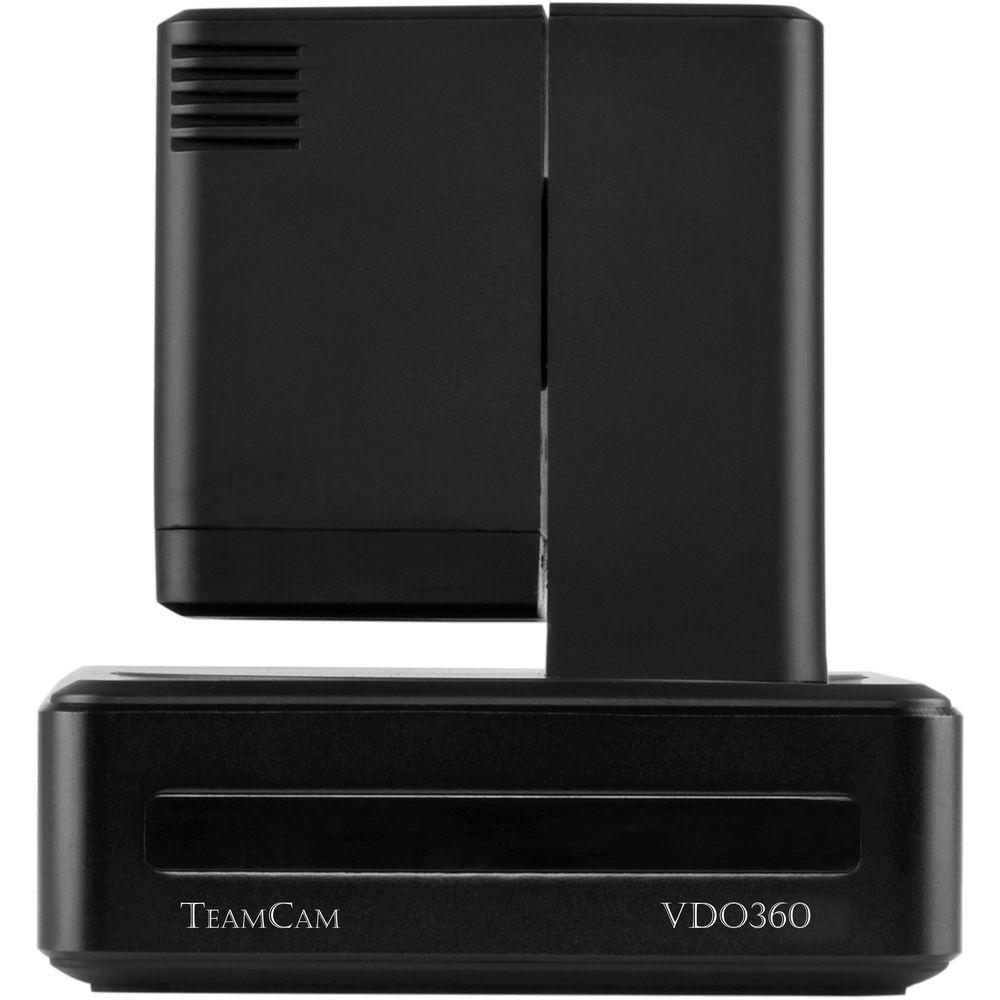

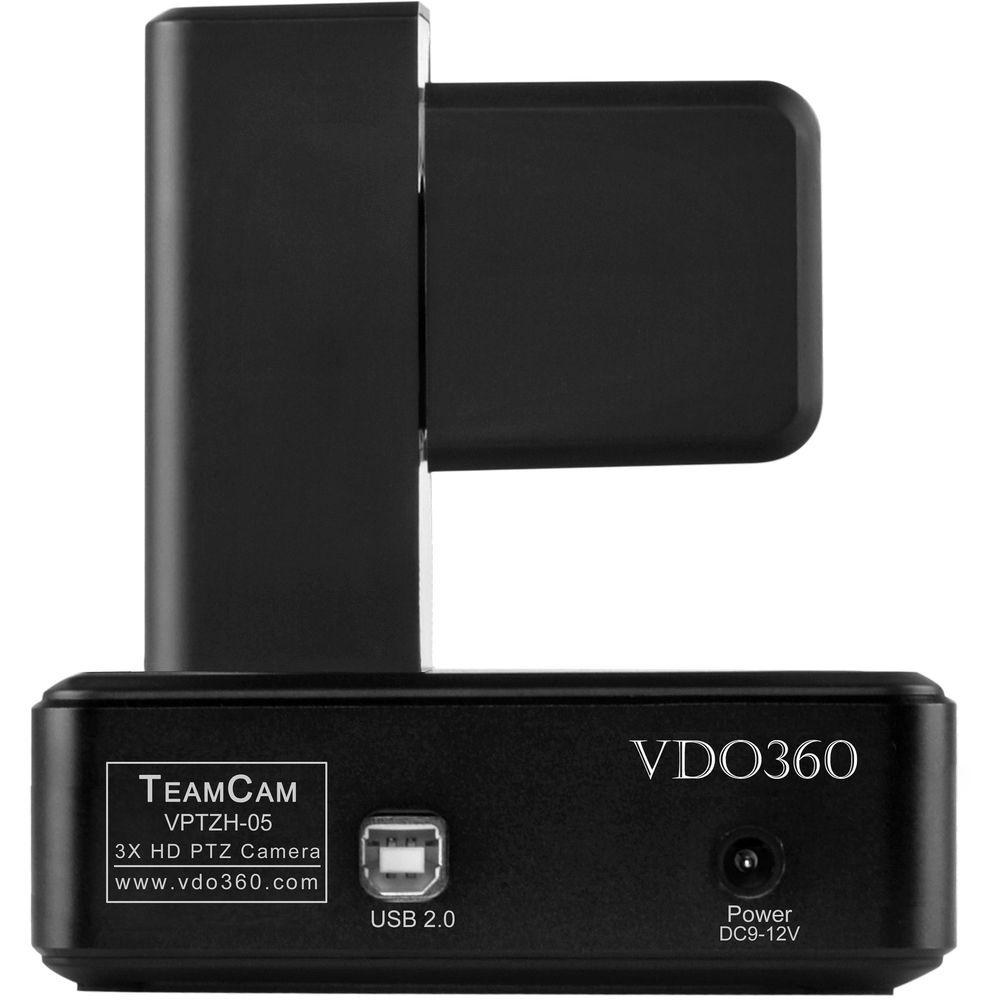

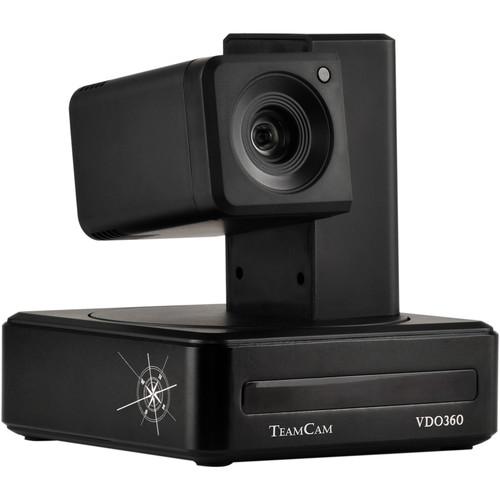

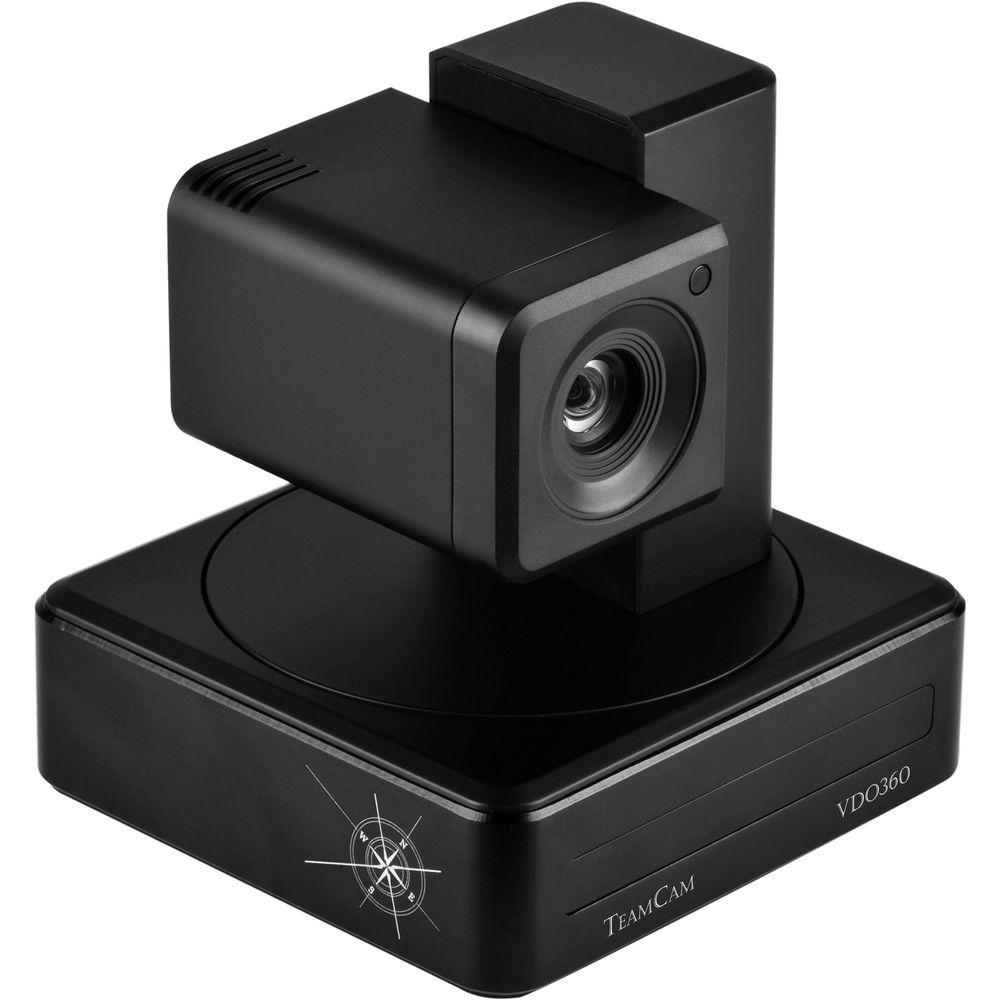

User Manual for VDO360 TeamCam 90° FOV USB PTZ Camera with 3x Digital Zoom Click to enlarge the picture
Contents of the user manual for the VDO360 TeamCam 90° FOV USB PTZ
- Product category: PTZ Cameras VDO360
- Brand: VDO360
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for VDO360 PTZ Cameras
 |
User manual for the VDO360 TeamCam 90° FOV USB PTZ contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any VDO360 product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official VDO360 user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a VDO360 product will considerably shorten its lifespan!
|
Product description The VDO360 TeamCam is a desktop-mount PTZ conferencing camera featuring smooth and quiet, belt-driven pan and tilt functionality, as well as near-instant 3x digital zoom with no loss of resolution.
The TeamCam has an 8MP sensor, which by spec is a 4K sensor, that delivers sharp 1080p images even when zoomed all the way in. The 8MP sensor is also very friendly to low light conditions.
A major feature of the TeamCam is a 90° field of view without any fisheye distortion. The TeamCam also offers very fast and smooth switching of preset positions. Topping everything off, it features a USB 2.0 output, providing for simple and easy installation. - Key Features
-
- Enterprise-grade construction PTZ camera
- Smooth and quiet, belt-driven pan and tilt
- Near-instant 3x zoom with no loss of resolution
- Sony 8MP 1/3" sensor (low-light friendly)
- Sharp 1080p resolution
- 90° field of view without fisheye distortion
- Fast, smooth switching of preset positions
- 7 remote / 128 VISCA presets
- USB 2.0 output for easy installation
- Auto/manual exposure control
- Auto white balance
- Auto image flip
- Auto gain adjustment
- Dynamic noise reduction
- Desktop mount / 1/4"-20 threaded tripod mount on the bottom for mounting on various supports
UPC: 857830005404 In the Box VDO360 TeamCam 90° FOV USB PTZ Camera with 3x Digital Zoom USB 2.0 Cable IR Remote (Requires 2 x AAA Batteries, Available Separately) AC Adapter Power Supply Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the VDO360 TeamCam 90° FOV USB PTZ Camera with 3x Digital Zoom in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVDO360 TeamCam Specs | Image Sensor | Sony 8 MP 1/3" sensor | | Recording Resolution | 1080p (1920 x 1080) at 25 fps
720p (1280 x 720) at 25 fps | | Field of View | Wide: 90°
Tele: 30° | | Zoom | 3x digital | | Output | USB 2.0 | | Minimum Illumination | 0.9 lux | | Focal Length | 3.5mm | | Aperture | f/1.6 | | Minimum Focus Distance | 3.9" (4 cm) | | Shutter Speed | 1/10 | | Pan Rotation | +/-340° | | Pan Speed | 0 to 128°/sec | | Tilt Rotation | -35 to 200° | | Tilt Speed | 85°/sec | | Signal to Noise Ratio | >40 dB | | Mount Type | Desktop mount / 1/4"-20 threaded tripod mount on the bottom | | Power Input | 12 VDC | | Power Consumption | 12 W | | Storage Temperature | 14 to 113°F (-10 to 45°C) | | Dimensions | 4.7 x 4.7 x 5.1" (12 x 12 x 13 cm) | | Weight | 2.4 lb (1.1 kg) | | | | Package Weight | 3.15 lb | | Box Dimensions (LxWxH) | 11.1 x 9.0 x 6.3" |
