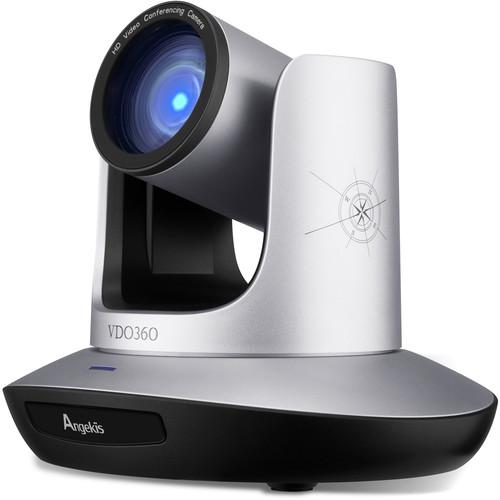

User Manual for VDO360 The Saber PTZ Camera with DVI-I USB 3.0 Click to enlarge the picture
Contents of the user manual for the VDO360 The Saber PTZ Camera with
- Product category: PTZ Cameras VDO360
- Brand: VDO360
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for VDO360 PTZ Cameras
|
User manual for the VDO360 The Saber PTZ Camera with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any VDO360 product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official VDO360 user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a VDO360 product will considerably shorten its lifespan!
|
Product description The Saber PTZ Camera from VDO360 provides clear and crisp high-quality images even at a low lux of 0.01 lux. The camera has a sleek and intelligent design and the belt-drive technology with twin motors ensures smooth, quiet, and fast PTZ movement. The camera offers DVI-I (HDMI) & USB 3.0 simultaneous outputs with far end camera control. 2D and 3D noise reduction helps deliver high-quality video when adjusting to changing lighting conditions. - Sleek & intelligent design
- Provides low-light viewing ability
- High-quality image even at low lux of 0.01 lux
- DVI-I (HDMI) & USB3.0 simultaneous output
- Far end camera control via USB 3.0 UVC ability based on Codec FECC
- Desktop app control software included to control the camera and video settings
- Belt-drive technology with twin motors for smooth, quiet, and fast PTZ movement
- Large FOV at 72.5° with no video distortion
- 2D and 3D noise reduction offers the high-quality video when adjusting to different room conditions
- Fully operational remote control with a power-off function, resetting the camera back to the start position
- Reverse mountable, standard tripod screw on bottom of unit
UPC: 857830005206 In the Box VDO360 The Saber PTZ Camera with DVI-I/USB 3.0 Power Adapter Power Cable RS232 Control Cable USB 3.0 Cable Remote Controller Double-Sided Adhesive Guides & Manuals drqacfextz Table of Contents
|
Upload User Manual
Have you got an user manual for the VDO360 The Saber PTZ Camera with DVI-I USB 3.0 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the VDO360 The Saber PTZ Camera with DVI-I USB 3.0 can be downloaded in PDF format at the link stated below.
Technical parametersVDO360 Saber Specs | Video Format | USB 3.0 and DVI: 1080p 59.94/50/29.97/25; 720p 59.94/50/29.97/25
DVI: 1080i 59.94/50 | | Video Output | USB 3.0 & DVI-I | | Sensor | 1/2.3" 4K UHD CMOS image sensor | | Lens | f3.9 to 46.1 mm (12x zoom), E1.8 to 2.8 | | Angle of View | 72.5° | | Head Rotation Angle | Pan Rotation: ± 170°
Tilt rotation: -30° -+90°
Supports inverted installation | | Rotation Speed | Pan Speed: 0.1° to 150°/sec; Tilt speed: 0.1° to 80°/sec | | Preset | 10 via IR remote setting, (255 via RS232)
Preset Accuracy: 0.2° | | White Balance | Auto/Manual | | Exposure | Auto/Manual (Iris, Shutter) | | Control Signal | SB UVC FECC and 8-pin mini DIN--RS232--VISCA/PelcoD/Pelco-P protocol | | Power Voltage | 12 VDC/2.0 A
Power Port: HEC3800 | | Maximum Power Consumption | 24 W | | Working Temperature | 23 to 113°F (-5 to 45°C) | | Storage Temperature | 68 to 140°F (20 to 60°C) | | Dimensions | 8.6 x 7.5 x 6.7" (22 x 19 x 17 cm) | | Weight | 3.3 lb (1.5 kg) | | | | Package Weight | 7.0 lb | | Box Dimensions (LxWxH) | 12.3 x 12.2 x 11.6" |
