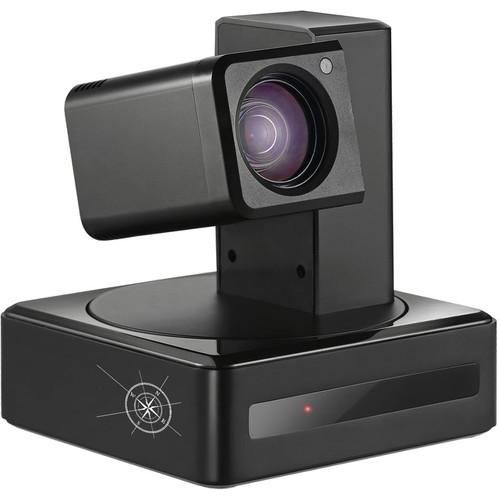

User Manual for VDO360 USB 2.0 HD PTZ Camera with10x Optical Zoom and Presets Click to enlarge the picture
Contents of the user manual for the VDO360 USB 2.0 HD PTZ Camera
- Product category: PTZ Cameras Others
- Brand: Others
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Others PTZ Cameras
 |
User manual for the VDO360 USB 2.0 HD PTZ Camera contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Others product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Others user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Others product will considerably shorten its lifespan!
|
Product description Hands-On Review Video: the VDO360 Beacon Camera Read More - VDO360 Beacon Camera: Hands-On Review
The VDO360 USB 2.0 HD PTZ Camera with 10x Optical Zoom and Presets incorporates a 1/2.7" image sensor that records clear videos in resolution of up to 1920 x 1080 (30 fps). This USB 2.0 compatible camera features fast and smooth movement over seven presets on handheld remote or using desktop control. The pan and tilt functionality permits slow movement for fine tuning of camera position or rapid motion when you move a wide range. - Camera Preset Positioning
- Fast and smooth movement
Seven presets on handheld remote or using desktop control - Dual IR Receivers
- One in the base and one in the lens assembly for a wide range of control positions
IR controls include a "Video Mute" - Accu Pan and Tilt
- Slow movement when you need it for fine tuning of camera position
Rapid motion when you move a wide range - Belt Drive for Smooth Pan and Tilt
- Quiet motion with no shake
- Attractive Form Factor
- Compact in size for discrete placement in the most discerning environments
Metal frame for a modern look UPC: 857830005114 In the Box VDO360 USB 2.0 HD PTZ Camera with10x Optical Zoom and Presets Set Top Mount USB 2.0 Cable IR Remote and Batteries AC Adapter Power Supply Limited 1-Year Warranty Brochure PDF 105.1kb Table of Contents
|
Upload User Manual
Have you got an user manual for the VDO360 USB 2.0 HD PTZ Camera with10x Optical Zoom and Presets in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVDO360 Beacon Specs | Sensor Size | 1/2.7" | | Focal Length | 4.9 to 49 mm | | Optical Zoom | 10x | | Depth of Field | 60 cm to ∞ | | Optical Distortion | 1.2% to +0.8% | | Dynamic Range | 65 dB | | Signal to Noise Ratio | 50 dB and above | | Field of view (FOV) | Diagonal: 66.6-7.2°, Horizontal: 53.2-5.3°, Vertical: 39.8-4.2° | | Tripod Mount | Standard Center Tripod mount: 1/4"-20 thread | | Resolution | 640 x 480, 1280 x 720, and 1920 x 1080 all at 30 fps | | Output | USB 2.0 | | Receiver | Dual IR receiver on front | | Power | 9 to 12 VDC input at 1 A | | Dimensions (W x H x D) | 4.62 x 5 x 4.37" (117.5 x 127 x 111.2 mm) | | Weight | 1.2 lb (0.54 kg) | | | | Package Weight | 3.0 lb | | Box Dimensions (LxWxH) | 11.1 x 9.0 x 6.4" |
