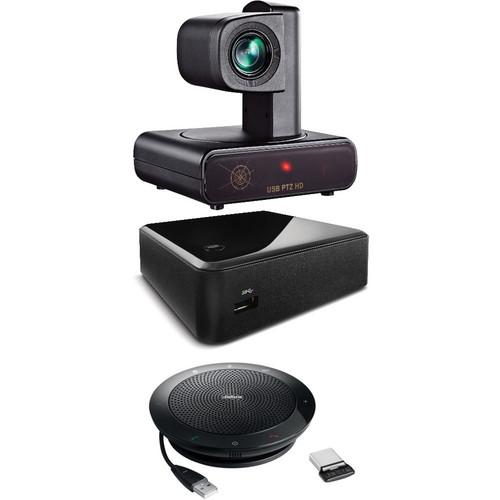

User Manual for VDO360 VDOPC-01 Camera for Video Conferencing with Computer & Speakerphone Click to enlarge the picture
Contents of the user manual for the VDO360 VDOPC-01 Camera for Video Conferencing
- Product category: PTZ Cameras VDO360
- Brand: VDO360
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for VDO360 PTZ Cameras
|
User manual for the VDO360 VDOPC-01 Camera for Video Conferencing contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any VDO360 product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official VDO360 user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a VDO360 product will considerably shorten its lifespan!
|
Product description This bundle from VDO360 includes the VDOPC-01 High Definition Camera for Video Conferencing, the Intel NUC UCFF form factor computer, and the Jabra SPEAK 410 USB speakerphone with Unified Communication support.
The camera interfaces with a computer using USB 2.0, and is designed to be compatible with most video conferencing software. It features a 1920 x 1080 resolution CMOS image sensor. The video unit encodes video in MJPEG compression at a number of resolutions, including 1080p, standard definition, VGA, and CIF. An IR remote is included that allows you to operate the PTZ functions of the camera from up to 23' away, and there is an RS-232 port for third-party, VISCA protocol wired remotes.
The camera does not require any dedicated drivers and therefore can be used on most platforms, including Windows, OSX, Linux, iOS, and Android, as long as a USB video stream is accepted and compatible software exists. The camera includes a monitor mount, a small shelf that attaches to a TV or other flat panel display. In addition, it features a 1/4"-20 threaded hole so that it can be mounted on a standard tripod, or a wide range of other video and photo camera support hardware. - Panning: 300° / Tilting: 90°
- 43 (maximum) to 7° (minimum) angle of view
- USB 2.0 interface universally compatible with most video conferencing software
- Included IR remote controls PTZ functions and works up to 23' line-of-sight
- RS-232 port for use with third-party wired PTZ remotes
- Intel NUC Mini Computer
- The NUC is a compact computer from Intel that is housed in a 4 x 4 x 1.5" case, and includes a VESA mount for integration within your A/V installation. Features include:
- Intel i5 processor, 120GB solid state drive, and 8GB RAM
- HDMI and two mini DisplayPorts to drive up to three independent displays - audio is also supported
- USB 2.0, USB 3.0, Gigabit Ethernet, Bluetooth, and Wi-Fi I/O connectivity
- Software compatibility includes: Skype, Cisco Jabber, Vidyo, Lifesize Communicator, Microsoft Lync, Seevogh, Polycom m100, Avaya/Radvision Scopia, and more
- Intel VPro support for remote IT management
- Jabra SPEAK 410 Speakerphone
- The Jabra Speak 410 is a speakerphone designed for one-to-one and small group conference calls. It interfaces with USB, and is compatible with Unified Communications solutions and VoIP clients. Features include:
- On-device call controls that include: Mute, ringer and speaker volume, End Call, Answer Call
- Supports true wideband sound to help provide high conversational clarity
- Compact design intended to make it easy to transport
- USB cable and case included
UPC: 857830005039 In the Box VDO360 VDOPC-01 Camera for Video Conferencing with Computer & Speakerphone IR Remote Monitor Mount 10' USB Cable 10' RS-232 Cable Power Supply - for PTZ Camera VESA Mounting Bracket - for Computer Power Supply - for Computer Table of Contents
|
Upload User Manual
Have you got an user manual for the VDO360 VDOPC-01 Camera for Video Conferencing with Computer & Speakerphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVDO360 Compass Specs | | | Type | 1/2.7" CMOS | | Native Resolution | 1920 x 1080 | | | | Focal Length | 4 to 48 mm | | Zoom | 12x | | Angle of View | 43 (maximum) to 7° (minimum) | | | | Video Formats | MJPG: 1080p, 720p, 640 x 480, VGA, CIF, QCIF | | | | Pan & Tilt | Panning: 300° / Tilting: 90° | | Connectors | 1x USB 2.0 type B
1x RS-232 on 8-pin DIN female
1x DC barrel connector - for 12 VDC power in | | Tripod Mount Thread Size | 1/4"-20 | | Power Requirements | Operating Voltage: 12 VDC external
Operating Current: 800 mA mechanical PTZ
Video Unit: 110 mA | | Dimensions (W x L x H) | 3.5 x 4.3 x 4.0" (9.0 x 11.0 x 10.5 cm) | | | | CPU | Intel Core i5-3427U
2 cores / 4 threads
1.8 GHz / 2.8 GHz with Turbo Boost | | RAM | 8 GB | | Hard Disk Capacity | 120 GB - solid state | | I/O | 2x Mini DisplayPort
1x HDMI
2x USB 2.0 - rear panel
2x USB 2.0 - internal headers 1x USB 3.0 - front panel
1x Gigabit Ethernet
Wi-Fi - 802.11 a/g/n
Bluetooth
Audio via HDMI and mini DisplayPort connectors | | Expansion Slots | 1x Full size mini PCI-E with mSATA support
1x Half size mini PCI-E | | Software Compatibility | Includes: Skype, Cisco Jabber, Vidyo, Lifesize Communicator, Microsoft Lync, Seevogh, Polycom m100, and Avaya/Radvision Scopia | | Power Supply | 19V, 65W power brick | | Dimensions | 4 x 4 x 1.5" / 101 x 101 x 38 cm | | | | Connectors | 1x USB - cable included
1x Headset port | | Protocol | Unified Communications Solutions and VoIP Clients | | | | Package Weight | 10.4 lb | | Box Dimensions (LxWxH) | 18.347 x 12.598 x 8.661" |
