User Manual for VDO360 VPTZEZ-03 EZVDO Package Click to enlarge the picture
Contents of the user manual for the VDO360 VPTZEZ-03 EZVDO Package
- Product category: PTZ Cameras VDO360
- Brand: VDO360
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for VDO360 PTZ Cameras
|
User manual for the VDO360 VPTZEZ-03 EZVDO Package contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any VDO360 product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official VDO360 user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a VDO360 product will considerably shorten its lifespan!
|

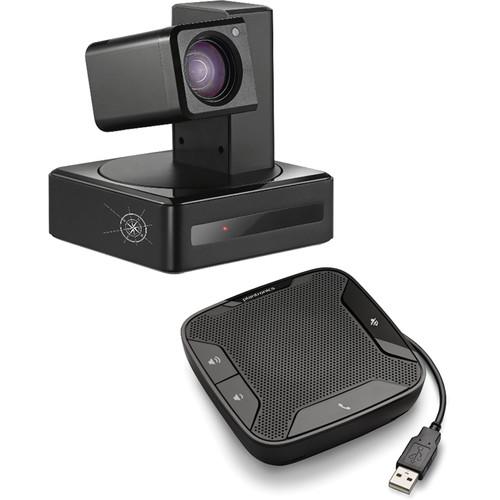

Product description The VPTZEZ-03 EZVDO Package from VDO360 includes a VPTZH-03 Beacon camera and Plantronics' Calisto 610 USB speakerphone.The VPTZH-03 Beacon camera incorporates a 1/2.7" image sensor that records clear videos in resolution of up to 1920 x 1080 (30 fps). This USB 2.0 compatible camera features pan and tilt functionality, which permits slow movement for fine tuning of camera position or rapid motion when you move a wide range.The Plantronics Calisto P610 USB speakerphone connects to your Windows or Mac computer via USB and packs in a laptop bag or backpack. It sharpens the audio with wideband technologies and delivers natural-sounding voice with Digital Signal Processing. Furthermore, it offers multiple buttons that let you answer, end, or mute a call as well as adjusting the volume. The Unified Communications speakerphone is designed to work with UC applications as well as softphones. - VDO360 USB 2.0 HD PTZ Camera with10x Optical Zoom and Presets
- VDO360 Beacon Camera: Hands-On Review
The VDO360 USB 2.0 HD PTZ Camera with 10x Optical Zoom and Presets incorporates a 1/2.7" image sensor that records clear videos in resolution of up to 1920 x 1080 (30 fps). This USB 2.0 compatible camera features fast and smooth movement over seven presets on handheld remote or using desktop control. The pan and tilt functionality permits slow movement for fine tuning of camera position or rapid motion when you move a wide range. - Camera Preset Positioning
- Fast and smooth movement
Seven presets on handheld remote or using desktop control - Dual IR Receivers
- One in the base and one in the lens assembly for a wide range of control positions
IR controls include a "Video Mute" - Accu Pan and Tilt
- Slow movement when you need it for fine tuning of camera position
Rapid motion when you move a wide range - Belt Drive for Smooth Pan and Tilt
- Quiet motion with no shake
- Attractive Form Factor
- Compact in size for discrete placement in the most discerning environments
Metal frame for a modern look UPC: 857830005114 - Calisto P610 USB Portable Speakerphone The Plantronics Calisto P610 USB Portable Speakerphone provides crisp audio and an omni-directional microphone to instantly conduct a conference. This speakerphone connects to your Windows or Mac computer via USB and packs in a laptop bag or backpack. It sharpens the audio with wideband technologies and delivers natural-sounding voice with Digital Signal Processing. Furthermore, it offers multiple buttons that let you answer, end, or mute a call as well as adjusting the volume. The Unified Communications speakerphone is designed to work with UC applications as well as softphones. Plantronics has also equipped the speakerphone with a Kensington style lock slot that helps prevent theft. Included with the speakerphone is a carrying case.
- Ease of Use and Portability
-
- Simplified call management with an easy interface
- Ideal for team calls in small and medium-sized work areas
- Compact, wireless design goes anywhere with included soft carrying case
- Audio Quality
-
- Digital Signal Processing (DSP) provides natural voice sound and echo reduction
- Improves meeting productivity by reducing echo, cut-outs, and background noise
- Full duplex, conference quality audio with 360-degree room coverage
- Wideband audio for high-quality PC telephony
UPC: 017229146563 In the Box Bundle Items VDO360 USB 2.0 HD PTZ Camera with10x Optical Zoom and Presets zsuzaueexfrabw Calisto P610 USB Portable Speakerphone zsuzaueexfrabw Brochure PDF 124.7kbzsuzaueexfrabw Table of Contents
|
Upload User Manual
Have you got an user manual for the VDO360 VPTZEZ-03 EZVDO Package in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - VDO360 USB 2.0 HD PTZ Camera with10x Optical Zoom and Presets
| Sensor Size | 1/2.7" | | Focal Length | 4.9 to 49 mm | | Optical Zoom | 10x | | Depth of Field | 60 cm to ∞ | | Optical Distortion | 1.2% to +0.8% | | Dynamic Range | 65 dB | | Signal to Noise Ratio | 50 dB and above | | Field of view (FOV) | Diagonal: 66.6-7.2°, Horizontal: 53.2-5.3°, Vertical: 39.8-4.2° | | Tripod Mount | Standard Center Tripod mount: 1/4"-20 thread | | Resolution | 640 x 480, 1280 x 720, and 1920 x 1080 all at 30 fps | | Output | USB 2.0 | | Receiver | Dual IR receiver on front | | Power | 9 to 12 VDC input at 1 A | | Dimensions (W x H x D) | 4.62 x 5 x 4.37" (117.5 x 127 x 111.2 mm) | | Weight | 1.2 lb (0.54 kg) | | | | Box Dimensions (LxWxH) | 11.1 x 9.0 x 6.4" | - Calisto P610 USB Portable Speakerphone
| Connects To | PC or Mac via USB | | Compatible With | Windows or Mac OS | | Audio Performance | PC Wideband up to 6,800 Hz
Full duplex audio
Echo cancellation
Noise-canceling
Omni-directional microphone | | Security | Kensington style lock slot | | Dimensions (W x L x H) | 4.33 x 4.33 x 1.26" / 11.00 x 11.00 x 3.20 cm | | | | Box Dimensions (LxWxH) | 7.0 x 5.3 x 2.2" |
