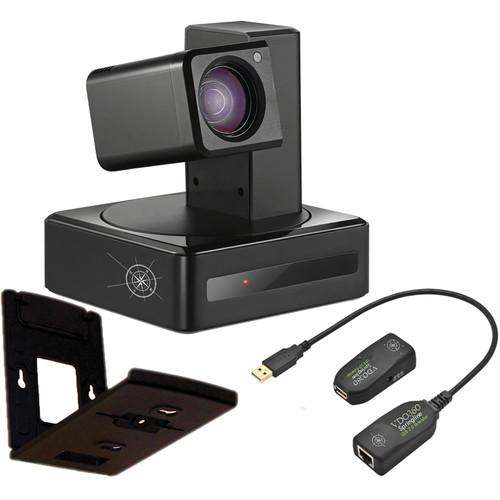

User Manual for VDO360 VPTZH-02 Compass Integrator Package Click to enlarge the picture
Contents of the user manual for the VDO360 VPTZH-02 Compass Integrator Package
- Product category: PTZ Cameras VDO360
- Brand: VDO360
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for VDO360 PTZ Cameras
|
User manual for the VDO360 VPTZH-02 Compass Integrator Package contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any VDO360 product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official VDO360 user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a VDO360 product will considerably shorten its lifespan!
|
Product description The VPTZH-02 Compass Integrator Package from VDO360 includes VPTZH-02 Compass camera, VUSBEXT-U springline USB extender, and VMOUNT-01 anchor camera mount, and allows you to wall mount the camera and stream video to your computer from up to 164' away. The Compass camera features a 1/2.7" sensor with 1920 x 1080 native resolution. Video is encoded using the MJPEG format, supporting video resolutions of 1080p, 720p, and 640 x 480 at 30 fps. The camera can be controlled using the included IR remote or via the RS-232 serial port. It includes a set-top mount and features a 1/4"-20 threaded hole for tripod mounting.
The Springline USB 2.0 over cat-5e/6 extender can be used to extend the included PTZ HD camera's signals for up to 164' using a twisted pair cable. Compatible with Windows and Mac operating systems, the extender is a plug-and-play device and does not require a software driver. The VMOUNT-01 anchor camera mount is a convertible set top or wall mount that provides you with flexibility in where you mount the camera. - Compass HD PTZ USB Camera with 10x Optical Zoom The Compass HD PTZ USB Camera with 10x Optical Zoom interfaces with a computer using USB 2.0 and is designed to be compatible with most video conferencing software. It features a 1/2.7" CMOS sensor with 1920x1080 native resolution and, unlike most webcams, provides full pan, tilt, and zoom (PTZ) functionality, offering 300° of pan, 180° of tilt, and a 10x optical zoom range.
Video is encoded using the MJPEG format, with video resolutions of 1080p, 720p, and 640x480 available at 30fps. The camera, along with PTZ functions, can be controlled using the included IR remote, or via the RS-232 serial port. Up to seven position presets can be stored on the IR remote, with more presets available through RS-232 or from the On-Screen Application via USB. A USB 2.0 cable and RS-232 cable comes included. The camera does not require any dedicated drivers and therefore can be used on most platforms, including Windows, OSX, Linux, iOS, and Android. It includes a monitor mount (a small shelf that attaches to a TV or other flat panel display), and features a 1/4"-20 threaded hole for tripod mounting. -
- USB 2.0 interface
- 1920x1080 native resolutions
- MPJEG video stream at 1080p, 720p, or 640/480 at 30fps
- Fully UVC compliant including control
- Smooth PTZ mechanism
- Zoom: 10x, Pan: 300°, Tilt: 180°
- 66.6°to 7.2° angle of view (diagonal)
- IR remote, RS-232, and desktop program control
- "Accu-PT" motor control for fine adjustments
- Metal frame construction
UPC: 857830005060 - Springline USB 2.0 Extender Easily extend your USB PTZ camera signal up to 164' with VDO360's Springline USB 2.0 Extender. Consisting of a transmitter unit and a receiver unit, both very compact, the Springline USB 2.0 Extender sends a USB signal over a single Cat5e/6 Ethernet cable, which is sold separately. Connect your USB source to the transmitter unit, incorporate a Cat5e/6 cable up to 164' between the two units, and output the receiver unit to your destination source, such as your computer.
The set is powered by an included 5 VDC power supply that connects to the transmitter. Everything works plug-and-play, and both Mac and Windows computers are compatible. UPC: 867245000093 - Anchor Camera Mount The VDO360 Anchor Camera Mount provides an easy and reliable way to mount VDO360 videoconferencing cameras to a wall or the top of a monitor.
It can be attached to a wall and opens to a 90° angle, creating a shelf for the camera to sit on (wall-mount screws are not included). For monitor-top mounting, it attaches to the top and back of a monitor using included adhesive hook-and-loop fasteners. The angle is adjustable to fit properly on monitors of different thicknesses/sizes. The camera then attaches on top of the mount, and sits on top of the monitor. A 1/4"-20 screw is included for attaching the camera to the mount.
The mount can also be used to hold Intel NUC boxes. UPC: 867245000048 In the Box Bundle Items Compass HD PTZ USB Camera with 10x Optical Zoom aecettdzyfwaysuczfbvtrytfsf - 2 x AAA Batteries for IR Remote
- Power Supply with 10' (3 m) Cable
- 10' (3 m) RS-232 Control Cable
Springline USB 2.0 Extender aecettdzyfwaysuczfbvtrytfsf Anchor Camera Mount aecettdzyfwaysuczfbvtrytfsf Table of Contents
|
Upload User Manual
Have you got an user manual for the VDO360 VPTZH-02 Compass Integrator Package in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Compass HD PTZ USB Camera with 10x Optical Zoom
Sensor Type | 1/2.7" CMOS | Effective Pixels | 1920 x 1080 | Signal to Noise Ratio | 50 dB above | Dynamic Range | 65 dB | Focal Range | 4.9 to 49 mm | Zoom | 10x | Pan & Tilt | Pan: 300° Tilt: 180° | Focus Distance | 23.6" (60 cm) to infinity | Angle of View | Horizontal: 53.2° (wide) to 5.3° (tele) Vertical: 39.8° (wide) to 4.2° (tele) Diagonal: 66.6° (wide) to 7.2° (tele) | Optical Distortion | -1.2 to +0.8% | Video Format | MJPEG: 1080p, 720p, and 640x480 at 30 fps | Interface | 1 x RS-232 output 1 x USB 2.0, type B output 1 x IR receiver (front) 1 x 9 VDC, 1.0 A power input | Tripod Mounting Thread | 1/4"-20 | Power Requirements | 9 to 12 VDC, 1 A | Dimensions (WxHxD) | 4.62 x 5.00 x 4.38" (11.75 x 12.70 x 11.12 cm) | Weight | 1.21 lb (0.548 kg) | | Box Dimensions (LxWxH) | 11.2 x 9.2 x 6.6" | - Springline USB 2.0 Extender
Plugs | Transmitter: 1 x USB Type A, 1 x RJ-45 Receiver: 1 x USB Type A, 1 x RJ-45 | Power | 5 VDC, external | Transmission Range | 164' (50 m) Over Cat5e/6 UTP or STP Cable | Data Transfer Rate | 480 Mb/s High speed 12 Mb/s Full speed 1.5 Mb/s Low speed | Operating Temperature | 32 to 150°F (0 to 65°C) | Dimensions | 2.6 x 1.4 x 0.8" (6.6 x 3.6 x 2.0 cm) | | Box Dimensions (LxWxH) | 9.3 x 7.9 x 2.5" | - Anchor Camera Mount
Material of Construction | Solid metal | Dimensions | 4.9 x 7.4 x 7.1" (12.4 x 18.7 x 18.1 cm) | Compatible | VDO360 videoconferencing cameras, Intel NUC | | Box Dimensions (LxWxH) | 7.5 x 5.1 x 0.8" |
