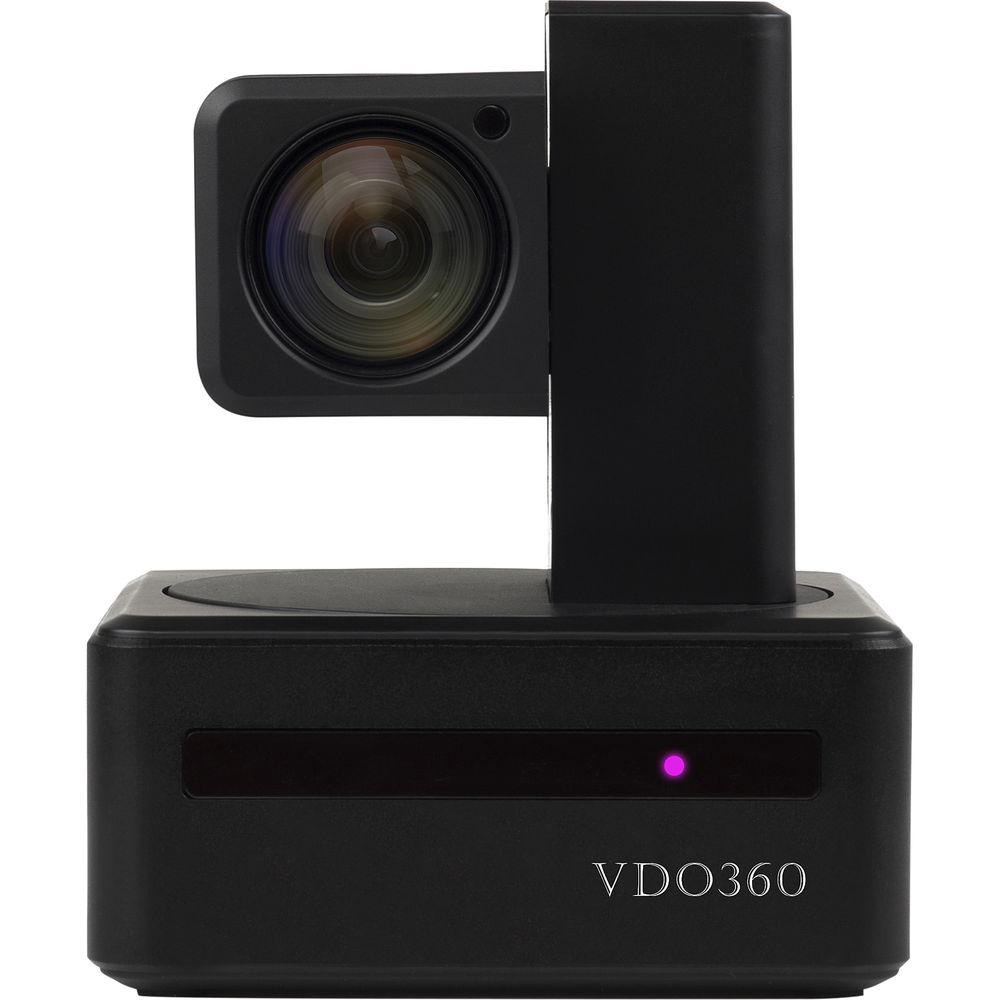

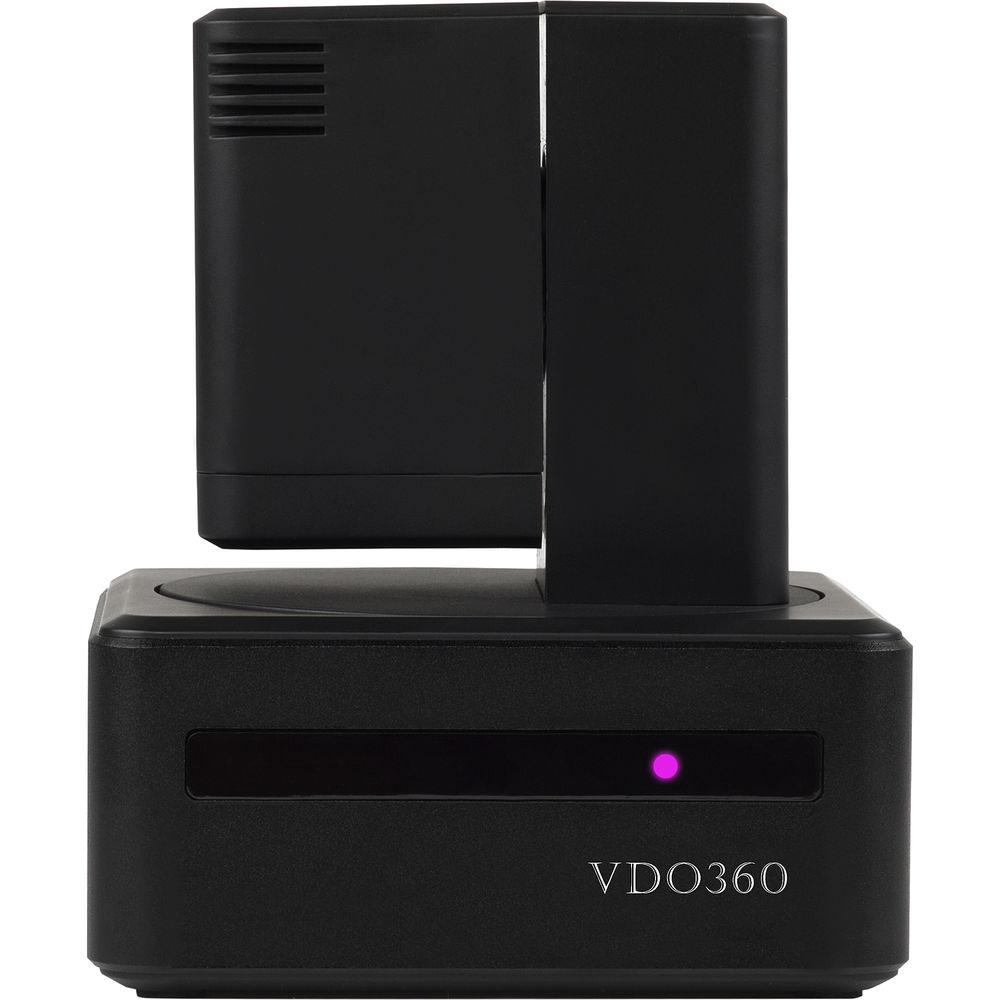

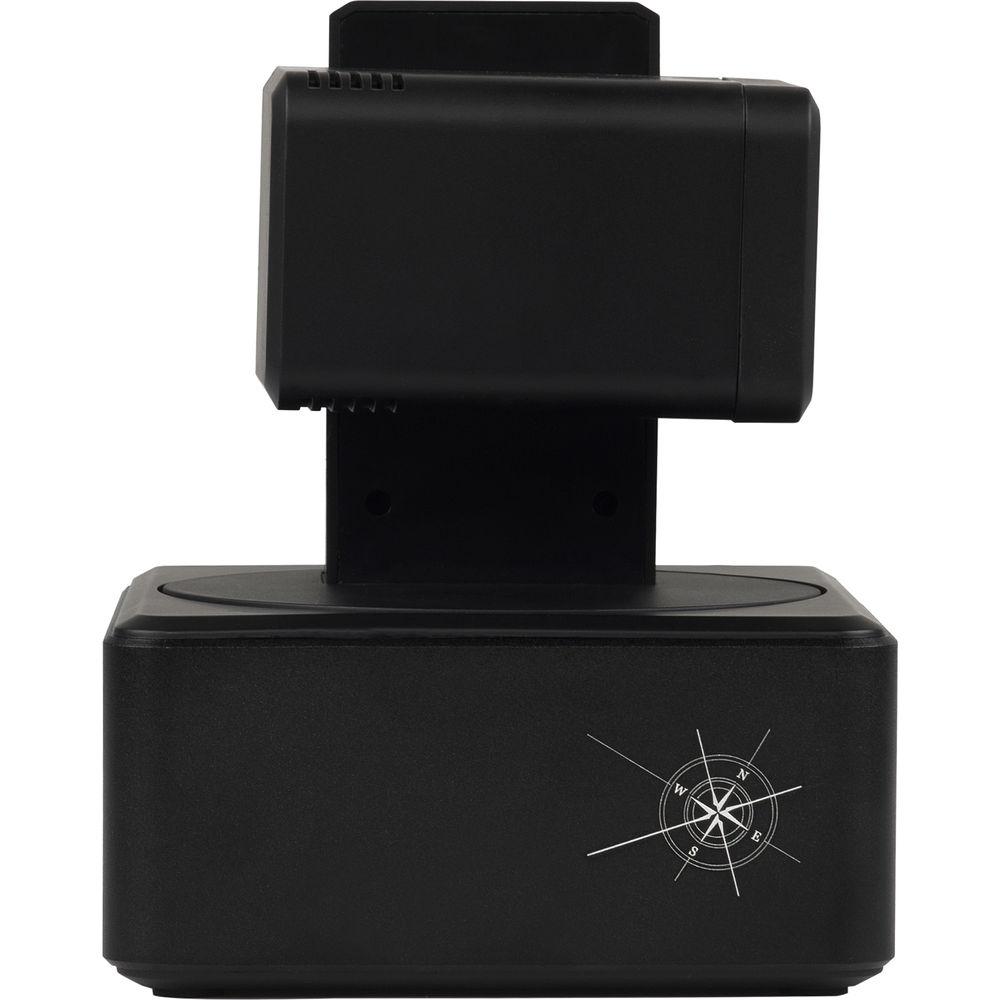

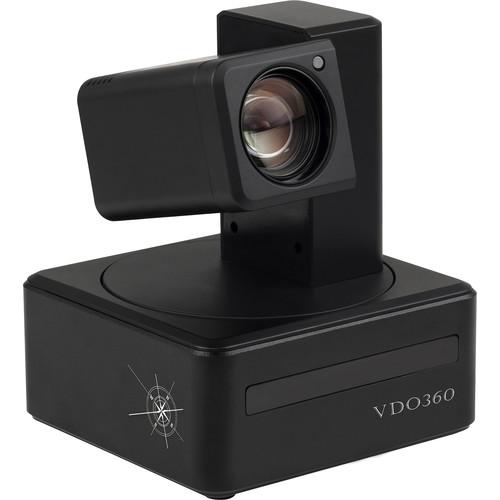

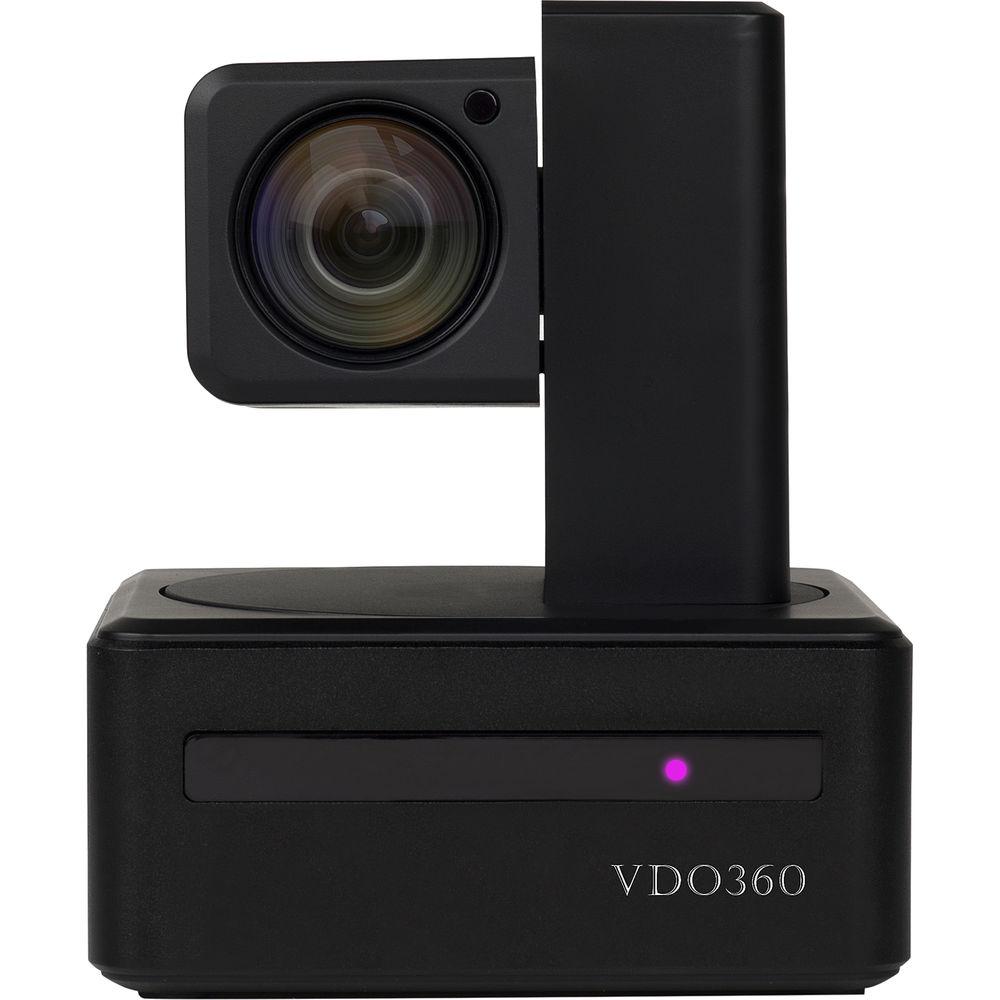

User Manual for VDO360 VPTZH-04 CompassX HD PTZ USB Camera with 10x Optical Zoom Click to enlarge the picture
Contents of the user manual for the VDO360 VPTZH-04 CompassX HD PTZ USB
- Product category: PTZ Cameras VDO360
- Brand: VDO360
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for VDO360 PTZ Cameras
 |
User manual for the VDO360 VPTZH-04 CompassX HD PTZ USB contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any VDO360 product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official VDO360 user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a VDO360 product will considerably shorten its lifespan!
|
Product description The VPTZH-04 CompassX HD PTZ USB Camera with 10x Optical Zoom interfaces with a computer using USB 2.0 and is designed to be compatible with most video conferencing software. It features a 1/2.8" CMOS sensor with 1920 x 1080 native resolution, offering 300° of pan, 180° of tilt, and a 10x optical zoom range. Video is encoded using the MJPEG format, with video resolutions of 1080p, 720p, and 640 x 480 available at 30fps. The camera, along with PTZ functions, can be controlled using the included IR remote, or via the RS-232 serial port. Up to seven position presets can be stored on the IR remote, with more presets available through RS-232 or from the on-screen application via USB. Both a USB 2.0 and RS-232 cable comes included. - Updated
- The CompassX features many updates and improvements over the Compass and Beacon system:
- Traditional-style autofocus replaces the previous autofocus system that used an algorithm
- The CompassX features a wider field of view with improved low-light performance and enhanced color reproduction making it suitable for use in conference rooms with limited illumination
- Extreme Performance Camera Block
-
- Wide angle lens with low light capability
- Wide dynamic range for true-to-life color rendition
- Camera Preset Positioning
-
- 7 presets via IR remote or PC
- 255-preset positioning via RS-232
- UVC Over USB
-
- Enables camera control from PC
- Windows desktop control via free download
- Dual IR Receivers
-
- 1 receiver on the base
- 1 receiver in lens assembly
- Belt Driven Pan and Tilt
- Utilizing a belt drive system for accurate positioning at slow and fast speeds the camera is both quiet and responsive

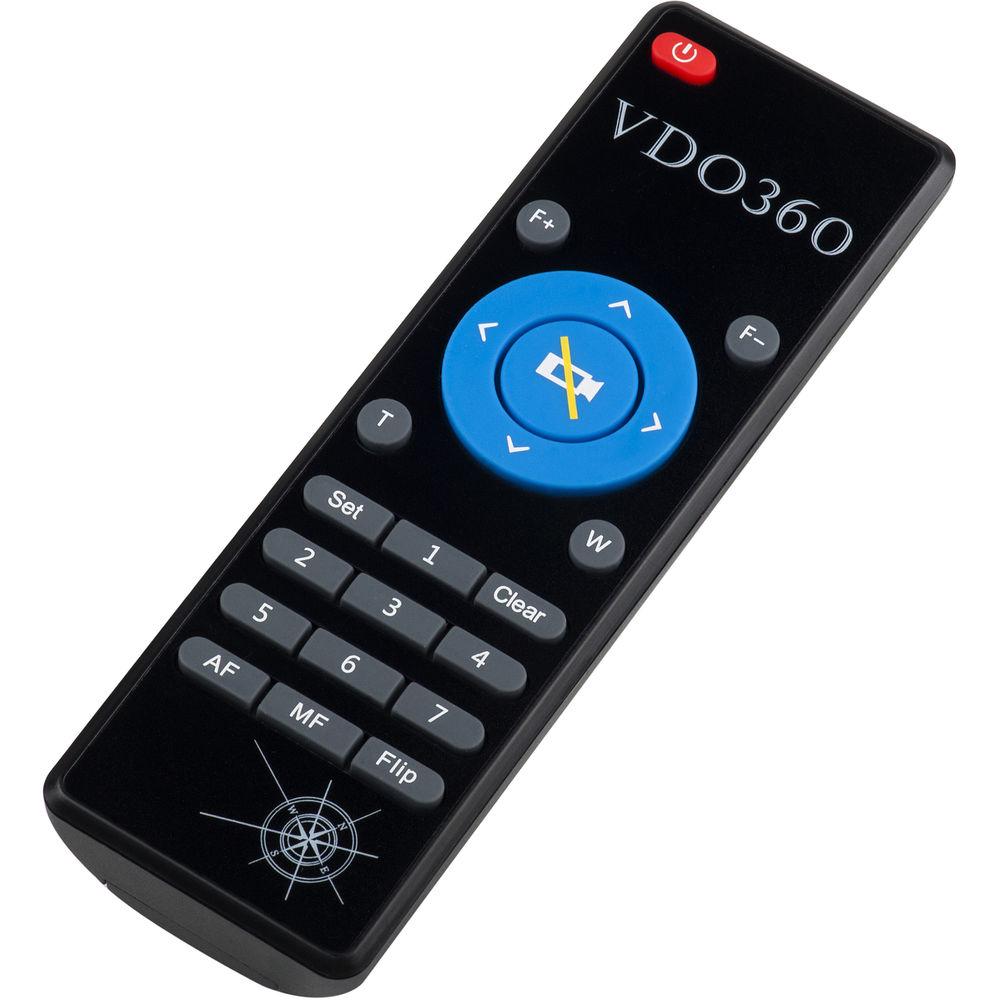

UPC: 857830005329 In the Box VDO360 VPTZH-04 CompassX HD PTZ USB Camera with 10x Optical Zoom IR Remote Controller and Batteries Combination Mounting Solution for Monitor or Wall USB Cable RS-232 Control Cable AC Adapter Power Supply Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the VDO360 VPTZH-04 CompassX HD PTZ USB Camera with 10x Optical Zoom in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVDO360 CompassX Specs | Sensor Type | 1/2.8" CMOS | | Effective Pixels | 1920 x 1080 | | Signal to Noise Ratio | 50 dB above | | Dynamic Range | 100 dB | | Focal Range | 4.7 to 47 mm | | Zoom | 10x optical | | Pan & Tilt | Pan: 300°

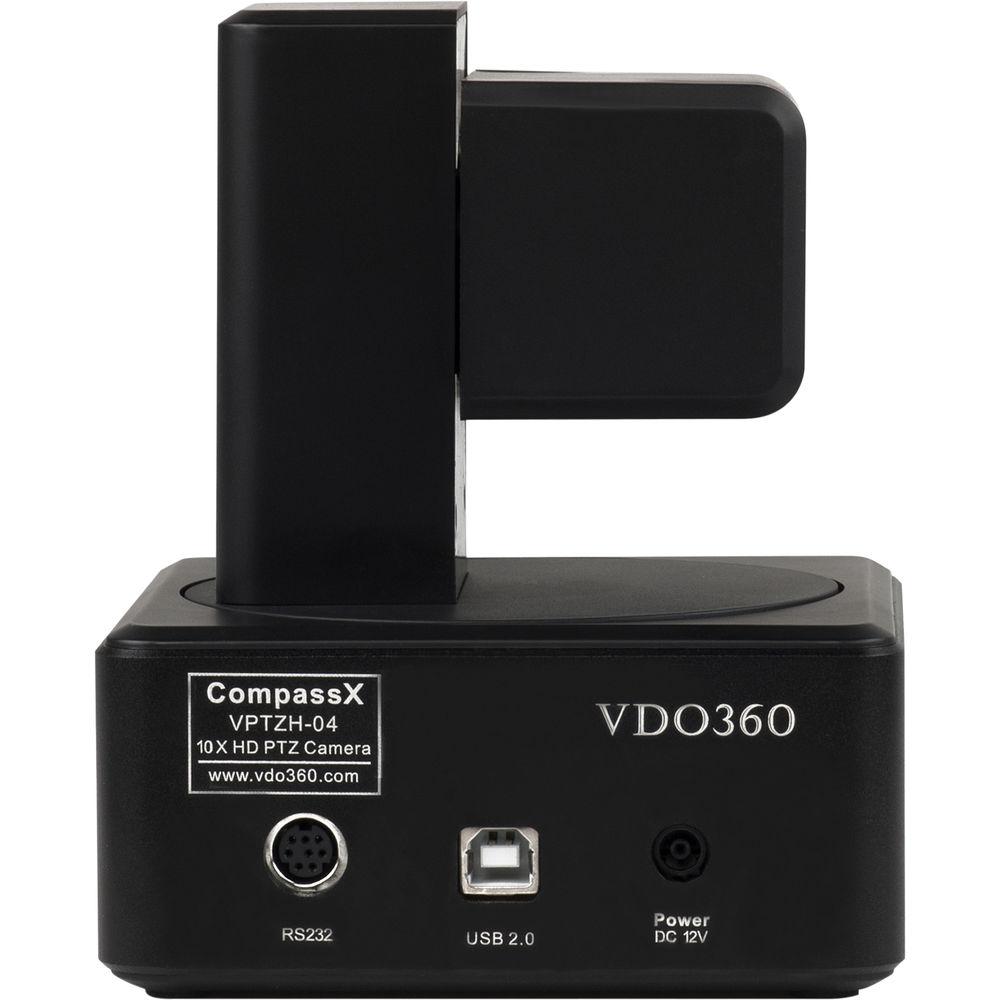

Tilt: 180° | | Focus Distance | 22.83" / 58.00 cm to infinity | | Field of View | Horizontal: 62.5° to 6.43° | | Optical Distortion | -1.12 to +0.65% | | Video Format | MJPEG: 1080p, 720p, and 640x480 at 30 fps | | Interface | 1 x RS-232
1 x USB 2.0 type B
1 x IR receiver (front)
1 x DC power input | | Tripod Mounting Thread | 1/4"-20 | | Power Requirements | 12 VDC at 2 A | | Dimensions (WxHxD) | 4.63 x 4.44 x 5.64" / 11.75 x 11.27 x 14.32 cm | | Weight | 1.7 lb / 0.77 kg | | | | Package Weight | 4.05 lb | | Box Dimensions (LxWxH) | 11.1 x 9.1 x 6.4" |
