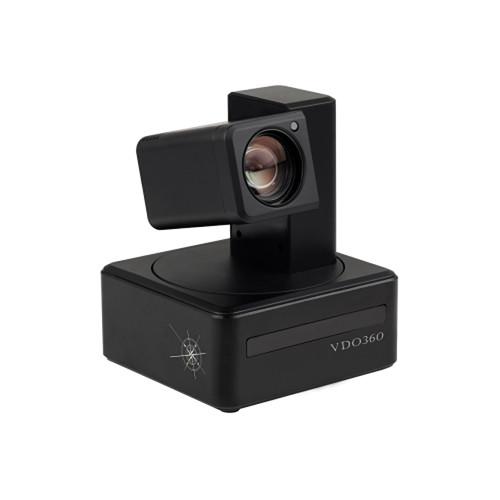

Product description The VPTZHX-04 CompassX Integrator Package from VDO360 includes VPTZHX-04 CompassX camera, VUSBEXT-U springline USB extender, and VMOUNT-01 anchor camera mount, and allows you to wall mount the camera and stream video to your computer from up to 164' away. The CompassX camera features a 1/2.8" sensor with 1920 x 1080 native resolution. Video is encoded using the MJPEG format, supporting video resolutions of 1080p, 720p, and 640 x 480 at 30 fps. The camera can be controlled using the included IR remote or via the RS-232 serial port. It includes a set-top mount and features a 1/4"-20 threaded hole for tripod mounting.
The Springline USB 2.0 over cat-5e/6 extender can be used to extend the included PTZ HD camera's signals for up to 164' using a twisted pair cable. Compatible with Windows and Mac operating systems, the extender is a plug-and-play device and does not require a software driver. The VMOUNT-01 anchor camera mount is a convertible set top or wall mount that provides you with flexibility in where you mount the camera. - VPTZH-04 CompassX HD PTZ USB Camera with 10x Optical Zoom The VPTZH-04 CompassX HD PTZ USB Camera with 10x Optical Zoom interfaces with a computer using USB 2.0 and is designed to be compatible with most video conferencing software. It features a 1/2.8" CMOS sensor with 1920 x 1080 native resolution, offering 300° of pan, 180° of tilt, and a 10x optical zoom range. Video is encoded using the MJPEG format, with video resolutions of 1080p, 720p, and 640 x 480 available at 30fps. The camera, along with PTZ functions, can be controlled using the included IR remote, or via the RS-232 serial port. Up to seven position presets can be stored on the IR remote, with more presets available through RS-232 or from the on-screen application via USB. Both a USB 2.0 and RS-232 cable comes included.
- Updated
- The CompassX features many updates and improvements over the Compass and Beacon system:
- Traditional-style autofocus replaces the previous autofocus system that used an algorithm
- The CompassX features a wider field of view with improved low-light performance and enhanced color reproduction making it suitable for use in conference rooms with limited illumination
- Extreme Performance Camera Block
-
- Wide angle lens with low light capability
- Wide dynamic range for true-to-life color rendition
- Camera Preset Positioning
-
- 7 presets via IR remote or PC
- 255-preset positioning via RS-232
- UVC Over USB
-
- Enables camera control from PC
- Windows desktop control via free download
- Dual IR Receivers
-
- 1 receiver on the base
- 1 receiver in lens assembly
- Belt Driven Pan and Tilt
- Utilizing a belt drive system for accurate positioning at slow and fast speeds the camera is both quiet and responsive

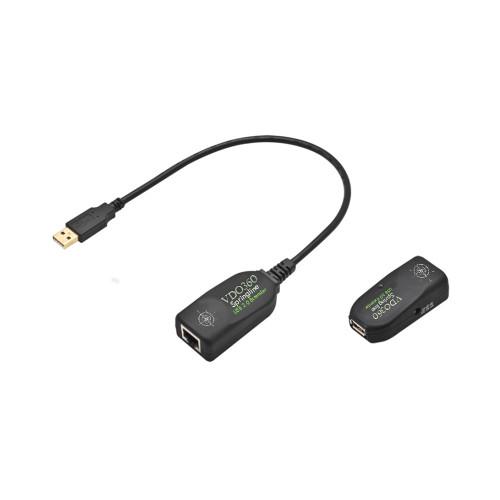

UPC: 857830005329 Springline USB 2.0 Extender Easily extend your USB PTZ camera signal up to 164' with VDO360's Springline USB 2.0 Extender. Consisting of a transmitter unit and a receiver unit, both very compact, the Springline USB 2.0 Extender sends a USB signal over a single Cat5e/6 Ethernet cable, which is sold separately. Connect your USB source to the transmitter unit, incorporate a Cat5e/6 cable up to 164' between the two units, and output the receiver unit to your destination source, such as your computer.
The set is powered by an included 5 VDC power supply that connects to the transmitter. Everything works plug-and-play, and both Mac and Windows computers are compatible. UPC: 867245000093 Anchor Camera Mount The VDO360 Anchor Camera Mount provides an easy and reliable way to mount VDO360 videoconferencing cameras to a wall or the top of a monitor.
It can be attached to a wall and opens to a 90° angle, creating a shelf for the camera to sit on (wall-mount screws are not included). For monitor-top mounting, it attaches to the top and back of a monitor using included adhesive hook-and-loop fasteners. The angle is adjustable to fit properly on monitors of different thicknesses/sizes. The camera then attaches on top of the mount, and sits on top of the monitor. A 1/4"-20 screw is included for attaching the camera to the mount.
The mount can also be used to hold Intel NUC boxes. UPC: 867245000048 In the Box Bundle Items VPTZH-04 CompassX HD PTZ USB Camera with 10x Optical Zoom veebqaysyasxauasxbwq - IR Remote Controller and Batteries
- Combination Mounting Solution for Monitor or Wall
Springline USB 2.0 Extender veebqaysyasxauasxbwq Anchor Camera Mount Table of Contents
|
Upload User Manual
Have you got an user manual for the VDO360 VPTZHX-04 CompassX Integrator Package in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - VPTZH-04 CompassX HD PTZ USB Camera with 10x Optical Zoom
| Sensor Type | 1/2.8" CMOS | | Effective Pixels | 1920 x 1080 | | Signal to Noise Ratio | 50 dB above | | Dynamic Range | 100 dB | | Focal Range | 4.7 to 47 mm | | Zoom | 10x optical | | Pan & Tilt | Pan: 300°
Tilt: 180° | | Focus Distance | 22.83" / 58.00 cm to infinity | | Field of View | Horizontal: 62.5° to 6.43° | | Optical Distortion | -1.12 to +0.65% | | Video Format | MJPEG: 1080p, 720p, and 640x480 at 30 fps | | Interface | 1 x RS-232
1 x USB 2.0 type B
1 x IR receiver (front)
1 x DC power input | | Tripod Mounting Thread | 1/4"-20 | | Power Requirements | 12 VDC at 2 A | | Dimensions (WxHxD) | 4.63 x 4.44 x 5.64" / 11.75 x 11.27 x 14.32 cm | | Weight | 1.7 lb / 0.77 kg | | | | Box Dimensions (LxWxH) | 11.1 x 9.1 x 6.4" | - Springline USB 2.0 Extender
| Plugs | Transmitter: 1 x USB Type A, 1 x RJ-45
Receiver: 1 x USB Type A, 1 x RJ-45 | | Power | 5 VDC, external | | Transmission Range | 164' (50 m) Over Cat5e/6 UTP or STP Cable | | Data Transfer Rate | 480 Mb/s High speed
12 Mb/s Full speed
1.5 Mb/s Low speed | | Operating Temperature | 32 to 150°F (0 to 65°C) | | Dimensions | 2.6 x 1.4 x 0.8" (6.6 x 3.6 x 2.0 cm) | | | | Box Dimensions (LxWxH) | 9.3 x 7.9 x 2.5" | - Anchor Camera Mount
| Material of Construction | Solid metal | | Dimensions | 4.9 x 7.4 x 7.1" (12.4 x 18.7 x 18.1 cm) | | Compatible | VDO360 videoconferencing cameras, Intel NUC | | | | Box Dimensions (LxWxH) | 7.5 x 5.1 x 0.8" |
