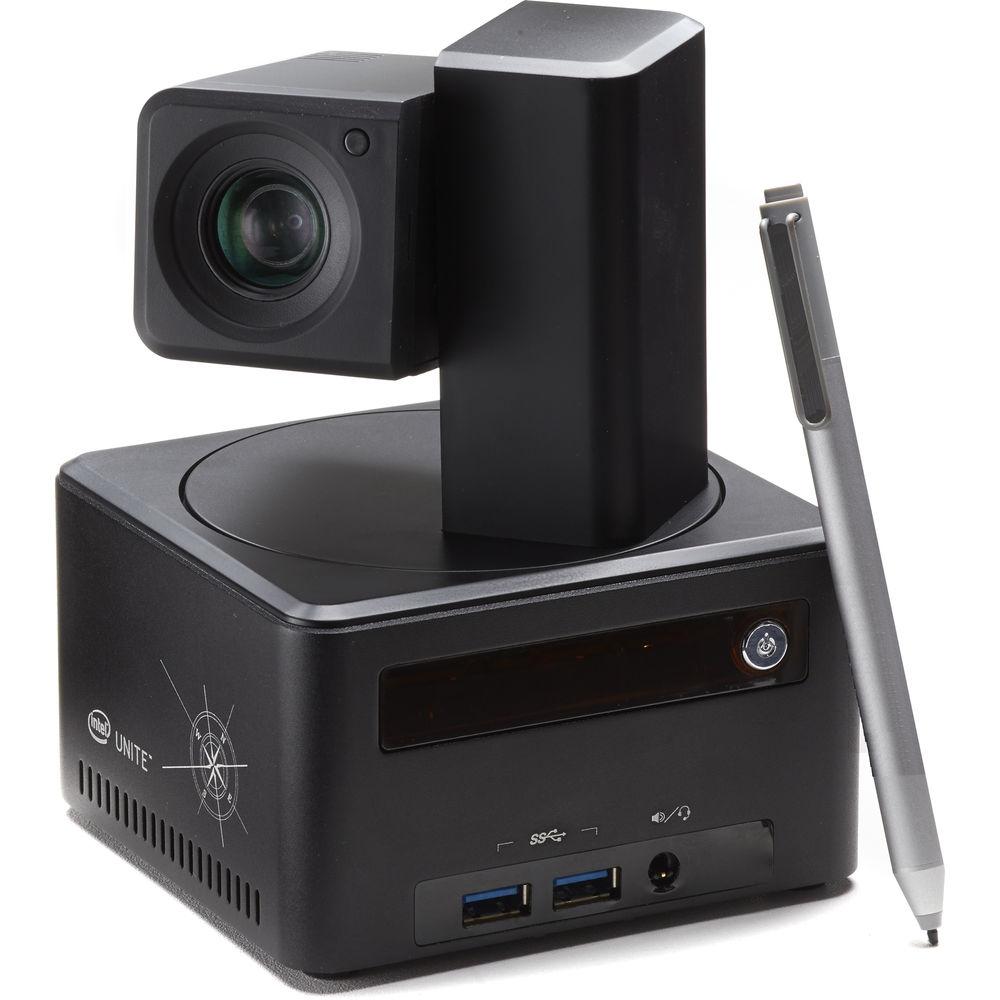

Product description The VPTZPC-02 Compass Camera Assembly with Built-In NUC Computer features a built-in NUC-style computer running Windows 10 Pro and is a self-contained PTZ camera and web conferencing system compatible with most video conferencing software. It features a 1/2.7" CMOS sensor with 1920 x 1080 native resolution and, unlike most webcams, provides full pan, tilt, and zoom (PTZ) functionality offering 300° of pan, 180° of tilt, and a 10x optical zoom range.
Video is encoded using the MJPEG format, with video resolutions of 1080p, 720p, and 640 x 480 available at 30fps. The camera, along with PTZ functions, can be controlled using the included IR remote, or via the RS-232 serial port. Up to seven position presets can be stored on the IR remote, with more presets available through RS-232 or from the on-screen application via USB. A USB 2.0 cable and RS-232 cable comes included. It includes a monitor mount (a small shelf that attaches to a TV or other flat panel display), and features a 1/4"-20 threaded hole for tripod mounting. The VPTZPC-02 incorporates four USB 3.0 and two Mini DisplayPort connectors. -
- USB 3.0 interface
- Supports Mini DisplayPort
- 1920 x 1080 native resolutions
- MPJEG video stream at 1080p, 720p, or 640 x 480 at 30fps
- Fully UVC compliant including control
- Smooth PTZ mechanism
- Zoom: 10x, Pan: 300°, Tilt: 180°
- 66.6° to 7.2° angle of view (diagonal)
- IR remote, RS-232, and desktop program control
- "Accu-PT" motor control for fine adjustments
- Metal frame construction
In the Box VDO360 VPTZPC-02 Compass Camera Assembly with Built-In NUC Computer IR Remote Controller 2 x AAA Batteries for IR Remote Power Supply with 10' (3 m) Cable 10' (3 m) USB 2.0 Cable 10' (3 m) RS-232 Control Cable Plastic Monitor Mount Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the VDO360 VPTZPC-02 Compass Camera Assembly with Built-In NUC Computer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

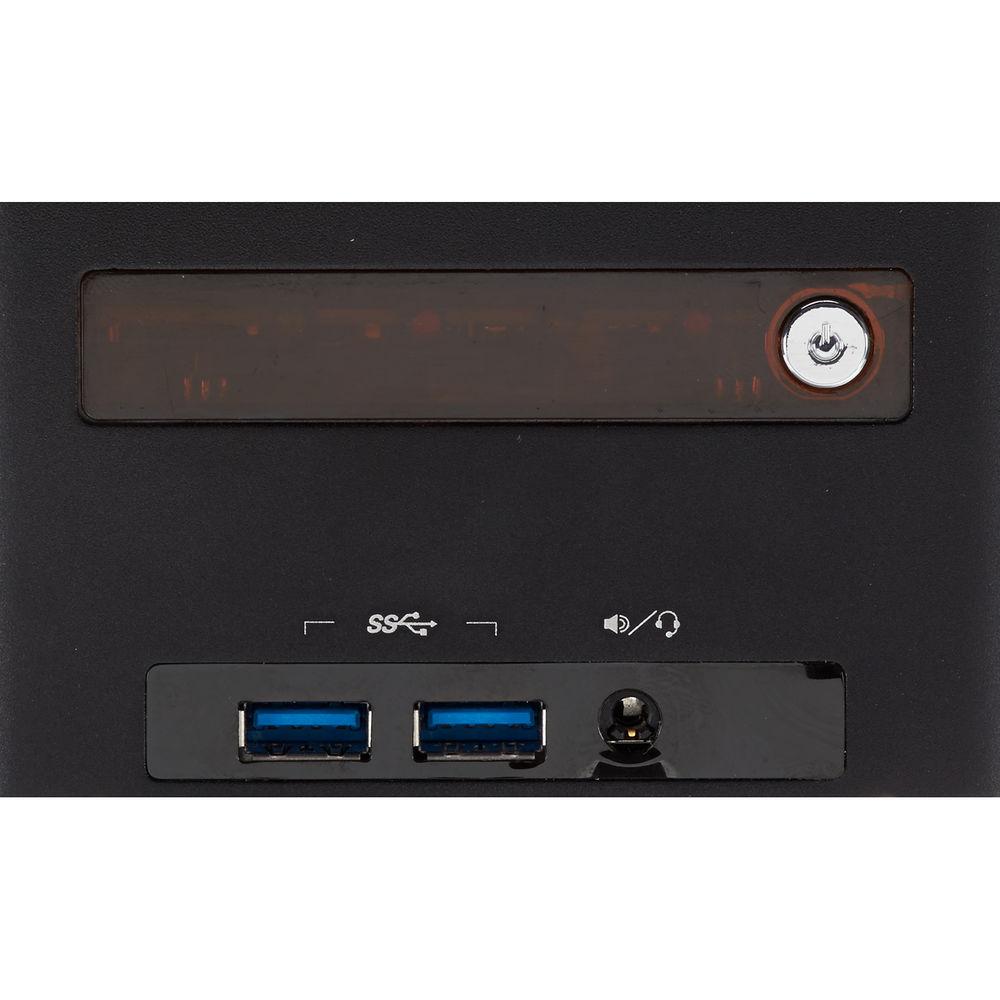

Technical parametersVDO360 Compass Specs | | | Sensor Type | 1/2.7" CMOS | | Effective Pixels | 1920 x 1080 | | Signal to Noise Ratio | 50 dB above | | Dynamic Range | 65 dB | | Focal Range | 4.9 to 49 mm | | Zoom | 10x | | Pan & Tilt | Pan: 300°
Tilt: 180° | | Focus Distance | 23.6" (60 cm) to infinity | | Angle of View | Horizontal: 53.2° (wide) to 5.3° (tele)
Vertical: 39.8° (wide) to 4.2° (tele)
Diagonal: 66.6° (wide) to 7.2° (tele) | | Optical Distortion | -1.2 to +0.8% | | Video Format | MJPEG: 1080p, 720p, and 640 x 480 at 30 fps | | Interface | 1 x RS-232 output
4 x USB 3.0 ports
2 x Mini DisplayPort
1 x RJ45
1 x 3.5 mm audio input
1 x 3.5 mm audio output 1 x IR receiver (front)
1 x 9 VDC, 1.0 A power input | | Tripod Mounting Thread | 1/4"-20 | | Power Requirements | 9 to 12 VDC, 1 A | | Dimensions (WxHxD) | 4.62 x 5.00 x 4.38" (11.75 x 12.70 x 11.12 cm) | | Weight | 1.21 lb (0.548 kg) | | | | OS | Full install Windows 10 | | Processor & Memory | Processor: Intel Core i5-5300 vPRO
Graphics: Intel HD Graphics 5500
RAM: 8 GB
SSD: 2 x 80 GB |
