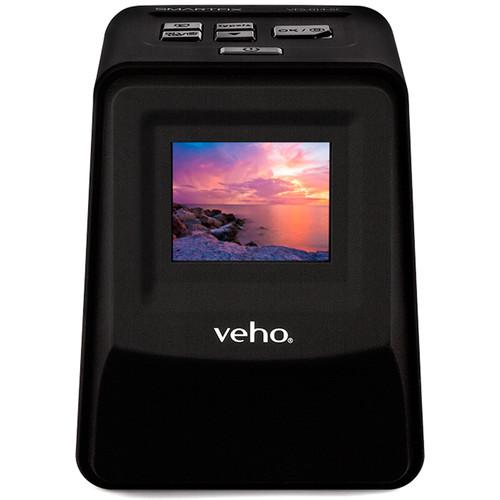

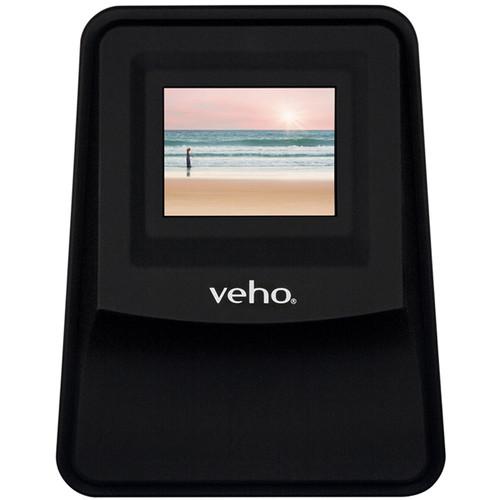

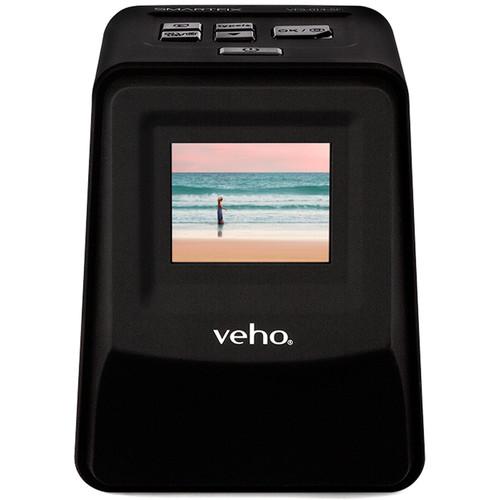

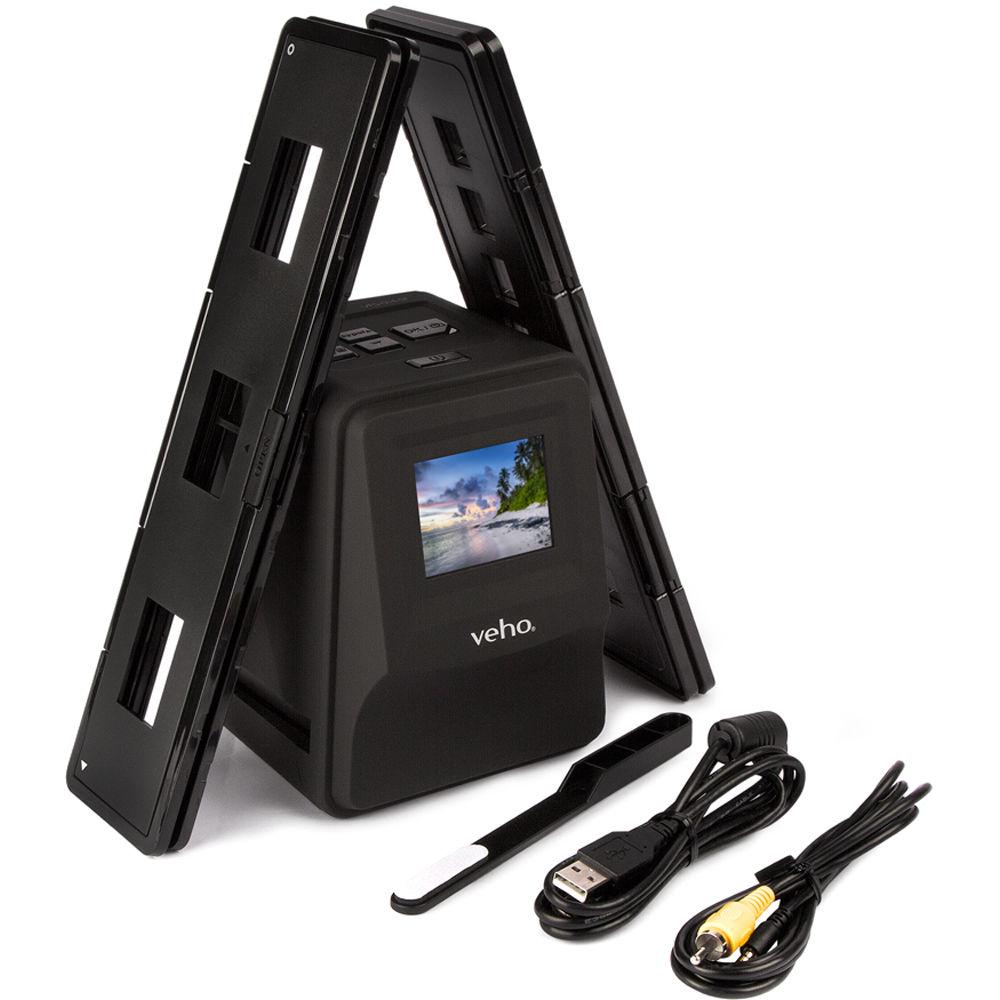

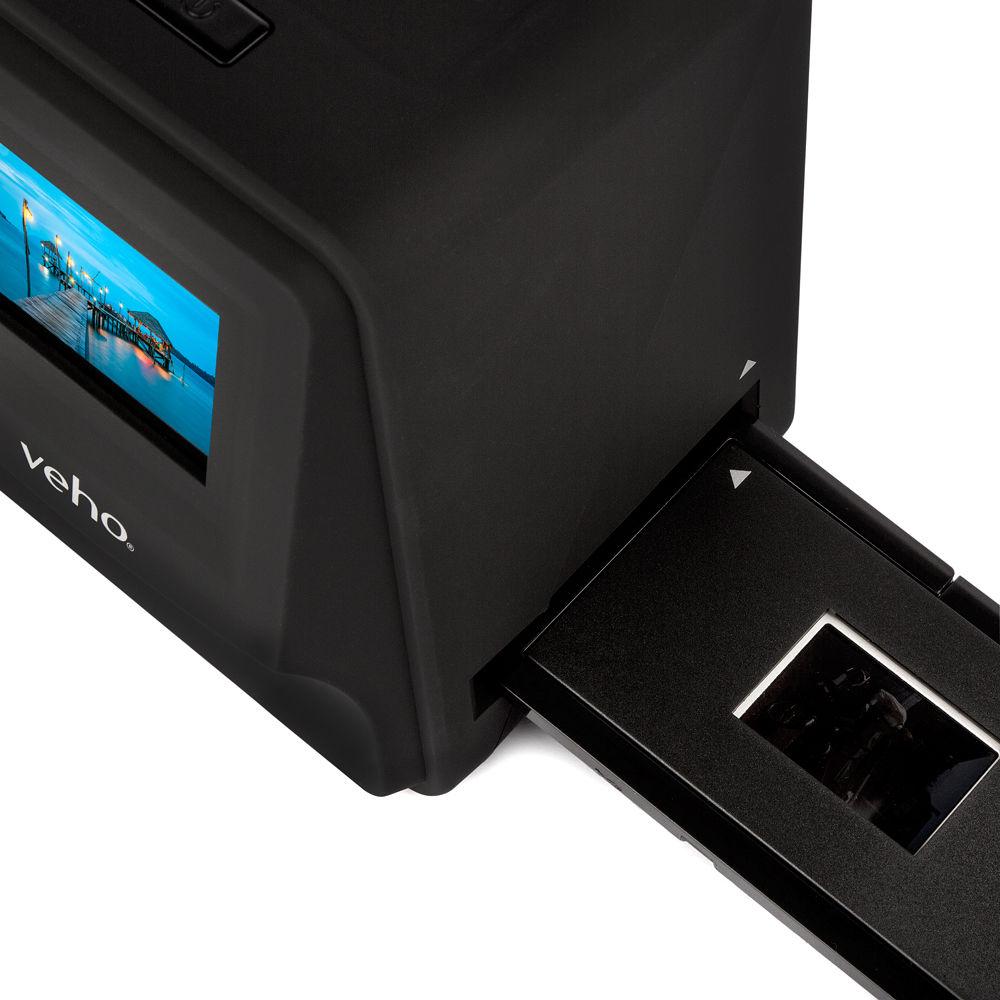

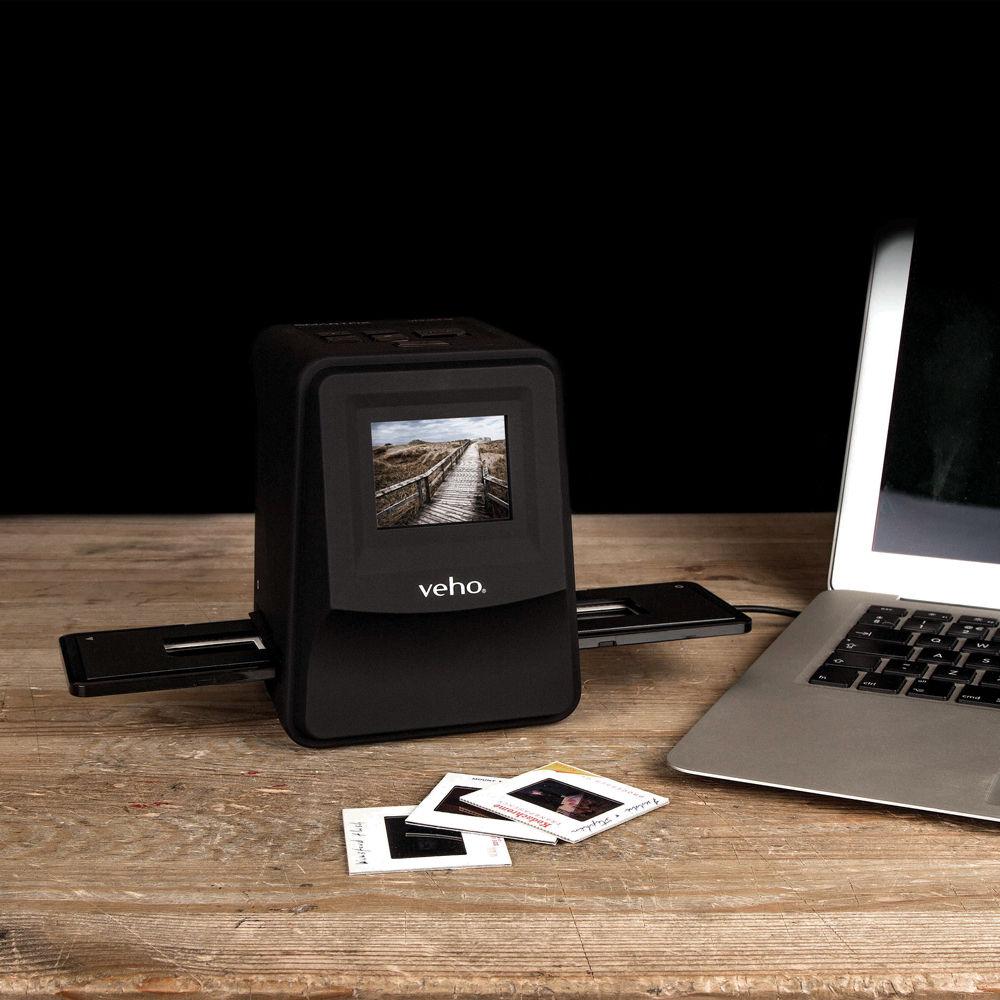

User Manual for veho VFS-014-SF Smartfix 14MP Portable Film Negative and Slide Scanner

Click to enlarge the picture
veho VFS-014-SF Smartfix 14MP Portable Film Negative and Slide Scanner Contents of the user manual for the veho VFS-014-SF Smartfix 14MP Portable Film
  • Product category: Film Scanners veho
  • Brand: veho
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for veho Film Scanners

veho VFS-014-SF Smartfix 14MP Portable Film Negative and Slide Scanner veho VFS-014-SF Smartfix 14MP Portable Film Negative and Slide Scanner veho VFS-014-SF Smartfix 14MP Portable Film Negative and Slide Scanner veho VFS-014-SF Smartfix 14MP Portable Film Negative and Slide Scanner veho VFS-014-SF Smartfix 14MP Portable Film Negative and Slide Scanner veho VFS-014-SF Smartfix 14MP Portable Film Negative and Slide Scanner
User manual for the veho VFS-014-SF Smartfix 14MP Portable Film contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any veho product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official veho user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a veho product will considerably shorten its lifespan!



Product description

Convert your slides and negatives into digital images with the VFS-014-SF Smartfix Portable Scanner from veho. This product uses a 14MP CMOS sensor with an optical resolution of 3200 dpi to digitize 135 slides and 135, 110, and 126 negative film so you can easily share your photos with friends and family. Designed to be completely portable, the scanner is powered by a lithium-ion 1050mAh battery and saves images directly onto a user-supplied SD card that fits into a slot in the back. To use the scanner, simply fit the film into the appropriate tray and align it manually by using the preview on the 2.4" LCD display. Each scan creates crisp 24-bit JPEGs and takes approximately one to two seconds depending on the speed and class rating of your SD card. Beyond previewing, the LCD screen also features a playback function for viewing or deleting any of your scanned photos. After you are done with your images, you can connect the scanner to a computer to charge the battery or transfer your files. You can also plug it into the TV to see all your photos on the big screen without having to transfer the files to other devices. The VFS-014-SF Smartfix is compatible with both Windows and Mac and comes with all the necessary cables and trays as well as a small cleaning brush.
    • Stand-alone portable design with no computer required to scan images
    • Light weight of 15.2 oz for easy carrying and transport
    • Three built-in white LEDs provide even illumination for proper scanning
    • Automatic exposure and color balance, with manual exposure adjustments of




Upload User Manual

Have you got an user manual for the veho VFS-014-SF Smartfix 14MP Portable Film Negative and Slide Scanner in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Upload PDF user manual Upload DOC user manual
Please enter here the link to the user manual of this product:





OR

Enter here the file with the user manual of this product from your computer/phone:
(60MB max; Permitted formats: PDF)

0%


Technical parameters

veho VFS-014-SF Specs

Film Types 135 slides
135, 110, and 126 film negatives

135 (3:2 ratio)
110 (4:3 ratio)
126 (1:1 ratio)
Scan Sensor 1/2.33" 14 MP CMOS Sensor
Optical Resolution 3200 dpi
Color Depth 24-bit
Dynamic Range Not specified by manufacturer
Focus System Fixed focus
EV Range ±2.0 EV
Preview Speed Not specified by manufacturer
Scan Speed 1-2 seconds
Batch Scanning No
Automation No
Storage Device SD card
Computer Interface USB 2.0
USB Type-A to USB Mini-B Cable
TV System NTSC
PAL
System & Software Requirements Windows: Pentium P4 1.6 GHz or equivalent AMD Athlon
Free USB 2.0 port
512 MB RAM
500 MB free hard disk space
1024 x 768 pixel color monitor
CD-ROM drive
Windows XP SPII, Vista (32/64-bit), 7, 8, and 10

Mac: PowerPC G5 or Intel Core Duo processor recommended
Free USB 2.0 port
768 MB RAM
500 MB free hard disk space
1024 x 768 color monitor
CD-ROM drive
OS X 10.5 and above
Lens 12.95mm f/4.8
Display 2.4" (6.1 cm) color LCD display
Light Source 3 x white LEDs
Power Supply Lithium-ion battery (3.7 V / 1050 mAh)
Dimensions (H x W x L) 5.7 x 4.6 x 4.7" (14.4 x 11.6 x 11.9 cm)
Weight 15.2 oz (430 g) excluding slide trays, slides, and SD card
Package Weight 2.235 lb
Box Dimensions (LxWxH) 10.8 x 6.65 x 5.95"
