User Manual for Velbon DV-7000N Video Tripod with Fluid Head Click to enlarge the picture
Contents of the user manual for the Velbon DV-7000N Video Tripod with Fluid
- Product category: Tripod Systems Velbon
- Brand: Velbon
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Velbon Tripod Systems
 |
User manual for the Velbon DV-7000N Video Tripod with Fluid contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Velbon product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Velbon user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Velbon product will considerably shorten its lifespan!
|

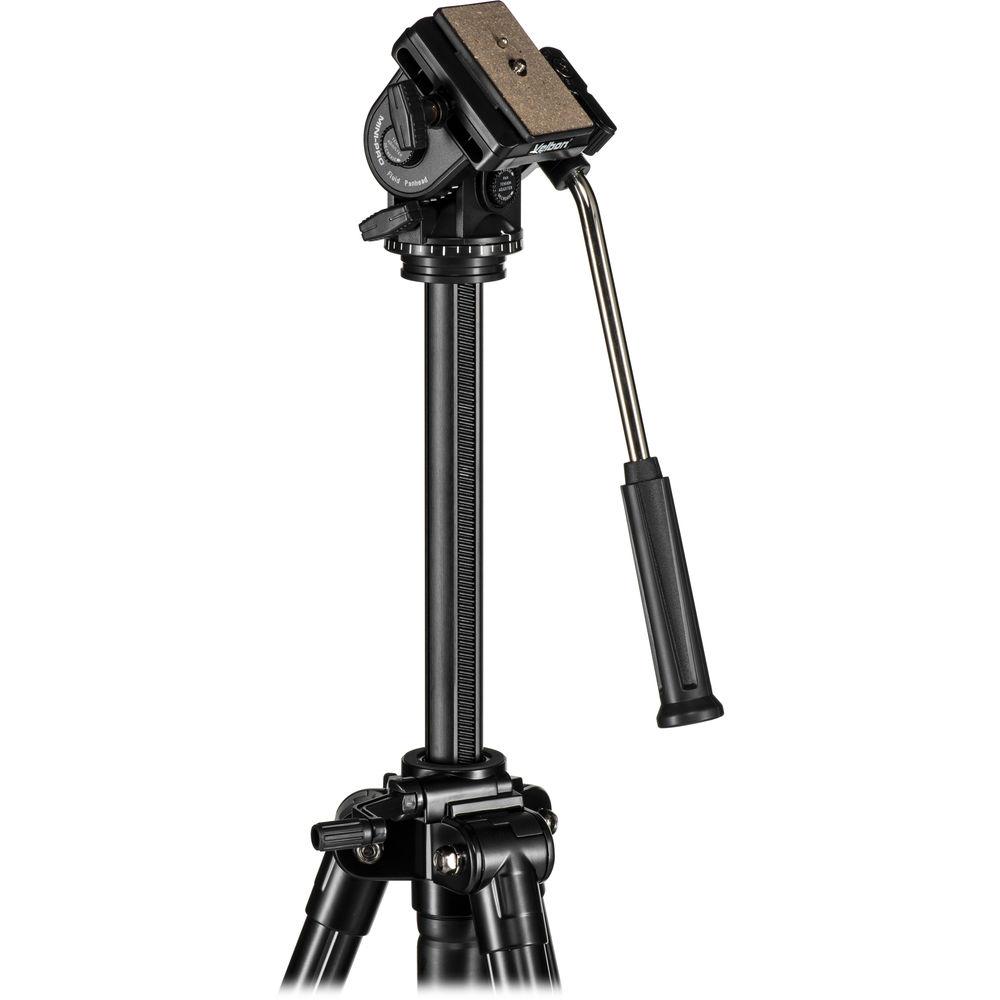

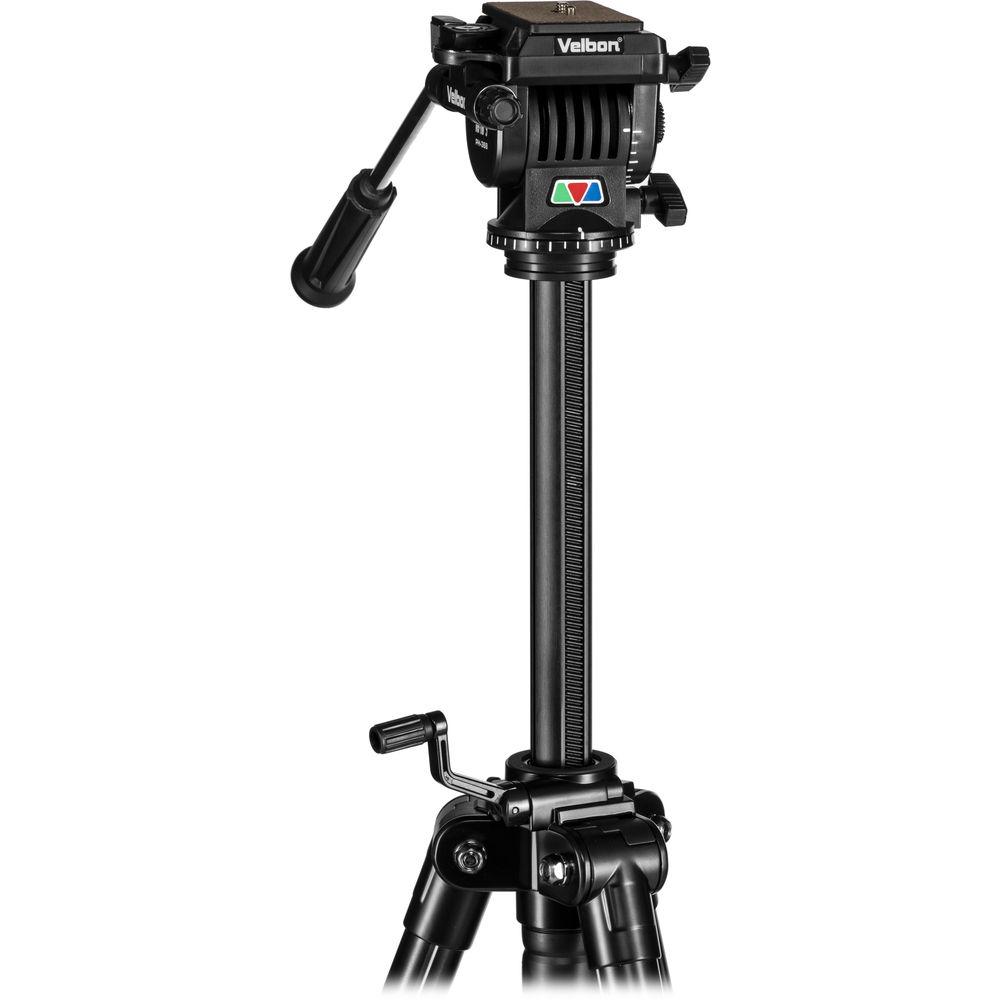

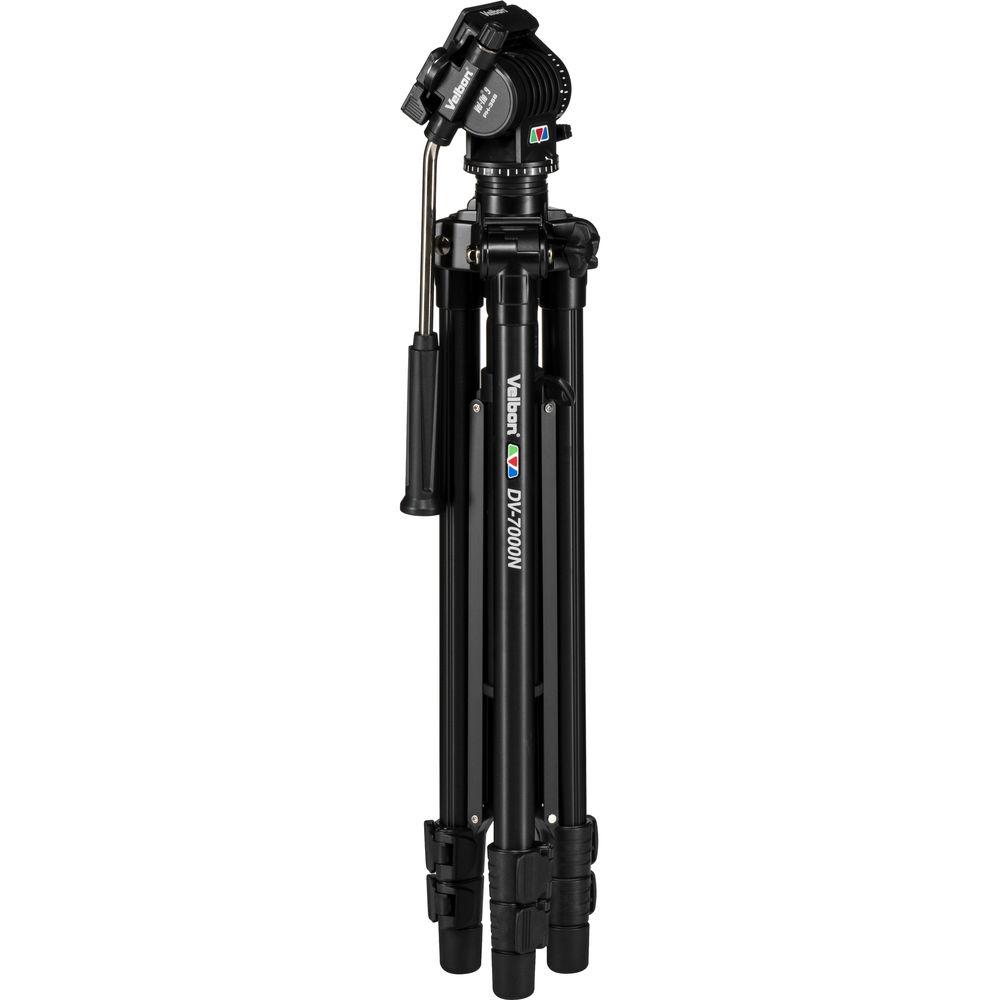

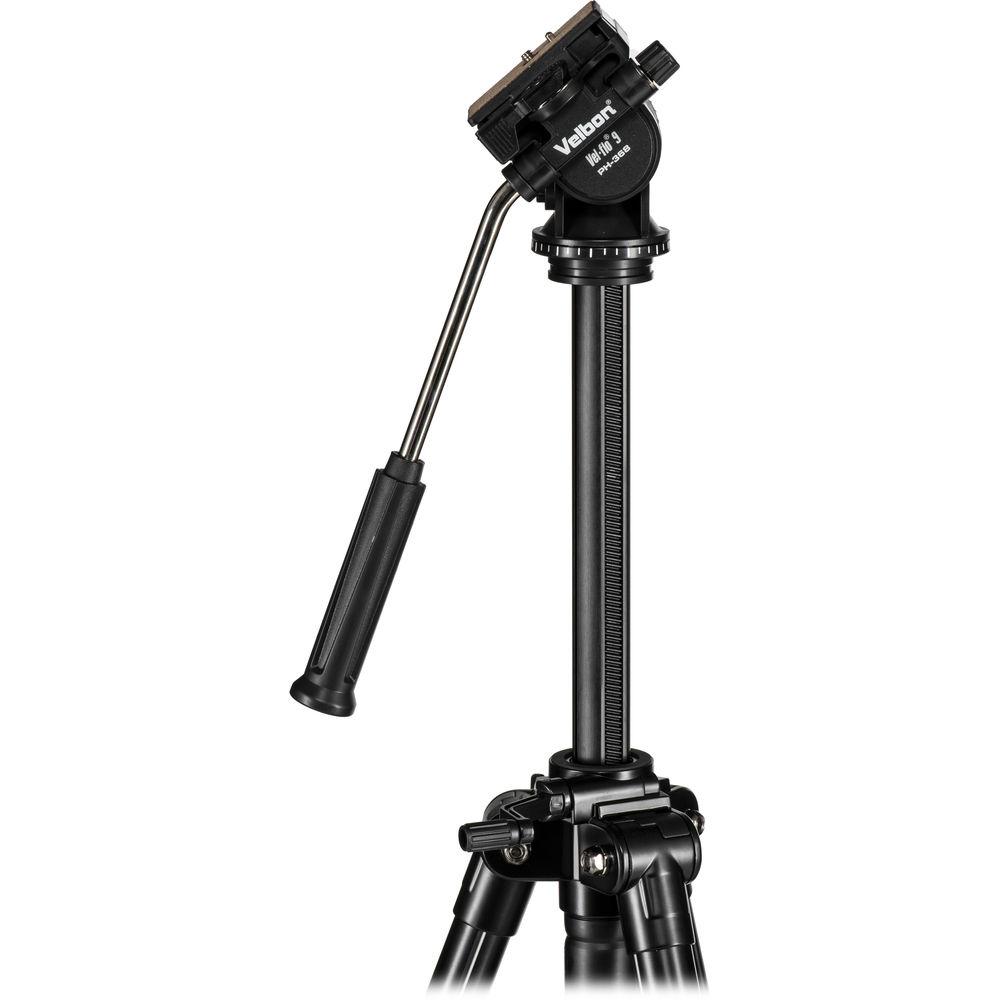

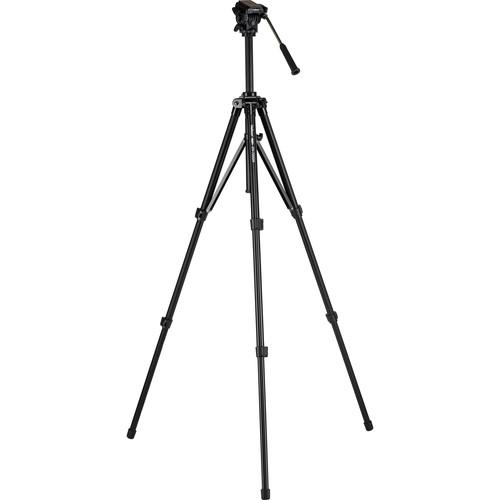

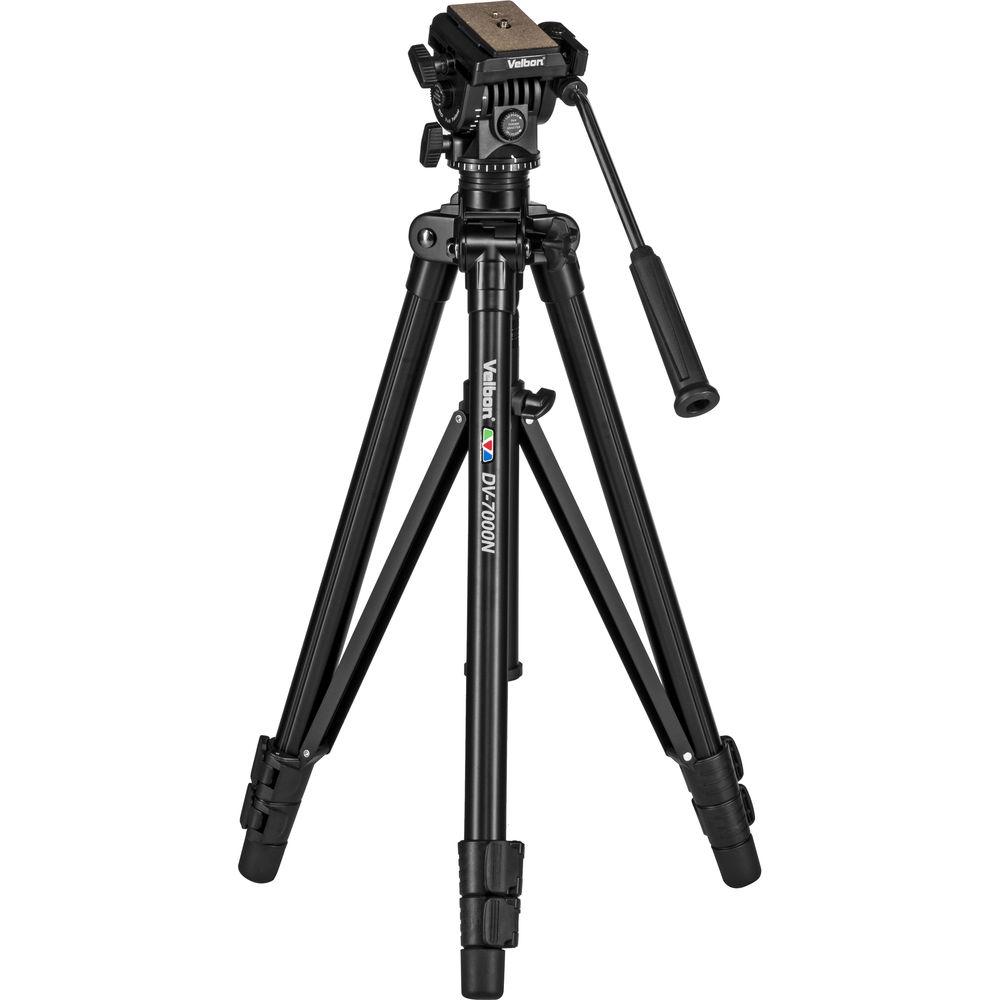

Product description The Velbon DV-7000N is a 2-stage/3-section aluminum video tripod equipped with the PH-368 Vel-flo 9 fluid head that supports cameras weighing up to 13.2 pounds. The head features adjustable pan/tilt control with separate pan/tilt locks, and a quick-release plate for fast attachment and removal of your camera. The head is supported by centrally-braced 3-section aluminum alloy legs with 1.14" diameter upper sections that offers increased stability in standard or semi-low-angle settings. It can reach a maximum height of 63.98" with the geared center column fully extended, and a minimum working height of 22.36". It folds down to 27.6" for storage. Rubber feet at the bottom of the legs allow the legs to be used on virtually any surface. - Key Features
-
- Aluminum alloy tripod with Vel-flo 9 2-way fluid head
- 13.2 lb maximum load capacity
- 9.92 lb suggested load capacity
- Adjustable pan/tilt control with separate locks
- Quick-release camera plate with 1/4"-20 screw
- 3-section aluminum alloy legs
- 1.14" top leg diameter
- Height Range: 22.36 to 63.98"
- 27.6" folded length
- Spirit level
- Rubber feet
- System weighs 7.43 lb
UPC: 017915628939 In the Box Velbon DV-7000N Video Tripod with Fluid Head DV-7000N Aluminum Tripod Legs PH-368 Fluid Head Limited 5-Year Warranty User Manual PDF 106.8kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Velbon DV-7000N Video Tripod with Fluid Head in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVelbon DV-7000N Specs | | | Load Capacity | Maximum: 13.23 lb (6 kg)
Suggested: 9.92 lb (4.5 kg) | | Maximum Height | 63.98" (162.5 cm) | | Maximum Height w/o Column Extended | 55.3" (140.5 cm) | | Minimum Height | 22.36" (56.8 cm) | | Folded Length | 27.6" (70 cm) | | Weight | 7.43 lb (3.37 kg) | | | | Quick Release Plate | QB-6RL
1/4"-20 camera screw | | Independent Tilt Lock | Yes | | Independent Pan Lock | Yes | | Height | 5.2" (13.3 cm) | | Weight | 1.8 lb (0.82 kg) | | | | Material | Aluminum alloy | | Leg Sections | 3 | | Diameter (Top Leg Section) | 1.14" (29 mm) | | Weight | 5.62 lb (2.55 kg) | | | | Package Weight | 7.9 lb | | Box Dimensions (LxWxH) | 28.0 x 5.7 x 5.6" |
