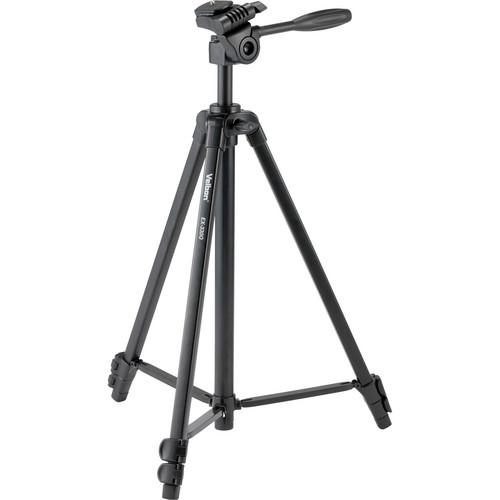

Product description Time-Lapse Tips and Tools Read More This EX-330Q Tripod with 3-Way, Pan-and-Tilt Head supports up to 4.4 lb, measures 19.9" when folded, and includes a quick release plate. Its 3-section legs each feature flip locks for fast deployment, and can be positioned for a minimum height of 19.7" to a maximum height of 45.3", or 57.5" with its push-and-pull, rapid center column fully raised. An integrated center brace allows the legs to be spread simultaneously as well as uniformly, and helps to hold them in place. A rubber foot is included on the bottom of each leg, further enhancing stability on a wide variety of surfaces.
Cameras, sport optics, or camcorders that are compatible with a 1/4"-20 mount can be connected to the quick release plate, which is secured to the tripod's pan-and-tilt head using a quick release cam lock. The head can be rotated 360°, tilted 60° backwards, 90° forwards, or 90° sideways for portrait orientation. Both the 360° rotation as well as the backward or forward tilt movements function simultaneously and can be set in place using the pan bar's integrated twist lock. When changing from a landscape to portrait orientation, the sideways tilt can be independently adjusted and secured.
A carry bag with a strap is provided for storage and transport. - Use and Handling
-
- Supports up to 4.4 lb
- Push-and-pull center column center column for rapid positioning

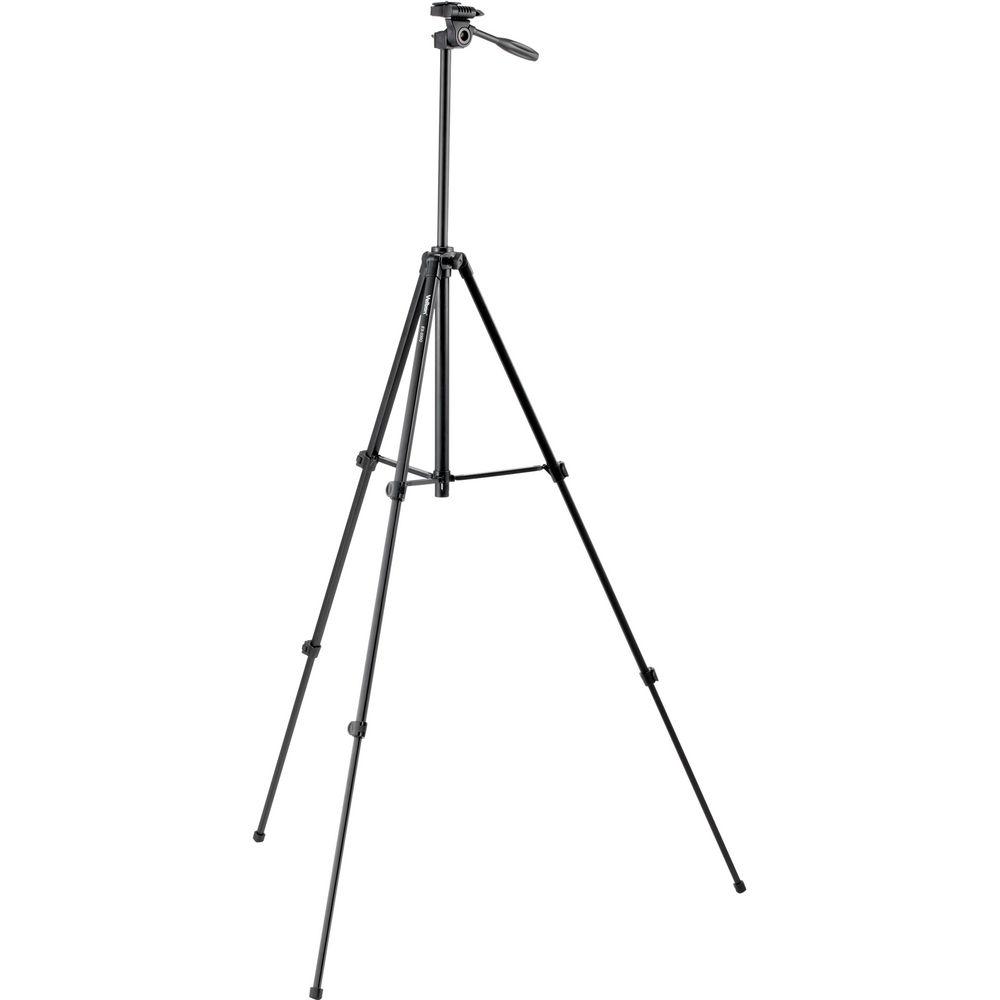

- Can be set for a minimum height of 19.7" to a maximum height of 45.3", or 57.5" with column fully raised
- Legs each feature 3 sections, flip locks for fast deployment
- Center brace allows legs to be spread simultaneously as well as uniformly and provides additional support
- Rubber feet for stability
- Three-way, pan-and-tilt head can be rotated 360°, and tilted 60° backwards, 90° forwards, as well as 90° sideways for portrait orientation
- Head rotation, as well as backwards-and-forwards-tilt movements function simultaneously
- When changing from a landscape to portrait orientation, the sideways tilt can be independently adjusted and secured

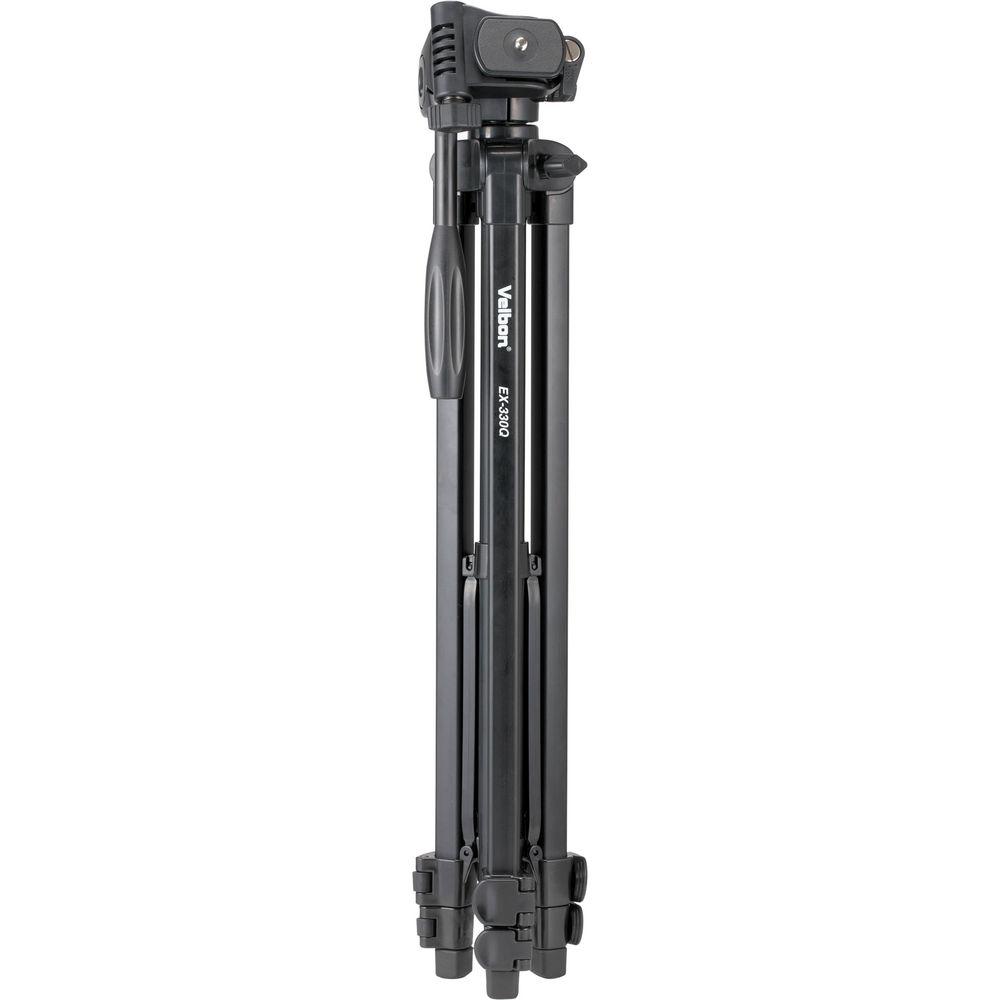

- Weighs 1.9 lb, measures 19.9" when folded
- Construction Details
-
- Aluminum-alloy legs and three-way, pan-and-tilt head
- Quick release plate with 1/4"-20 mount and rubberized, anti-slip surface
- Includes carry bag for storage and transport
UPC: 017915703315 In the Box Velbon EX-330Q Tripod with 3-Way, Pan-and-Tilt Head QB-32 Quick Release Plate for Select Tripods Tripod Bag Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Velbon EX-330Q Tripod with 3-Way, Pan-and-Tilt Head in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVelbon EX-330Q Specs | | | Head Type | Pan & Tilt Head | | Camera Mounting Screw | 1/4"-20 Male | | | | Load Capacity | 4.4 lb / 2 kg | | Maximum Working Height | 57.5" / 146 cm | | Max Height without Center Column | 45.3" / 115 cm | | Minimum Working Height | 19.7" / 50.1 cm | | Folded Length | 19.9" / 50.6 cm | | Materials | Aluminum Alloy | | Weight | 1.9 lb / 0.9 kg | | | | Leg Lock Type | Flip Lock | | Independent Leg Spread | No | | Leg Sections | 3 | | Bubble Level | No | | | | Center Column Features | Center Brace | | Center Column Sections | 1 | | Center Column Extension Type | Rapid | | Lateral / 90-Degree Center Column | No | | | | Package Weight | 2.45 lb | | Box Dimensions (LxWxH) | 20.8 x 4.7 x 3.5" |
