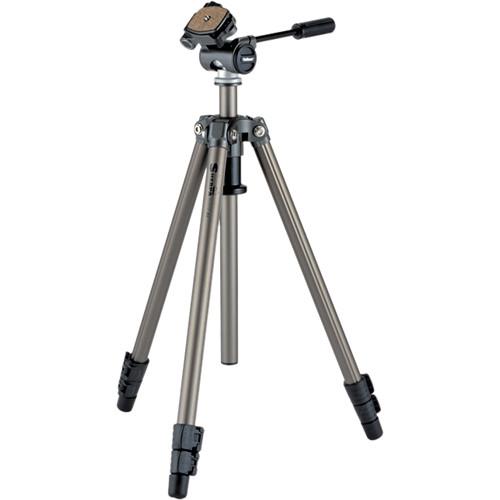

User Manual for Velbon Sherpa 200R Tripod with PH-157Q 3-Way, Pan-and-Tilt Head Click to enlarge the picture
Contents of the user manual for the Velbon Sherpa 200R Tripod with PH-157Q
- Product category: Tripods with Heads Velbon
- Brand: Velbon
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Velbon Tripods with Heads
|
User manual for the Velbon Sherpa 200R Tripod with PH-157Q contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Velbon product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Velbon user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Velbon product will considerably shorten its lifespan!
|
Product description Time-Lapse Tips and Tools Read More wcwzxwvdsvteddxvf This Sherpa 200R Tripod with PH-157Q 3-Way, Pan-and-Tilt Head from Velbon supports up to 8.8 lb, measures 24.4" when folded, and includes a quick release plate. Its 3-section legs each feature flip locks for fast deployment, and can be positioned for a minimum height of 23.5" to a maximum height of 53.0", or 65.9" with its push-and-pull, rapid center column fully raised. To further enhance stability on a wide variety of surfaces, each leg includes a rubber foot.
Cameras, sport optics, or camcorders that are compatible with a 1/4"-20 mount can be connected to the quick release plate, which is secured to the tripod's pan-and-tilt head using a quick release cam lock. The head can be rotated 360°, tilted 60° backwards, 90° forwards, or 90° sideways for portrait orientation. Both the 360° rotation as well as the backward or forward tilt movements function simultaneously and can be set in place using the pan bar's integrated twist lock. When changing from a landscape to portrait orientation, the sideways tilt can be independently adjusted and secured. - Use and Handling
-
- Supports up to 8.8 lb
- Push-and-pull center column center column for rapid positioning
- Can be set for a minimum height of 23.5" to a maximum height of 53.0", or 65.9" with column fully raised
- Legs each feature 3 sections, flip locks for fast deployment
- Rubber feet for stability
- Three-way, pan-and-tilt head can be rotated 360°, and tilted 60° backwards, 90° forwards, as well as 90° sideways for portrait orientation
- Head rotation, as well as backwards-and-forwards-tilt movements function simultaneously
- When changing from a landscape to portrait orientation, the sideways tilt can be independently adjusted and secured
- Weighs 4.3 lb, measures 24.4" when folded
- Construction Details
-
- Aluminum-alloy legs and three-way, pan-and-tilt head
- Quick release plate with 1/4"-20 mount and anti-slip, cork surface
UPC: 017915412002 In the Box Velbon Sherpa 200R Tripod with PH-157Q 3-Way, Pan-and-Tilt Head PH-157Q 3-Way Pan/Tilt Head Limited 5-Year Warranty User Manual PDF 828.9kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Velbon Sherpa 200R Tripod with PH-157Q 3-Way, Pan-and-Tilt Head in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVelbon 200R Specs | | | Head Type | Pan & Tilt Head | | Base Mount | 1/4"-20 Thread | | Camera Mounting Screw | 1/4"-20 Male | | | | Load Capacity | 8.8 lb / 4 kg | | Maximum Working Height | 65.9" / 167.4 cm | | Max Height without Center Column | 53" / 134.6 cm | | Minimum Working Height | 23.5" / 59.7 cm | | Folded Length | 24.4" / 62 cm | | Materials | Aluminum Alloy | | Weight | 4.3 lb / 2.0 kg | | | | Leg Lock Type | Flip Lock | | Independent Leg Spread | Yes | | Leg Sections | 3 | | Bubble Level | No | | | | Center Column Sections | 1 | | Center Column Extension Type | Rapid | | Lateral / 90-Degree Center Column | No | | | | Package Weight | 5.7 lb | | Box Dimensions (LxWxH) | 27.9 x 5.6 x 5.6" |
Rating94% users recommend this product to others. And what about you?
This product has already been rated by 13 owners. Add your rating and experience with the product.
