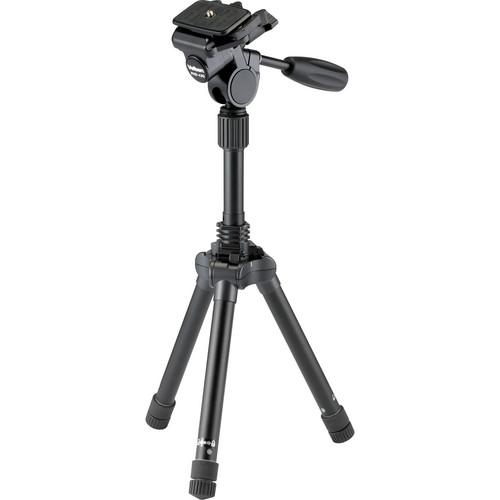

User Manual for Velbon UT 45L 6-Section Aluminum Tripod with PHD-42Q Pan Tilt Head Click to enlarge the picture
Contents of the user manual for the Velbon UT 45L 6-Section Aluminum Tripod
- Product category: Tripods with Heads Velbon
- Brand: Velbon
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Velbon Tripods with Heads
 |
User manual for the Velbon UT 45L 6-Section Aluminum Tripod contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Velbon product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Velbon user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Velbon product will considerably shorten its lifespan!
|

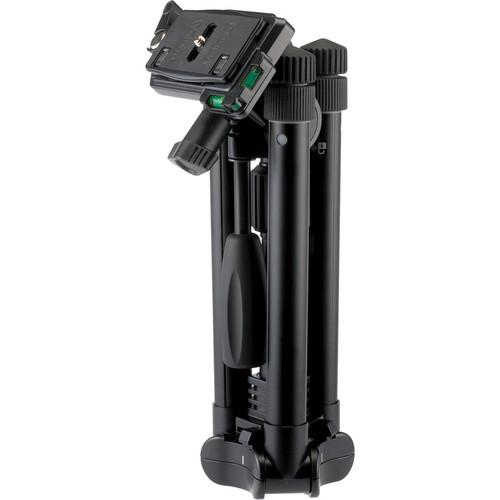

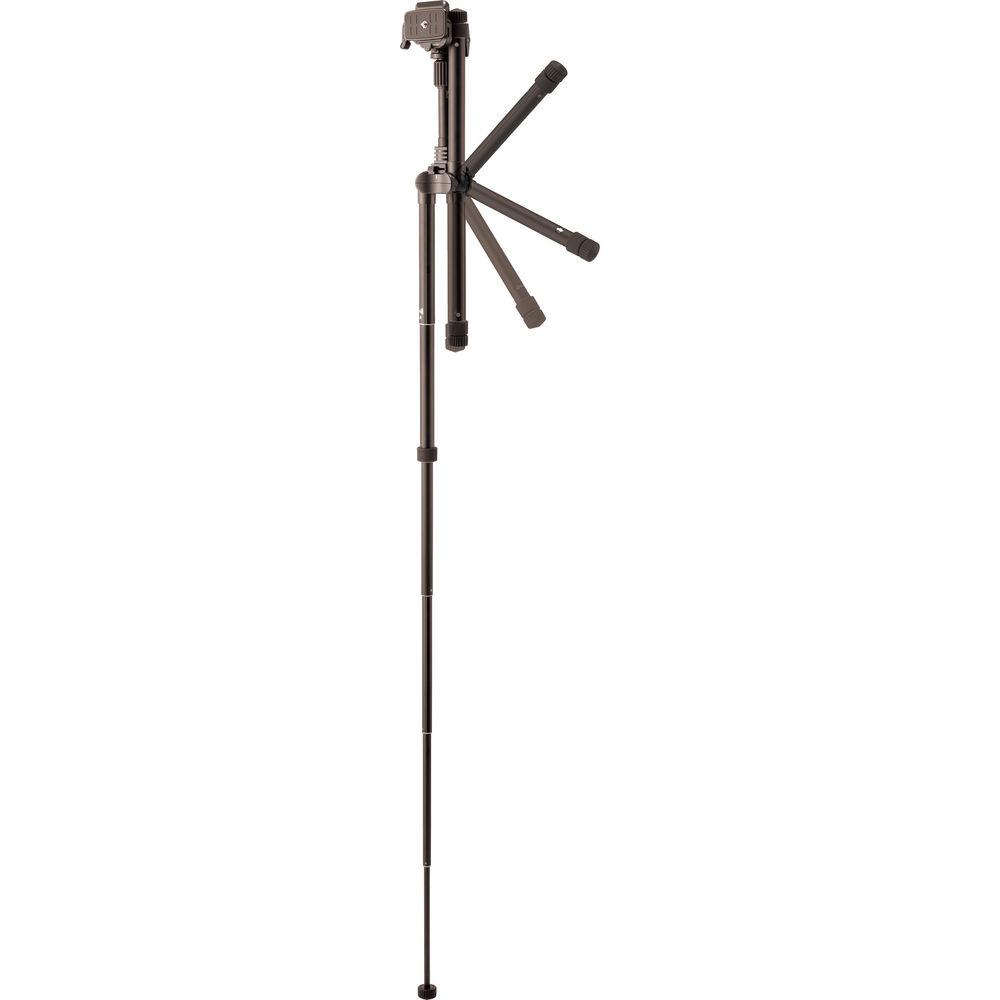

Product description Time-Lapse Tips and Tools Read More The UT 45L 6-Section Aluminum Tripod with PHD-42Q 4-Way Head is a sturdy tripod that folds out to a working height of 61.6" from the tiniest of packages. At less than a foot long (11.6") when its twist-lock legs are retracted and folded up 180° so that the feet meet the included head, the UT 45L is ideal for stowing in a backpack or even a tote bag, for the ultimate in low-profile yet high-performance camera support. Lightweight for traveling, the tripod weighs just 2.7 lb and supports up to 6.6 lb. The tripod's maximum height is 5.3 times its folded length. The secret to the UT 45L's tight package is its section count: the aluminum-alloy legs have six sections each, and the center column has two. The PHD-42Q pan/tilt head features 360° panning, front-to-back tilt, and side-to-side tilt with independent locks for each movement. A QB-62 quick-release plate and a carrying case are included. UPC: 017915930452 In the Box Velbon UT 45L 6-Section Aluminum Tripod with PHD-42Q Pan/Tilt Head PHD-42Q Pan/Tilt Head QB-62 Quick Release Plate Carrying Case Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Velbon UT 45L 6-Section Aluminum Tripod with PHD-42Q Pan Tilt Head in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVelbon 45L Specs | | | Head Type | Pan & Tilt Head | | Base Mount | 1/4"-20 Thread | | Camera Mounting Screw | 1/4"-20 Male | | | | Load Capacity | 6.6 lb / 3 kg | | Maximum Working Height | 61.6" / 156.5 cm | | Minimum Working Height | 11.4" / 29 cm | | Folded Length | 11.6" / 29.5 cm | | Materials | Aluminum Alloy | | Weight | 2.7 lb / 1.2 kg | | | | Leg Lock Type | Twist Lock | | Independent Leg Spread | Yes | | Leg Sections | 6 | | Leg Diameter | 0.94" / 24 mm | | | | Center Column Sections | 2 | | Center Column Extension Type | Rapid | | Lateral / 90-Degree Center Column | No | | | | Package Weight | 3.48 lb | | Box Dimensions (LxWxH) | 13.0 x 5.7 x 5.6" |
Rating82% users recommend this product to others. And what about you?
This product has already been rated by 91 owners. Add your rating and experience with the product.
