User Manual for Velbon UT-63D Tripod with QHD-63D Ball Head Click to enlarge the picture
Contents of the user manual for the Velbon UT-63D Tripod with QHD-63D Ball
- Product category: Tripods with Heads Velbon
- Brand: Velbon
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Velbon Tripods with Heads
 |
User manual for the Velbon UT-63D Tripod with QHD-63D Ball contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Velbon product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Velbon user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Velbon product will considerably shorten its lifespan!
|

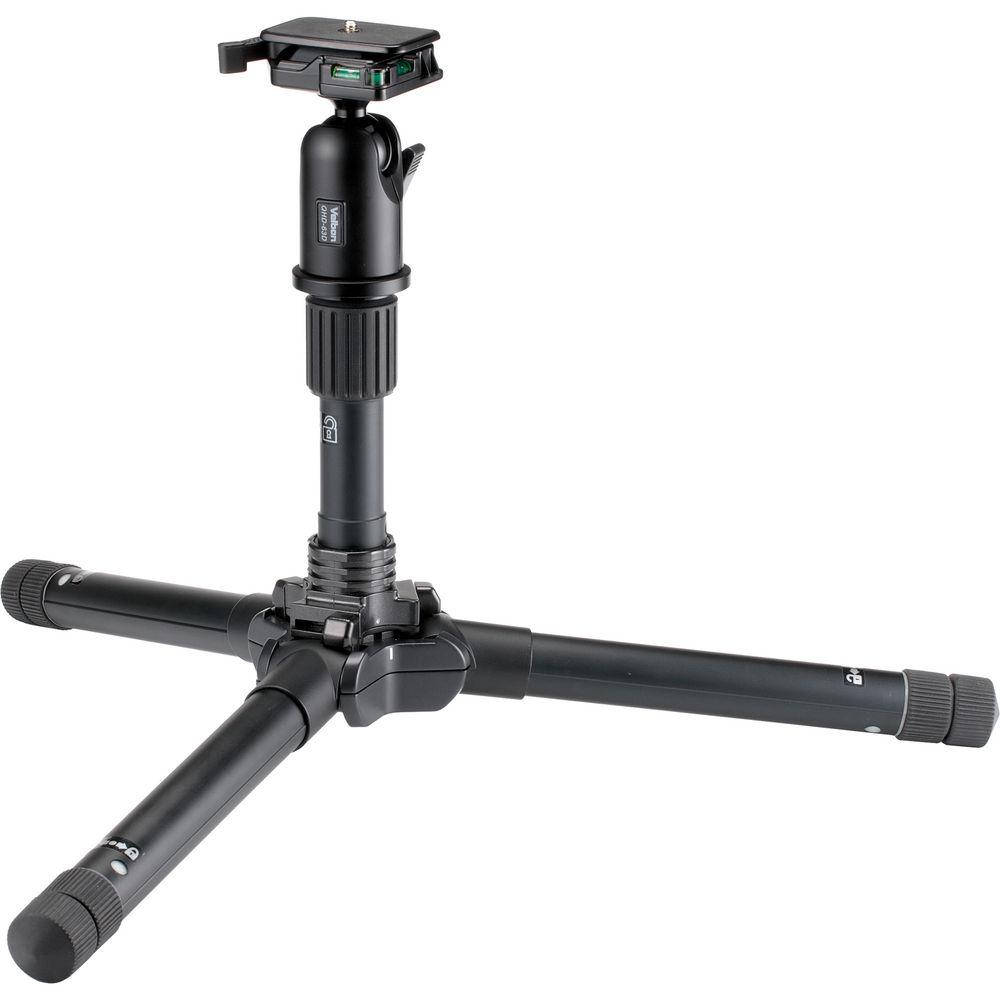

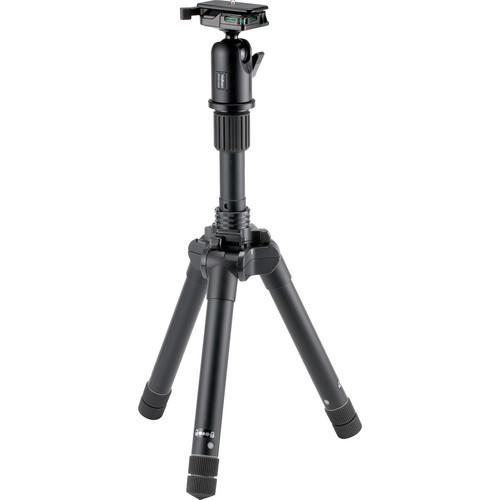

Product description Time-Lapse Tips and Tools Read More The UT-63D Tripod with QHD-63D Ball Head from Velbon supports up to 13.2 lb, measures 12.0" when folded, and includes a quick release plate. Each of its 6-section legs features an independent spread, a 3-position angle lock, and twist locks for rapid deployment. The UT-63D tripod can be set at a minimum height of 13.5" to a maximum height of 56.3", or 61.8" with its push-and-pull, rapid center column fully raised. To further enhance stability on a wide variety of surfaces, each leg includes a rubber foot.
Cameras, lenses, or sport optics that are compatible with a 1/4"-20 mount can be connected to the quick release plate, which is secured to the tripod's ball head using a quick release cam lock. The ball head is removable, provides up to a 90° tilt for portrait orientation, 360° of independent rotation, and can be locked into place along its range of movement.
For added versatility, the center column is reversible, facilitating low-angle photography where an attached camera is positioned among the tripod's legs instead of above them. A carry bag with a strap is provided for storage and transport. - Use and Handling
-
- Supports up to 13.2 lb
- Push-and-pull, rapid center column for rapid camera, lens, or sport optic positioning
- Can be set for a minimum height of 13.5" to a maximum height of 56.3", or 61.8" with column fully raised
- Center column is reversible, facilitating low-angle photography where an attached camera is positioned among the tripod's legs instead of above them
- Legs each feature 6 sections, twist locks for fast deployment, and can be independently spread
- Legs can be locked at 30°, 50°, or 85° angles
- Rubber feet help to enhance stability on a wide variety of surfaces

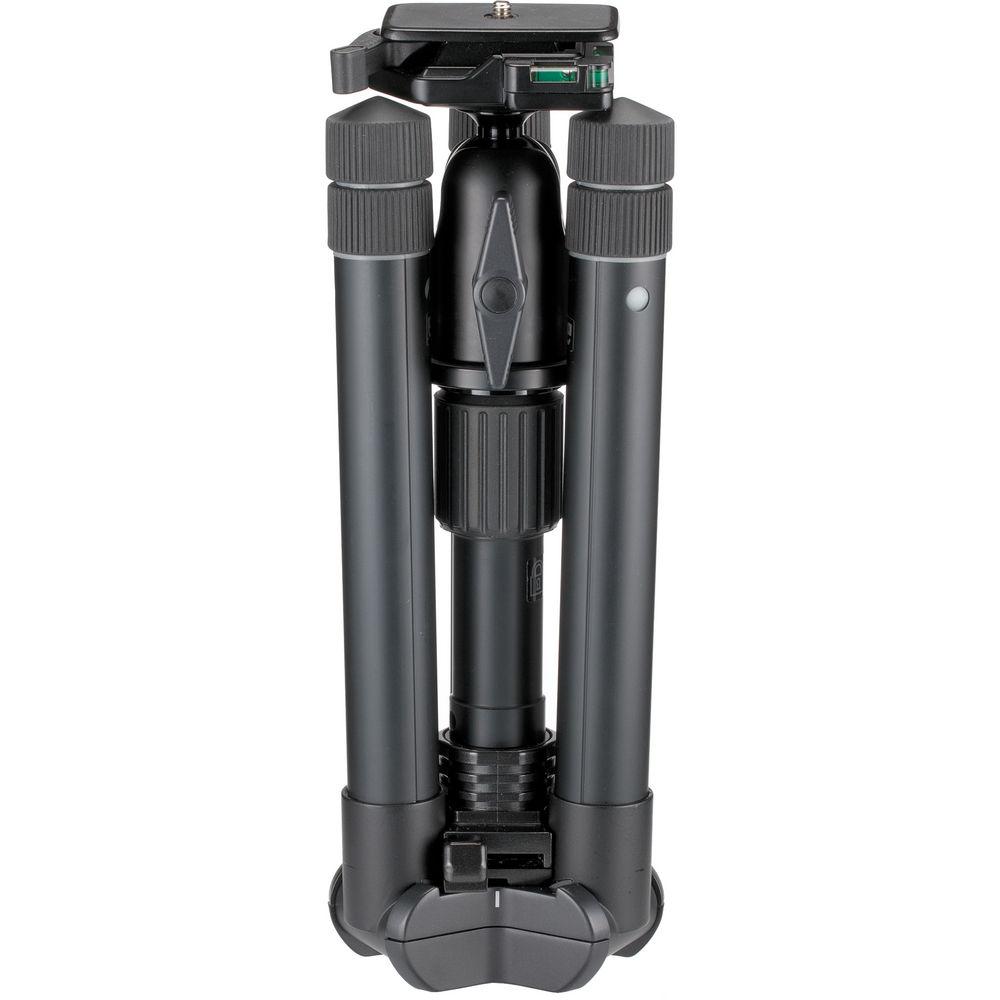

- Weighs 3.5 lb, measures 12.0" when legs are reversed 180° and folded
- Construction Details
-
- Aluminum-alloy legs and aluminum-alloy ball head with three built-in bubble levels
- Two bubble levels for landscape orientations and one bubble level for portrait orientations
- Quick release plate with 1/4"-20 mount and rubberized, anti-slip surface
- Included carry bag features a strap for storage and transport of the tripod with ball head
UPC: 017915930636 In the Box Velbon UT-63D Tripod with QHD-63D Ball Head QHD-63D Ball Head Tripod Bag Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Velbon UT-63D Tripod with QHD-63D Ball Head in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVelbon UT 63D Specs | | | Head Type | Ball Head | | Base Mount | 1/4"-20 Thread | | Camera Mounting Screw | 1/4"-20 Male | | Number of Bubble Levels | 3 | | | | Load Capacity | 13.2 lb / 6 kg | | Maximum Working Height | 61.8" / 157 cm | | Minimum Working Height | 13.5" / 34.3 cm | | Folded Length | 12" / 30.5 cm | | Materials | Aluminum Alloy | | Weight | 3.5 lb / 1.6 kg | | | | Leg Lock Type | Twist Lock | | Leg Positions | 3 Positions | | Independent Leg Spread | Yes | | Leg Sections | 6 | | | | Center Column Sections | 1 | | Center Column Extension Type | Rapid | | Lateral / 90-Degree Center Column | No | | | | Package Weight | 4.45 lb | | Box Dimensions (LxWxH) | 12.9 x 5.6 x 5.6" |
Rating82% users recommend this product to others. And what about you?
This product has already been rated by 01 owners. Add your rating and experience with the product.
