Product description - V345 Vello Aperture FINAL

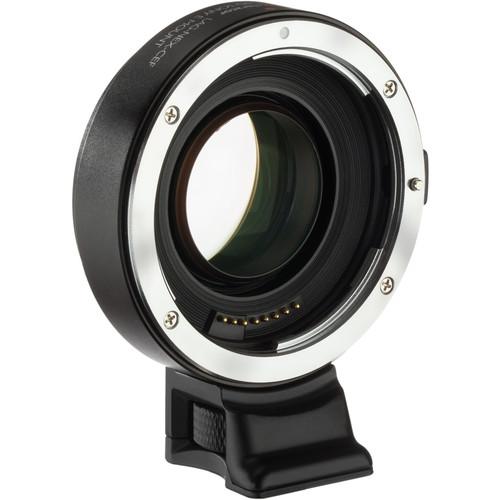

Pair your existing Canon EF-mount full-frame lenses with a modern Sony E-mount mirrorless camera and experience the coveted "full-frame look" on APS-C format sensors with the Accelerator AF Lens Adapter from Vello. By using a specialized 4 element in 4 group optical design, this adapter is able to increase a lens' angle of view by a factor of 0.71x while simultaneously increasing the maximum aperture by one whole stop. This allows a 50mm f/1.4 lens on an APS-C camera to maintain an angle of view close to 50mm while providing it with an f/1.0 equivalent aperture. This setup means full-frame lenses can be adapted to APS-C sensors, or full-frame cameras in APS-C crop mode, without losing the desired natural look of a full-frame system. Along with this, the adapter features electronic coupling, enabling autofocus, auto exposure, and other functions during use.
Automatic capabilities of the lens are fully maintained, allows for auto exposure, autofocus, and aperture control from the camera body. The adapter will also transfer Exif data to the camera for appropriate tagging of metadata for easier organization and editing. Along with all of these functions the durable metal adapter sports a removable tripod foot with 1/4"-20 socket for use on a tripod or support system, alleviating strain on the lens mount. Additionally, it has a matte black interior to prevent reflections from interfering with image quality. Note: AF function was tested for photo, video will not work properly Vello LAG-NEX-CEF AF Comapatibility List The following Canon lenses and Sony cameras have been tested with the Vello LAG-NEX-CEF lens adapter for photo compatibility with some operational limitations. Tests were conducted in AF-S and center point-focusing. Some Sony cameras use one or two types of focusing systems, and performance may vary. If a lens is not listed, it might not work properly. Vello will be testing more lenses and cameras and adding them to this table, so check back for future updates and firmware upgrades. | LENS | CAMERA MODEL | | BRAND | MODEL | A7 II
(Camera Ver. 3.10) | A7R II
(Camera Ver. 3.20) | A7S II
(Camera Ver. 3.20) | A6300
(Camera Ver. 1.00) | A6000
(Camera Ver. 3.20) | | CONTRAST AF | PHASE DETECT AF | CONTRAST AF | PHASE DETECT AF | CONTRAST AF | CONTRAST AF | PHASE DETECT AF | CONTRAST AF | | Canon | EF 11-24mm f/4L USM | ✓ | ✓ | ✓ | | ✓ | ✓ | | ✓ | | Canon | EF 16-35mm f/2.8L II USM | ✓ | ✓ | ✓ | | ✓ | ✓ | | ✓ | | Canon | EF 16-35mm f/4L IS USM | ✓ | ✓ | ✓ | ✓ | ✓ | | | ✓ | | Canon | EF 24-70mm f/2.8L II USM | ✓ | ✓ | | | | ✓ | | ✓ | | Canon | EF 24-70mm f/4L IS USM | ✓ | | ✓ | | ✓ | ✓ | | ✓ | | Canon | EF 24-105mm f/4L IS USM | ✓ | | | ✓ | | | ✓ | | | Canon | EF 35mm f/1.4L USM | ✓ | ✓ | | | ✓ | ✓ | | | | Canon | EF 50mm f/1.8 STM | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | | Canon | EF 70-200mm f/2.8L IS II USM | | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | | Canon | EF 85mm f/1.2L II USM(*) | ✓ | | ✓ | | | | | | | Canon | EF 85mm f/1.8 USM | ✓ | | ✓ | | ✓ | ✓ | | ✓ | | Canon | EF 100mm f/2.8L Macro IS USM | | ✓ | ✓ | ✓ | | ✓ | ✓ | ✓ | | Canon | EF 100-400mm f/4.5-5.6L IS II USM | ✓ | ✓ | | ✓ | | | ✓ | ✓ |
*Note: Remove the adapter's attached tripod foot before mounting the EF 85mm f/1.2L II Note: Important! Please make sure to turn off the camera before attaching the adapter and/or lens. Features - Adapts full-frame Canon EF-mount lenses to APS-C format Sony E-mount mirrorless cameras as well as full-frame cameras in APS-C crop mode
- Magnifies the lens' angle of view by a factor of 0.71x, effectively negating the crop factor of APS-C format cameras while simultaneously increasing the maximum aperture of the lens by one stop
- Optical design uses four elements in four groups to retain maximum image quality
- Maintains support for autofocus, auto exposure, and image stabilization
- Autofocus support is best with Ultrasonic (USM) and stepping (STM) motors
- Communicates Exif data to the camera to be saved in the image file for later reference
- Removable tripod foot has 1/4"-20 socket for direct mounting on a support system, eliminating unnecessary strain on the camera's lens mount
- Matte black interior helps reduce flare for optimal image quality
- Metal construction for long-term durability
- Autofocus and auto exposure functions are not compatible with Sony's E-mount camcorders, such as the PXW-FS7
UPC: 847628592988 In the Box Vello Canon EF Lens to Sony E-Mount Camera Accelerator AF Lens Adapter Front and Rear Lens Caps Removable Tripod Collar Protective Case Limited 1-Year Warranty Guides & Manuals Table of Contents
|
Upload User Manual
Have you got an user manual for the Vello Canon EF Lens to Sony E-Mount Camera Accelerator AF Lens Adapter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the Vello Canon EF Lens to Sony E-Mount Camera Accelerator AF Lens Adapter can be downloaded in PDF format at the link stated below.
Technical parametersVello LAG-NEX-CEF Specs | | | Camera Mount | Sony E (APS-C) | | Lens Mount | Canon EF | | Magnification | 0.71x | | Optical Design | 4 Elements in 4 Groups | | | | Tripod Mounting Thread | 1/4"-20 | | Dimensions | H: 3.2 x W: 2.8 x D: 1.6" / H: 8.3 x W: 7.0 x D: 4.0 cm | | Weight | 7.2 oz / 204 g | | | | Package Weight | 0.7 lb | | Box Dimensions (LxWxH) | 4.1 x 3.7 x 2.7" |
Rating72% users recommend this product to others. And what about you?
This product has already been rated by 75 owners. Add your rating and experience with the product.
