User manual
Vello FlashBoss TTL 2-Transceiver Kit for

User Manual for Vello FlashBoss TTL 2-Transceiver Kit for Canon

• Product category: Radio & Infrared Transmitters Vello
• Brand: Vello
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Vello Radio & Infrared Transmitters

Product description

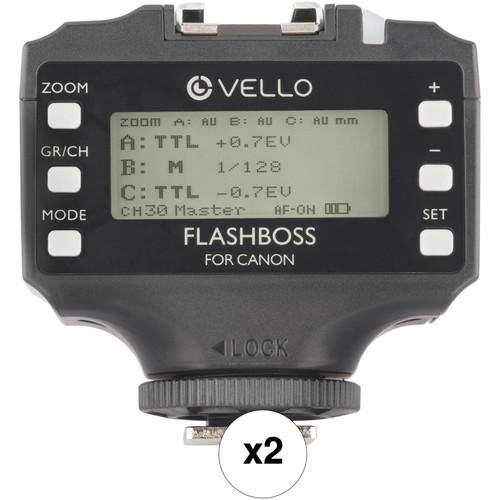

• 2 x Vello FlashBoss TTL Transceiver for Canon Create gorgeous lighting setups with the Canon E-TTL / E-TTL II-compatible FlashBoss TTL Transceiver from Vello. This TTL transceiver functions as both a transmitter and receiver, and works in tandem with other FlashBoss transceivers. It can be configured to transmit full TTL information from the camera to other FlashBoss Transceivers within the unit's impressive 328' range. Also, the hot shoe located on the top of the transceiver offers pass-through capability for using a flash on camera as well. Configured with a 2.4 GHz frequency, 15 channels, and five groups, the FlashBoss will provide remote control over numerous flashes with minimal interference from other nearby systems. Additionally, users have access to TTL, manual, multi, group, and delayed time modes to configure each set of lights to work well with one another.

  When using TTL, users have access to multiple sync settings, including first-curtain and high-speed sync at up to 1/8000 second. There is also a threaded PC sync port that provides support for studio strobes and can be used in combination with the delayed time setting to ensure they sync with your other flashes and camera. A USB terminal is available as well and can be used for firmware updates or with an optional shutter release cable for remote triggering of cameras. Additionally, it runs on two AA batteries and comes with a mini stand with 1/4"-20 thread for mounting on a stand or placing on a table. Note: This is one unit only. A minimum of two units are required.
  Camera Compatibility
  • Canon: D1 X Mark II, 1D X, 5DS R, 5DS, 5D Mark IV, 5D Mark III, 5D Mark II, 6D Mark II, 6D, 7D Mark II, 7D, 80D, 70D, 60D, 50D, 77D (9000D), T7i (800D), T6s (760D), T6i (750D), T6 (1300D), T5i (700D), T5 (1200D), SL2 (200D), SL1 (100D), EOS R

  Features

  • The FlashBoss mounts directly to a camera's hot shoe and features a top hot shoe with pass-through capabilities for attaching an on-camera flash.
  • A 2.4 GHz frequency and access to 15 channels, as well as one auto channel, provide a maximum range of 328' while ensuring minimal interference from nearby equipment.
  • When set up as a transmitter, users will be able to control all settings and receivers from a FlashBoss mounted to the camera, and transmit it to FlashBoss connected to a flash unit. This includes TTL modes with exposure compensation of -3 to 3 EV in 1/3-stop increments, a manual mode with control from 1/1 to 1/128 power in 1/3-stop increments, a Delayed Time (DT) setting for adjusting delay from 0-5 seconds in 1/10-second increments, a Group mode for setting each group individually, and TTL ratio adjustment for controlling power between groups. Other settings include a stroboscopic multi mode for advanced effects and the ability to set flash coverage, or zoom.
  • When set as a receiver, or slave, the FlashBoss can be configured to sync and receive signals from a master unit on the same channel. Also, when using an optional shutter release cable a camera can be connected for remote triggering.
  • First-curtain sync and high-speed sync at up to 1/8000 second are available.
  • A threaded PC sync terminal is available for using studio strobes.
  • The FlashBoss runs on two AA batteries which will run for approximately 120 hours.
  UPC: 847628002739

• 2 x FlashBoss TTL Transceiver for Canon
• Mini Stand
• Limited 1-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• 2 x Vello FlashBoss TTL Transceiver for Canon

  Channels	15 (Normal) 1 (Auto)
  Groups	5
  Wireless Range	328' / 100 m
  Radio Frequency	2.4 GHz

  Control Modes	Delay, Multi, Group, Manual, E-TTL/E-TTL II, TTL
  EV Range	Rating 100% users recommend this product to others. And what about you? This product has already been rated by 47 owners. Add your rating and experience with the product. Discussion Ask our technicians if you have a problem with your settings, or if anything is unclear in the user manual you have downloaded. You can make use of our moderated discussion. The discussion is public and helps other users of our website who may be encountering similar problems. The discussion is empty - enter the first post Post a new topic / query / comment: Items marked with * are required. Your name *: E-mail : Subject *: Message *: Your email address will not be displayed. Do not forget to fill it in if you want to receive a reply to your enquiry/contribution. Processing of personal data in accordance with GDPR
