User Manual for Vello FlashBoss TTL Transceiver for Nikon Click to enlarge the picture
Contents of the user manual for the Vello FlashBoss TTL Transceiver for Nikon
- Product category: Radio & Infrared Transmitters Vello
- Brand: Vello
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Vello Radio & Infrared Transmitters
 |
User manual for the Vello FlashBoss TTL Transceiver for Nikon contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Vello product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Vello user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Vello product will considerably shorten its lifespan!
|
Product description Create gorgeous lighting setups with the Nikon i-TTL-compatible FlashBoss TTL Transceiver from Vello. This TTL transceiver functions as both a transmitter and receiver, and works in tandem with other FlashBoss transceivers. It can be configured to transmit full TTL information from the camera to other FlashBoss Transceivers within the unit's impressive 328' range. Also, the hot shoe located on the top of the transceiver offers pass-through capability for using a flash on camera as well. Configured with a 2.4 GHz frequency, 30 channels, and three groups, the FlashBoss will provide remote control over numerous flashes with minimal interference from other nearby systems. Additionally, users have access to TTL, manual, and delayed time modes to configure each set of lights to work well with one another.

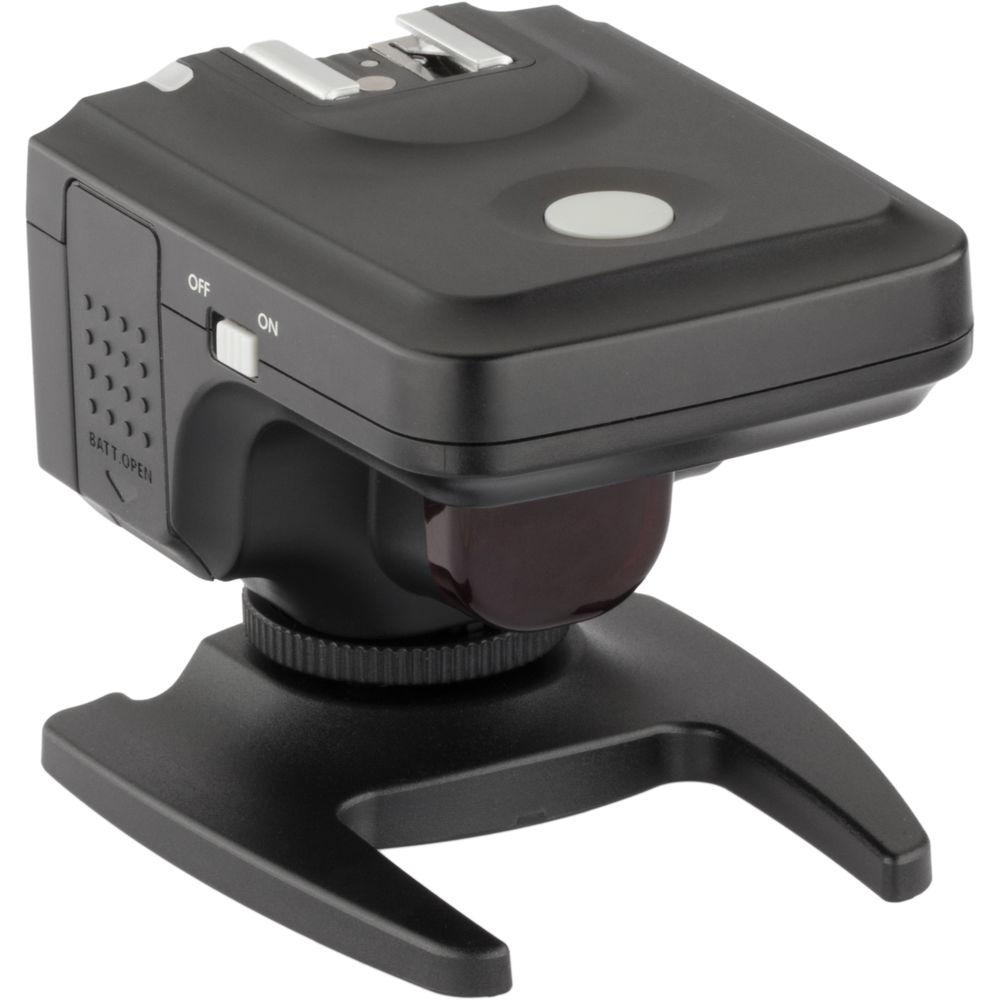

When using TTL, users have access to multiple sync settings, including first-curtain and high-speed sync at up to 1/8000 second. There is also a threaded PC sync port that provides support for studio strobes and can be used in combination with the delayed time setting to ensure they sync with your other flashes and camera. A USB terminal is available as well and can be used for firmware updates or with an optional shutter release cable for remote triggering of cameras. Additionally, it runs on two AA batteries and comes with a mini stand with 1/4"-20 thread for mounting on a stand or placing on a table. Note: This is one unit only. A minimum of two units are required.
The SB-800 is not compatible with this system since it uses older TTL protocols. - Camera Compatibility
- Nikon: D5, D4S, D4, D3x, D3s, D3, D850, D810, D800, D800e, D700, D750, D610, D600, Df, D500, D300s, D300, D7500, D7200, D7100, D7000, D5600, D5500, D5200, D3400, D3200, Z7, Z6

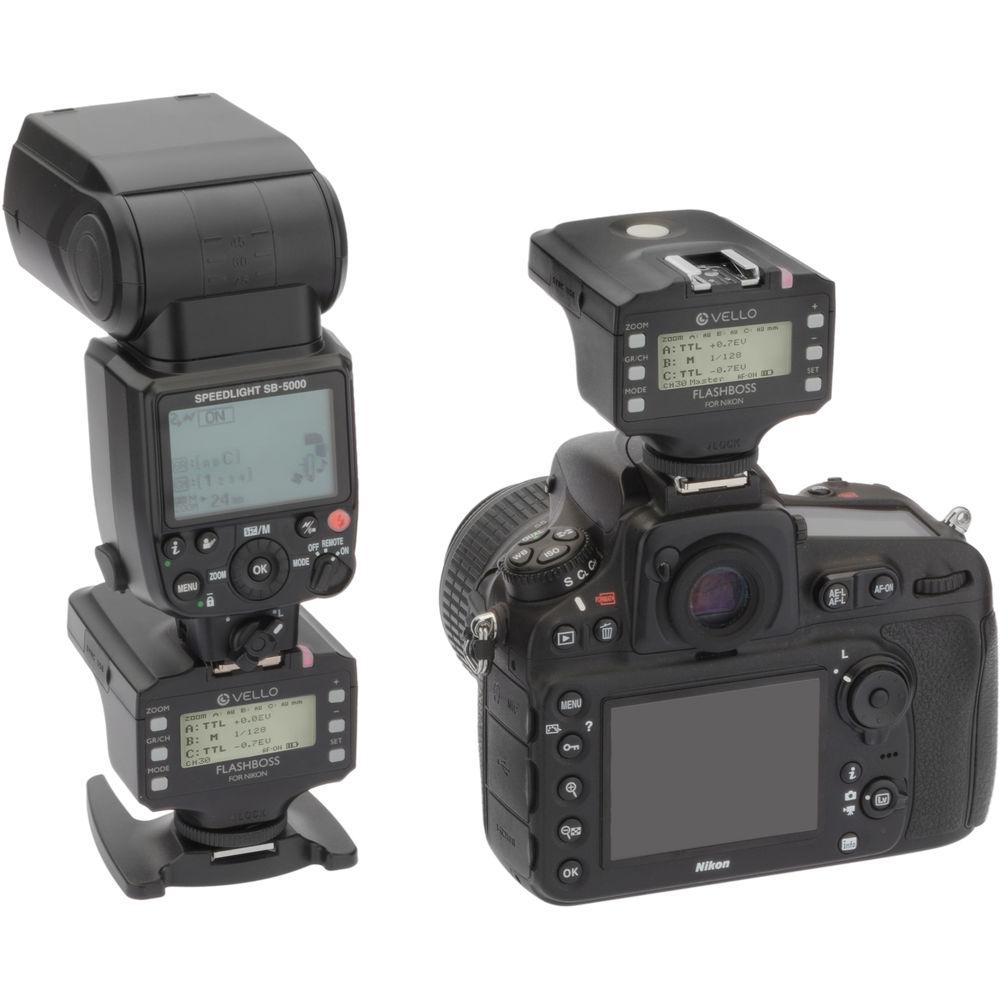

Features - The FlashBoss mounts directly to a camera's hot shoe and features a top hot shoe with pass-through capabilities for attaching an on-camera flash.
- A 2.4 GHz frequency and access to 30 channels, as well as one auto channel, provide a maximum range of 328' while ensuring minimal interference from nearby equipment.
- When set up as a transmitter, users will be able to control all settings and receivers from a FlashBoss mounted to the camera, and transmit it to FlashBoss connected to a flash unit. This includes TTL modes with exposure compensation of -3 to 3 EV in 1/3-stop increments, a manual mode with control from 1/1 to 1/128 power in 1/3-stop increments, and a Delayed Time (DT) setting for adjusting delay from 0-5 seconds in 1/10-second increments. Other settings include the ability to set flash coverage, or zoom.
- When set as a receiver, or slave, the FlashBoss can be configured to sync and receive signals from a master unit on the same channel. Also, when using an optional shutter release cable a camera can be connected for remote triggering.
- First-curtain sync and high-speed sync at up to 1/8000 second are available.

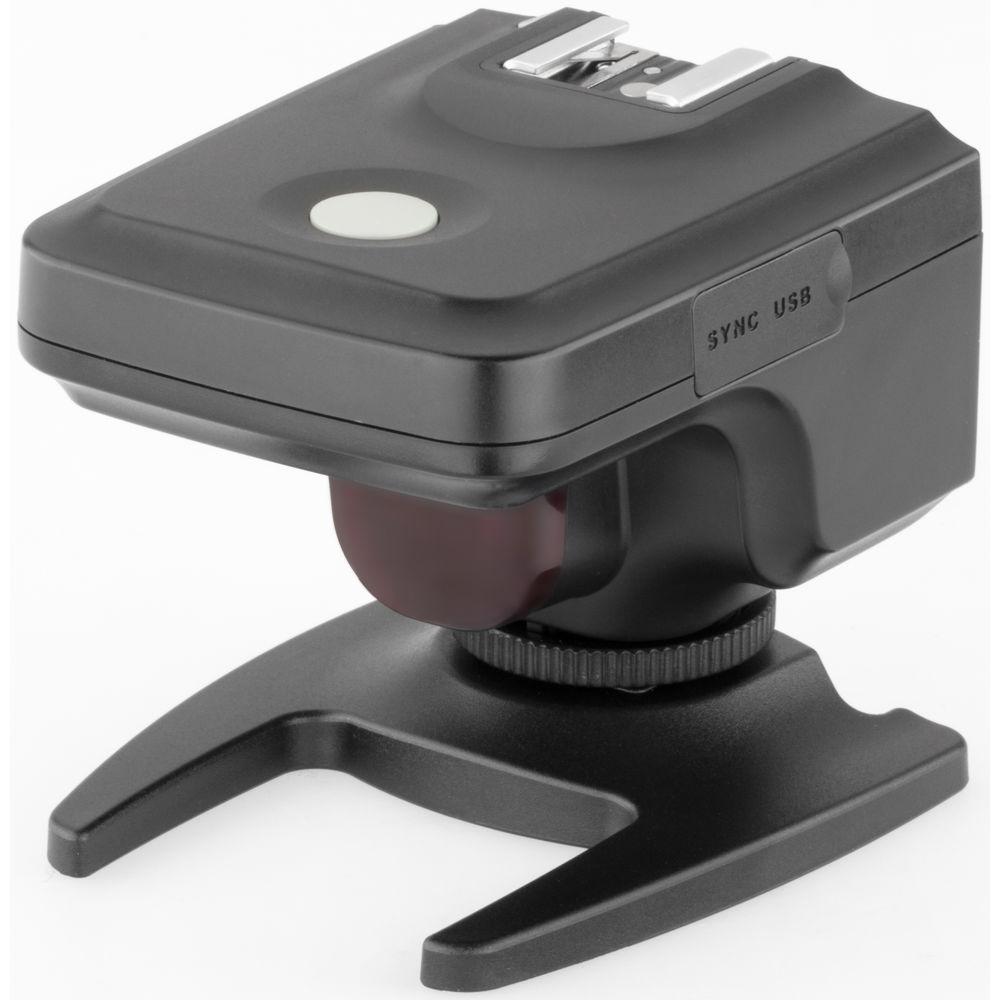

- A threaded PC sync terminal is available for using studio strobes.
- The FlashBoss runs on two AA batteries which will run for approximately 120 hours.
UPC: 847628002746 In the Box Vello FlashBoss TTL Transceiver for Nikon Mini Stand Limited 1-Year Warranty Guides & Manuals fwtyqrtyvvfzbvvubzevqxusbftxerd Table of Contents
|
Upload User Manual
Have you got an user manual for the Vello FlashBoss TTL Transceiver for Nikon in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the Vello FlashBoss TTL Transceiver for Nikon can be downloaded in PDF format at the link stated below.
Technical parametersVello FlashBoss Specs | | | Channels | 30 (Normal)
1 (Auto) | | Groups | 3 | | Wireless Range | 328' / 100 m | | Radio Frequency | 2.4 GHz | | | | Control Modes | Delay, Manual, i-TTL, TTL | | EV Range |
