User Manual for Vello FreeWave Aviator Wireless Flash Trigger Transceiver for Select Canon Click to enlarge the picture
Contents of the user manual for the Vello FreeWave Aviator Wireless Flash Trigger
- Product category: Radio & Infrared Transmitters Vello
- Brand: Vello
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Vello Radio & Infrared Transmitters
 |
User manual for the Vello FreeWave Aviator Wireless Flash Trigger contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Vello product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Vello user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Vello product will considerably shorten its lifespan!
|
Product description Quick Look: Vello FreeWave Aviator Read More - Vello FreeWave Aviator: Quck Look

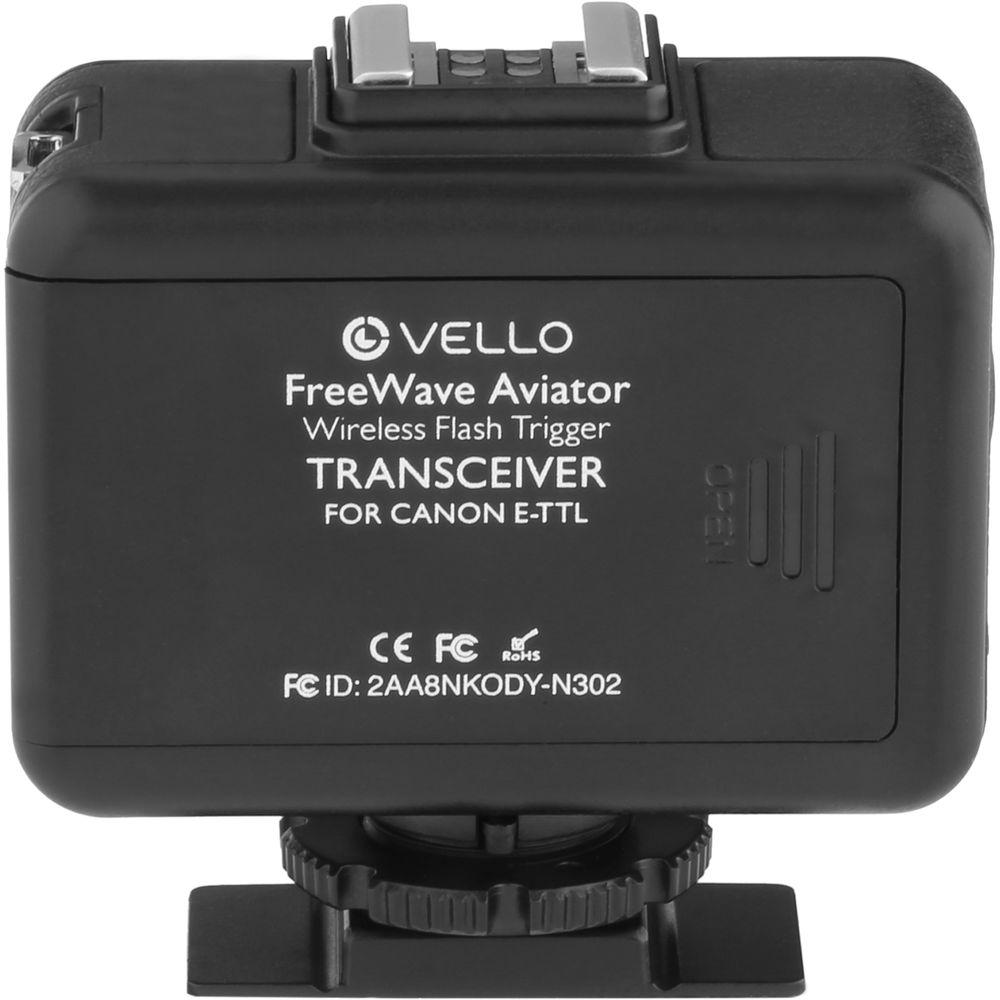

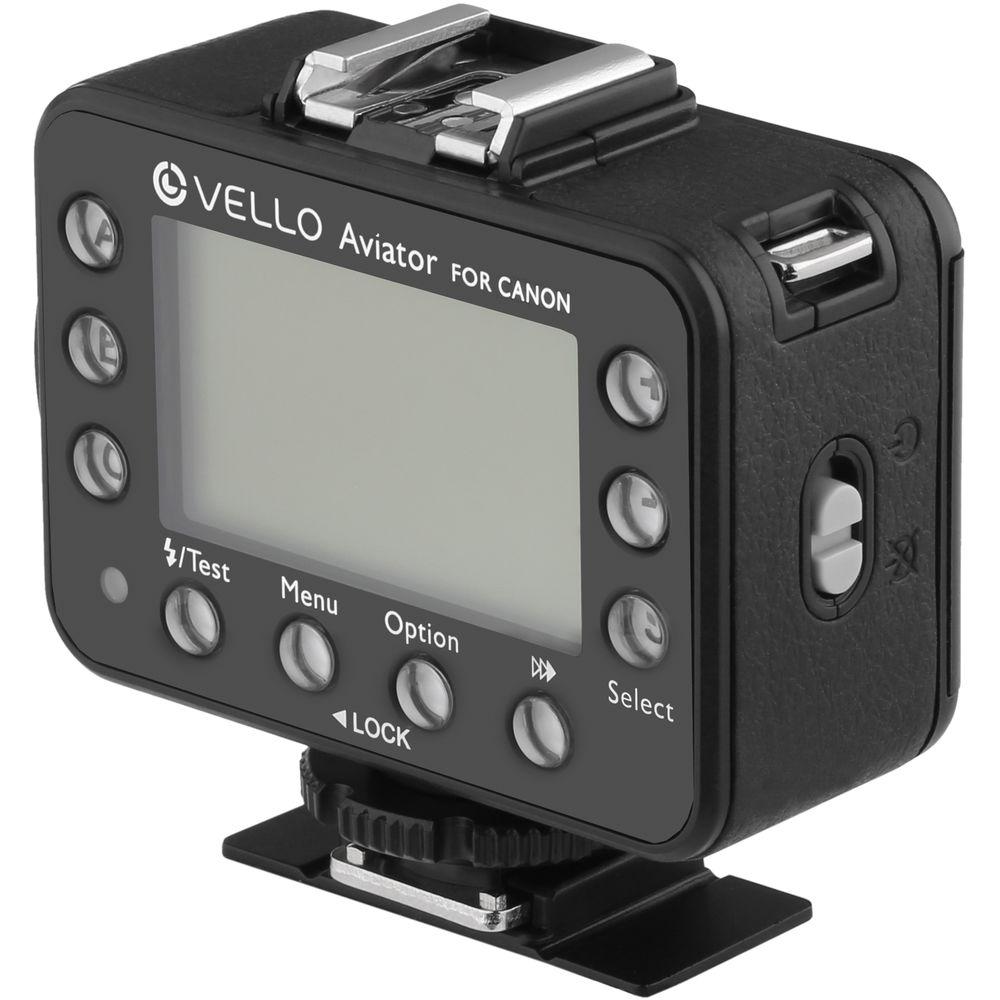

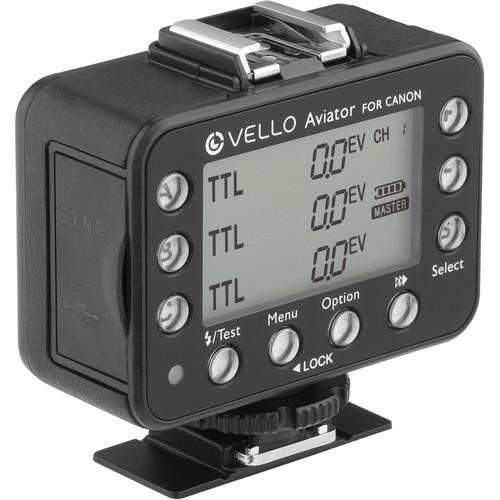

Create beautiful lighting and take advantage of your shoe-mounted flash's true potential with the FreeWave Aviator Wireless Flash Trigger Transceiver from Vello. Dedicated to Canon's E-TTL II system, users will have full functionality with modern automatic flash settings. This transceiver is also able to function as either a master transmitter/trigger or a slave receiver for maximum versatility. Operation is reliable as well due to the Aviator's use of a 2.4 GHz radio frequency to provide a range of up to 300' without the need for line-of-sight.
The Aviator Transceiver has access to 16 different channels, ensuring limited interference with other users and the wireless technology set up in your venue. Users will also have access to 3 different groups with which to organize their flashes (A, B, C). The group controls of the Aviator allow for separate adjustment of the flashes in either TTL or manual modes as well as the ability to set group ratios in A:B or A:BC configurations.

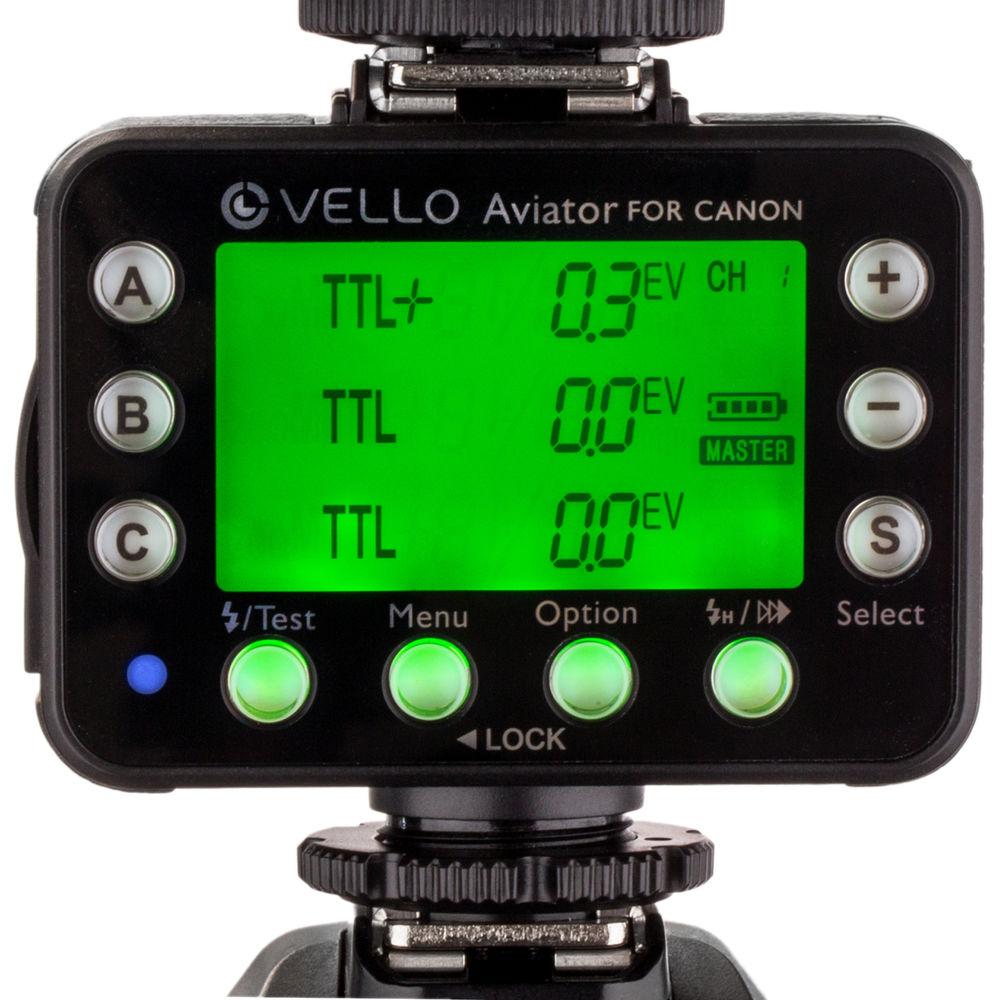

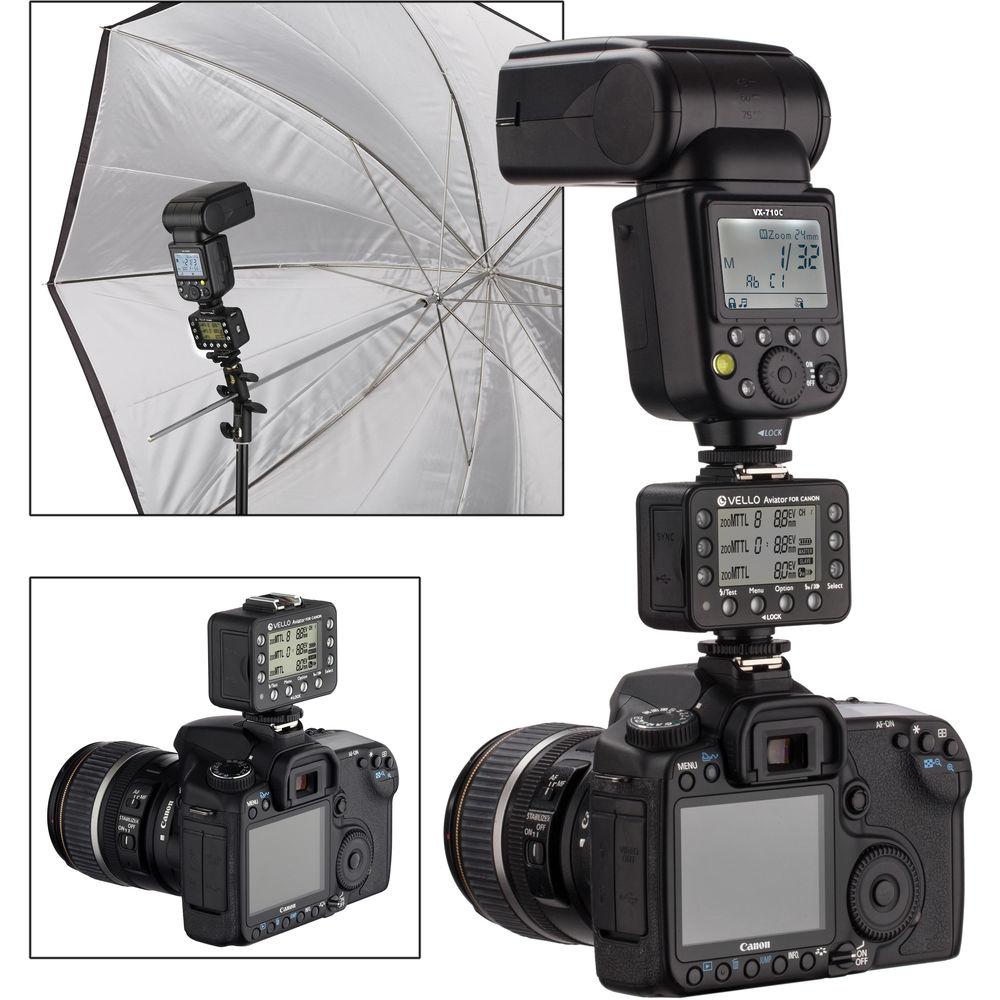

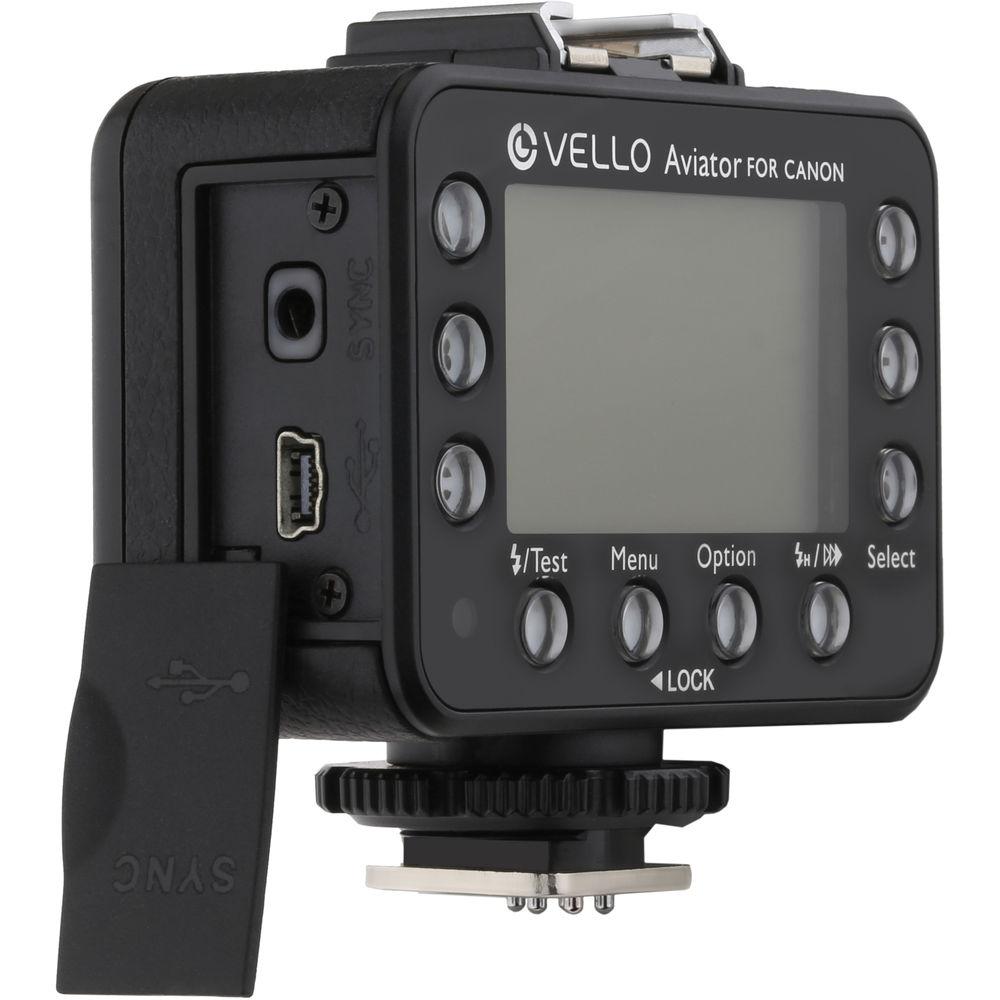

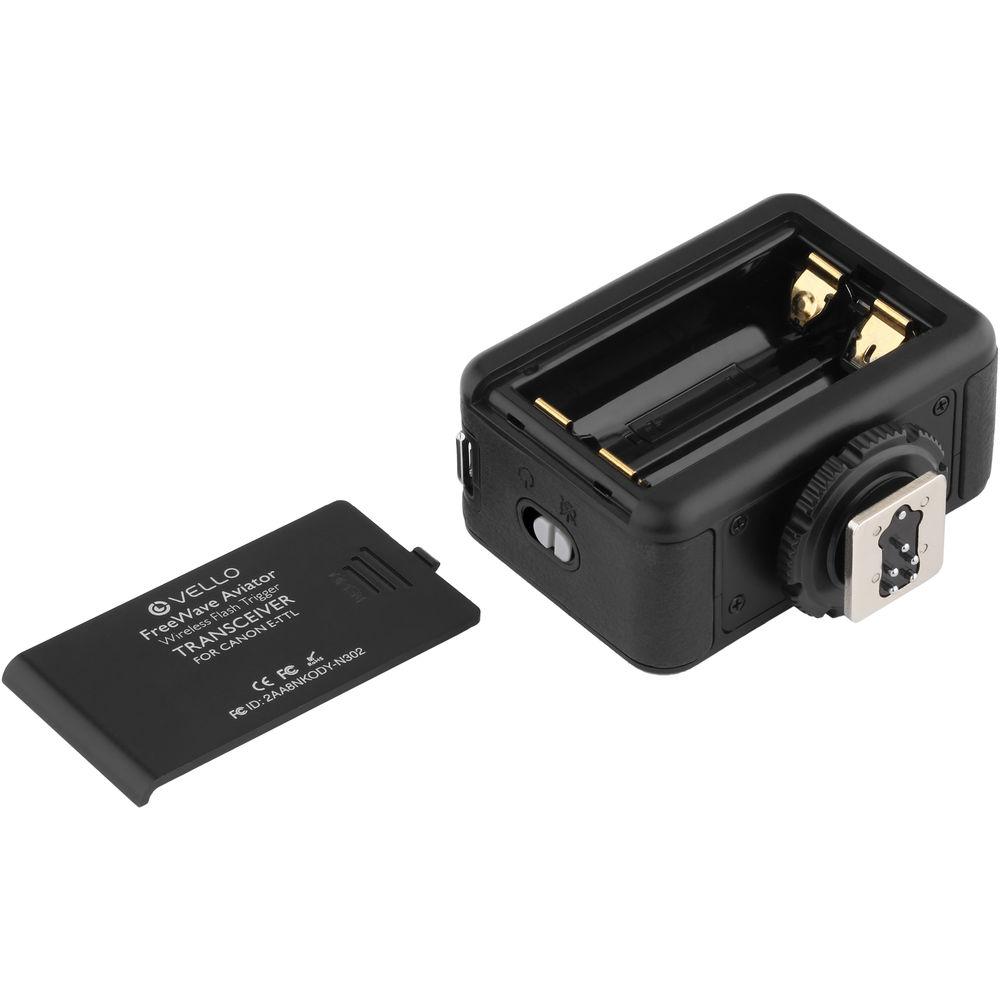

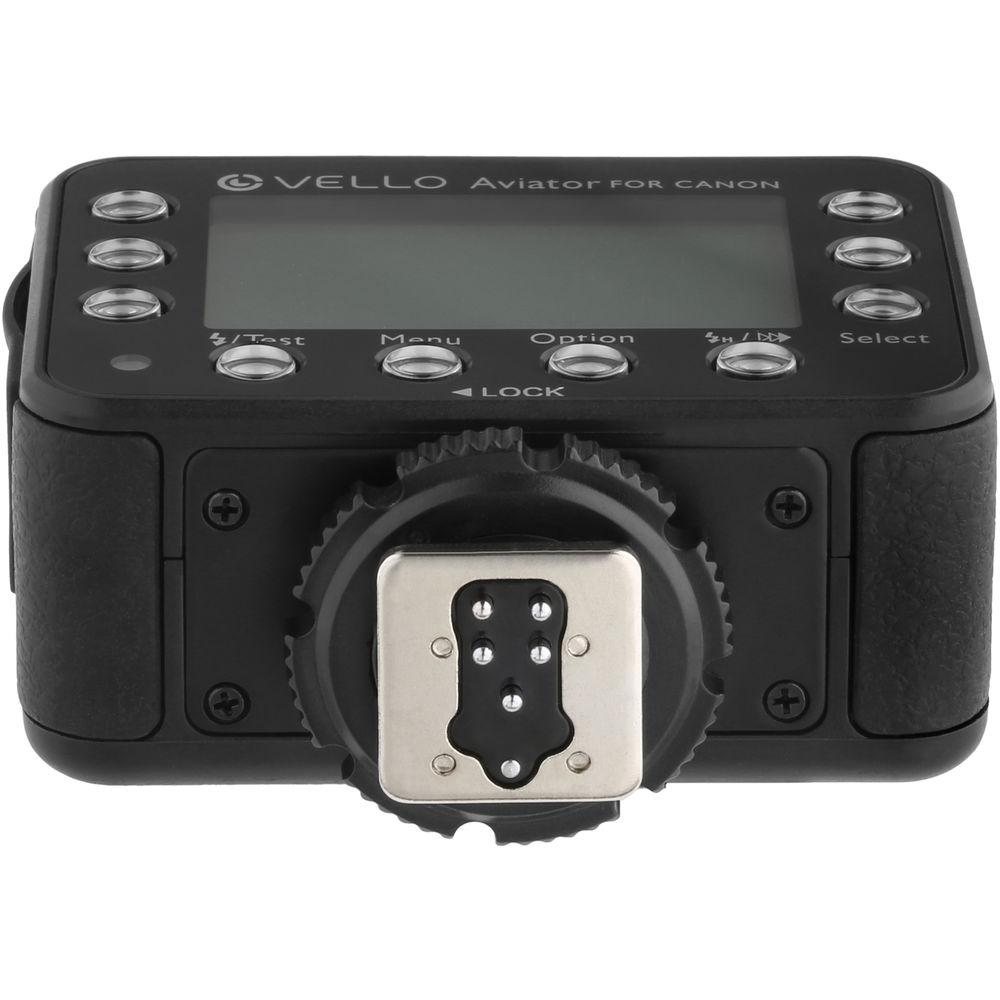

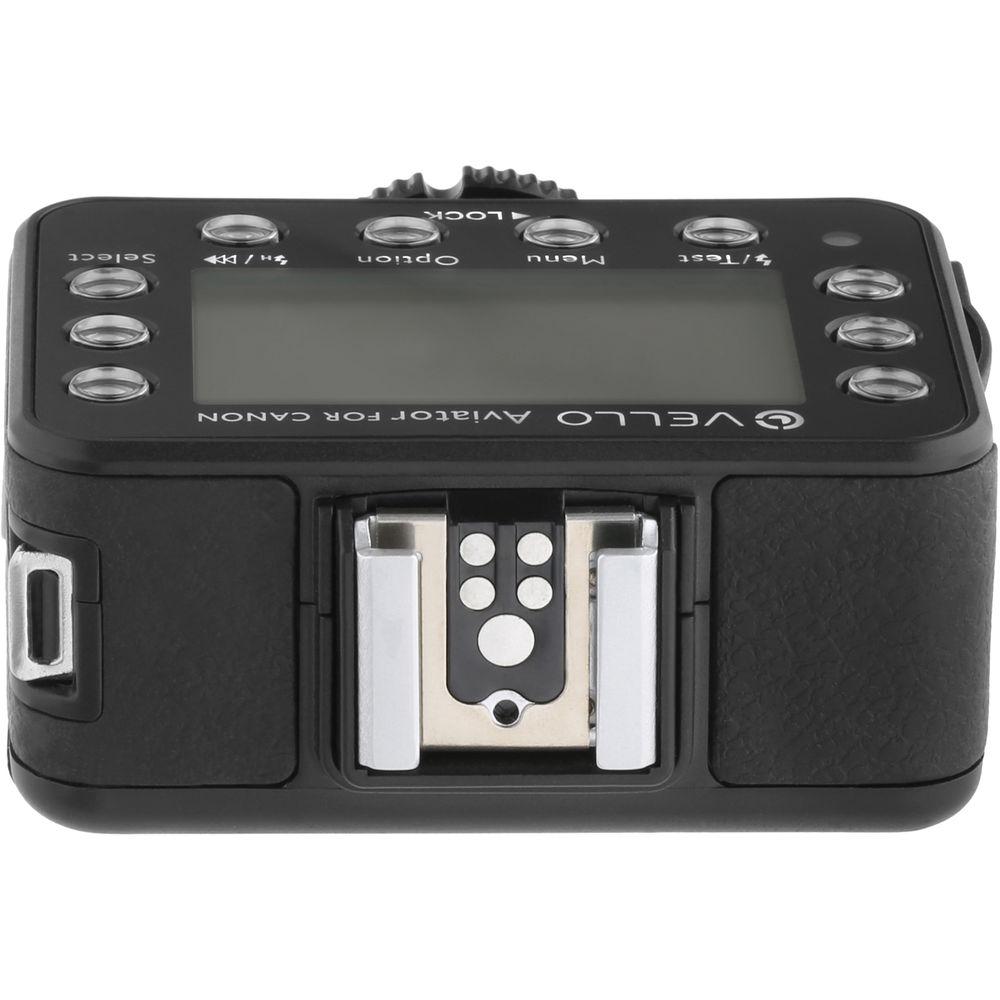

Setting up the Aviator is simple as it easily slides into your camera's hot shoe to receive TTL information and also offers top hot shoe for adding another flash to the mix. For ease of use, all information is accessible via a backlit LCD screen and it has a standard 3.5mm sync port. Also, it has high-speed sync and a mini-USB port for firmware updates. It runs on two AA batteries. Note: Only flash units using E-TTL II are compatible; older flash units using E-TTL (original ver.) are not supported in TTL mode - Tested with: EOS Rebel T5, T6s, SL1, 5D Mark II, 5D Mark III, 5D Mark IV, 6D, 7D, 60D, 70D & 80D
- Compatible with Canon E-TTL II wireless communication and technology
- Offers TTL and manual control over remote flash units
- 2.4 GHz radio frequency has a long range of 300'
- 16 channels are available to avoid interference with other systems
- 3 groups (A, B, C) can be used to organize and control different flashes with individual settings
- Can be set up as a master transmitter or a slave receiver
- High-speed sync allows for flash sync at shutter speeds up to 1/8000 second
- Top hot shoe allows user to add an on-camera flash to their setup, which will be calculated as part of the overall exposure with other connected TTL flashes

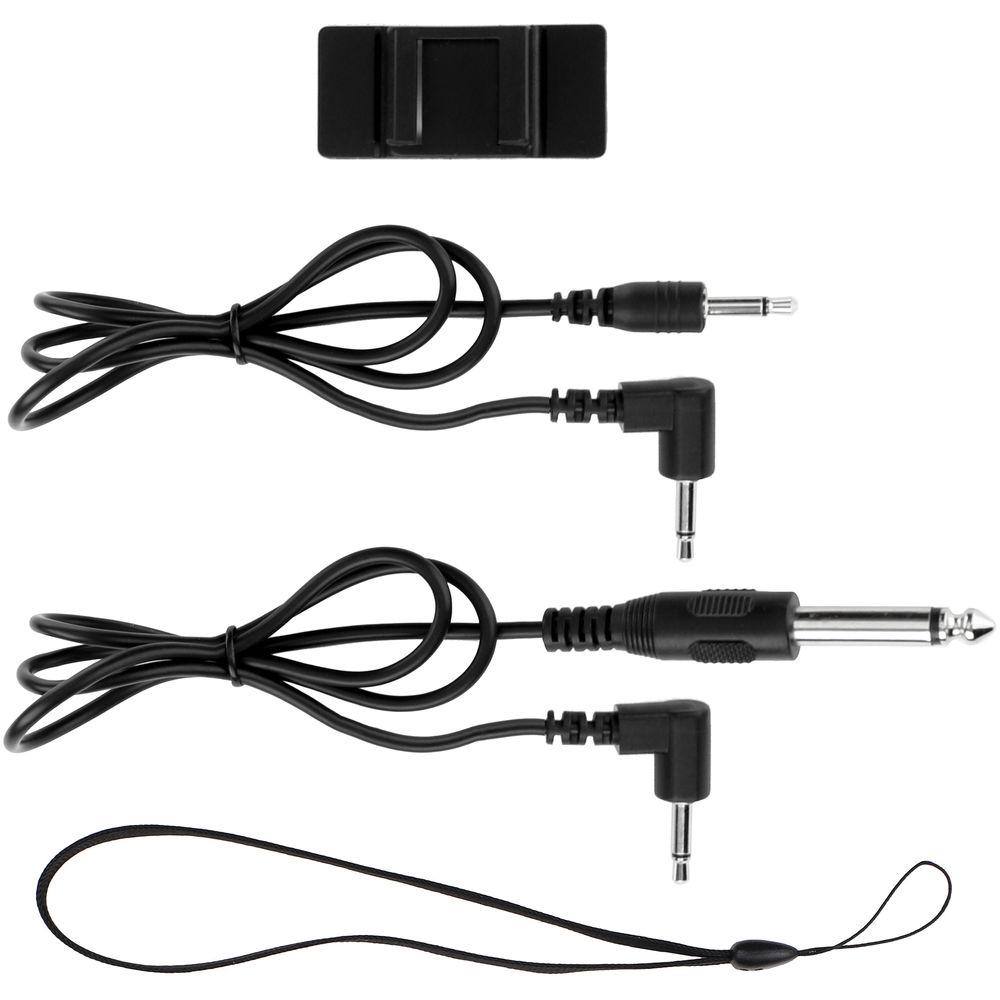

UPC: 847628545465 In the Box Vello FreeWave Aviator Wireless Flash Trigger Transceiver for Select Canon Lanyard 3.5mm to 3.5mm Cable 3.5mm to 1/4" Mono-Plug Cable Hot Shoe Protector 2 x AA Batteries Limited 1-Year Warranty User Manual PDF 2.1mbxcdbfdstew Table of Contents
|
Upload User Manual
Have you got an user manual for the Vello FreeWave Aviator Wireless Flash Trigger Transceiver for Select Canon in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVello FTA-TTL-C Specs | | | Channels | 16 | | Groups | 3 (A, B, C) | | Wireless Range | 300' / 91.4 m | | Radio Frequency | 2.4 GHz | | | | Control Modes | TTL | | EV Range |
Rating86% users recommend this product to others. And what about you?
This product has already been rated by 54 owners. Add your rating and experience with the product.
