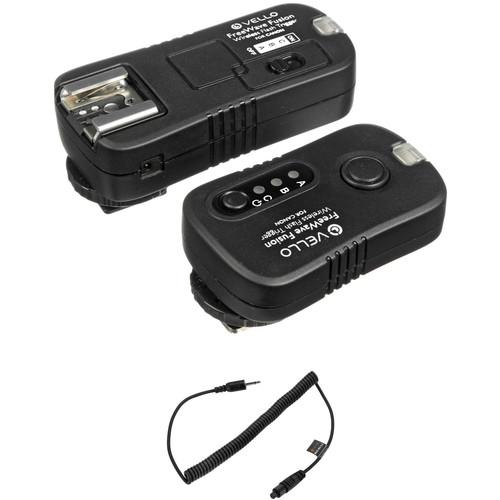

User Manual for Vello FreeWave Fusion Wireless Remote Flash Trigger Kit Click to enlarge the picture
Contents of the user manual for the Vello FreeWave Fusion Wireless Remote Flash
- Product category: Radio & Infrared Transmitters Vello
- Brand: Vello
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Vello Radio & Infrared Transmitters
|
User manual for the Vello FreeWave Fusion Wireless Remote Flash contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Vello product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Vello user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Vello product will considerably shorten its lifespan!
|
Product description The Vello FreeWave Fusion Wireless Remote Flash Trigger Kit (Canon/Olympus) from B&H Photo is a versatile, reliable remote control kit that will trigger off-camera flash units and studio lights from up to 300 feet away. It can be used to configure up to three different light groups, which can be triggered individually or simultaneously, for a total of seven different combinations, using its multiple groups feature. Simultaneous triggering of multiple light groups requires additional FreeWave Fusion Receivers (available separately). The FreeWave Fusion also provides the convenience of a wireless camera shutter release, ideal for photographing wildlife, and also for macro and close-up photos or long exposures, where the slightest camera movement can ruin a picture. Working on the 2.4GHz frequency gives you reduced radio interference and an extended range (up to 320' (100 m)) - you don't need to have line-of-sight alignment, either, as radio waves will pass through walls, windows and floors. The included cable releases are compatible with the following cameras:
Canon EOS: Elan series; 60D, Digital Rebel (300D), XT (350D), XTi (400D), XSi (450D), T1i (500D), T2i (550D), and XS (1000D); PowerShot G10, G11, G12 & G1 X
Contax: N, 645
Pentax:K100D, K110D, K200D, K10D, K20D; *istDS, DS2, DS, DL2, DL, and D
Samsung: GX-S1, GX-1L, GX-10, and GX-20
Olympus: E-1, E-3 & E-5 Note:
Since the FreeWave Fusion does not transmit TTL settings, use of a flash or light unit with full manual control is recommended. You will need to set the power output manually.
The FreeWave Fusion is compatible with most cameras, flash units and studio lights. However, for flash wake-up functionality and/or high shutter speeds, you will need full Canon TTL support via your camera, flash and FreeWave Fusion trigger. - Vello FreeWave Fusion Wireless Flash Trigger & Remote Control for Canon SLR
- Vello FreeWave Fusion Remotes
The FreeWave Fusion Wireless Flash Trigger & Remote Control from Vello is a versatile, reliable remote control kit that will trigger off-camera flash units and studio lights from up to 300 feet away. It can be used to configure up to three different light groups, which can be triggered individually or simultaneously, for a total of seven different combinations, using its multiple groups feature. Simultaneous triggering of multiple light groups requires additional FreeWave Fusion Receivers (available separately). The FreeWave Fusion also provides the convenience of a wireless camera shutter release, ideal for photographing wildlife, and also for macro and close-up photos or long exposures, where the slightest camera movement can ruin a picture. Working on the 2.4 GHz frequency gives you reduced radio interference and an extended range (up to 320' (100m))—you don't need to have line-of-sight alignment, either, as radio waves will pass through walls, windows and floors. Note:
Since the FreeWave Fusion does not transmit TTL settings, use of a flash or light unit with full manual control is recommended. You will need to set the power output manually.
The FreeWave Fusion is compatible with most cameras, flash units and studio lights. However, for flash wake-up functionality and/or high shutter speeds, you will need full Canon TTL support via your camera, flash and FreeWave Fusion trigger.
This remote does not provide high-voltage sync protection, and is not recommended for use with flash units that have a trigger voltage of more than 6V. - 2.4GHz Radio Frequency
- Reduced interference and improved wireless signal quality.
- Extended Range
- Range of up to 320' (100m)
- Multi-Purpose
- Use as an individual or group wireless flash trigger, and/or as a shutter release remote trigger.
- Multiple Groups
- Configure up to three different light groups and up to seven different group combinations.
- Flash Sync Speed of Up to 1/320s
- Take advantage of sync speeds that match the rating of your camera all the way up to 1/320s (on compatible cameras only).
- Flash Wake-Up
- Simply depress the trigger button on the transmitter half-way to pull the flash out of "sleep-mode". Sleep mode allows the flash to power down in between shooting sessions to extend battery life. The wake-up function is only available when used as part of a complete Canon TTL system.
Note! If your flash does not have a wake-up function, you may be able to turn off sleep mode. Refer to your flash's manual for instructions. - Versatile
- One receiver works with multiple camera and light models. Just swap out the connecting cables.
- Dual-Function Shutter Release Button
- Press halfway to focus; press fully to trigger shutter.
- LED Indicators
- Confirm pre-focus, shutter release, flash wake-up, and flash trigger in wireless mode.
- Included Shutter Release Cables Support:
- Canon EOS: Elan series, Digital Rebel (300D), XT (350D), XTi (400D), XSi (450D), T1i (500D), T2i (550D), T3 (1100D), T3i (600D), T4i (650D), T5 (1200D), T5i (700D), T6i (750D), T6s (760D), SL1 (100D) and XS (1000D), 60D & 70D
10D, 20D, 30D, 40D, 50D, 5D, 5D Mark II, 5D Mark III, 6D, 7D, 7D Mark II, 1D, 1D Mark II, 1D Mark II N, 1D Mark III, 1D Mark IV, 1Ds, 1Ds Mark II, 1Ds Mark III, 1D X and 1D C
PowerShot G10, G11, G12, G15, G16 & G1 X; SX50, SX60
Contax: N and 645
Hasselblad: H series
Pentax: K10D, K20D, K100D, K110D, K200D, K-3, K-5, K-5 II, K-7, K30, K-50, K-500, *istDS, DS2, DS, DL2, DL, and D
Samsung: NX10 & NX100; GX-1S, GX-1L, GX-10 & GX-20
Sigma: SD1, SD9, SD10, SD14 & SD15 - Optional shutter release cables are available to make the remote control function compatible with other brand camera models
UPC: 847628029392 - Vello 2.5mm Remote Shutter Release Cable for Olympus E-1, E-3, and E-5
- Vello FreeWave Fusion Remotes
This Vello 2.5mm Remote Shutter Release Cable is a coiled cable for connecting a Vello remote shutter release receiver or other remote receiver with a 2.5mm jack to select Olympus cameras. - Compatibility
- Olympus: E-1, E-3, and E-5
UPC: 847628582293 In the Box - FreeWave Fusion Wireless Flash Trigger & Remote Control for Canon SLR ydfffbwuuedddecrbzafdsvc
- Wireless Transmitter
- FreeWave Fusion Receiver Only (For Canon)
- 2.5mm Remote Shutter Release Cable for Select Canon, Pentax, Samsung Cameras
- 2.5mm Shutter Release Cable for Canon Cameras with 3-Pin Connection
- Studio Trigger Cable (2.5mm Sub-Mini to 3.5mm Mini)
- Studio Trigger Adapter Cable (2.5mm Sub-Mini to 1/4" Phono)
- 2 x AAA Batteries
- CR2032 3v Lithium Battery
- Limited 1-Year Warranty
- 2.5mm Remote Shutter Release Cable for Olympus E-1, E-3, and E-5
Table of Contents
|
Upload User Manual
Have you got an user manual for the Vello FreeWave Fusion Wireless Remote Flash Trigger Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Vello FreeWave Fusion Wireless Flash Trigger & Remote Control for Canon SLR
| | | Channels | 3 | | Wireless Range | 328' / 100 m | | Radio Frequency | 2.4 GHz | | | | Battery Type | 2 x AAA
1 x CR2032 | | | | Box Dimensions (LxWxH) | 7.5 x 3.9 x 1.5" | - Vello 2.5mm Remote Shutter Release Cable for Olympus E-1, E-3, and E-5
| Length | Coiled: Approximately 16" / 40.6 cm
Stretched: Approximately 36" / 91.4 cm | | Connections | 2.5 mm jack to select Olympus cameras | | | | Box Dimensions (LxWxH) | 5.0 x 3.0 x 1.0" |
