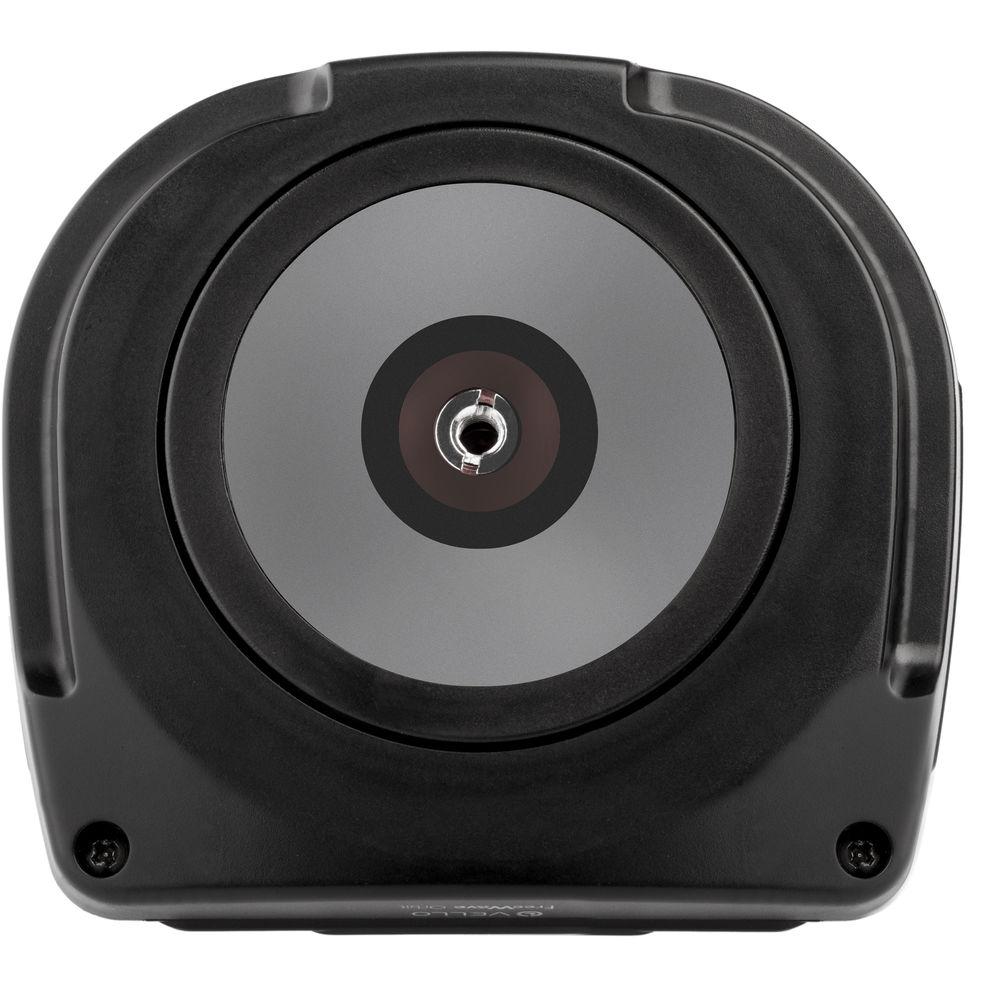

Product description Time-Lapse Tips and Tools Read More The FreeWave Orbit from Vello is a programmable motorized pan head which allows the user to capture full 360° panoramic photographs or still or moving product photos.

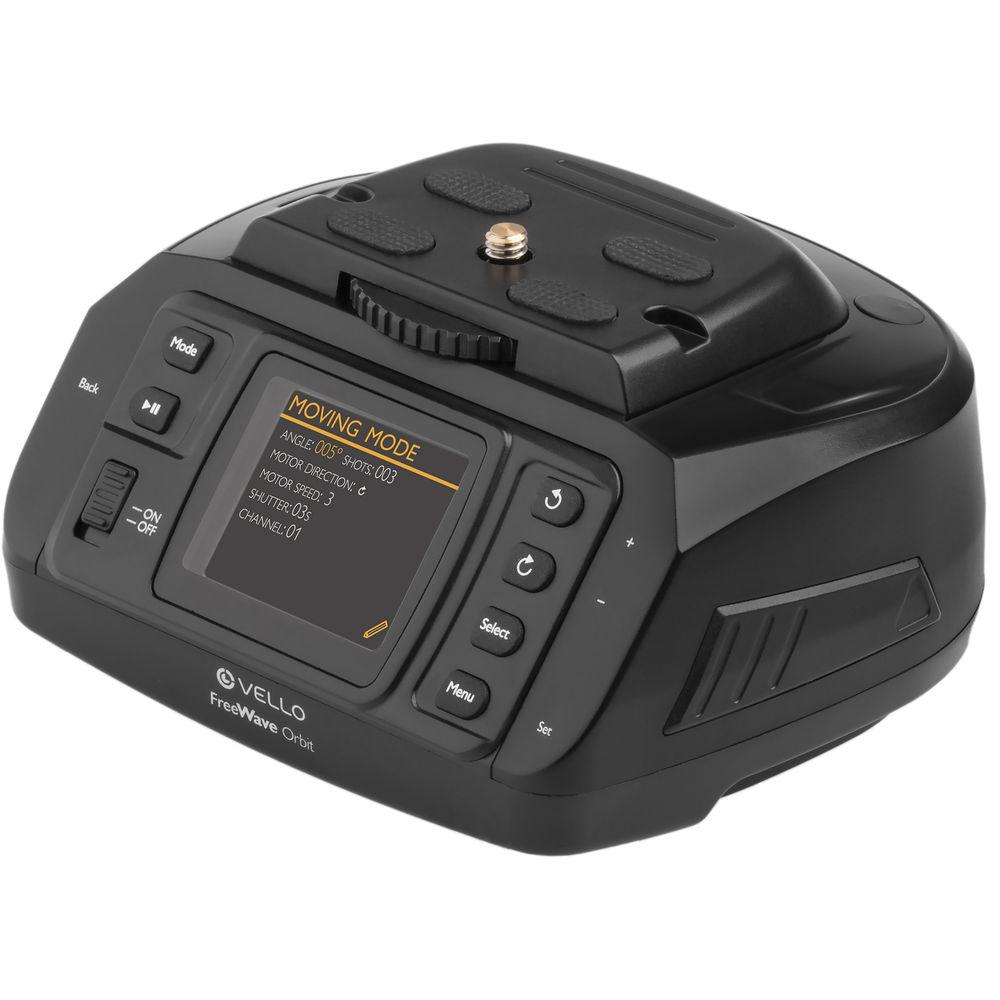

The Orbit is fully programmable allowing the user to determine the degree angle of rotation, the number of shots taken within that range, the panning speed, and the direction of capture for panoramic photos. Placement of the camera and head is entirely your choice, as the head may be mounted on top of a tripod via the integrated 3/8"-16 female thread or seated on a flat surface using the anti-slip bottom pad.
An ideal tool for the budding 360° panoramic or VR photographer, the Orbit is capable of automatically producing batches of images which may be easily combined to form traditional or interactive media. Operating as a panoramic head and trigger, the Orbit can be programmed to make linear adjustments in up to 360° patterns while automatically triggering the shutter every time the camera pauses. These images can then be stitched together to form multi-image panoramas or immersive 360° virtual tours. Additionally, this function may be used with the optional product plate to create interactive, rotating product tours.

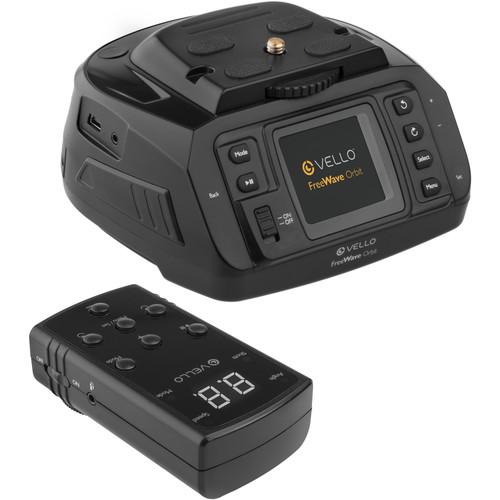

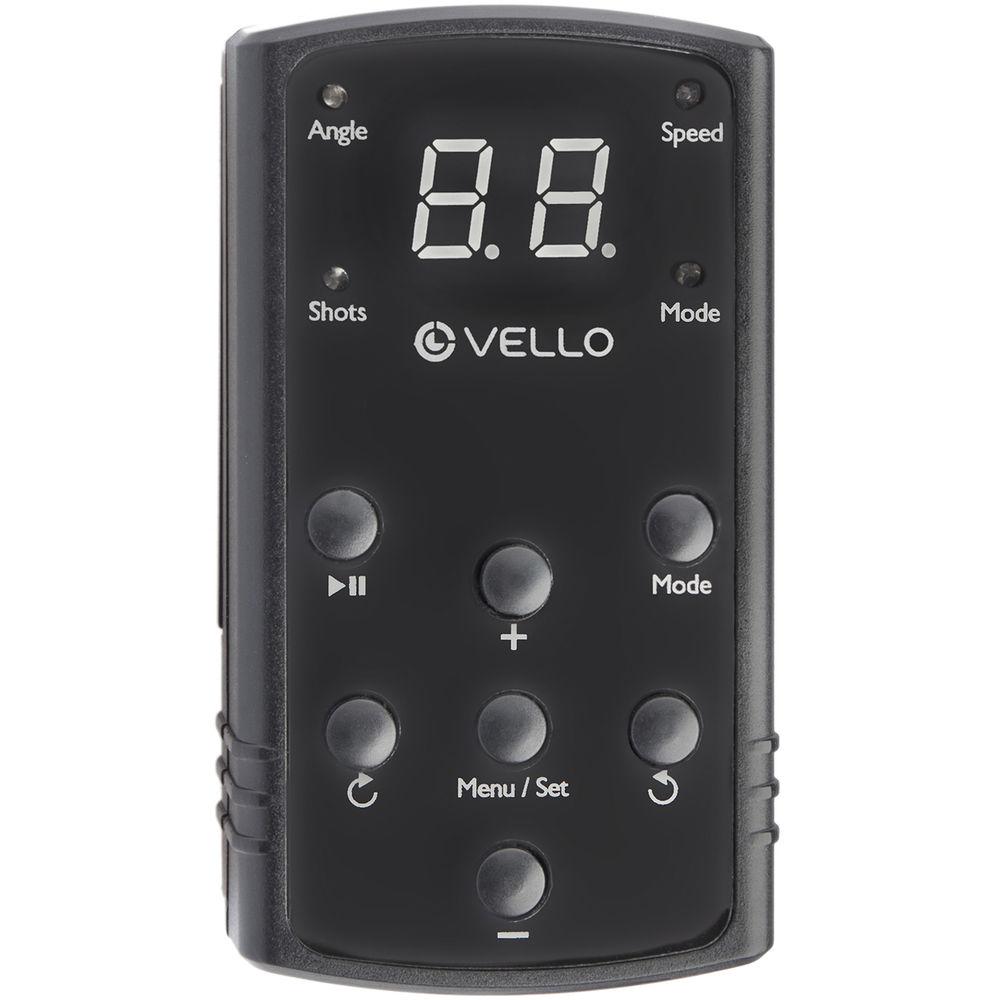

Included with the Orbit is a 2.4 GHz wireless remote capable of communicating with the head from up to 100' away. Programmable to one of 16 available channels, the user can prevent troublesome radio interference with other electronics or use two Orbit heads in close proximity without issue.

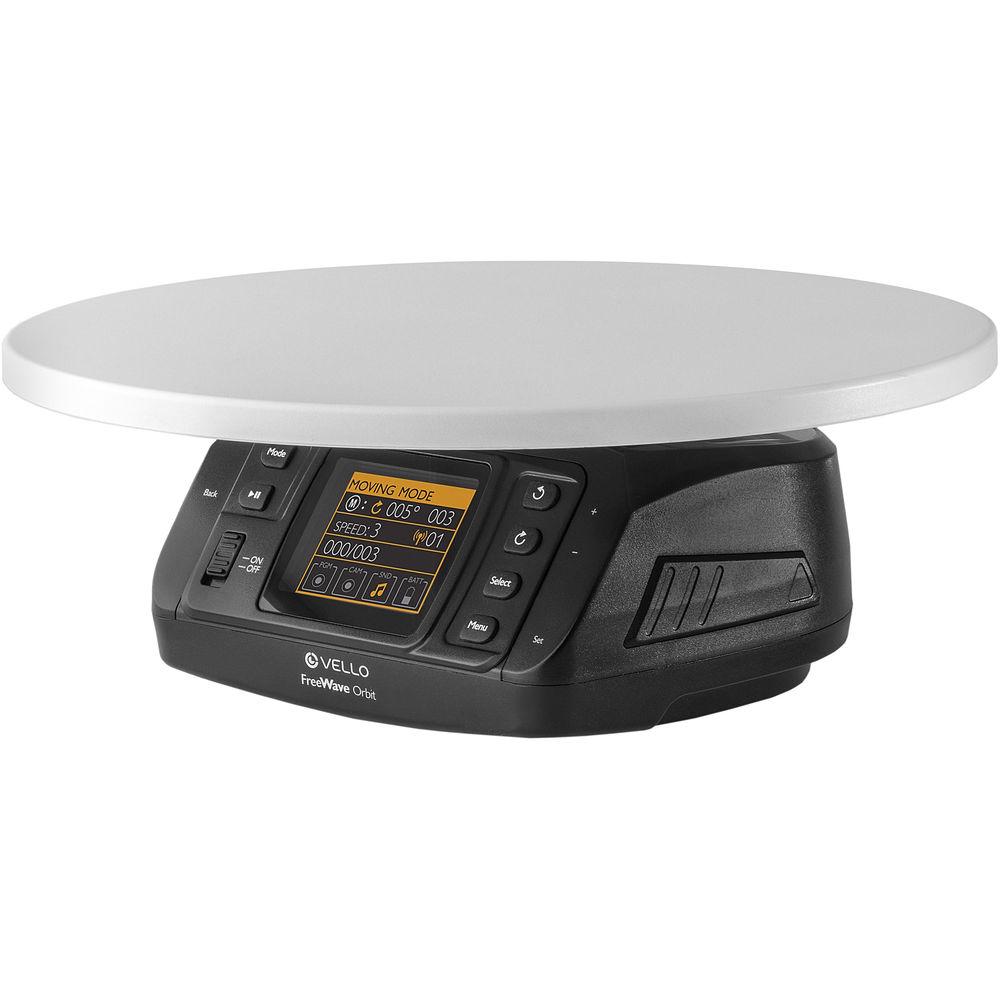

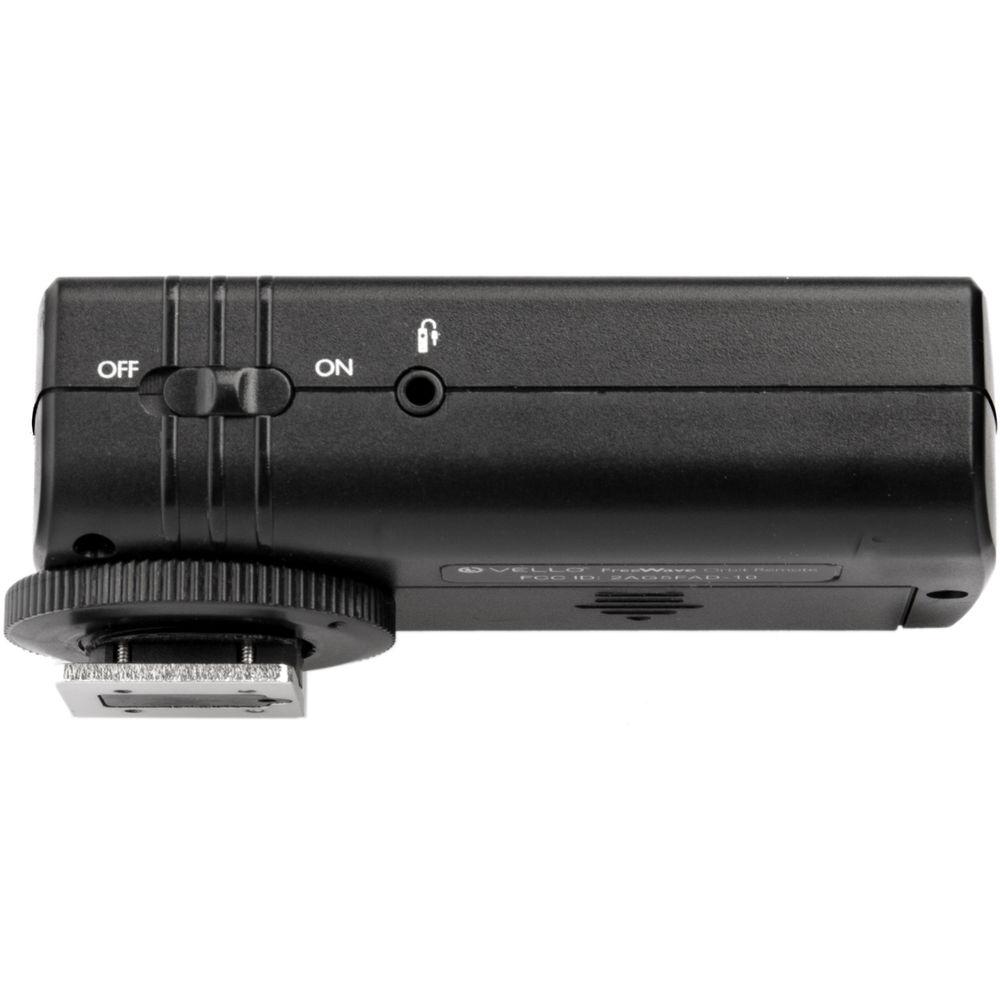

The remote may also be used atop the camera as a camera control unit, capable of triggering the camera's shutter when it is not placed on the Orbit head. Previously mentioned, a common use for this function would be 360° product photography with the optional 8" product plate—a rotating stage which can allow a camera in a fixed position to take multiple photos of a small object from up to 72 angles.

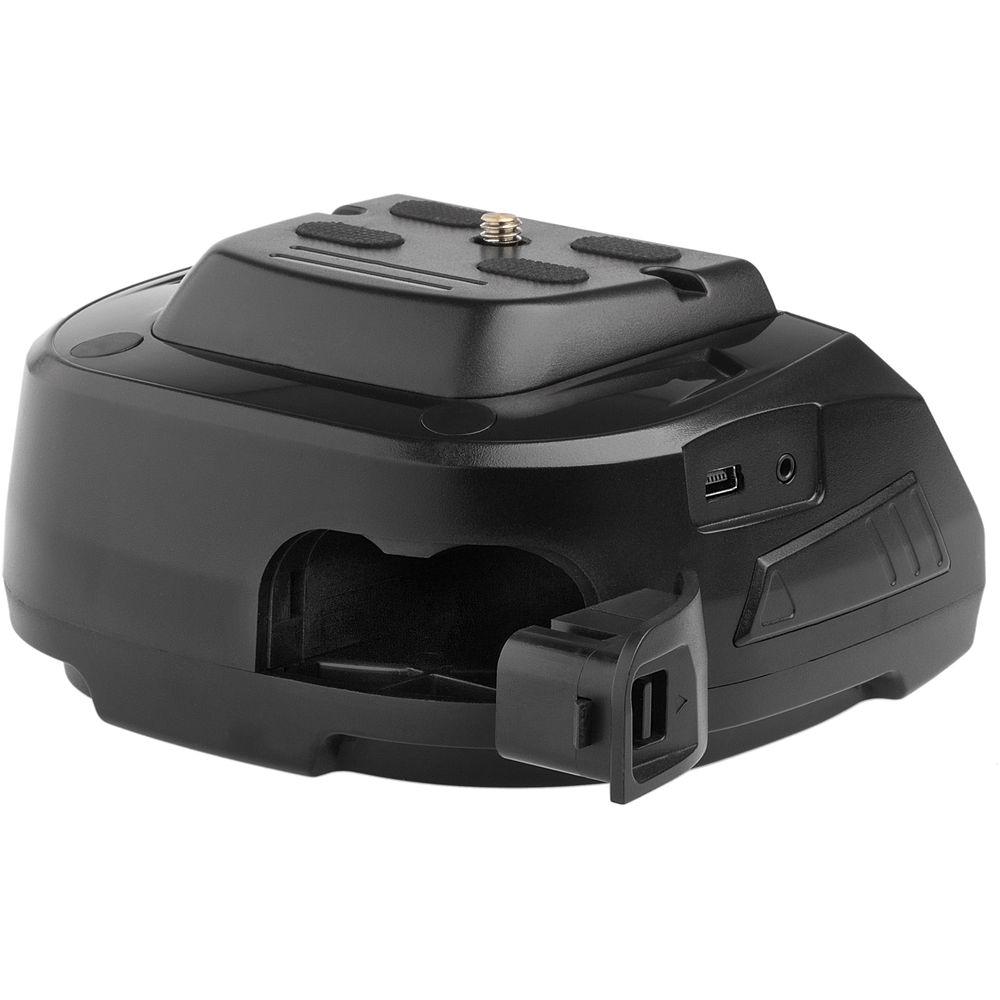

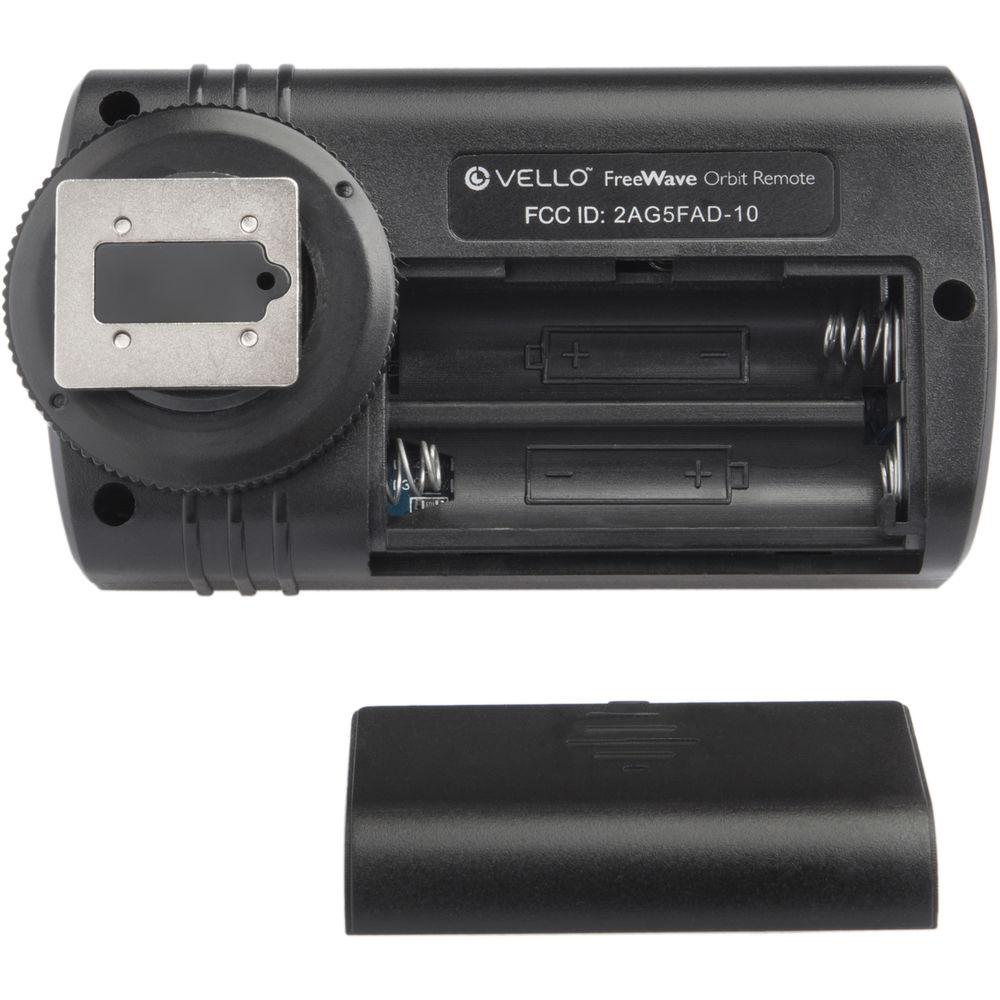

The Orbit head is powered by a rechargeable Nikon-type EN-EL3e lithium-ion battery and the remote is powered by two AAA batteries. - Shot Range
- Capable of taking 3, 4, 6, 8, 12, 24, 36, 45, 60, & 72 shots within one panoramic movement
- Panning Direction
- Pans clockwise or counter-clockwise
- Multi-Speed
- Three programmable speeds, 1-3 (from fastest to slowest)
- Long Exposure Control
- Control your shutter duration from 1 to 99 seconds per shot
- Wireless Versatility
- Select from 16 separate radio channels

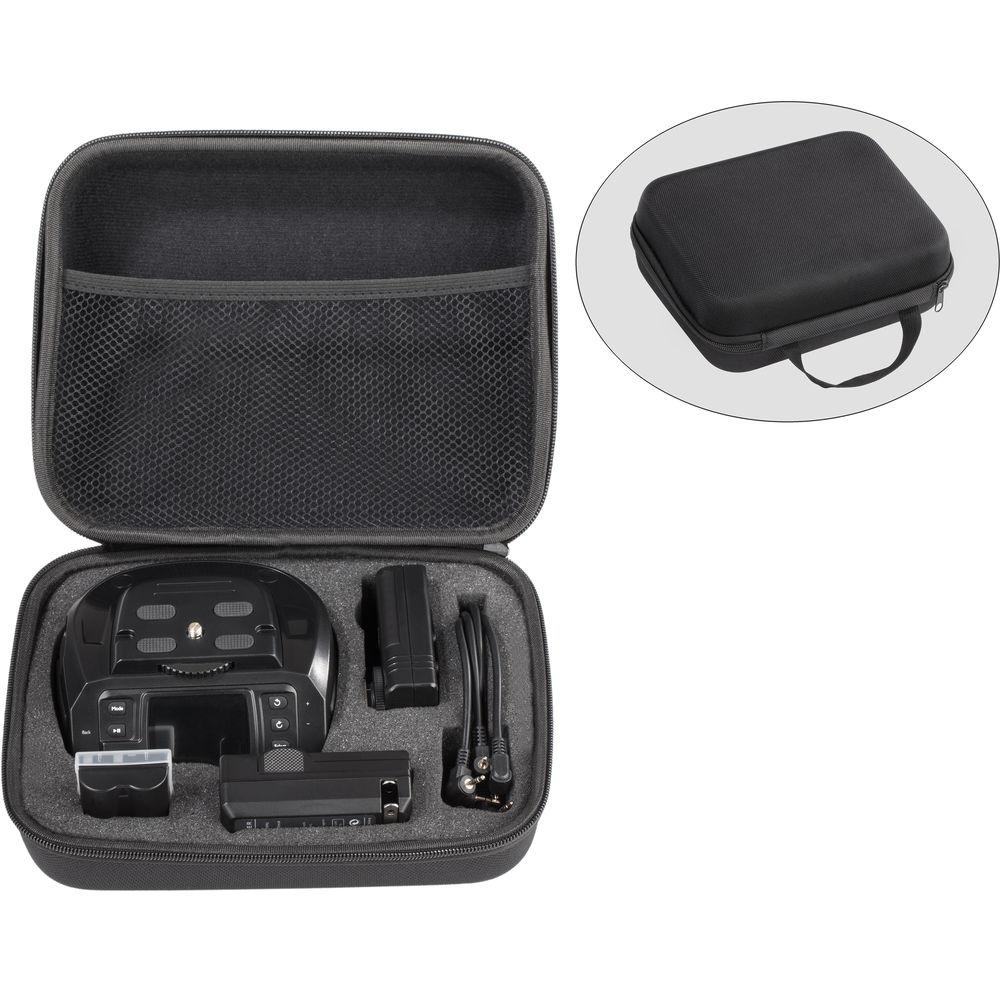

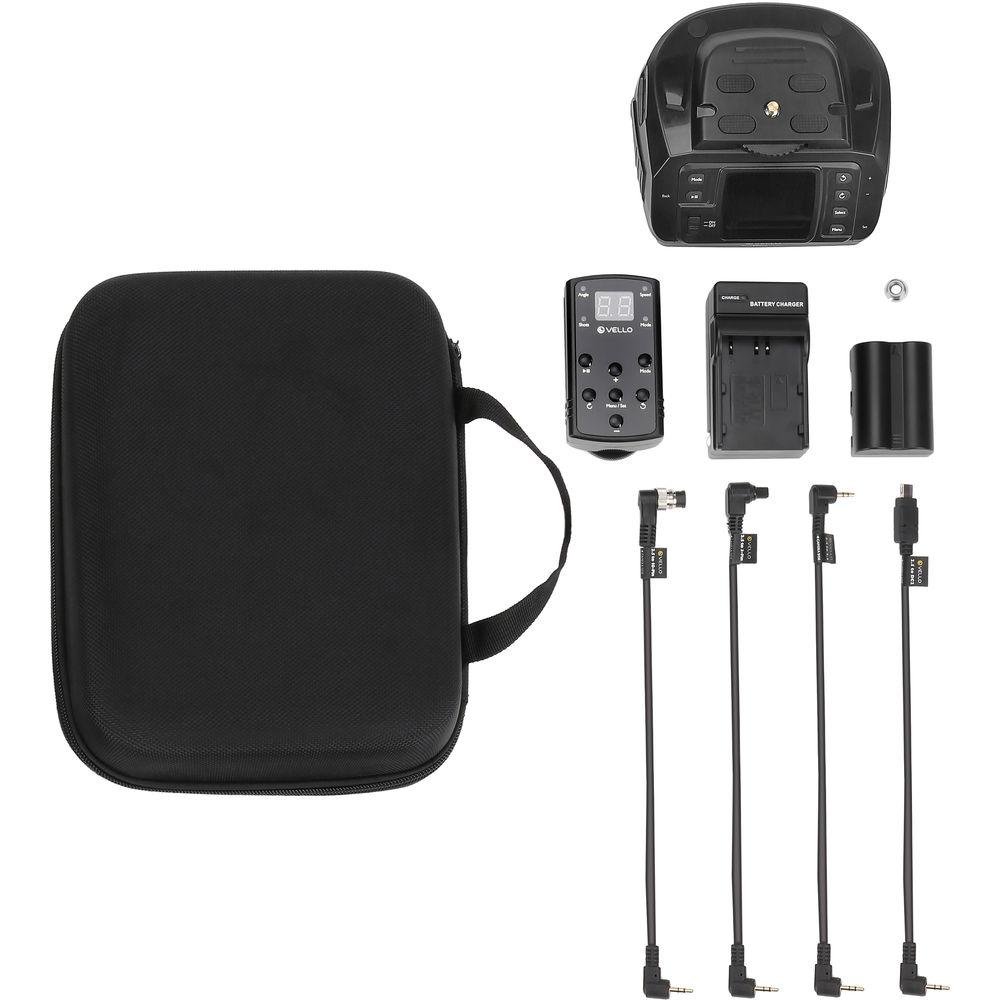

UPC: 847628594739 In the Box Vello FreeWave Orbit Motorized Pan Head with Remote Remote EN-EL3e Battery EN-EL3e Battery Charger Carrying Case 3/8"-16 to 1/4"-20 Reducer Bushing 2.5mm to Nikon 10-Pin Shutter Release Cable 2.5mm to 2.5mm Shutter Release Cable 2.5mm to Canon 3-Pin Shutter Release Cable 2.5mm to Nikon DC-2 Shutter Release Cable Limited 1-Year Warranty User Manual PDF 1.1mbtzuudzraaesdrfzdterzxffrffwcdurzf Table of Contents
|
Upload User Manual
Have you got an user manual for the Vello FreeWave Orbit Motorized Pan Head with Remote in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersVello MPH-100 Specs | Wireless Range | 100' (30.4 m) | | Maximum Load Capacity | 4 lb (1.8 kg) | | Tripod Mount Thread Size | 3/8"-16 or 1/4"-20 | | Camera Mount Thread Size | 1/4"-20 | | Ports | 2.5 mm trigger output
USB Mini-B (for firmware updates) | | Frequency | 2.4 GHz | | Wireless Channels | 16 | | Panning Speed | 3 speeds | | Number of Shots | 1-200 (1-99 with remote) | | Power Source | Head: EN-EL3e
Remote: 2 x AAA | | Dimensions | 5.1 x 2.6 x 4.7" (13.1 x 6.7 x 12 cm) | | Weight | 0.9 lb (408 g) | | | | Package Weight | 2.25 lb | | Box Dimensions (LxWxH) | 9.9 x 8.1 x 3.4" |
